Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260812T234002_cya04.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T234002_cya04.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feab85 16 ppm
Total Hardness #b87da9 326 ppm
Total Alkalinity #bac179 0 ppm
pH #ffbe98 7.1
Free Available Chlorine #fbc5d1 6 ppm


HTH 5-Way Download original

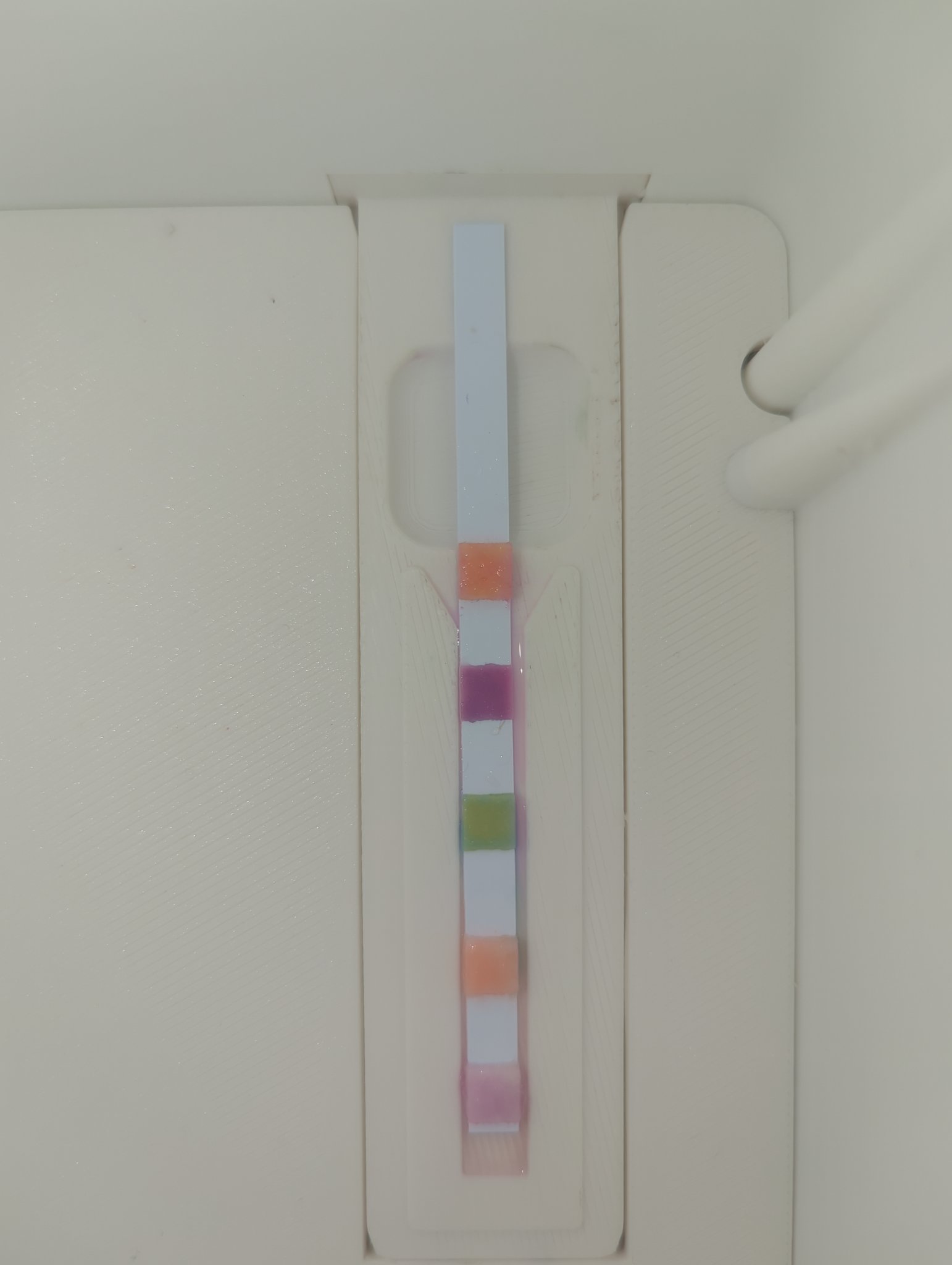

Original frame with sampling overlays for 20260812T233732_cya04.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T233732_cya04.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feae90 18 ppm
Total Hardness #c976a6 267 ppm
Total Alkalinity #c0c78d 0 ppm
pH #ffc6ac 7.1
Free Available Chlorine #fecbdc 5 ppm


HTH 5-Way Download original

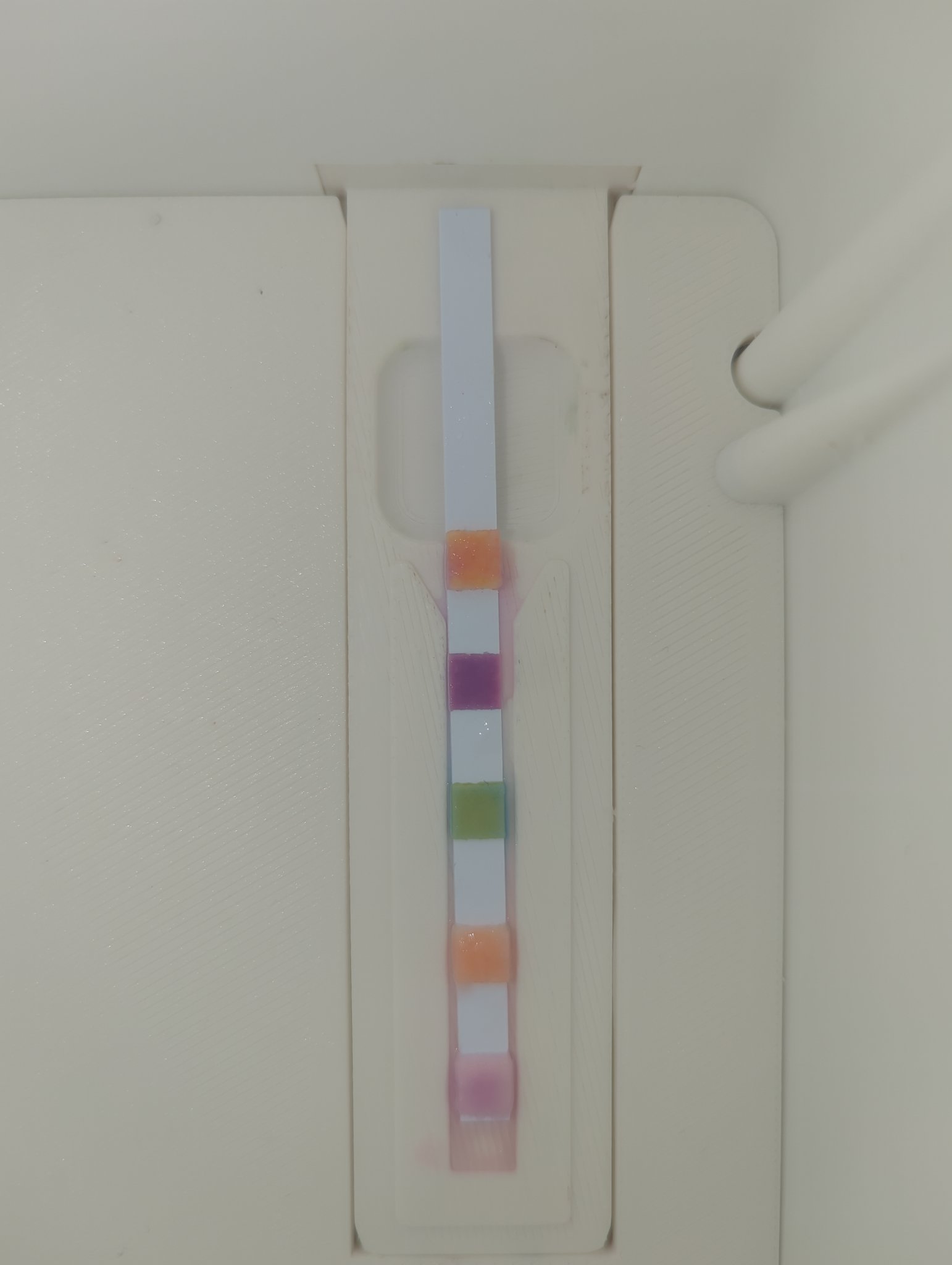

Original frame with sampling overlays for 20260812t233453_control.jpg
Original frame + sampling zones
Rectified strip preview for 20260812t233453_control.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdb591 14 ppm
Total Hardness #c48bb9 358 ppm
Total Alkalinity #aac28e 97 ppm
pH #ffc69e 7.0
Free Available Chlorine #fcc5db 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T033951_fcl20.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T033951_fcl20.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febe88 6 ppm
Total Hardness #b878a9 321 ppm
Total Alkalinity #86b9a9 146 ppm
pH #ffb9a6 7.3
Free Available Chlorine #efadc5 5 ppm


HTH 5-Way Download original

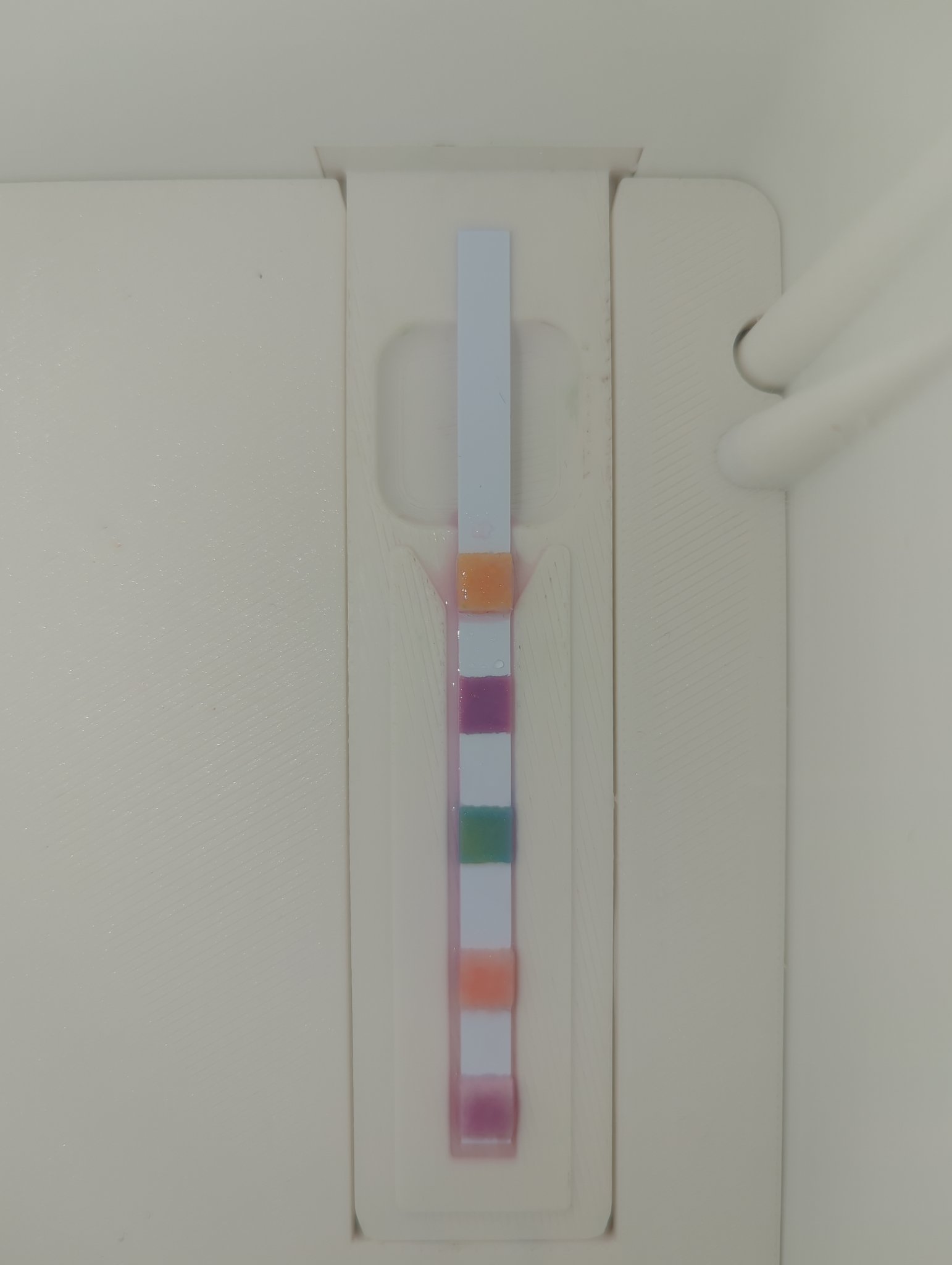

Original frame with sampling overlays for 20260811T033908_fcl20.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T033908_fcl20.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fec8a1 9 ppm
Total Hardness #ca95ba 377 ppm
Total Alkalinity #a6c7c3 141 ppm
pH #ffccc4 7.3
Free Available Chlorine #f6c7d7 6 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T033559_fcl18.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T033559_fcl18.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fec797 6 ppm
Total Hardness #be89b1 352 ppm
Total Alkalinity #9cc6b1 132 ppm
pH #ffc4b1 7.3
Free Available Chlorine #f6c1d0 6 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T033508_fcl18.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T033508_fcl18.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febe8c 7 ppm
Total Hardness #d281ac 364 ppm
Total Alkalinity #98c1aa 133 ppm
pH #febcab 7.3
Free Available Chlorine #f1b6ca 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T033139_fcl17.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T033139_fcl17.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb882 8 ppm
Total Hardness #b871a4 321 ppm
Total Alkalinity #8bb8a1 138 ppm
pH #ffb2a7 7.4
Free Available Chlorine #f8afcc 5 ppm
