Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T033011_fcl17.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T033011_fcl17.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feba81 6 ppm
Total Hardness #b86c9c 320 ppm
Total Alkalinity #82ae95 140 ppm
pH #feab99 7.4
Free Available Chlorine #f39cb5 5 ppm


HTH 5-Way Download original

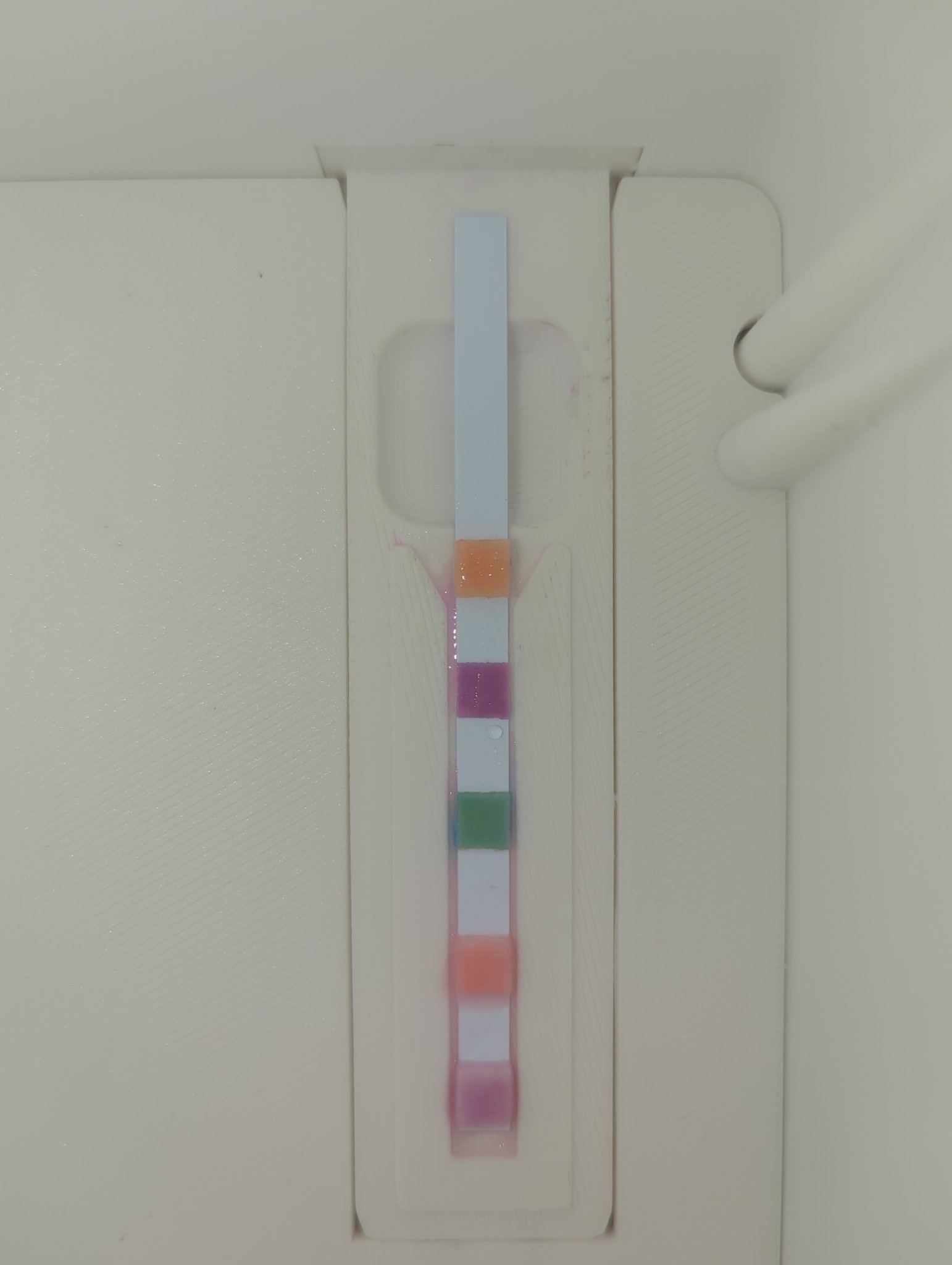

Original frame with sampling overlays for 20260811T032624_fcl16.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T032624_fcl16.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb585 10 ppm
Total Hardness #ca77a9 292 ppm
Total Alkalinity #86b197 139 ppm
pH #ffb0a6 7.4
Free Available Chlorine #f7adc8 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T032503_fcl16.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T032503_fcl16.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdaf96 19 ppm
Total Hardness #ce85b4 352 ppm
Total Alkalinity #91bbaa 140 ppm
pH #ffbbb7 7.6
Free Available Chlorine #f9bedb 5 ppm


HTH 5-Way Download original

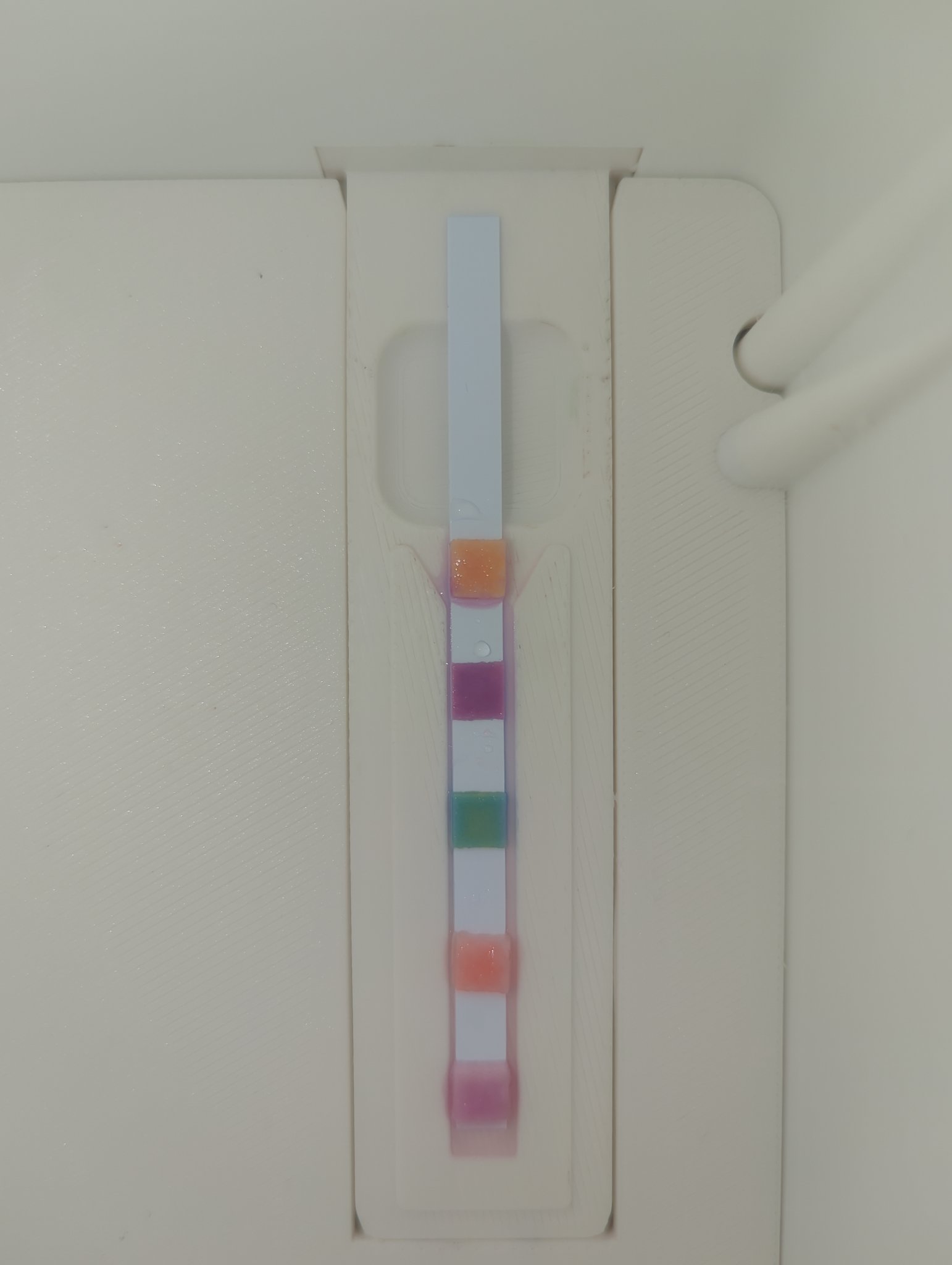

Original frame with sampling overlays for 20260811T032158_fcl15.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T032158_fcl15.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb589 11 ppm
Total Hardness #c375ab 313 ppm
Total Alkalinity #82b3a8 151 ppm
pH #feb1aa 7.6
Free Available Chlorine #f9aecc 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T032045_fcl15.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T032045_fcl15.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fec79e 8 ppm
Total Hardness #ca8db7 365 ppm
Total Alkalinity #a2cabb 134 ppm
pH #ffc6bc 7.3
Free Available Chlorine #fac2d6 6 ppm


HTH 5-Way Download original

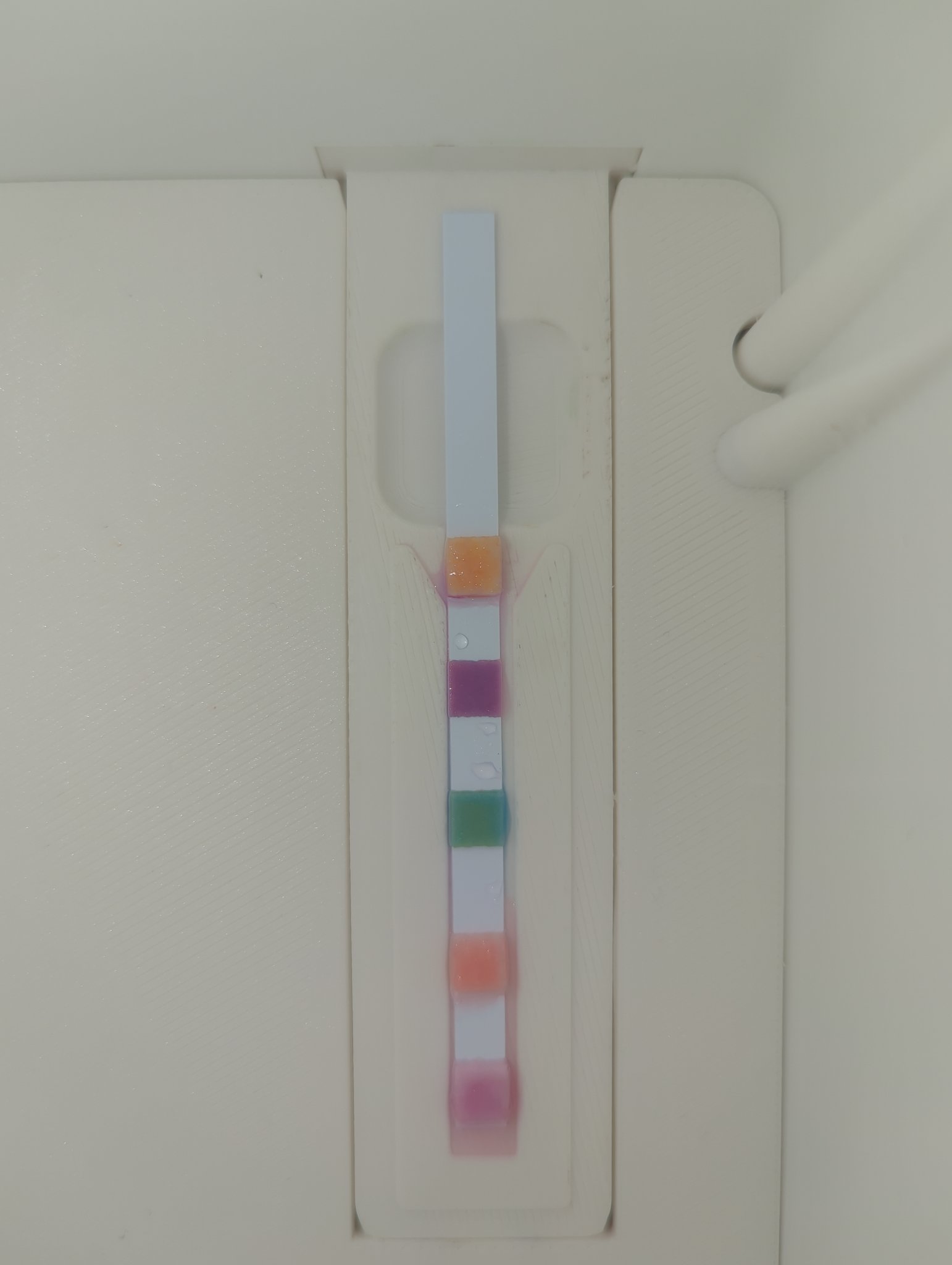

Original frame with sampling overlays for 20260811T031717_fcl13.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T031717_fcl13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdbe8c 7 ppm
Total Hardness #c57eb0 327 ppm
Total Alkalinity #79b3a8 170 ppm
pH #ffb7af 7.4
Free Available Chlorine #fcb2d1 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T031624_fcl13.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T031624_fcl13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fecea4 7 ppm
Total Hardness #cb98bd 379 ppm
Total Alkalinity #b6d0c2 108 ppm
pH #ffd1c9 7.3
Free Available Chlorine #feccdb 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T031351_fcl08.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T031351_fcl08.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febf85 5 ppm
Total Hardness #bb79a8 315 ppm
Total Alkalinity #8ebca9 140 ppm
pH #ffb8a9 7.3
Free Available Chlorine #fdcedc 4 ppm
