Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

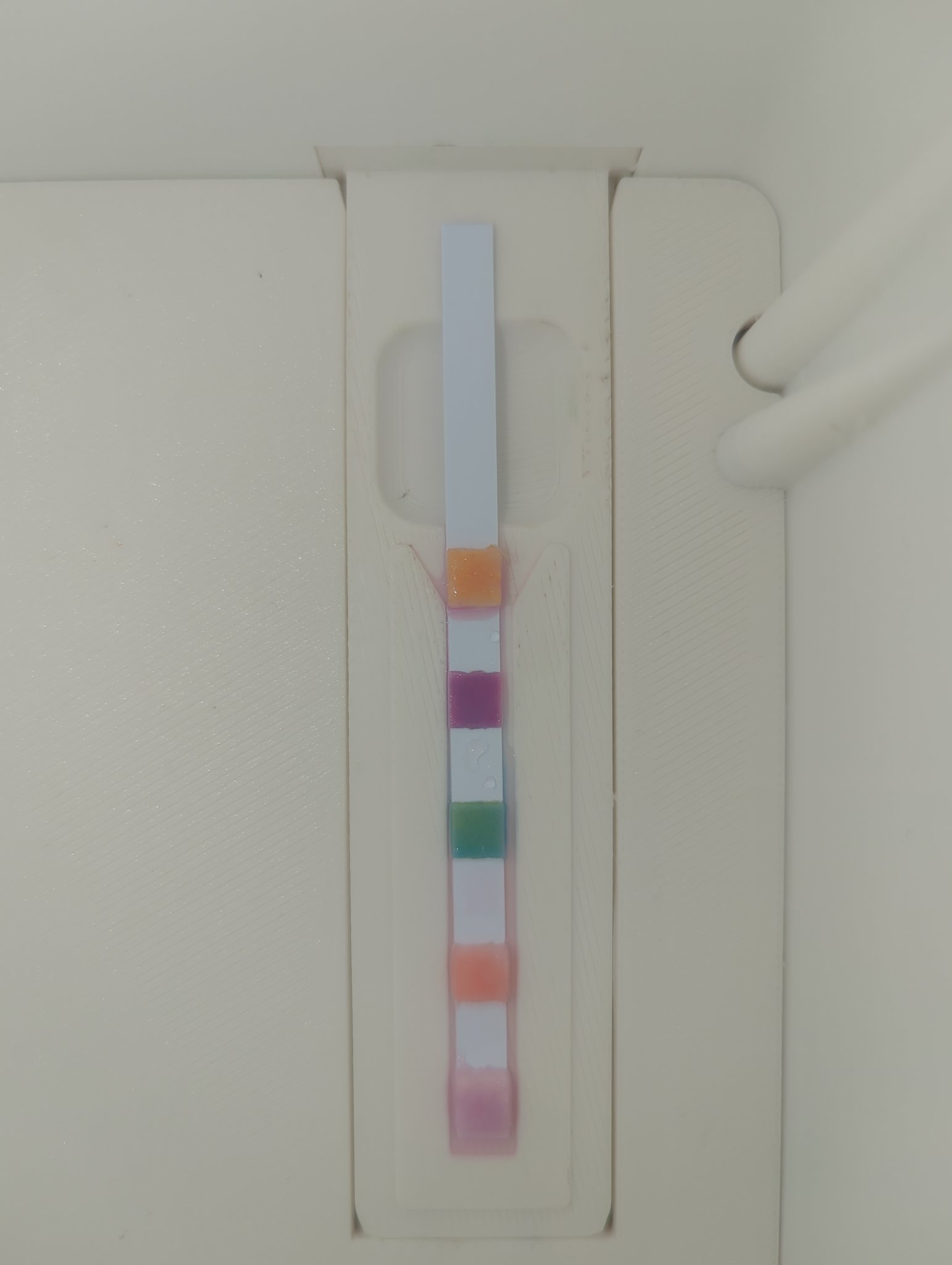

Original frame with sampling overlays for 20260811T031230_fcl08.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T031230_fcl08.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdc59e 9 ppm
Total Hardness #ce93bb 377 ppm
Total Alkalinity #9cc7b9 138 ppm
pH #fec9c1 7.3
Free Available Chlorine #fed6e6 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T030717_fcl05.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T030717_fcl05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb18b 14 ppm
Total Hardness #bc78a1 293 ppm
Total Alkalinity #8cb8a1 138 ppm
pH #feb0ab 7.6
Free Available Chlorine #fdd6d9 2 ppm


HTH 5-Way Download original

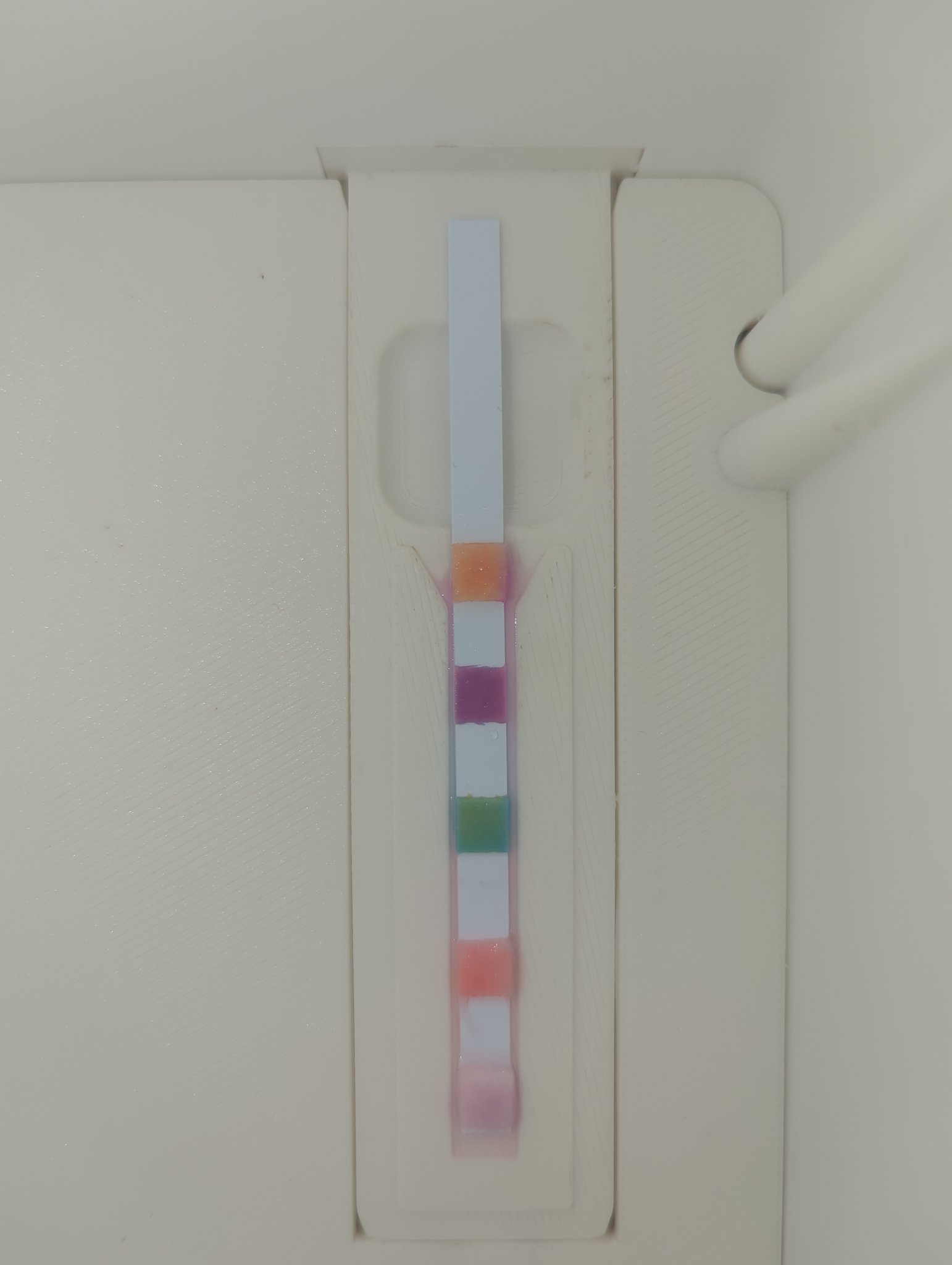

Original frame with sampling overlays for 20260811T030512_fcl05.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T030512_fcl05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdb394 16 ppm
Total Hardness #c57bad 311 ppm
Total Alkalinity #97c0a5 132 ppm
pH #ffb8b5 7.6
Free Available Chlorine #fedde7 3 ppm


HTH 5-Way Download original

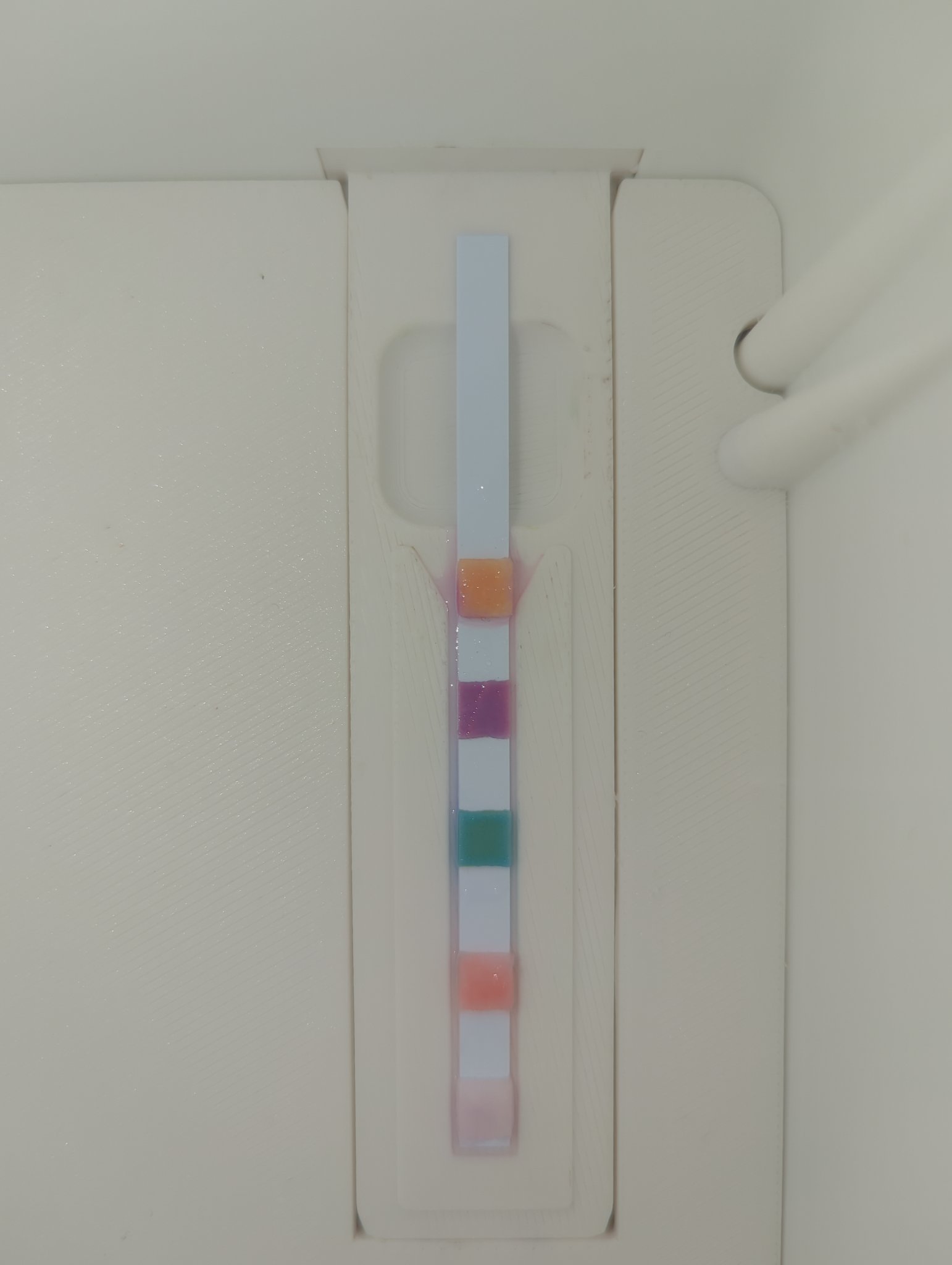

Original frame with sampling overlays for 20260811T030207_fcl03.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T030207_fcl03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fed4b6 10 ppm
Total Hardness #d6a3c5 393 ppm
Total Alkalinity #aad0d0 141 ppm
pH #fed6d3 7.3
Free Available Chlorine #fff4f5 0 ppm


HTH 5-Way Download original

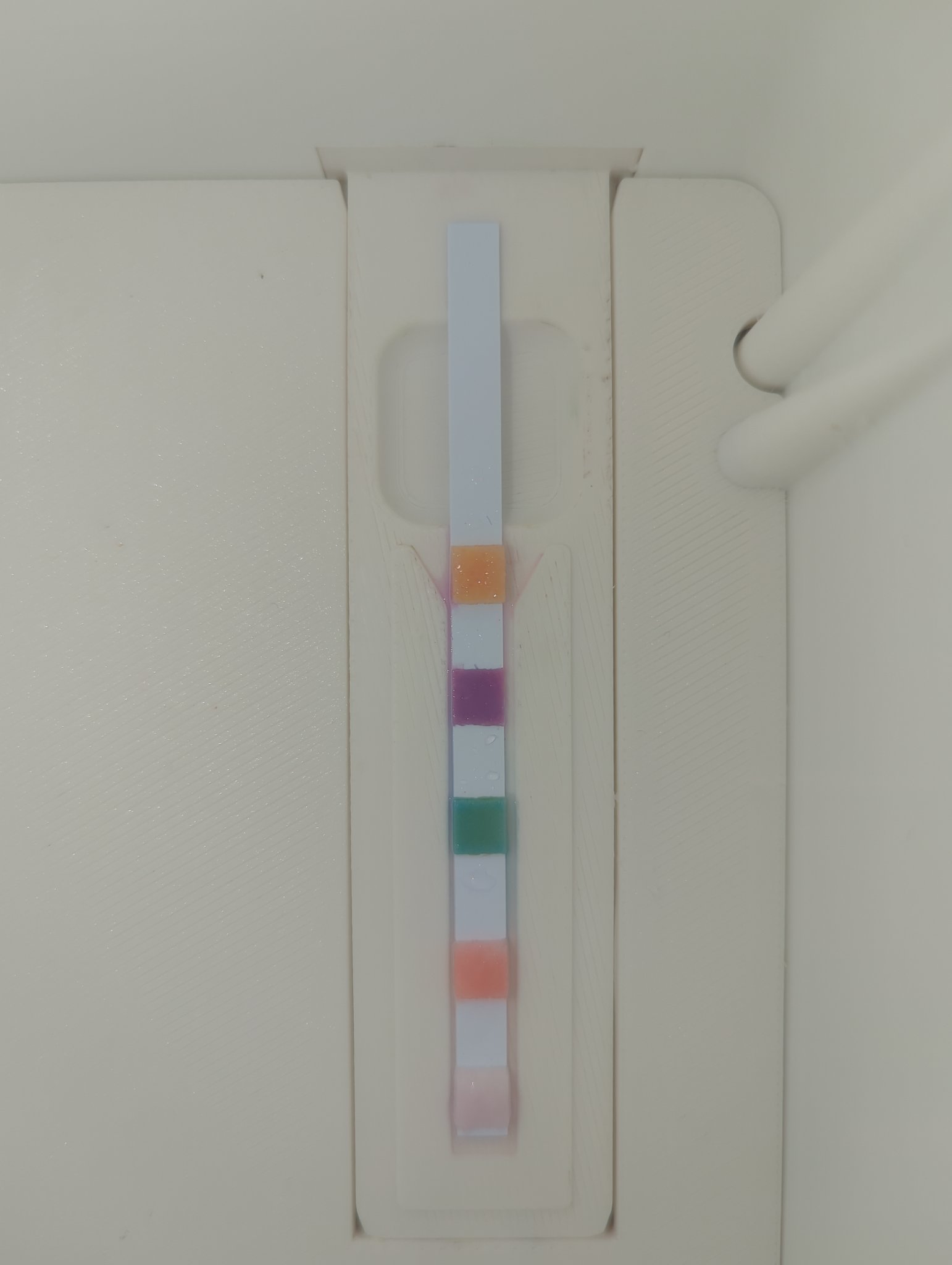

Original frame with sampling overlays for 20260811T030102_fcl03.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T030102_fcl03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fec795 5 ppm
Total Hardness #c085b4 345 ppm
Total Alkalinity #82bbaf 148 ppm
pH #fec2b7 7.3
Free Available Chlorine #fef4f5 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T023139_ch11.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T023139_ch11.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febb89 8 ppm
Total Hardness #e781a9 464 ppm
Total Alkalinity #90bb92 104 ppm
pH #feb7a4 7.3
Free Available Chlorine #feeae9 1 ppm


HTH 5-Way Download original

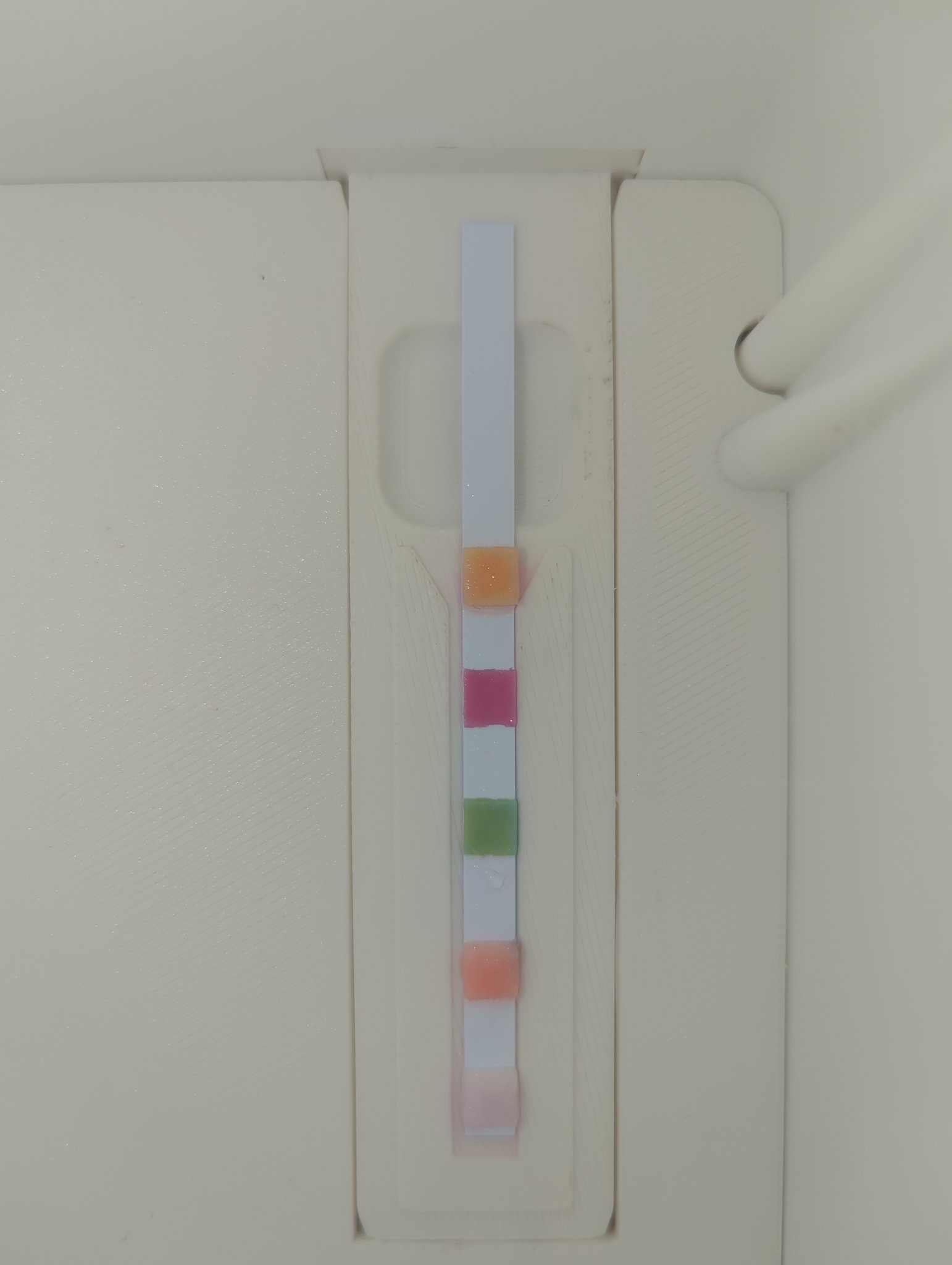

Original frame with sampling overlays for 20260811T023001_ch11.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T023001_ch11.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fec590 5 ppm
Total Hardness #e781a5 477 ppm
Total Alkalinity #adc79d 99 ppm
pH #fec2b0 7.3
Free Available Chlorine #feeee9 0 ppm


HTH 5-Way Download original

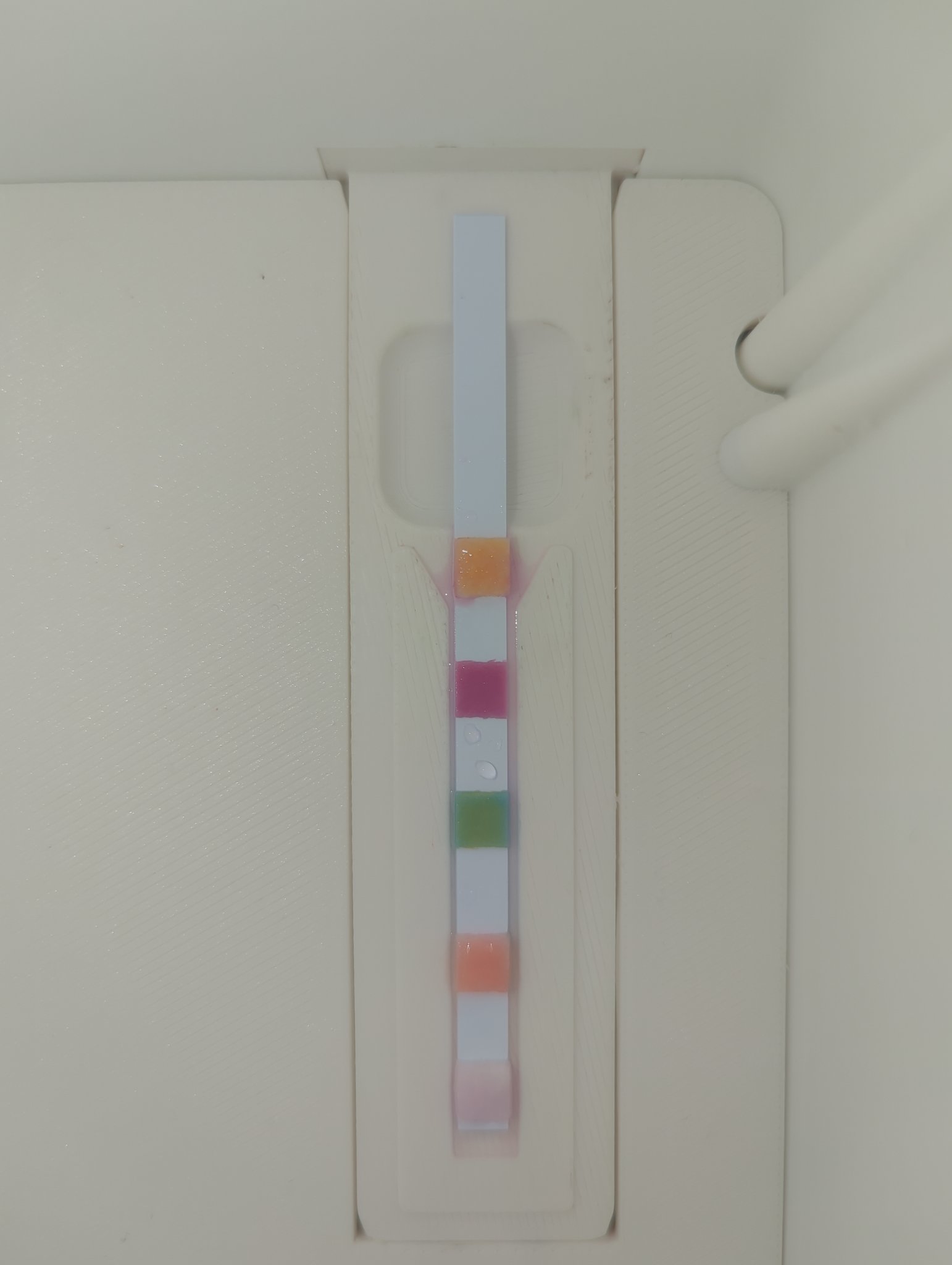

Original frame with sampling overlays for 20260811T022245_ch08.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T022245_ch08.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febd83 5 ppm
Total Hardness #e2739e 521 ppm
Total Alkalinity #99ba90 103 ppm
pH #feb9a7 7.3
Free Available Chlorine #ffeaee 1 ppm
