Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260811t022059_ch08.jpg
Original frame + sampling zones
Rectified strip preview for 20260811t022059_ch08.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb386 11 ppm
Total Hardness #e574a1 513 ppm
Total Alkalinity #99ba8b 101 ppm
pH #ffb7ad 7.4
Free Available Chlorine #ffeaf0 1 ppm


HTH 5-Way Download original

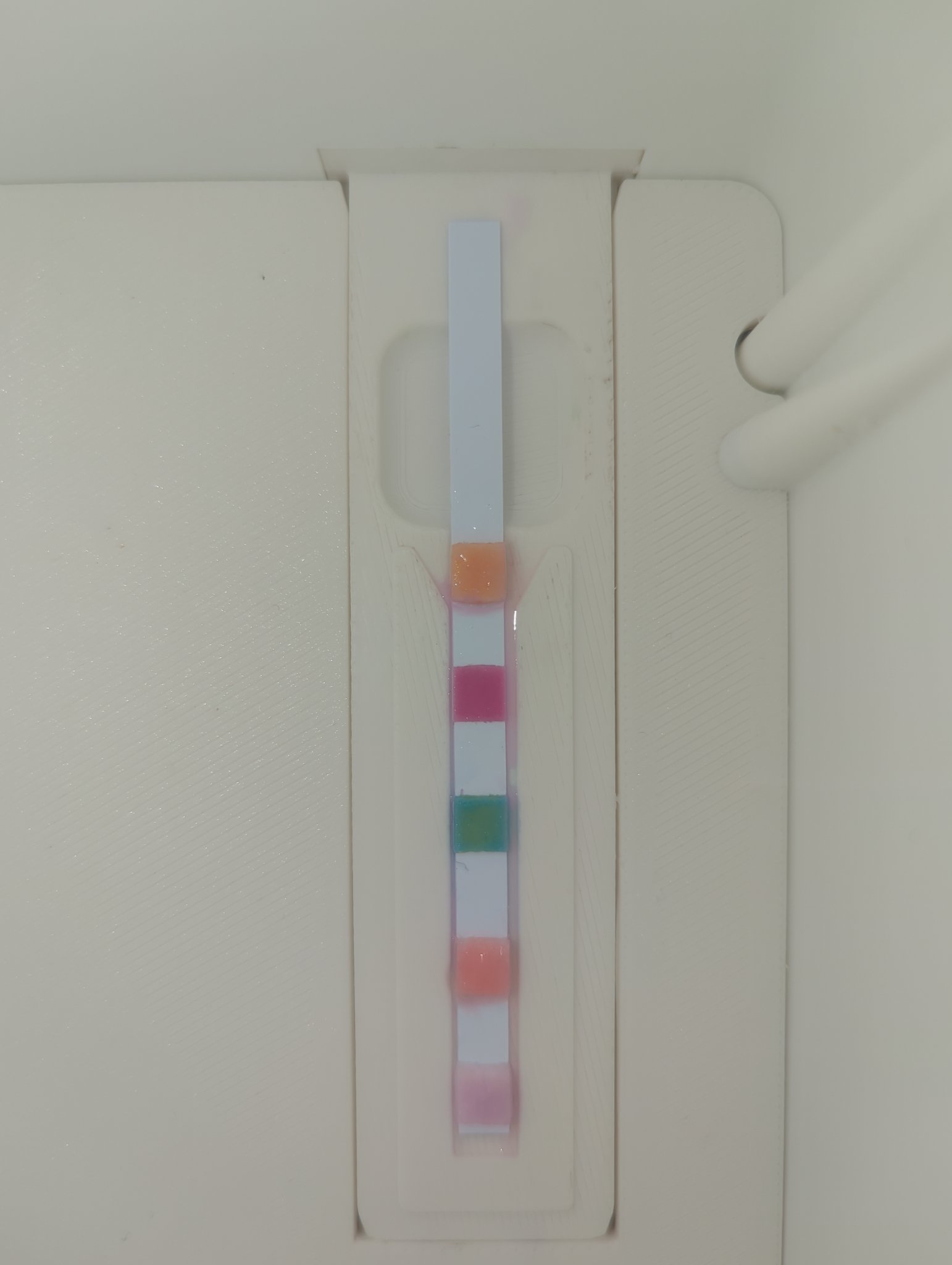

Original frame with sampling overlays for 20260811T021615_ch10.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T021615_ch10.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febb96 12 ppm
Total Hardness #ee79a7 487 ppm
Total Alkalinity #83b9ac 148 ppm
pH #feb5b5 7.6
Free Available Chlorine #ffd8eb 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T021456_ch10.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T021456_ch10.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcb193 17 ppm
Total Hardness #e887af 441 ppm
Total Alkalinity #7eb699 140 ppm
pH #ffaaa7 7.6
Free Available Chlorine #fed5e1 4 ppm


HTH 5-Way Download original

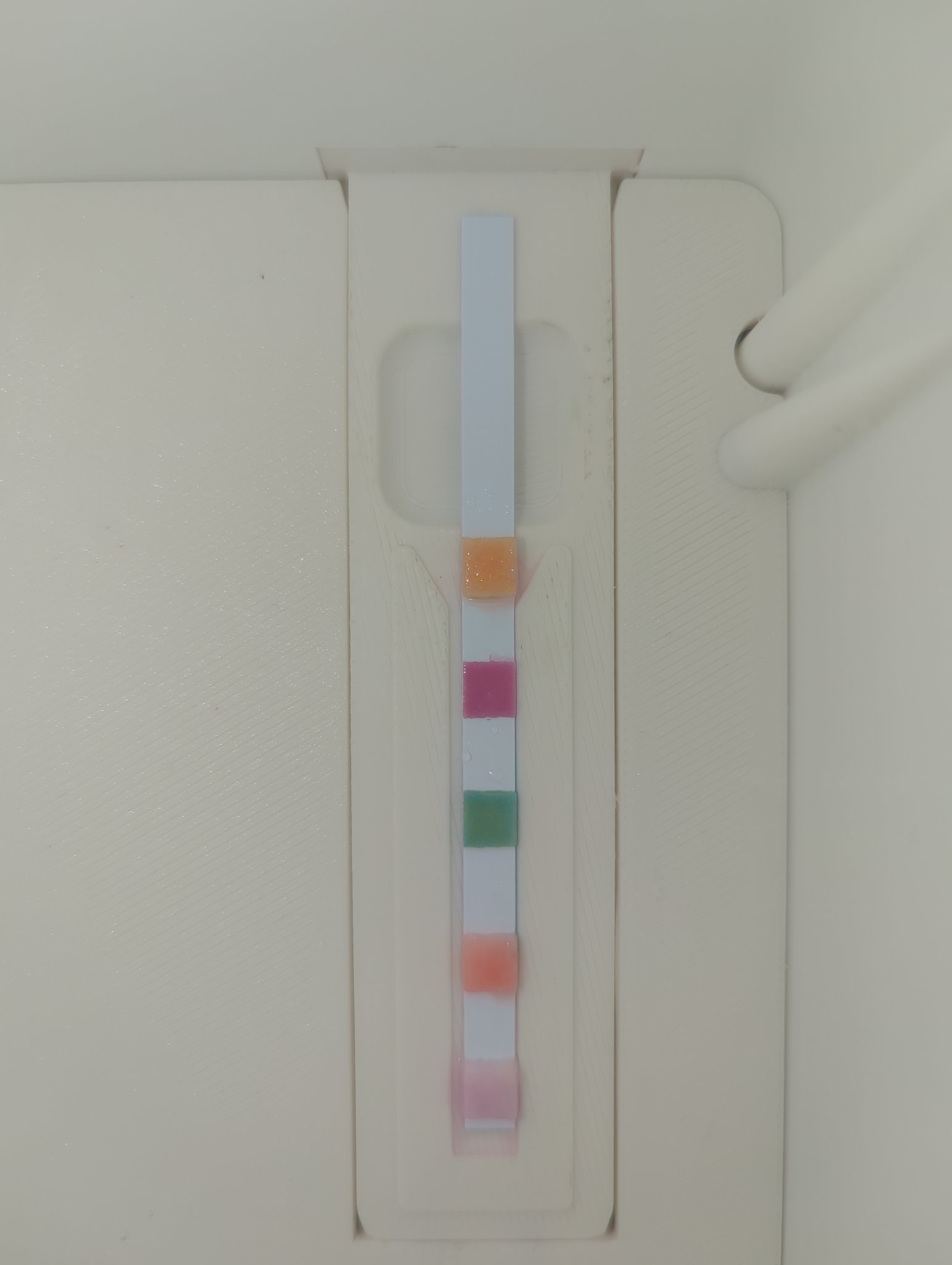

Original frame with sampling overlays for 20260811T021051_ch09.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T021051_ch09.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feba7d 5 ppm
Total Hardness #e3739a 584 ppm
Total Alkalinity #81b095 139 ppm
pH #ffb1a1 7.3
Free Available Chlorine #fed3db 3 ppm


HTH 5-Way Download original

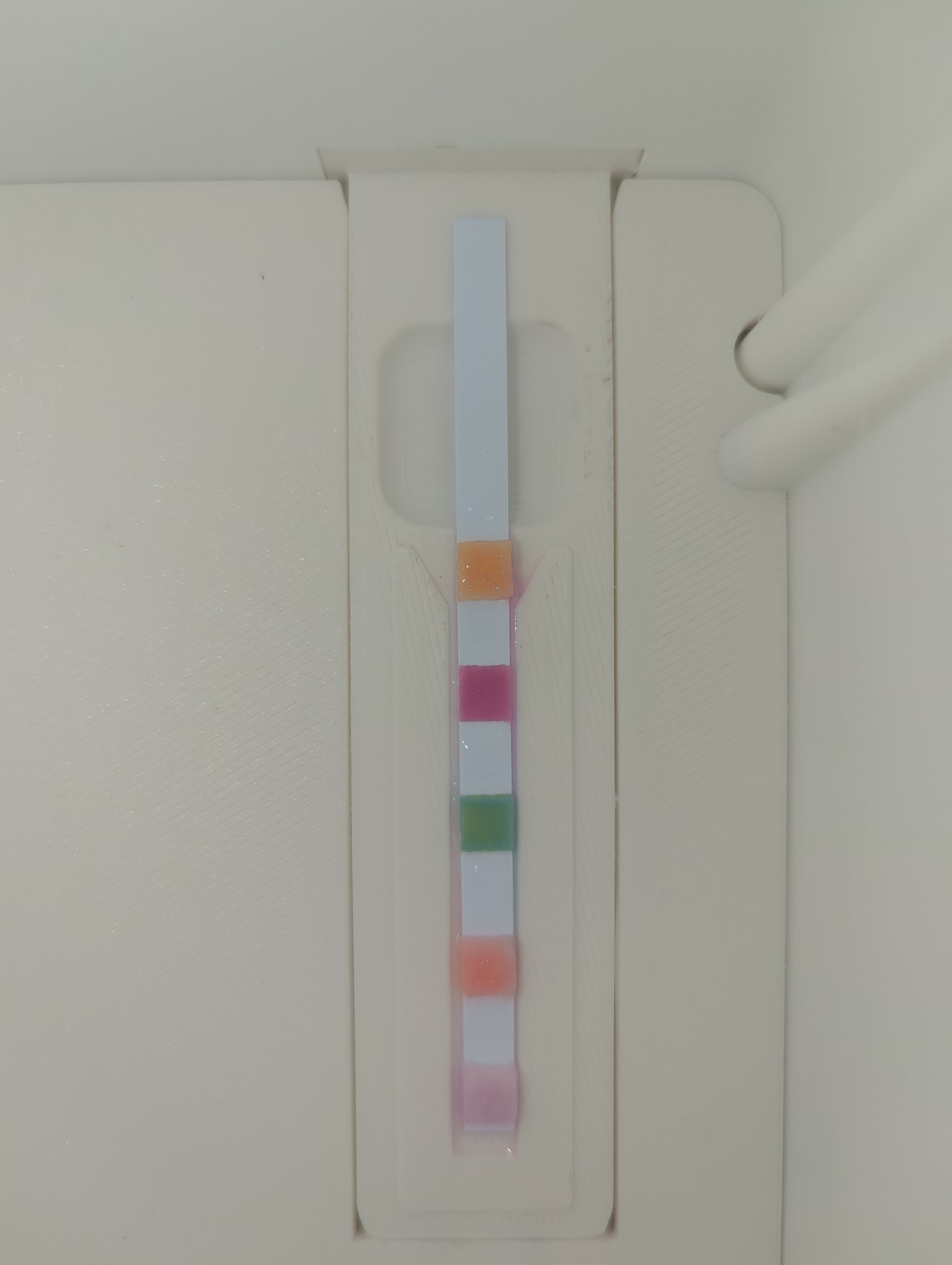

Original frame with sampling overlays for 20260811t020912_ch09.jpg
Original frame + sampling zones
Rectified strip preview for 20260811t020912_ch09.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febc82 5 ppm
Total Hardness #e977a0 527 ppm
Total Alkalinity #96bc9a 106 ppm
pH #ffb7ac 7.4
Free Available Chlorine #fed7e5 4 ppm


HTH 5-Way Download original

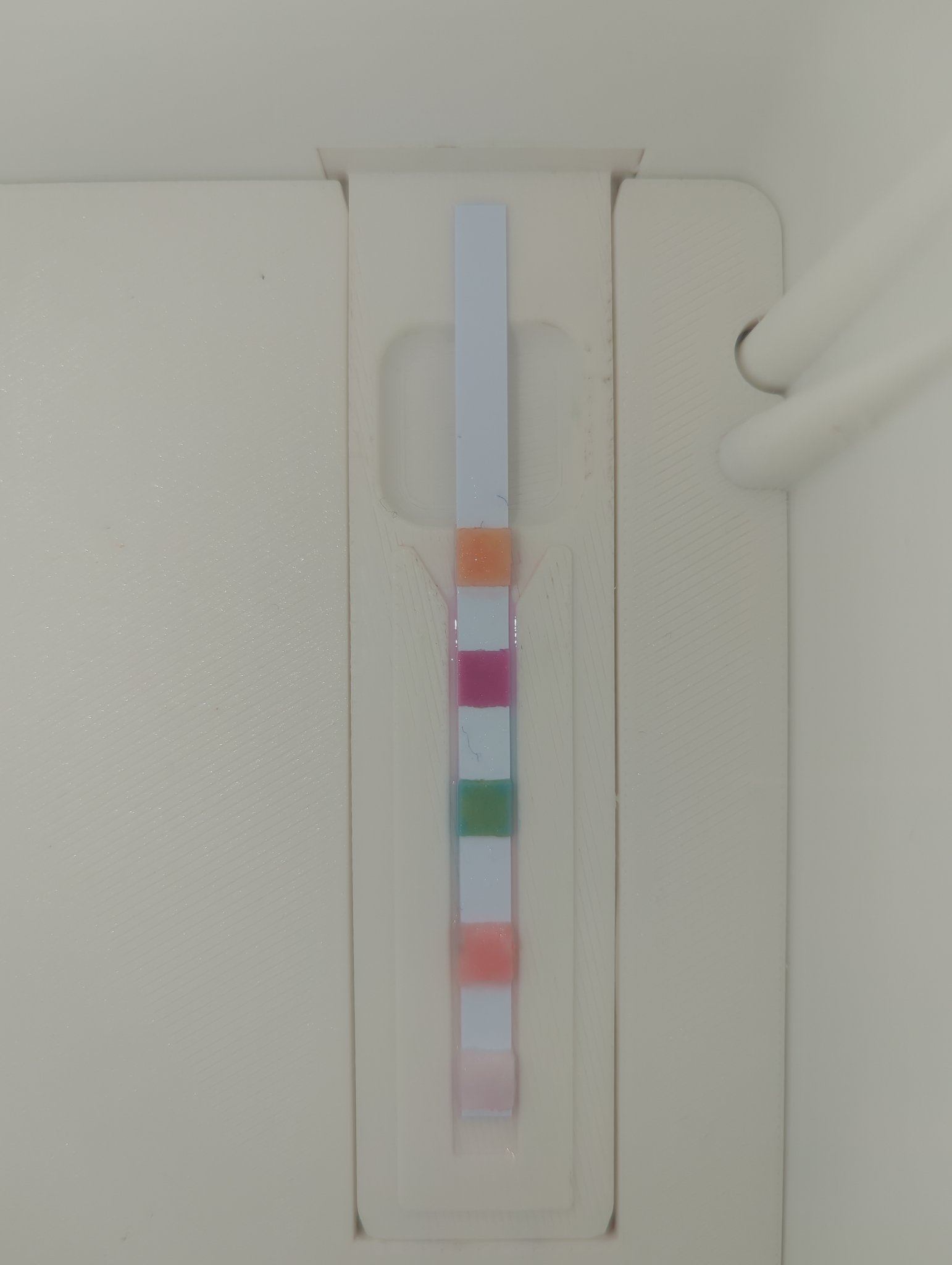

Original frame with sampling overlays for 20260811T020448_ch07.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T020448_ch07.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb288 13 ppm
Total Hardness #e081a8 454 ppm
Total Alkalinity #81b28a 137 ppm
pH #feaba4 7.6
Free Available Chlorine #fee9e7 1 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T020244_ch07.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T020244_ch07.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea890 21 ppm
Total Hardness #e474a3 499 ppm
Total Alkalinity #80b497 139 ppm
pH #ffaca7 7.6
Free Available Chlorine #fff7ee 0 ppm


HTH 5-Way Download original

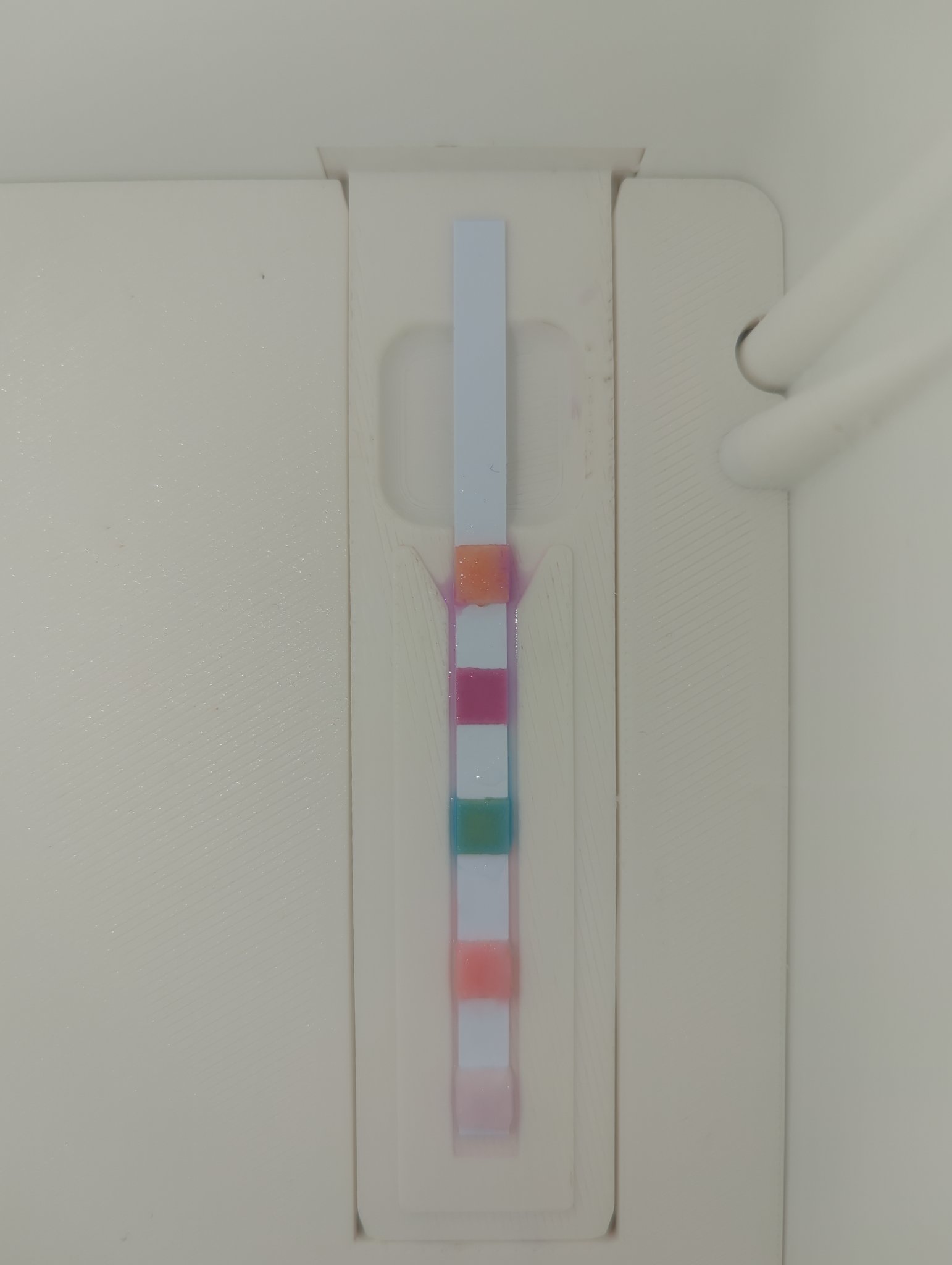

Original frame with sampling overlays for 20260811T015642_ch-06.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T015642_ch-06.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fda895 50 ppm
Total Hardness #e27ba5 480 ppm
Total Alkalinity #8bc0b3 146 ppm
pH #ffb6b7 7.6
Free Available Chlorine #ffeff0 1 ppm
