Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

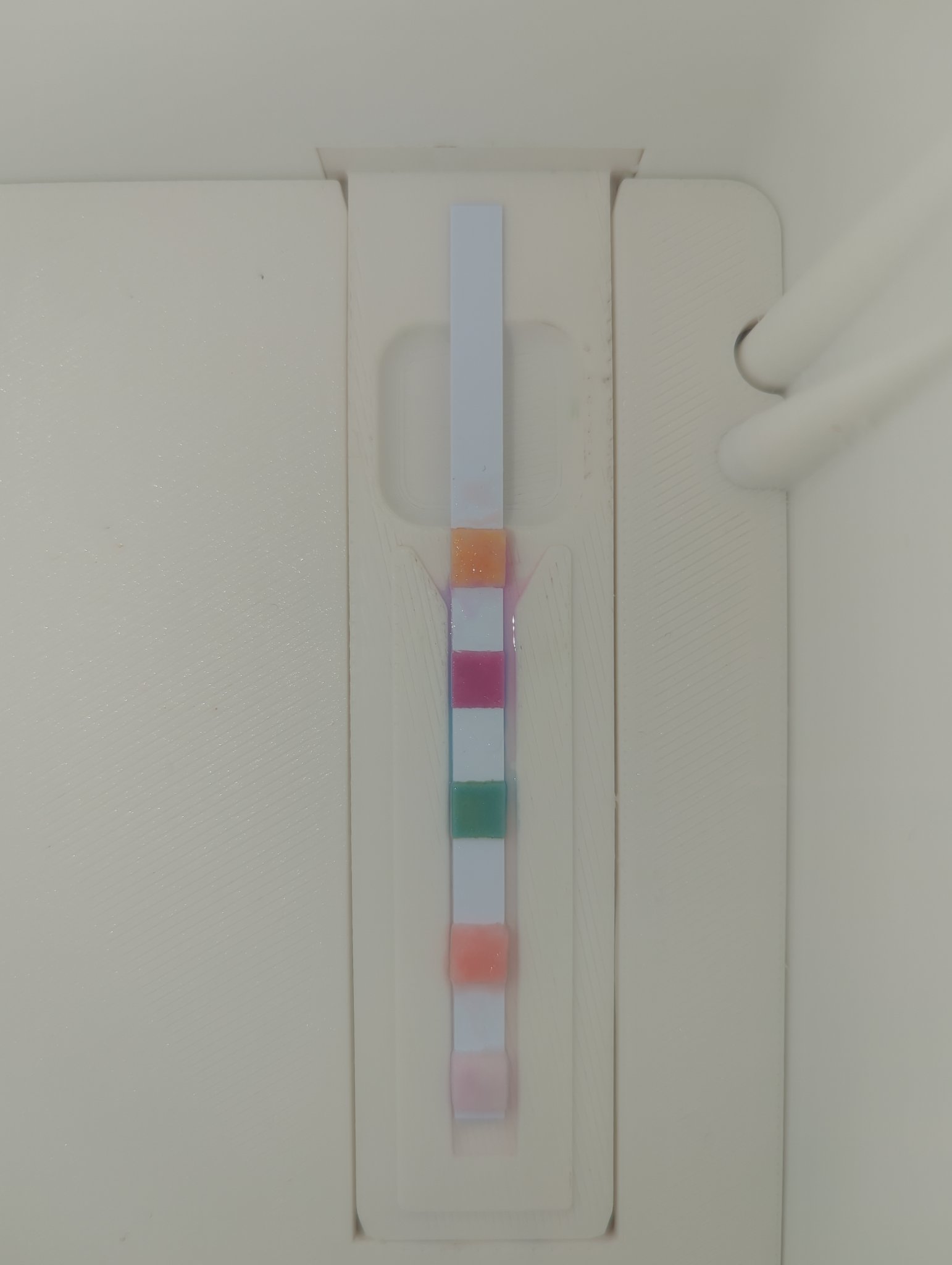

Original frame with sampling overlays for 20260811T015430_ch06.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T015430_ch06.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb48b 13 ppm
Total Hardness #df82ac 431 ppm
Total Alkalinity #72b2a1 146 ppm
pH #feb3a6 7.4
Free Available Chlorine #fee7e8 1 ppm


HTH 5-Way Download original

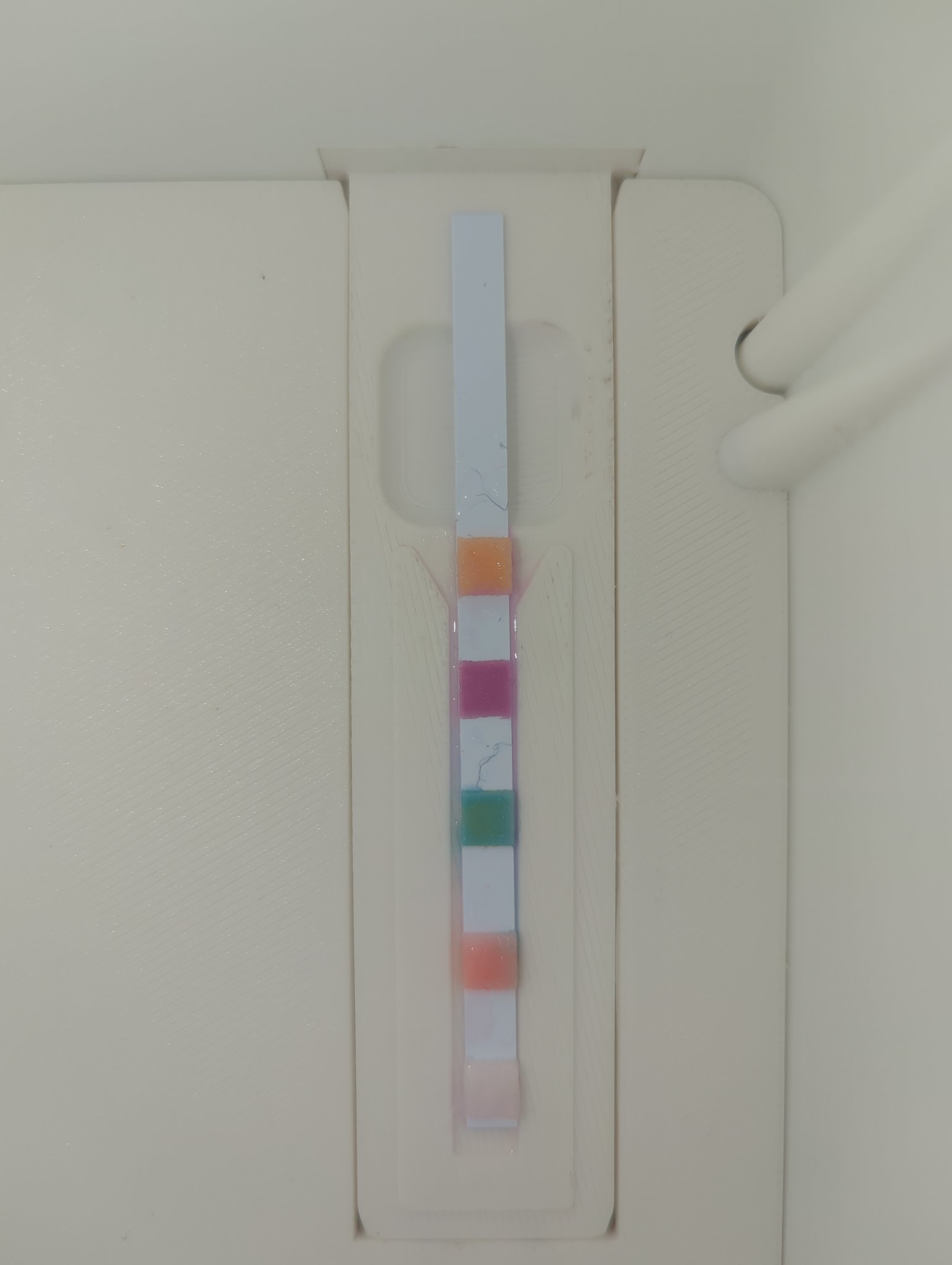

Original frame with sampling overlays for 20260811T015042_ch-05.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T015042_ch-05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb885 9 ppm
Total Hardness #d872a4 380 ppm
Total Alkalinity #71b0a3 173 ppm
pH #feb1a7 7.4
Free Available Chlorine #fff3f0 0 ppm


HTH 5-Way Download original

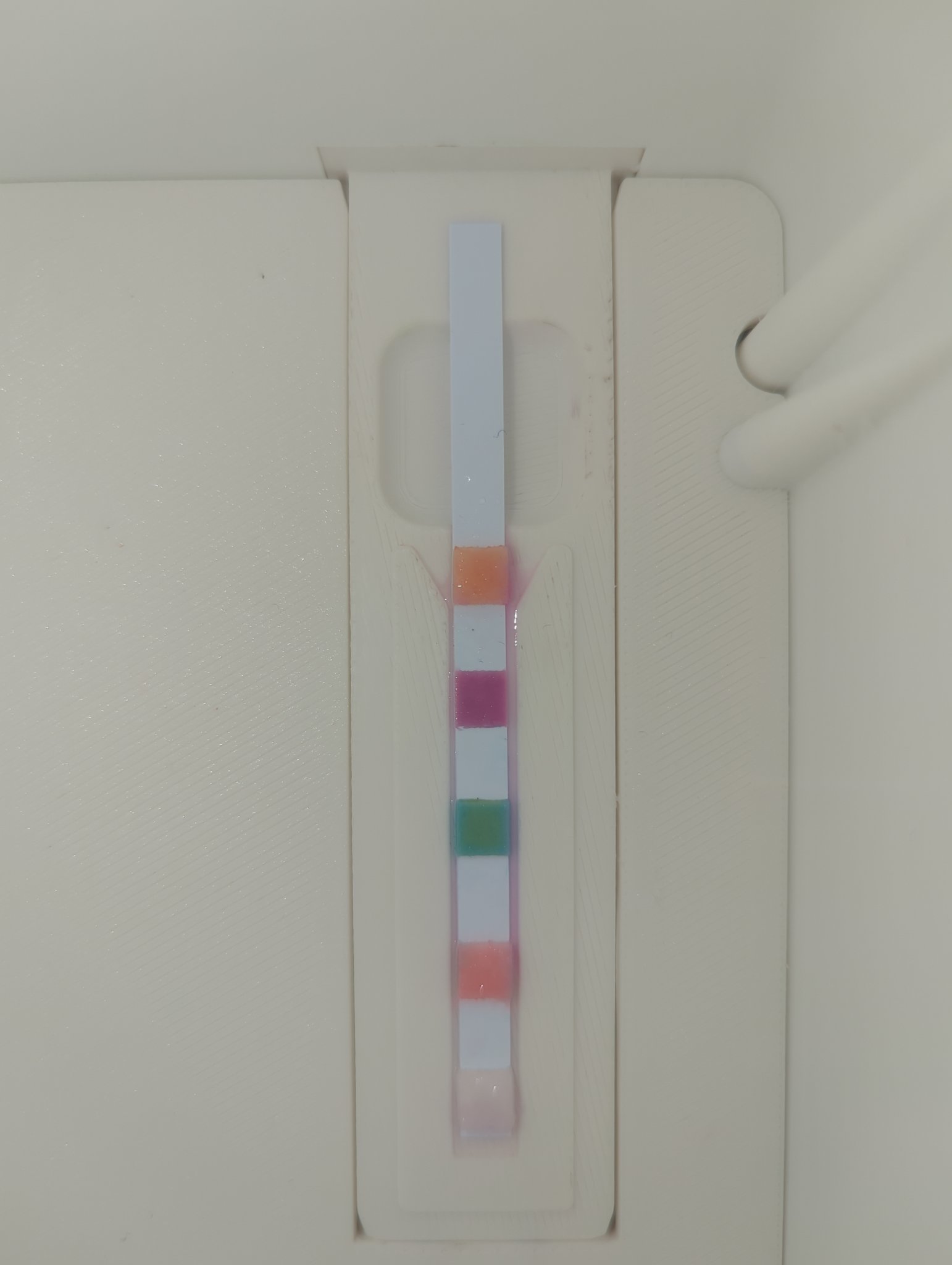

Original frame with sampling overlays for 20260811T014919_ch-05.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T014919_ch-05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb99d 15 ppm
Total Hardness #db86b1 401 ppm
Total Alkalinity #94c3b1 138 ppm
pH #feb9ba 7.6
Free Available Chlorine #fff9f5 0 ppm


HTH 5-Way Download original

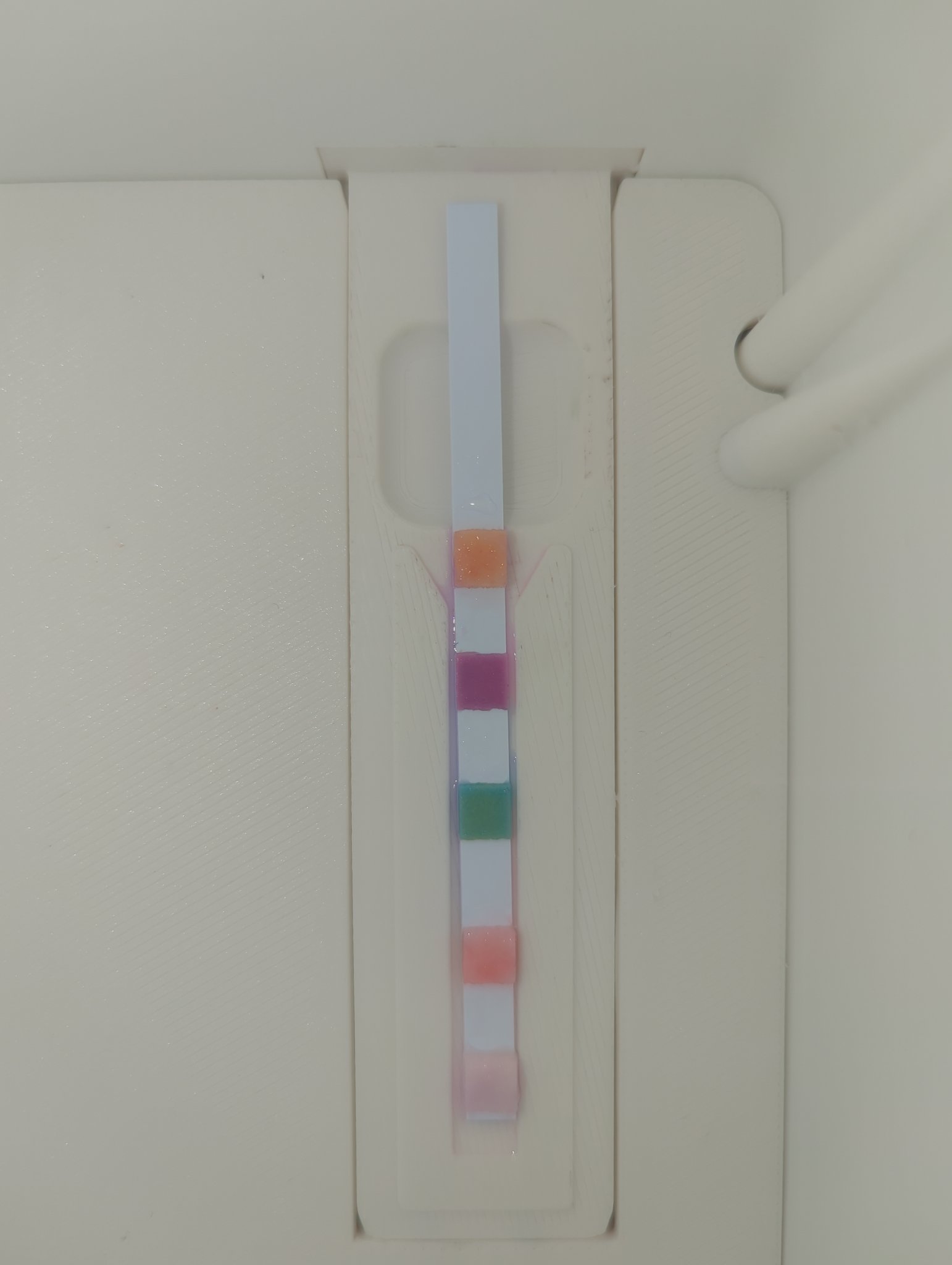

Original frame with sampling overlays for 20260811T013903_ch04.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T013903_ch04.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb38c 13 ppm
Total Hardness #cf7dac 325 ppm
Total Alkalinity #72b19c 144 ppm
pH #ffb5b1 7.6
Free Available Chlorine #fee0e5 1 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260811T013736_ch04.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T013736_ch04.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feac8a 17 ppm
Total Hardness #d073a2 301 ppm
Total Alkalinity #7bb2a2 146 ppm
pH #ffb3ad 7.6
Free Available Chlorine #ffe5e8 1 ppm


HTH 5-Way Download original

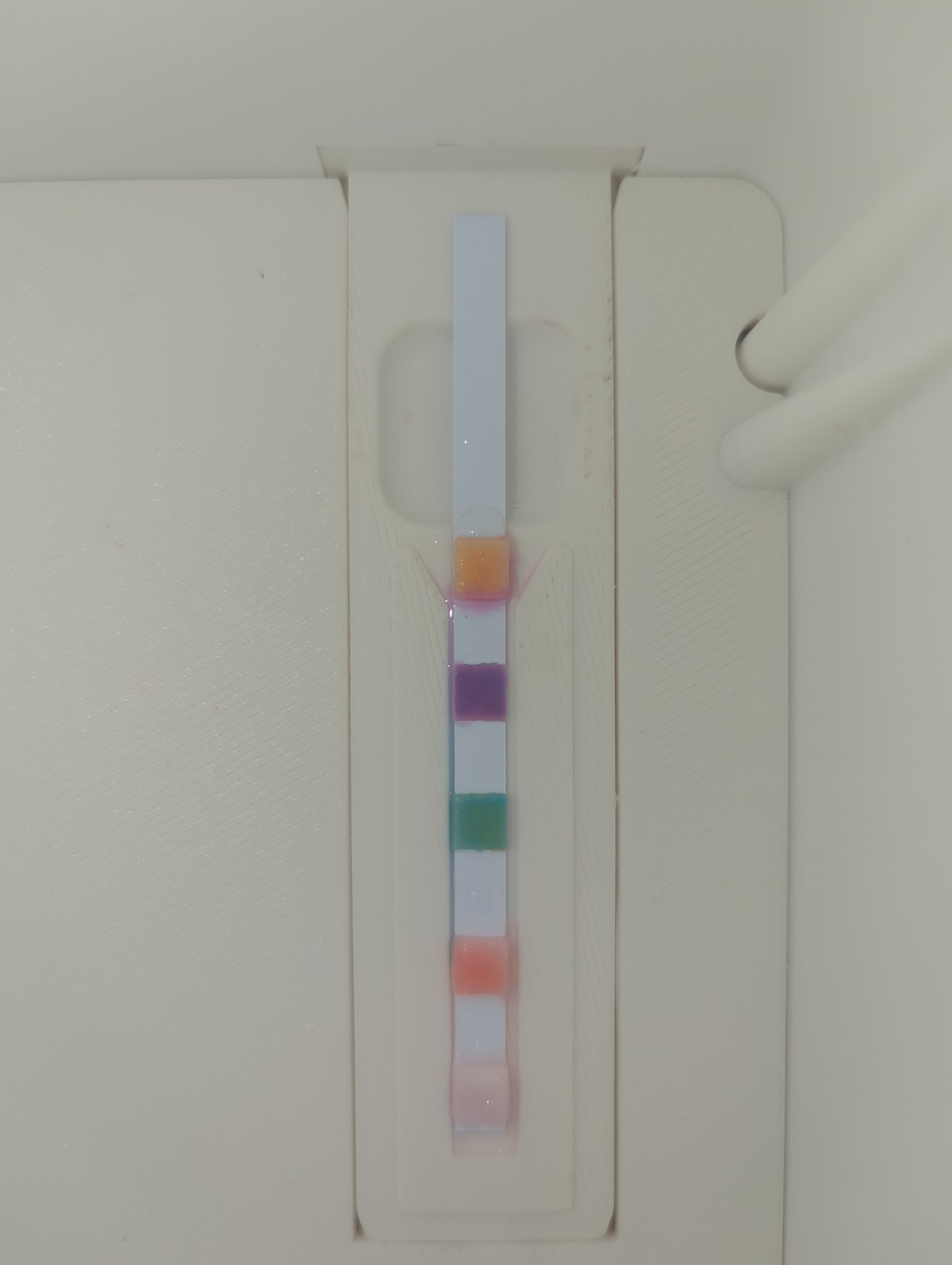

Original frame with sampling overlays for 20260811T013123_ch03.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T013123_ch03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febe89 6 ppm
Total Hardness #a779ae 152 ppm
Total Alkalinity #7cb7ab 149 ppm
pH #ffb9af 7.4
Free Available Chlorine #feedeb 1 ppm


HTH 5-Way Download original

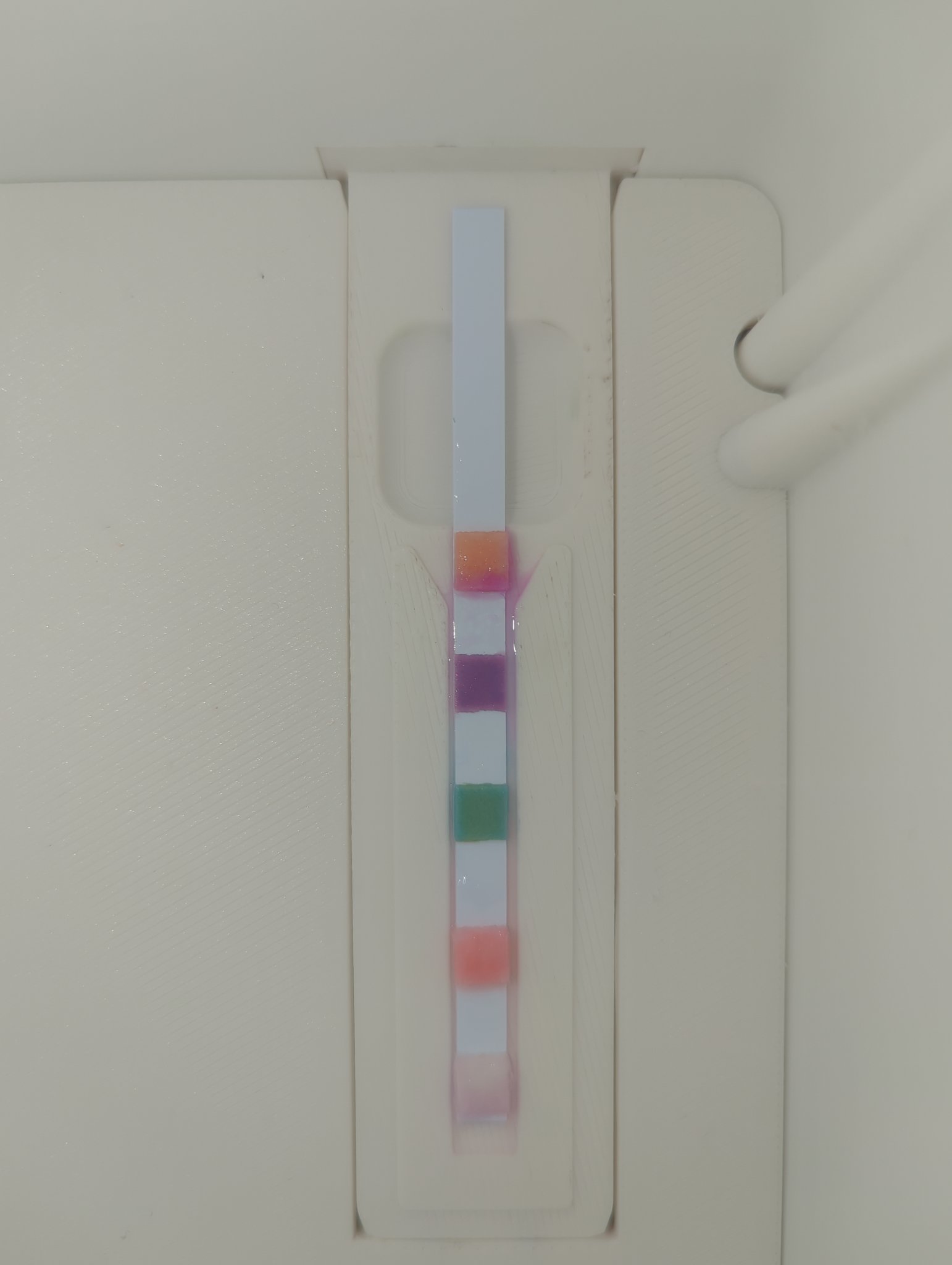

Original frame with sampling overlays for 20260811T012920_ch03.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T012920_ch03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fd9b91 43 ppm
Total Hardness #b27bae 163 ppm
Total Alkalinity #79b097 142 ppm
pH #ffada8 7.6
Free Available Chlorine #ffe7e6 1 ppm


HTH 5-Way Download original

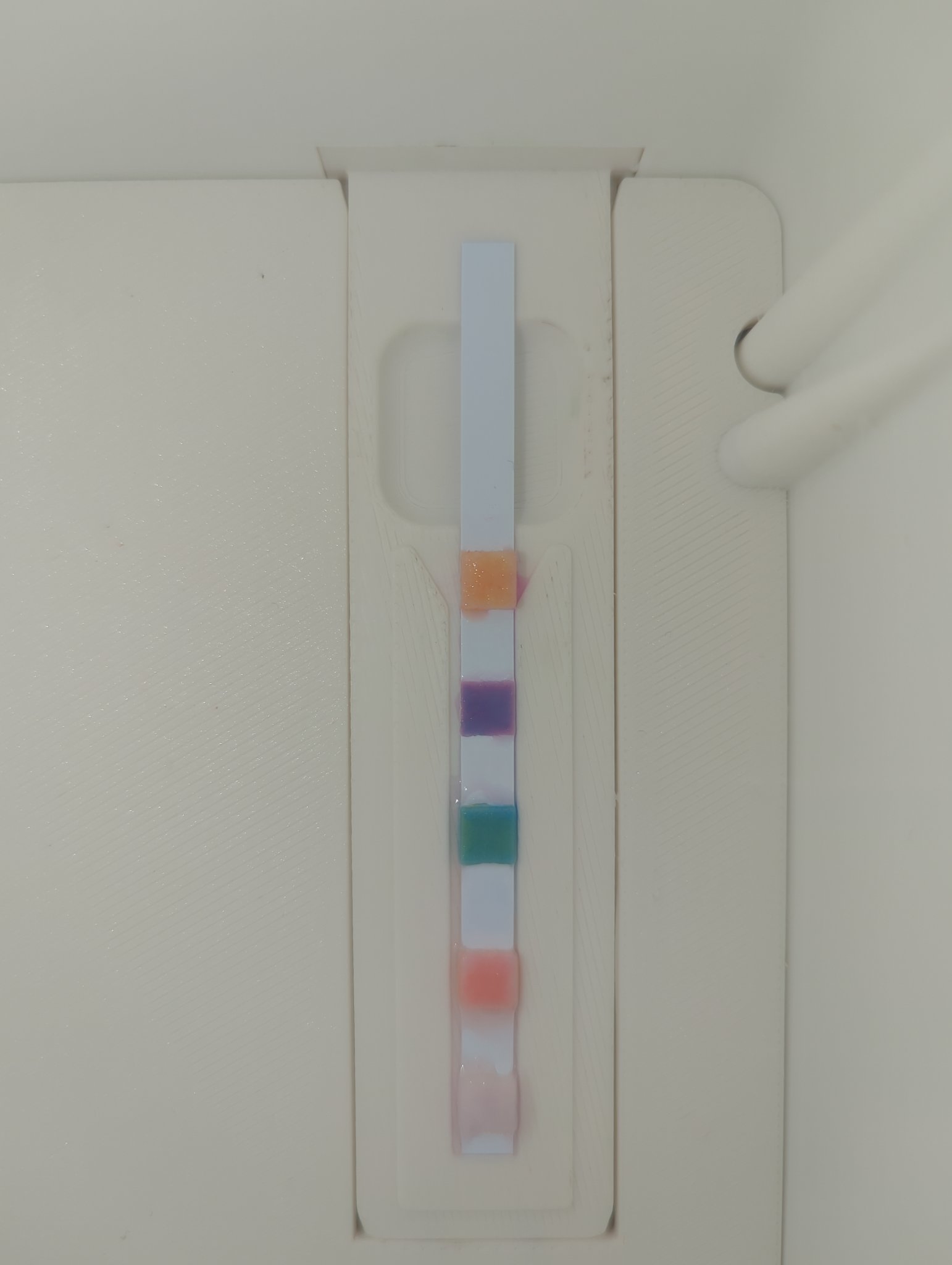

Original frame with sampling overlays for 20260811T012310_ch02.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T012310_ch02.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fecba1 8 ppm
Total Hardness #b9a2c6 143 ppm
Total Alkalinity #88b9bf 176 ppm
pH #ffcac4 7.3
Free Available Chlorine #fee8e3 1 ppm
