Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

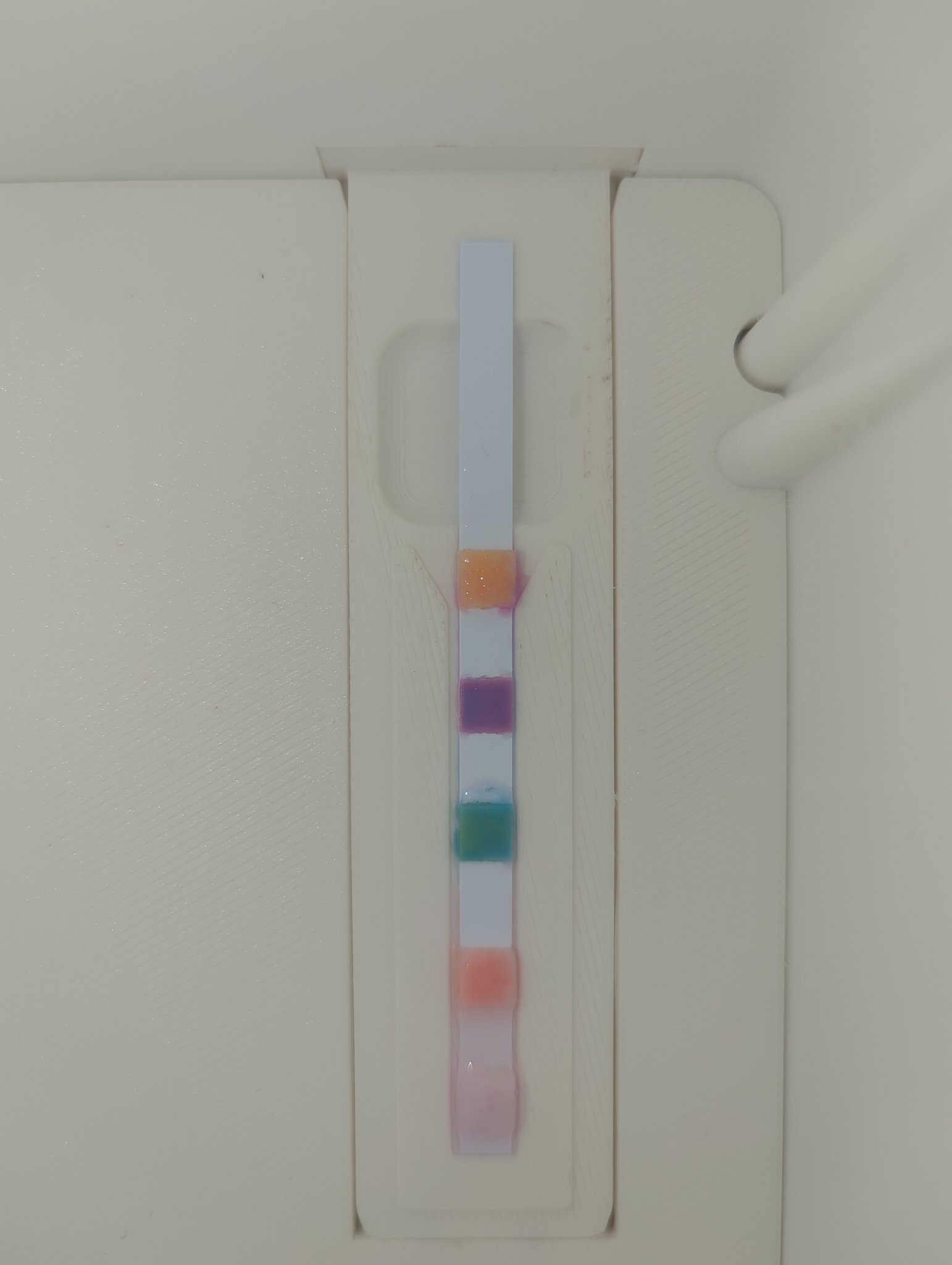

Original frame with sampling overlays for 20260811T012203_ch02.jpg
Original frame + sampling zones
Rectified strip preview for 20260811T012203_ch02.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fec69b 8 ppm
Total Hardness #bd99bf 151 ppm
Total Alkalinity #7ab7b9 171 ppm
pH #ffc9c0 7.3
Free Available Chlorine #fededf 1 ppm


HTH 5-Way Download original

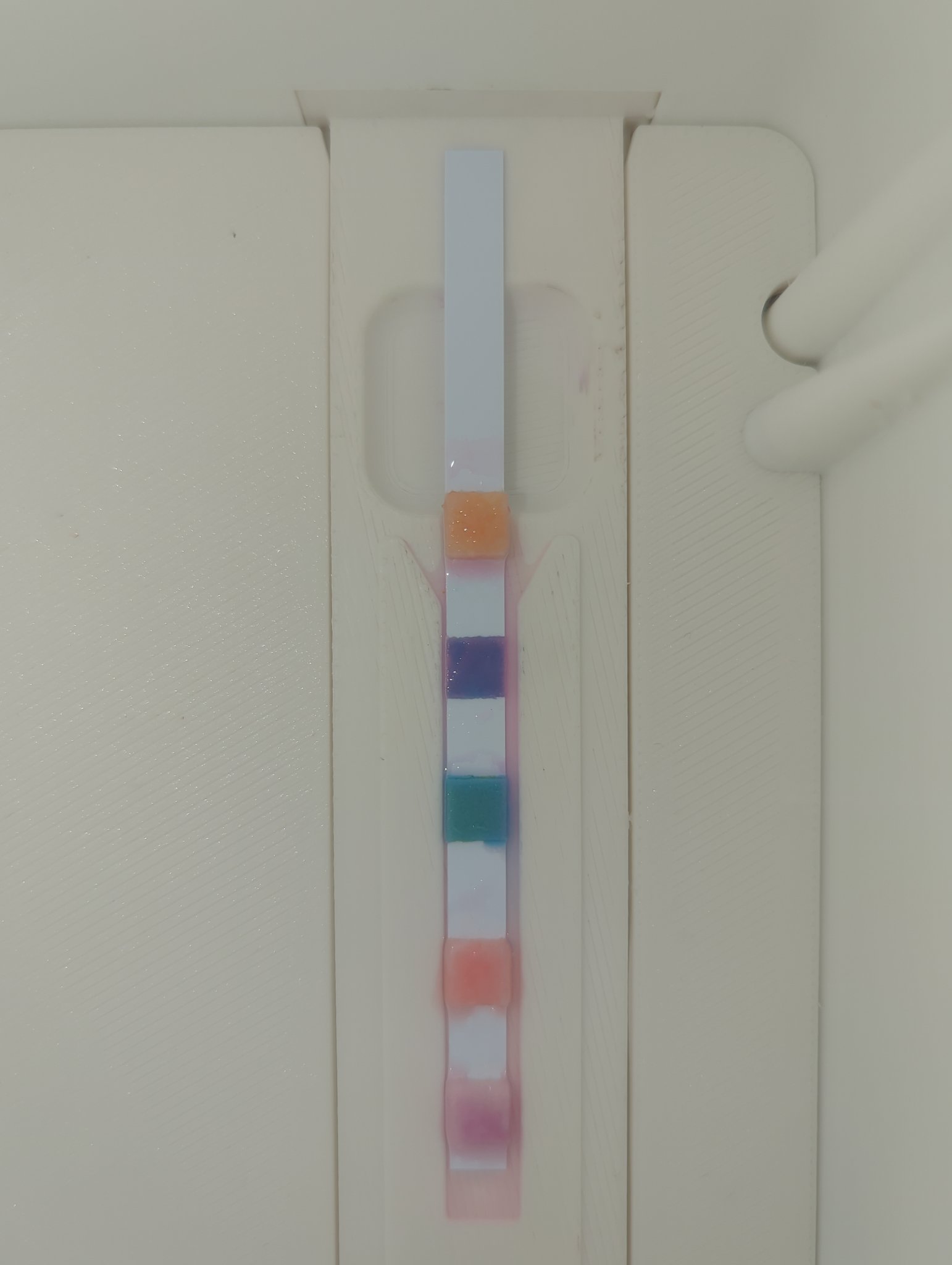

Original frame with sampling overlays for 20260806T192917_ta13.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T192917_ta13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcd0c8 0 ppm
Total Hardness #a6a8d1 52 ppm
Total Alkalinity #58a0b3 217 ppm
pH #febbb7 7.6
Free Available Chlorine #fee2eb 1 ppm


HTH 5-Way Download original

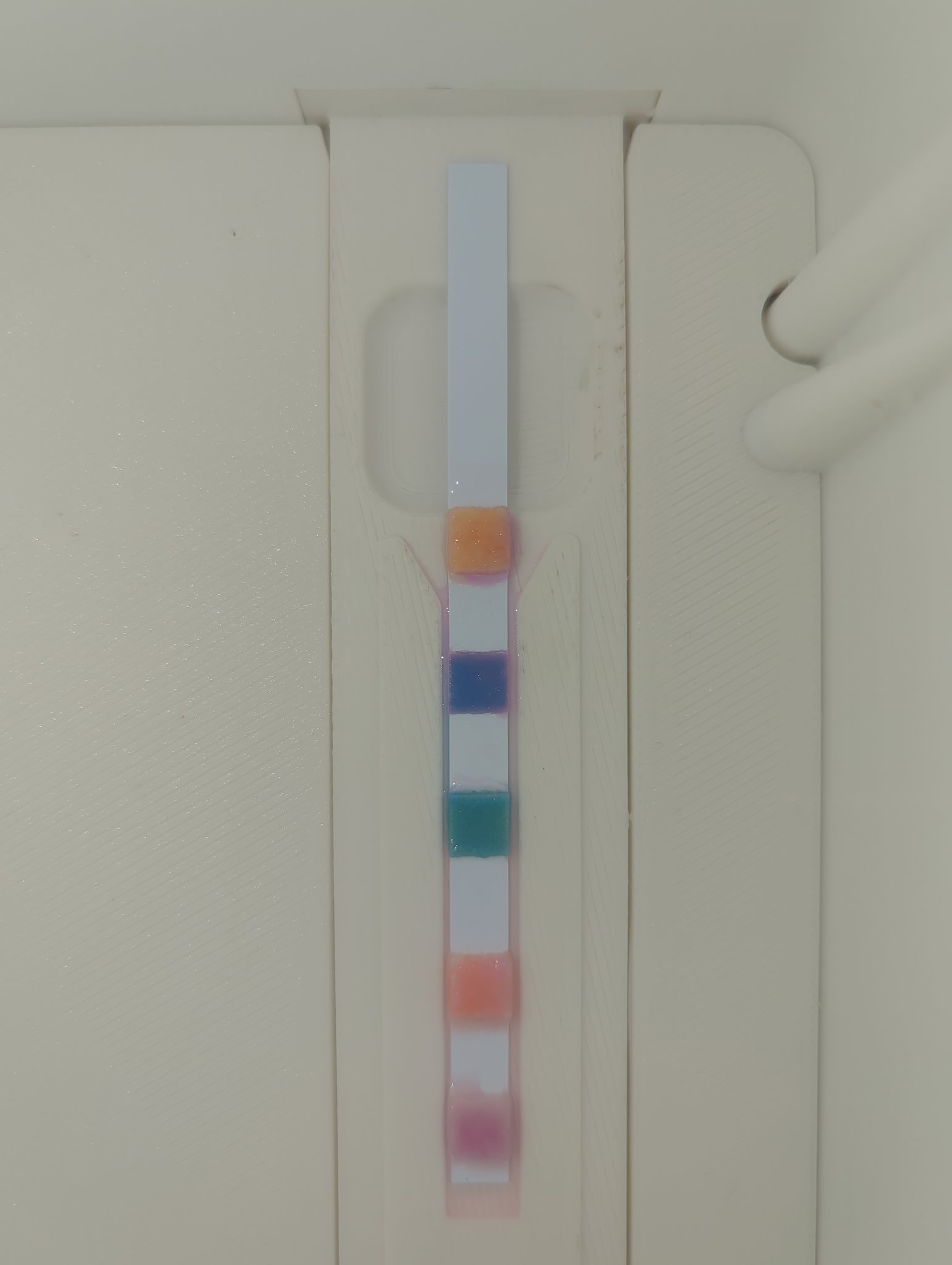

Original frame with sampling overlays for 20260806T192806_ta13.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T192806_ta13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcb59e 18 ppm
Total Hardness #6e83bd 49 ppm
Total Alkalinity #5aa5b2 206 ppm
pH #fed6d2 7.3
Free Available Chlorine #ffeef1 1 ppm


HTH 5-Way Download original

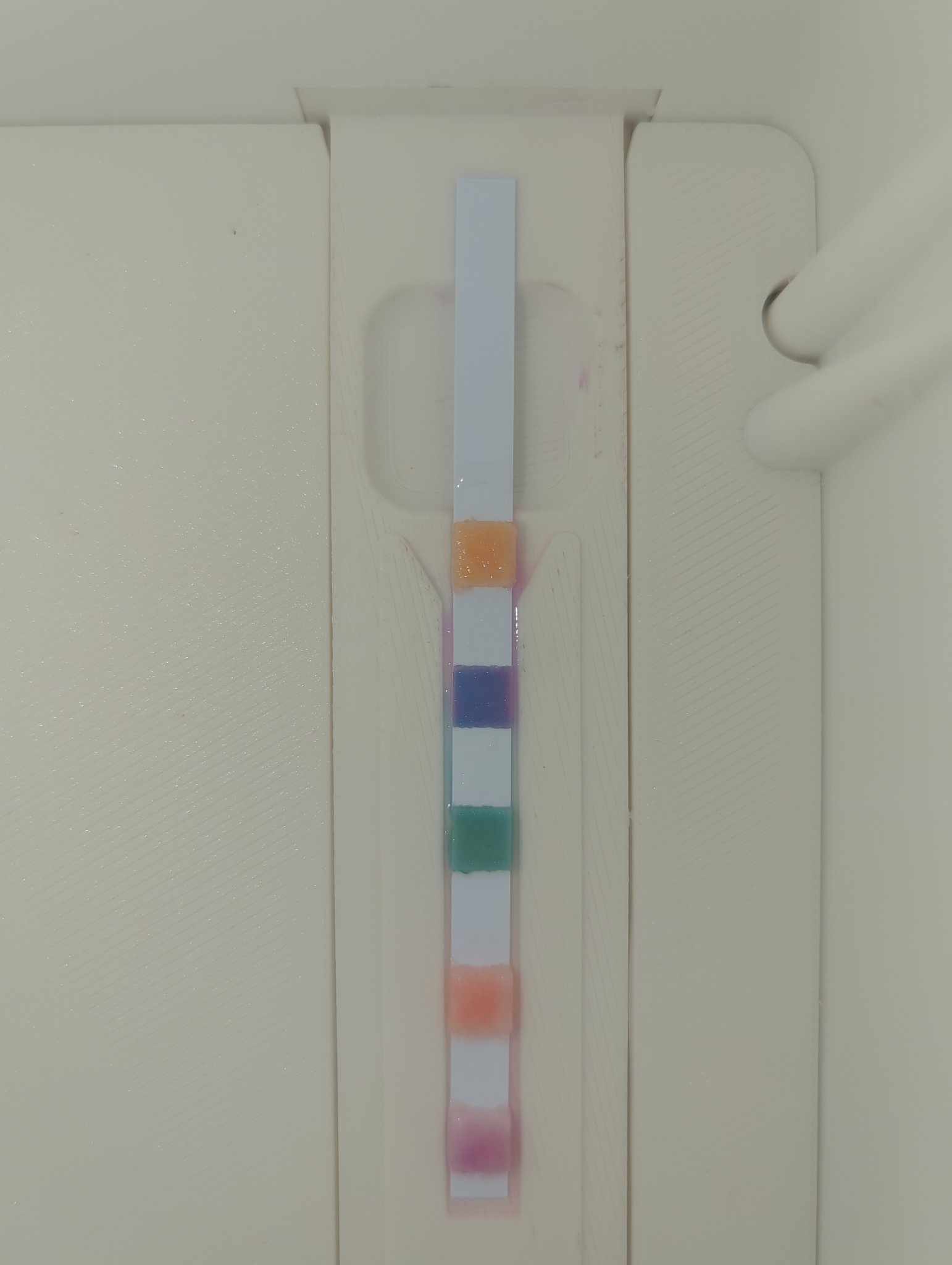

Original frame with sampling overlays for 20260806T192327_ta10.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T192327_ta10.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febc80 5 ppm
Total Hardness #7f84b8 62 ppm
Total Alkalinity #9ec8c5 144 ppm
pH #ffecea 6.4
Free Available Chlorine #fffbfe 0 ppm


HTH 5-Way Download original

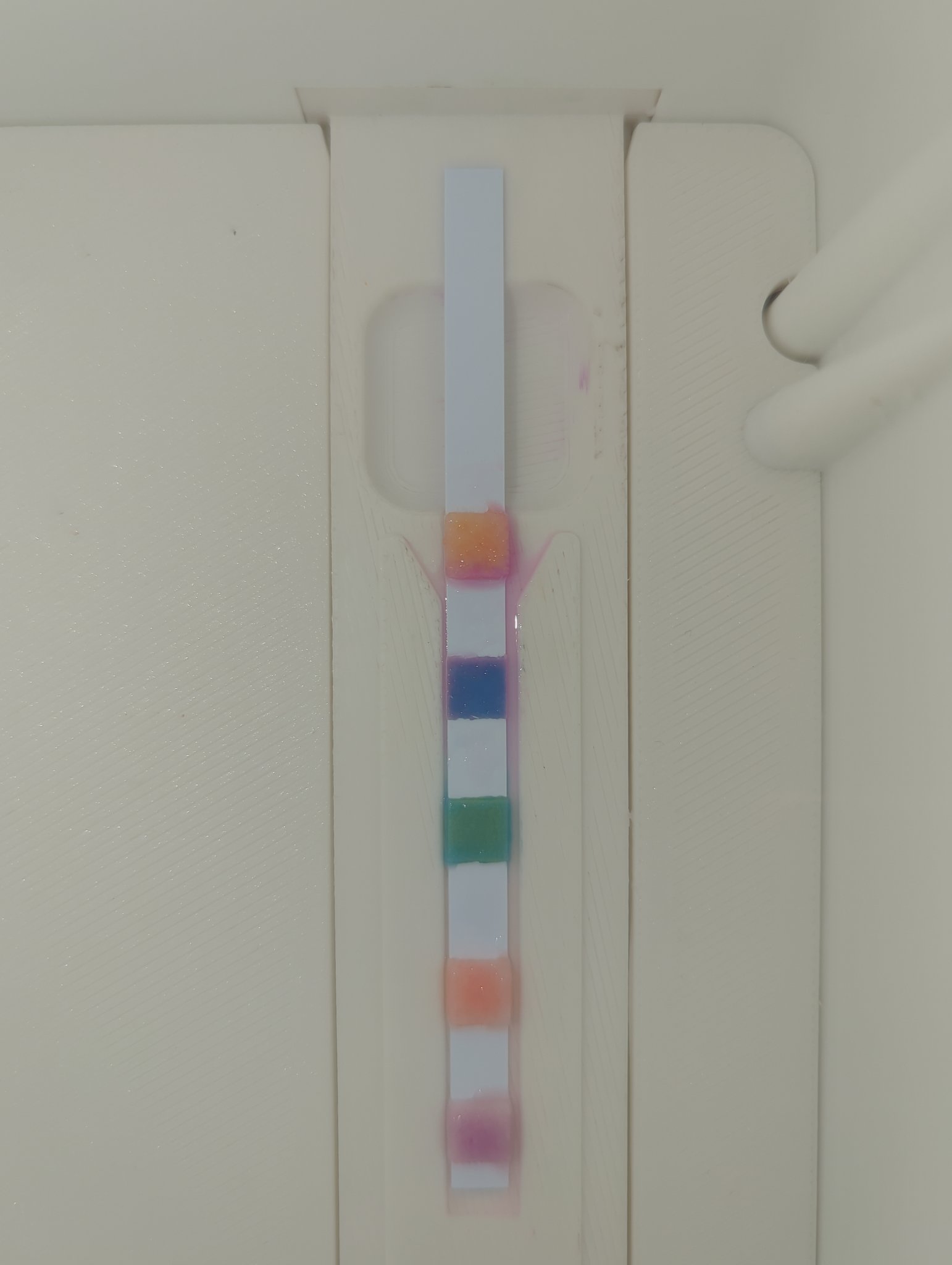

Original frame with sampling overlays for 20260806T192223_ta10.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T192223_ta10.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fda6a1 52 ppm
Total Hardness #6687c5 41 ppm
Total Alkalinity #87bdaa 142 ppm
pH #fee6df 6.8
Free Available Chlorine #fef5f8 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260806T191837_ta09.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T191837_ta09.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fbb799 15 ppm
Total Hardness #6d7fb4 54 ppm
Total Alkalinity #7cb39d 142 ppm
pH #fedcd0 7.3
Free Available Chlorine #fef4f3 0 ppm


HTH 5-Way Download original

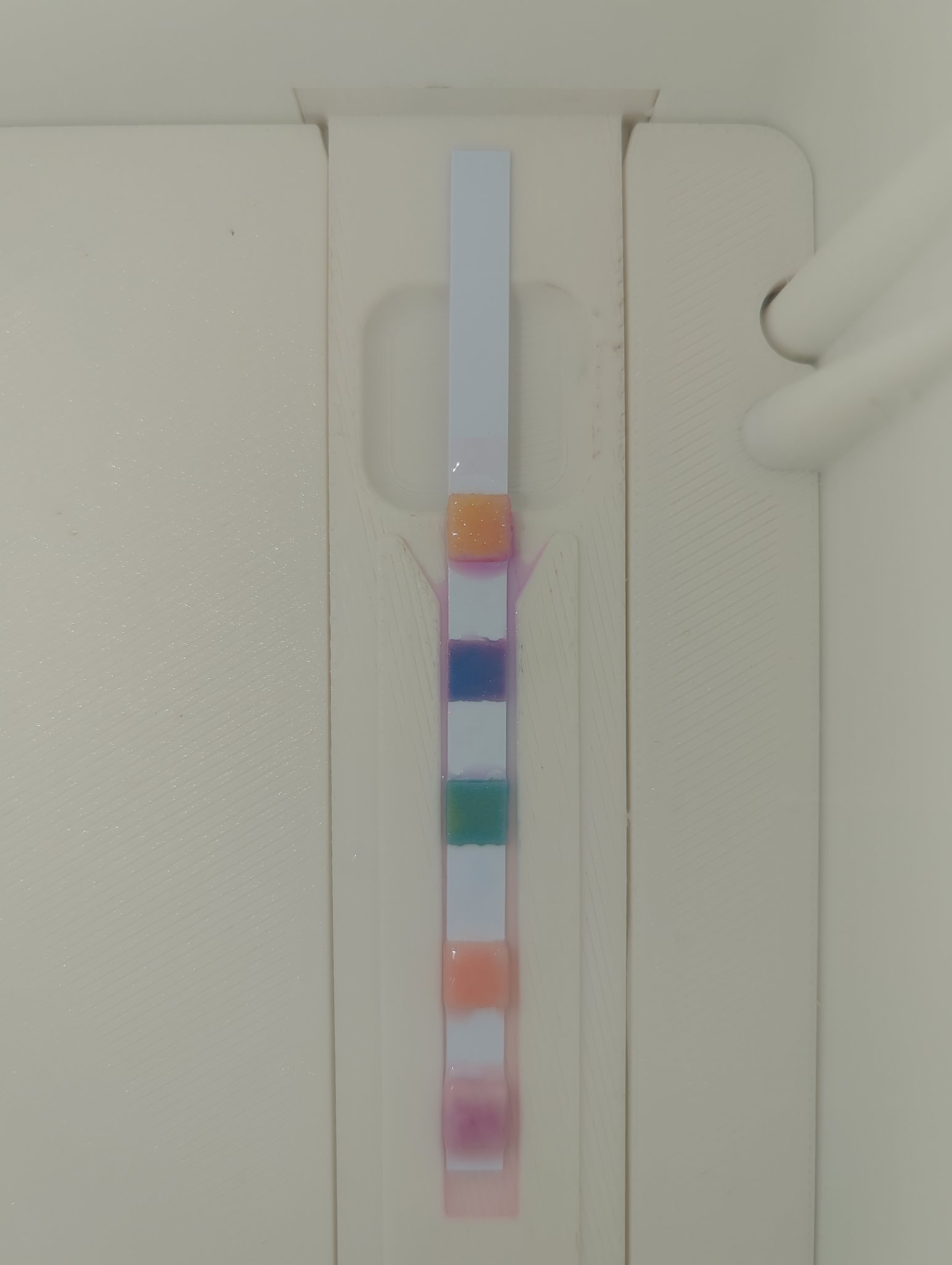

Original frame with sampling overlays for 20260806T191731_ta09.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T191731_ta09.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f7bdc5 62 ppm
Total Hardness #93a2cd 42 ppm
Total Alkalinity #63a9a5 179 ppm
pH #fec8b7 7.3
Free Available Chlorine #fdd6dd 3 ppm


HTH 5-Way Download original

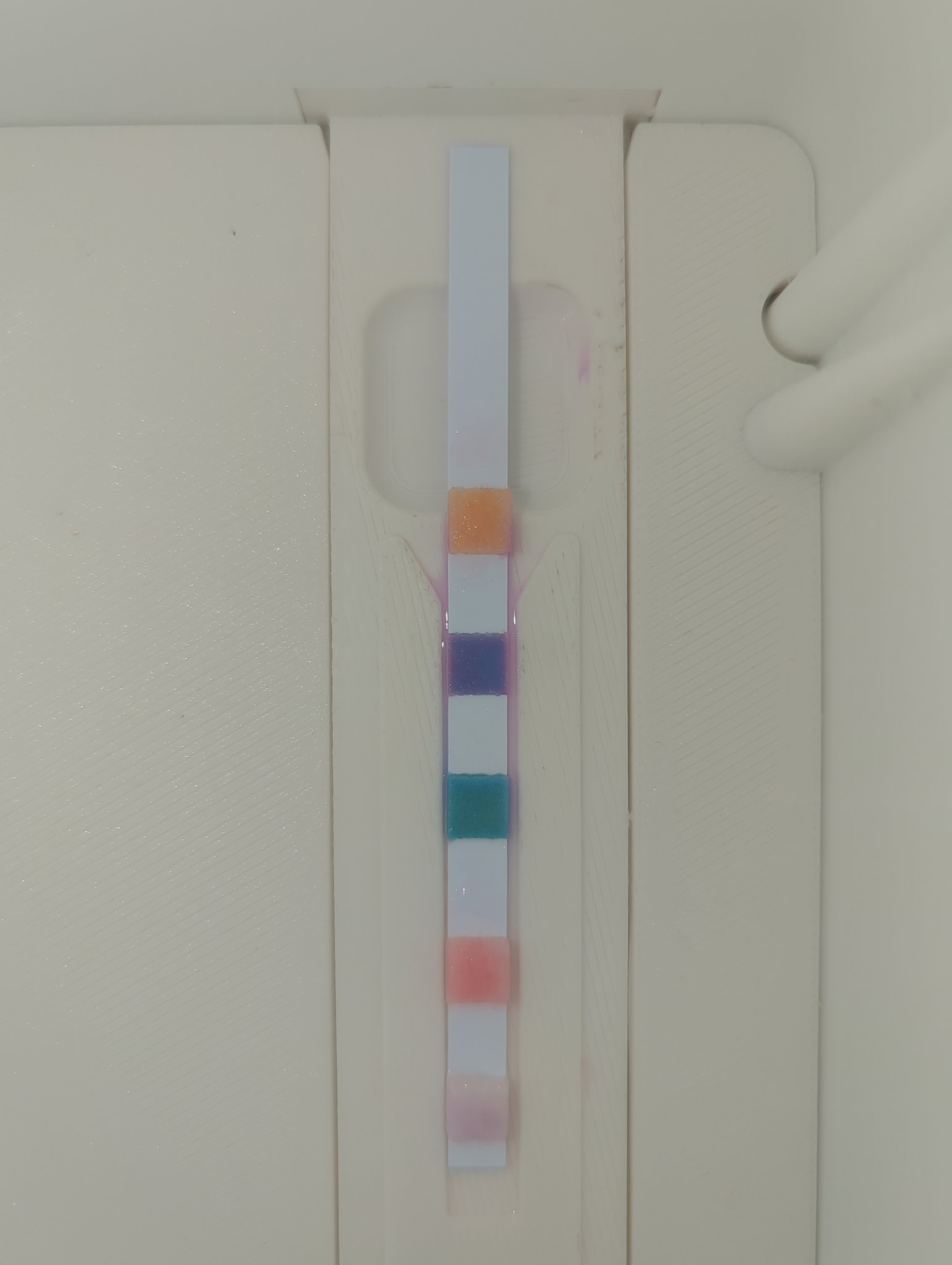

Original frame with sampling overlays for 20260806T191138_ta15.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T191138_ta15.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fce9e1 0 ppm
Total Hardness #acb2d4 47 ppm
Total Alkalinity #4fa2ae 211 ppm
pH #ffbdb9 7.4
Free Available Chlorine #fef6f4 0 ppm
