Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

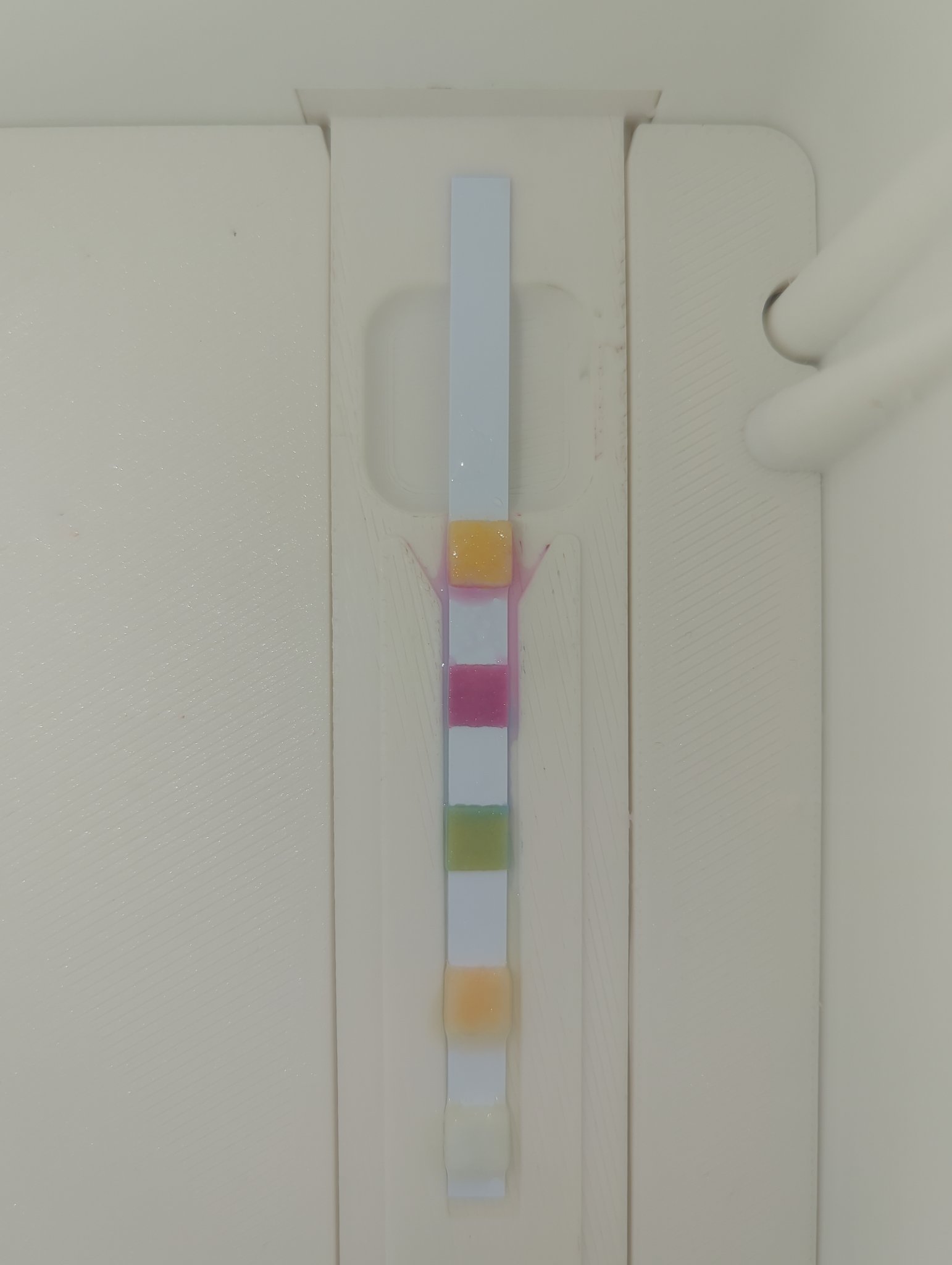

Original frame with sampling overlays for 20260806T183927_ta06.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T183927_ta06.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fecd7c 0 ppm
Total Hardness #e779a9 464 ppm
Total Alkalinity #cbd7b9 91 ppm
pH #fef8eb 6.4
Free Available Chlorine #fefefd 0 ppm


HTH 5-Way Download original

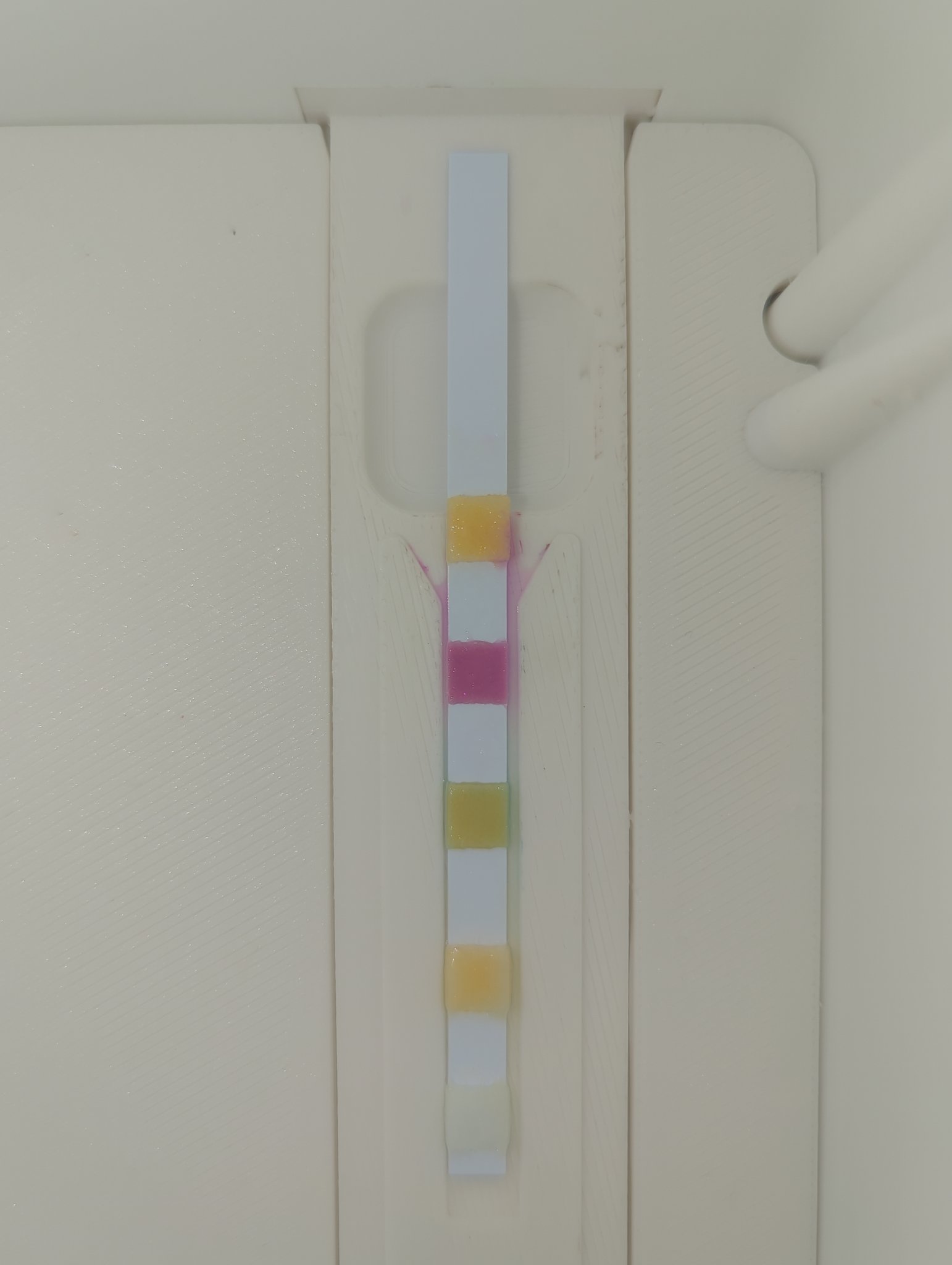

Original frame with sampling overlays for 20260806T183229_ta03.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T183229_ta03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fde6c3 9 ppm
Total Hardness #e994bc 417 ppm
Total Alkalinity #e5d078 0 ppm
pH #fef1b0 6.4
Free Available Chlorine #fefef8 0 ppm


HTH 5-Way Download original

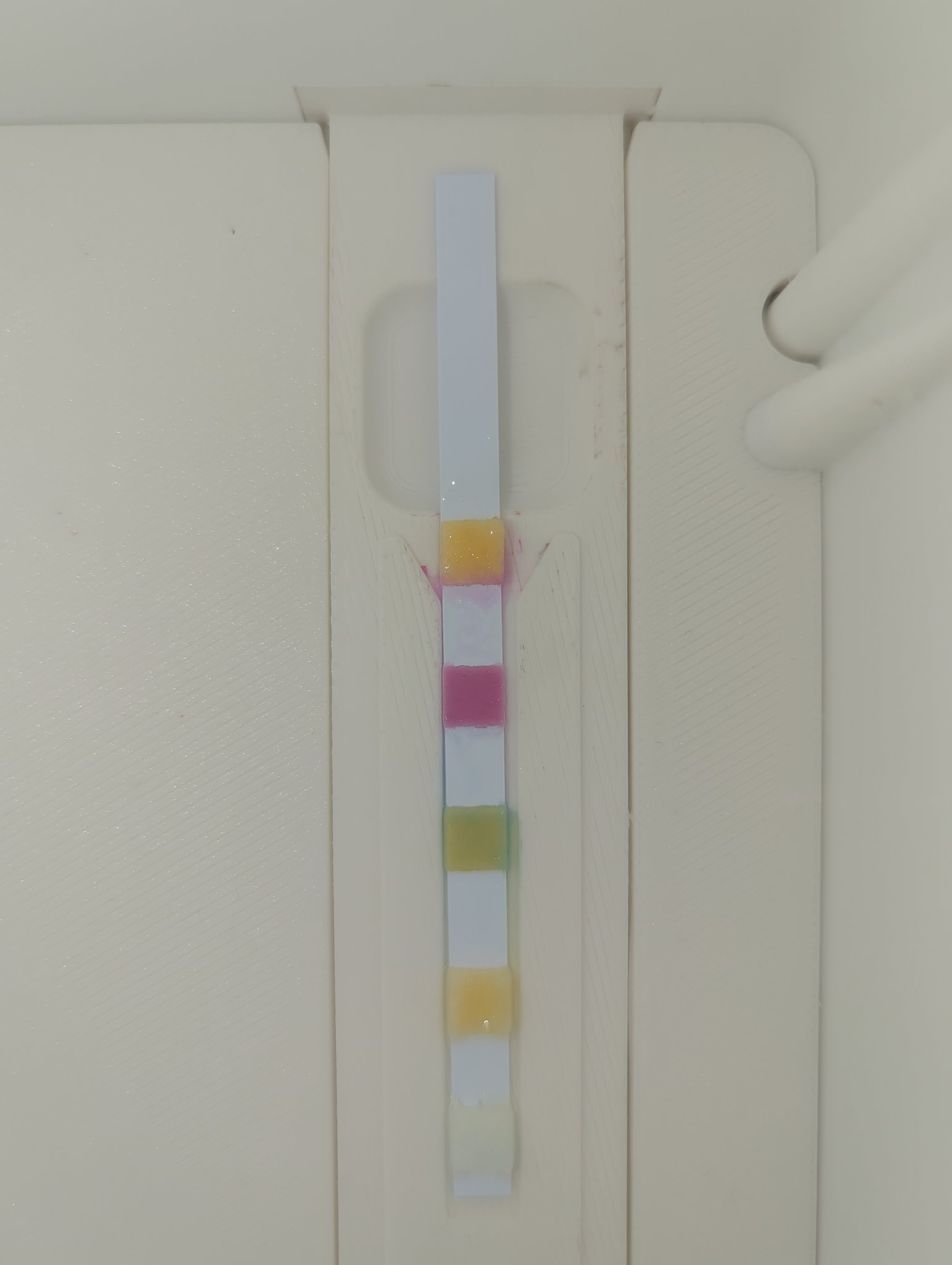

Original frame with sampling overlays for 20260806T183051_ta03.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T183051_ta03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcc88c 3 ppm
Total Hardness #e787b4 424 ppm
Total Alkalinity #e0e0b7 21 ppm
pH #fffeef 6.4
Free Available Chlorine #fffffe 0 ppm


HTH 5-Way Download original

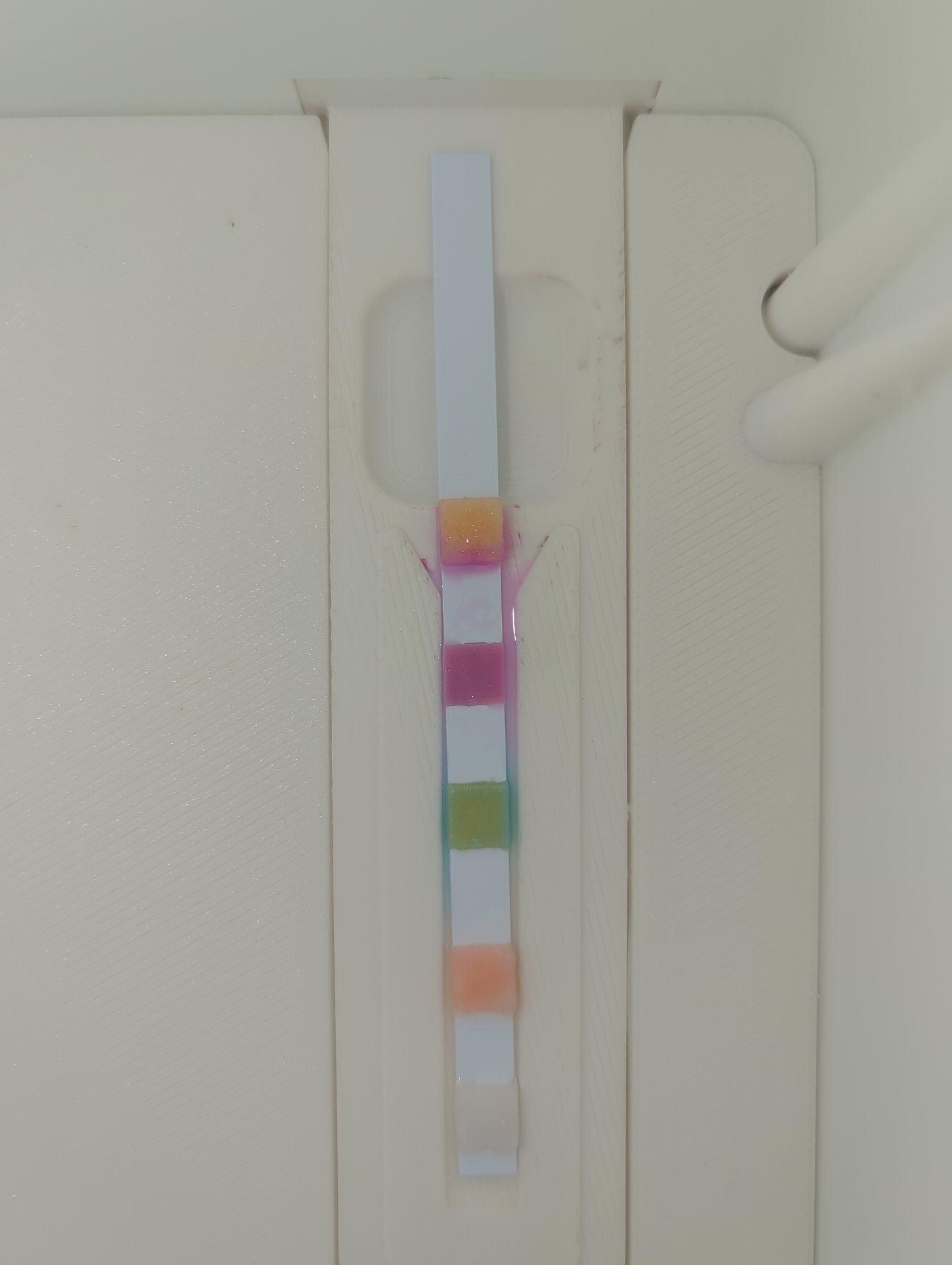

Original frame with sampling overlays for 20260806T182604_ta05move.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T182604_ta05move.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f9b1cb 67 ppm
Total Hardness #e892c2 406 ppm
Total Alkalinity #b5c385 41 ppm
pH #ffd5bf 6.9
Free Available Chlorine #fffefe 0 ppm


HTH 5-Way Download original

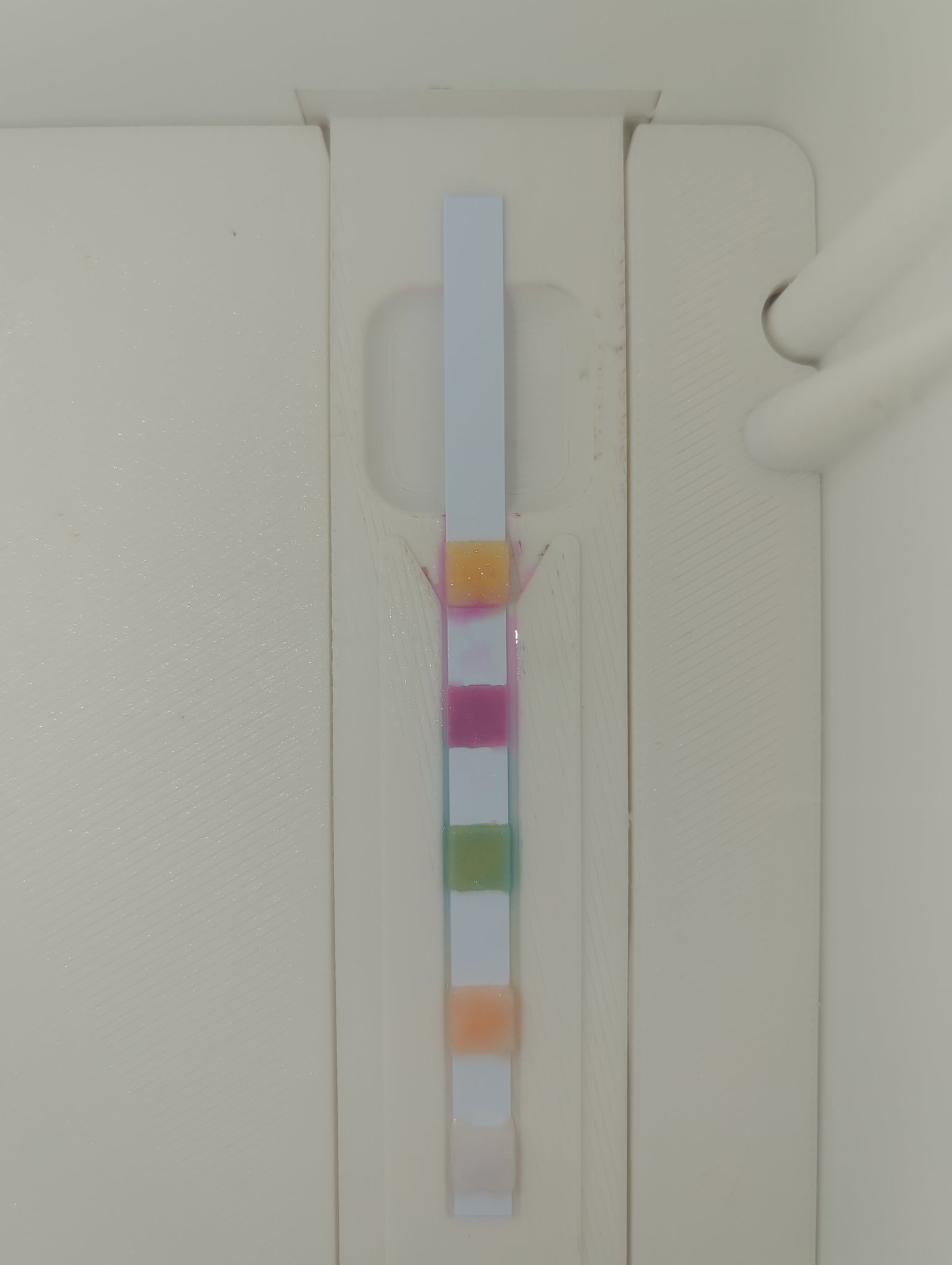

Original frame with sampling overlays for 20260806T182423_ta05.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T182423_ta05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fed084 0 ppm
Total Hardness #eeb2d0 0 ppm
Total Alkalinity #eef4ea 99 ppm
pH #ffffff 6.4
Free Available Chlorine #fffefe 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260806T182352_ta05.jpg
Original frame + sampling zones
Rectified strip preview for 20260806T182352_ta05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fec875 0 ppm
Total Hardness #e4a8c7 404 ppm
Total Alkalinity #edefe6 61 ppm
pH #fefbfd 6.4
Free Available Chlorine #fefbfa 0 ppm


HTH 5-Way Download original

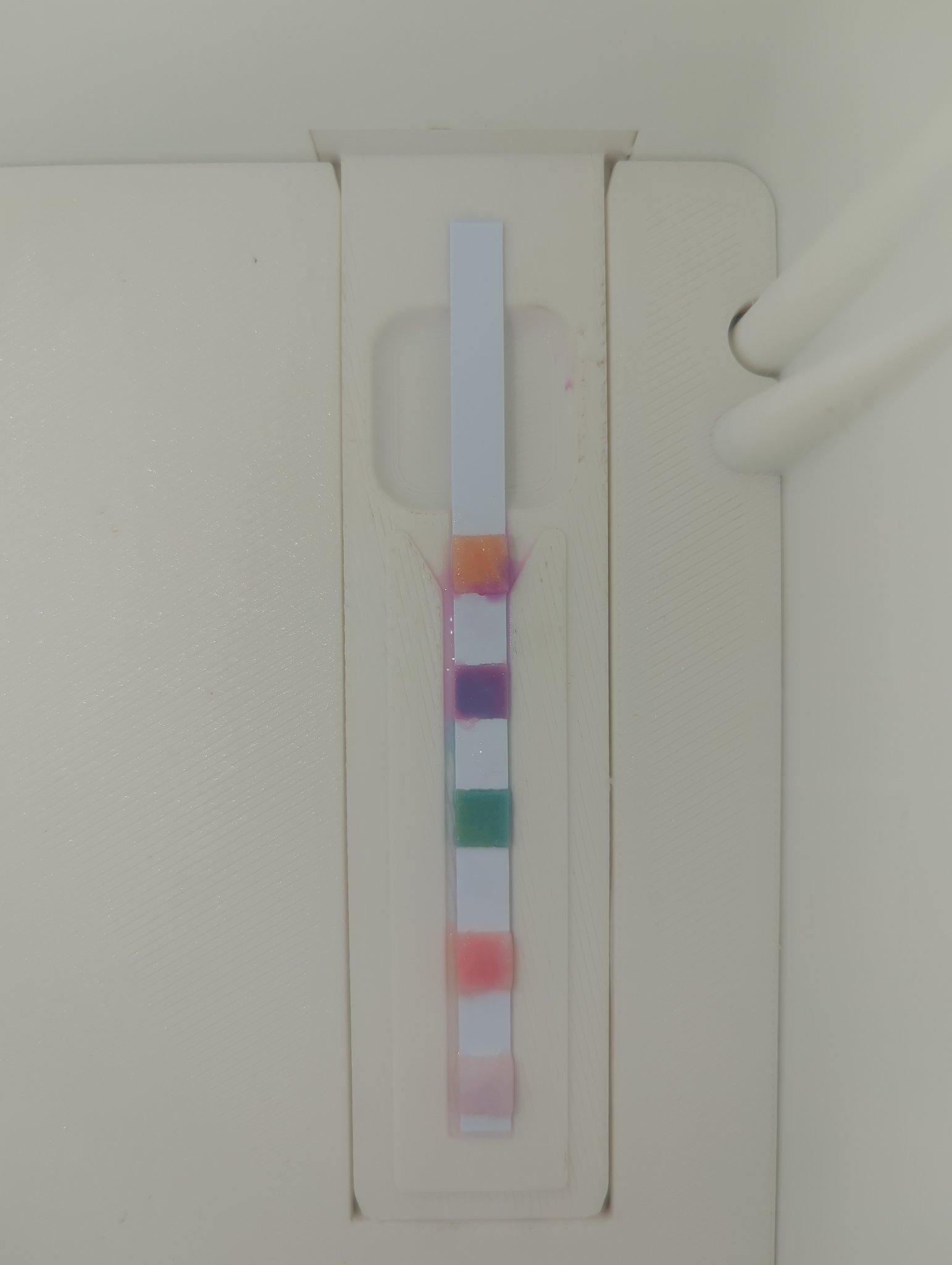

Original frame with sampling overlays for 20260804T004745_ph14.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T004745_ph14.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fca68d 21 ppm
Total Hardness #a880b7 147 ppm
Total Alkalinity #6caea5 174 ppm
pH #ffa7ac 7.6
Free Available Chlorine #fee3e8 1 ppm


HTH 5-Way Download original

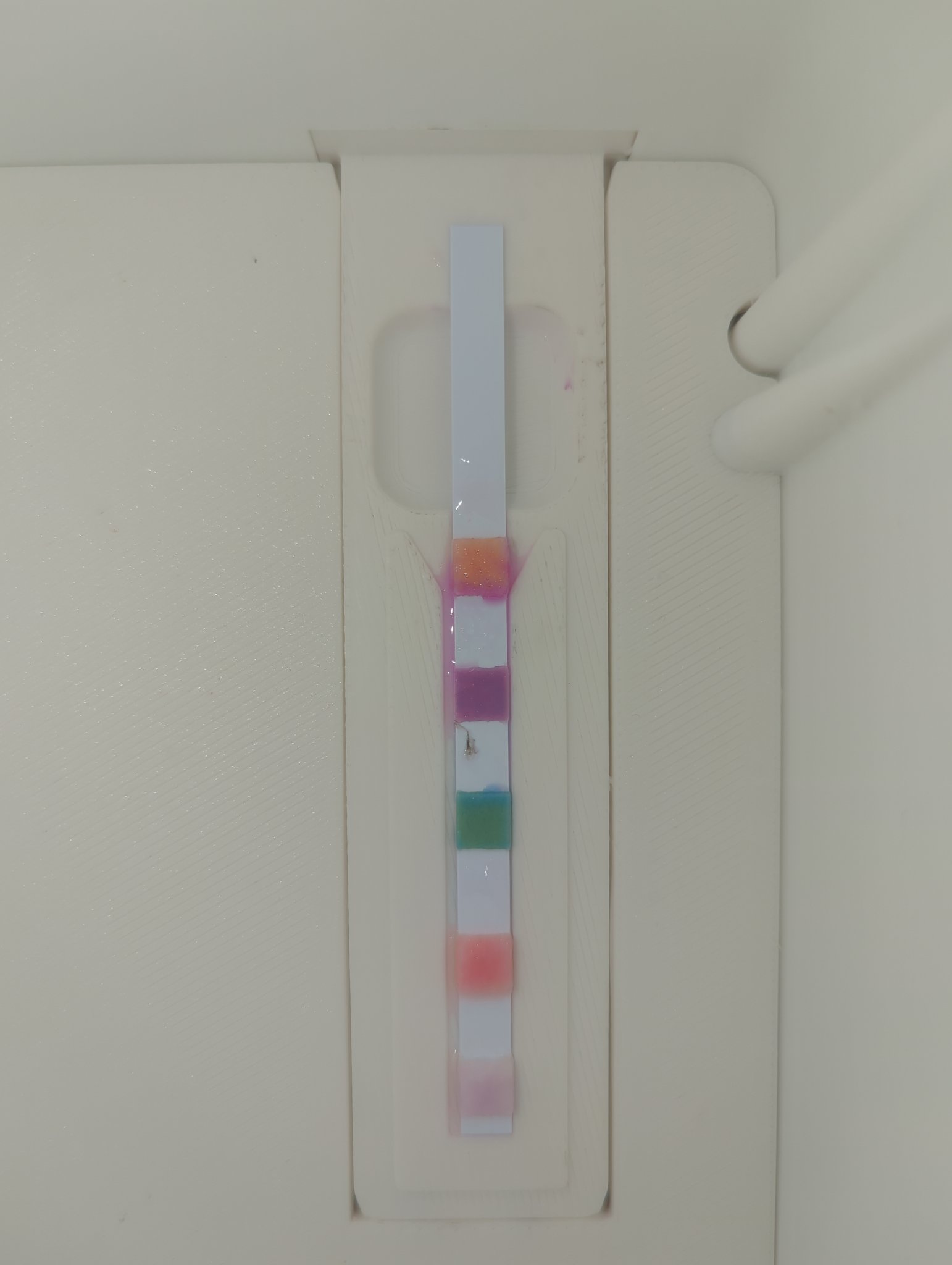

Original frame with sampling overlays for 20260804T004615_ph14.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T004615_ph14.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea592 48 ppm
Total Hardness #c681b4 337 ppm
Total Alkalinity #6faea1 173 ppm
pH #ffa9ad 7.6
Free Available Chlorine #fedfe9 3 ppm
