Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

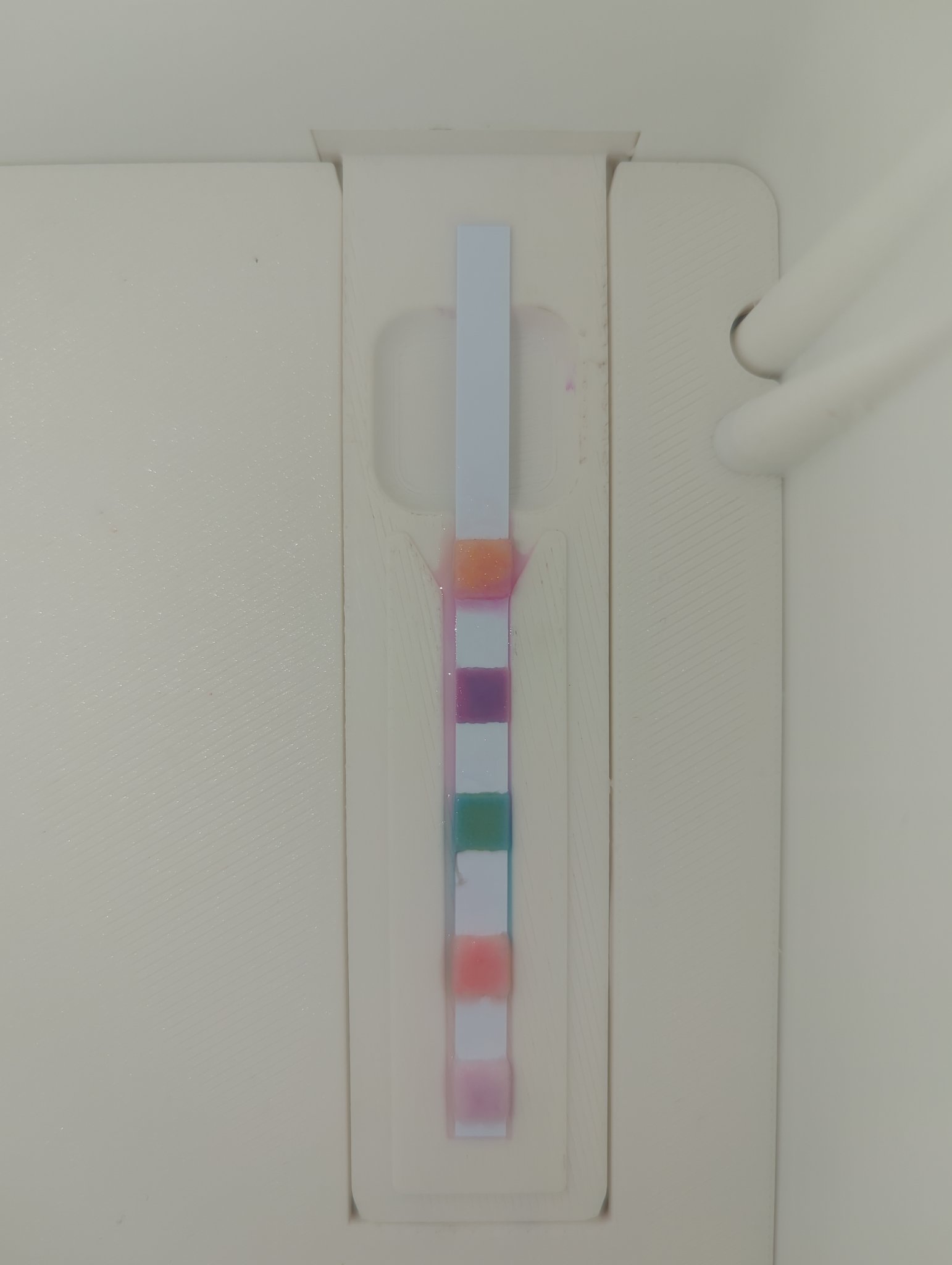

Original frame with sampling overlays for 20260804T004210_ph13.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T004210_ph13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feac8f 19 ppm
Total Hardness #b881b0 341 ppm
Total Alkalinity #75b0a2 148 ppm
pH #feacab 7.6
Free Available Chlorine #fdcfde 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260804T004048_ph13.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T004048_ph13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdb194 17 ppm
Total Hardness #ac84ba 148 ppm
Total Alkalinity #74b1a5 172 ppm
pH #ffafad 7.6
Free Available Chlorine #fdcfe1 4 ppm


HTH 5-Way Download original

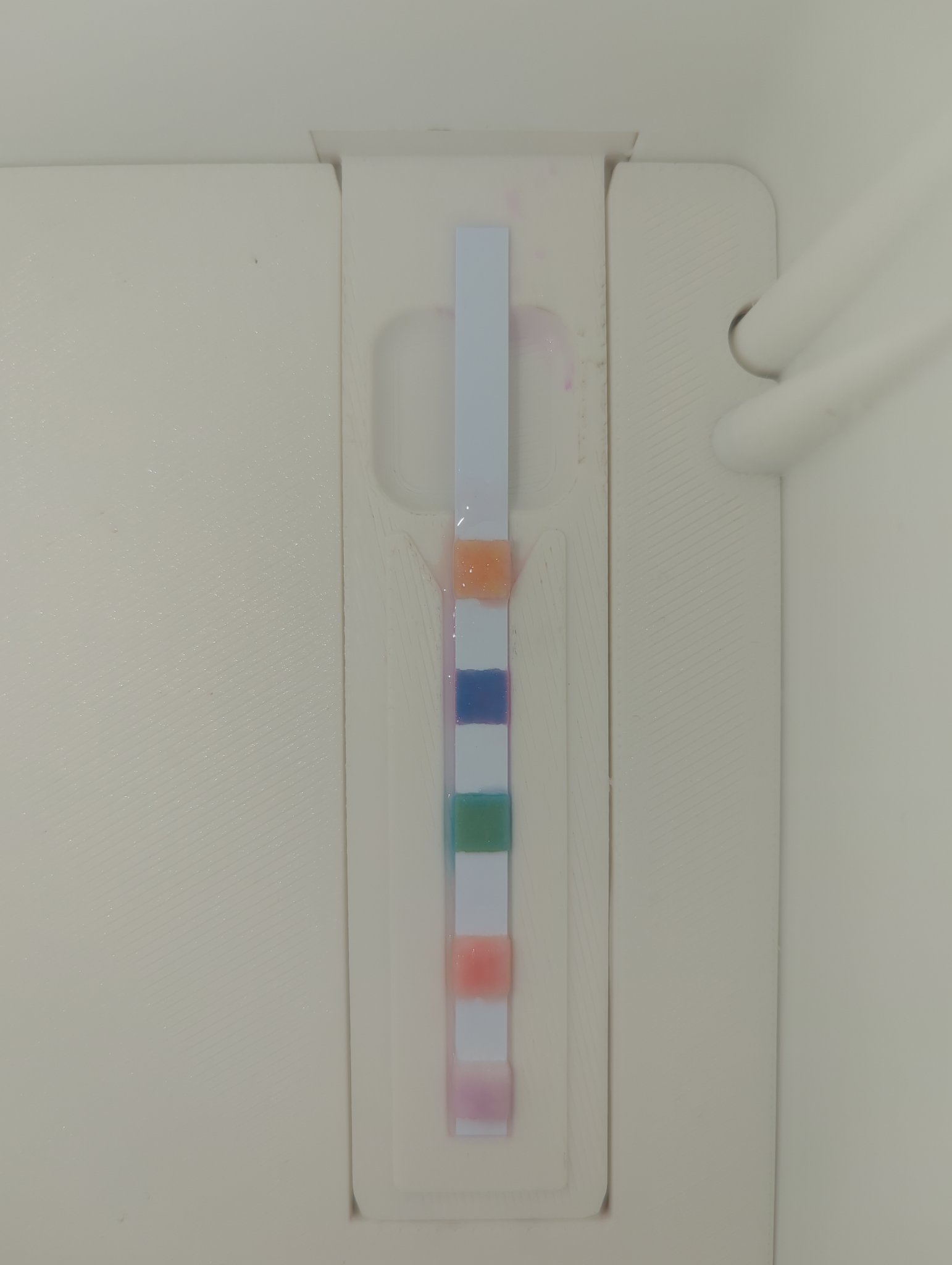

Original frame with sampling overlays for 20260804T003623_ph11.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T003623_ph11.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feba8c 9 ppm
Total Hardness #7a93c5 39 ppm
Total Alkalinity #77b2a2 146 ppm
pH #ffb4a9 7.4
Free Available Chlorine #fed8df 3 ppm


HTH 5-Way Download original

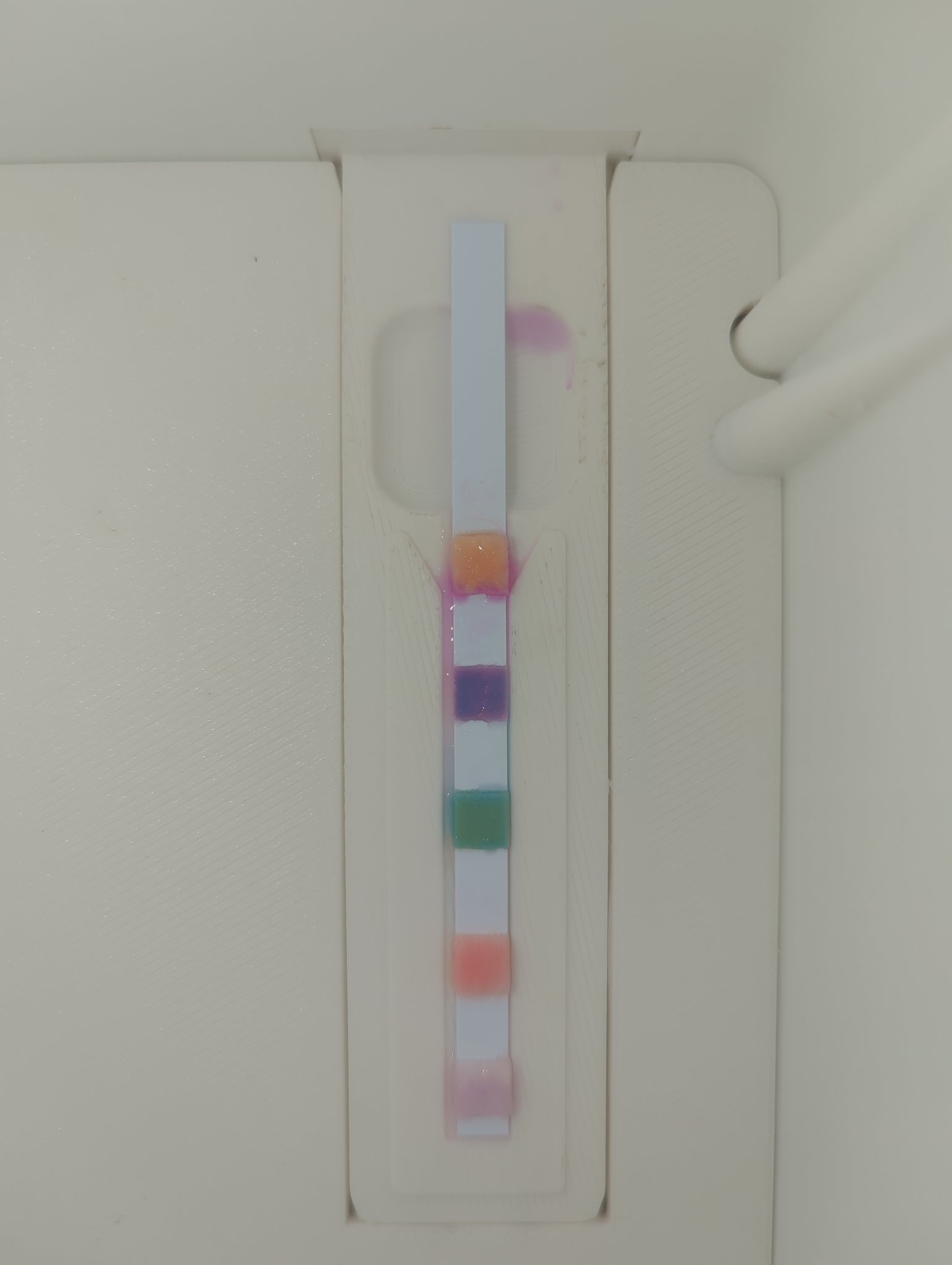

Original frame with sampling overlays for 20260804T003512_ph11.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T003512_ph11.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb28d 14 ppm
Total Hardness #9e84b9 136 ppm
Total Alkalinity #7cb3a0 144 ppm
pH #ffb5ad 7.4
Free Available Chlorine #fedbe6 3 ppm


HTH 5-Way Download original

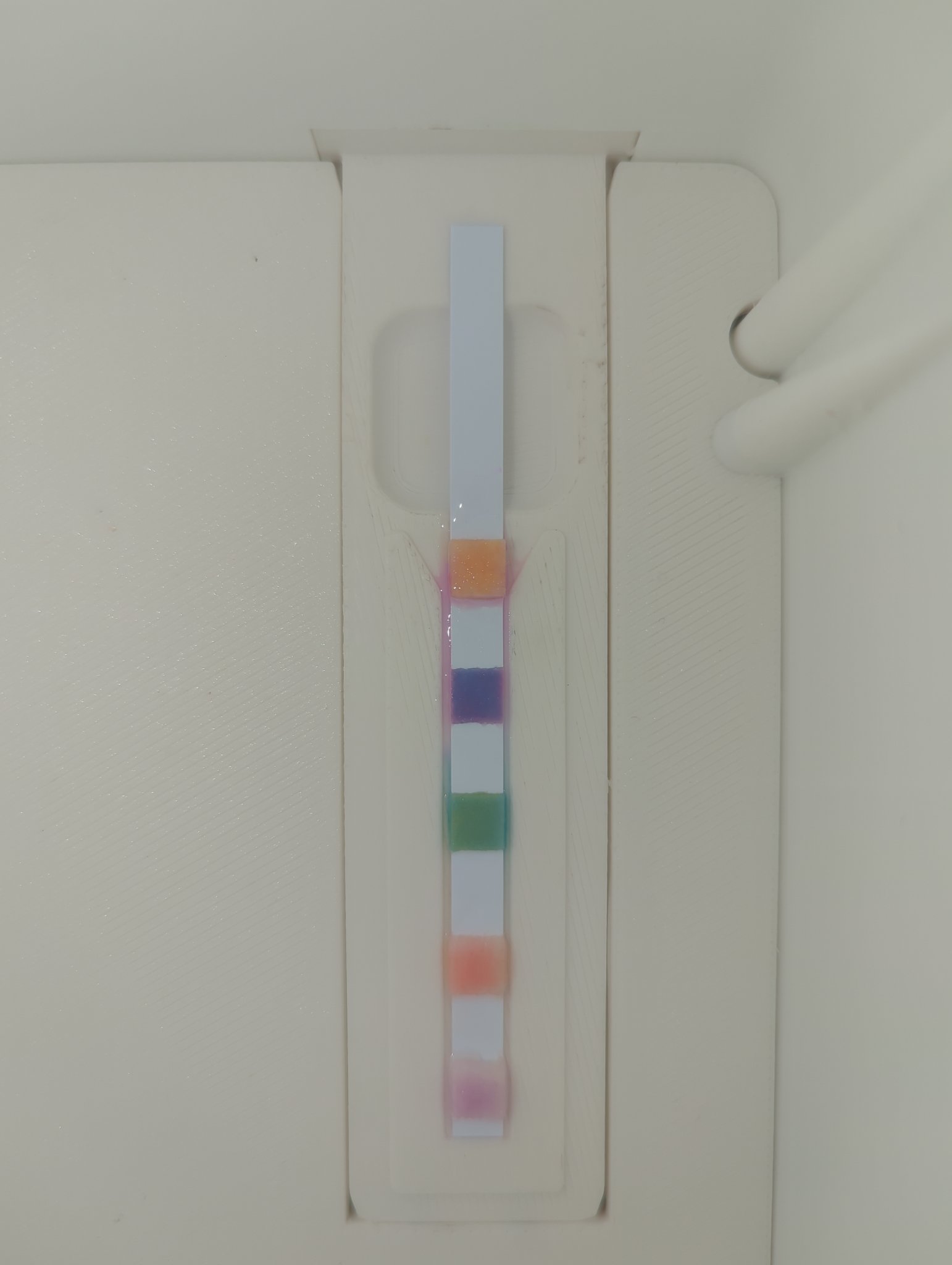

Original frame with sampling overlays for 20260804T003028_ph09.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T003028_ph09.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febf8d 7 ppm
Total Hardness #9890c1 68 ppm
Total Alkalinity #89baa1 138 ppm
pH #fec3ae 7.3
Free Available Chlorine #fed3de 4 ppm


HTH 5-Way Download original

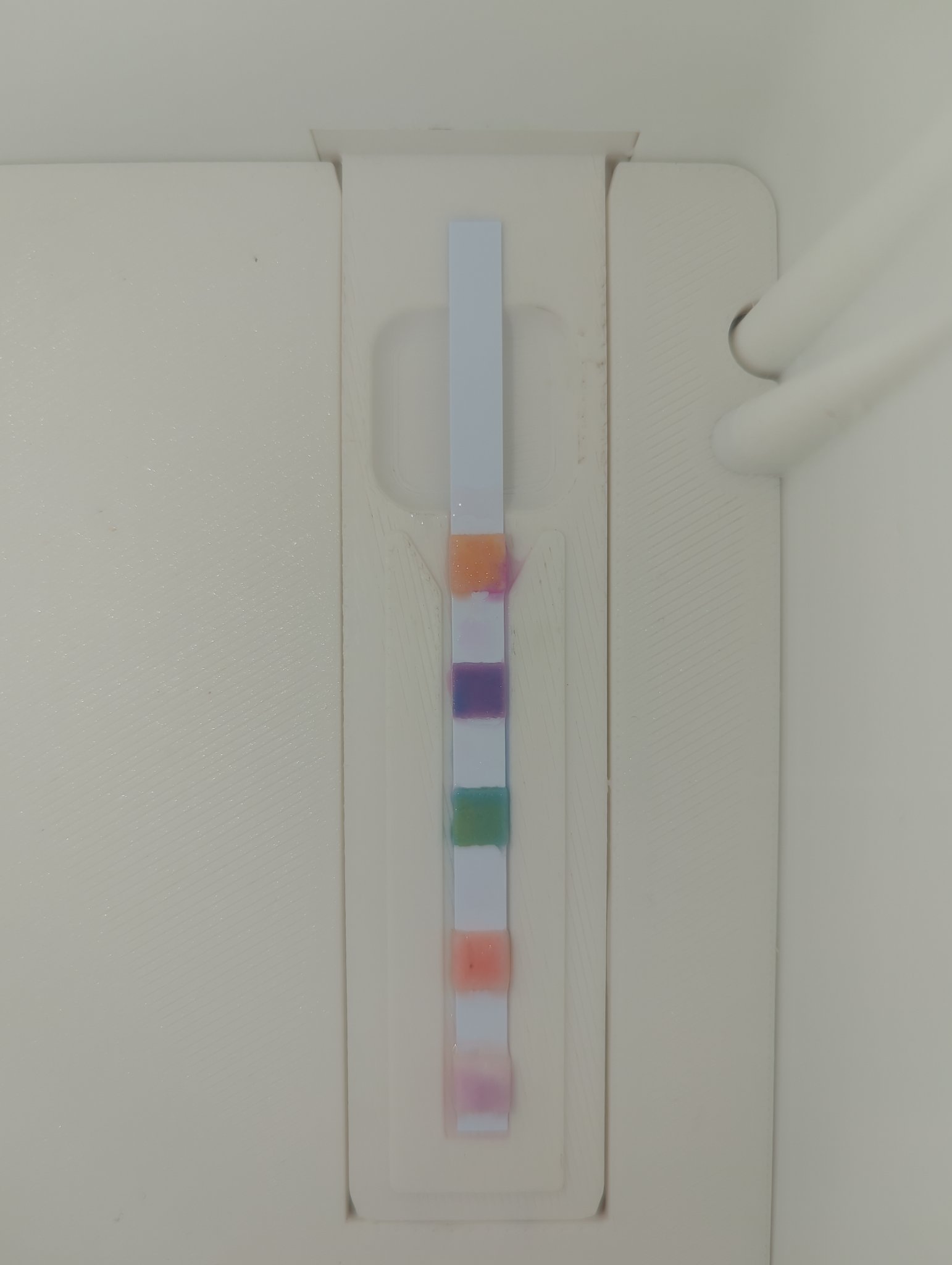

Original frame with sampling overlays for 20260804T002928_ph09.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T002928_ph09.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdae8c 16 ppm
Total Hardness #997fb6 136 ppm
Total Alkalinity #7db39f 144 ppm
pH #feb2a3 7.4
Free Available Chlorine #fed2e0 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260804t002524_ph07.jpg
Original frame + sampling zones
Rectified strip preview for 20260804t002524_ph07.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb685 10 ppm
Total Hardness #8088ba 61 ppm
Total Alkalinity #81b4a0 143 ppm
pH #febca5 7.3
Free Available Chlorine #fbc7d4 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260804T002411_ph07.jpg
Original frame + sampling zones
Rectified strip preview for 20260804T002411_ph07.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb988 9 ppm
Total Hardness #9589bb 128 ppm
Total Alkalinity #80b49f 142 ppm
pH #ffbca8 7.3
Free Available Chlorine #fed0db 4 ppm
