Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

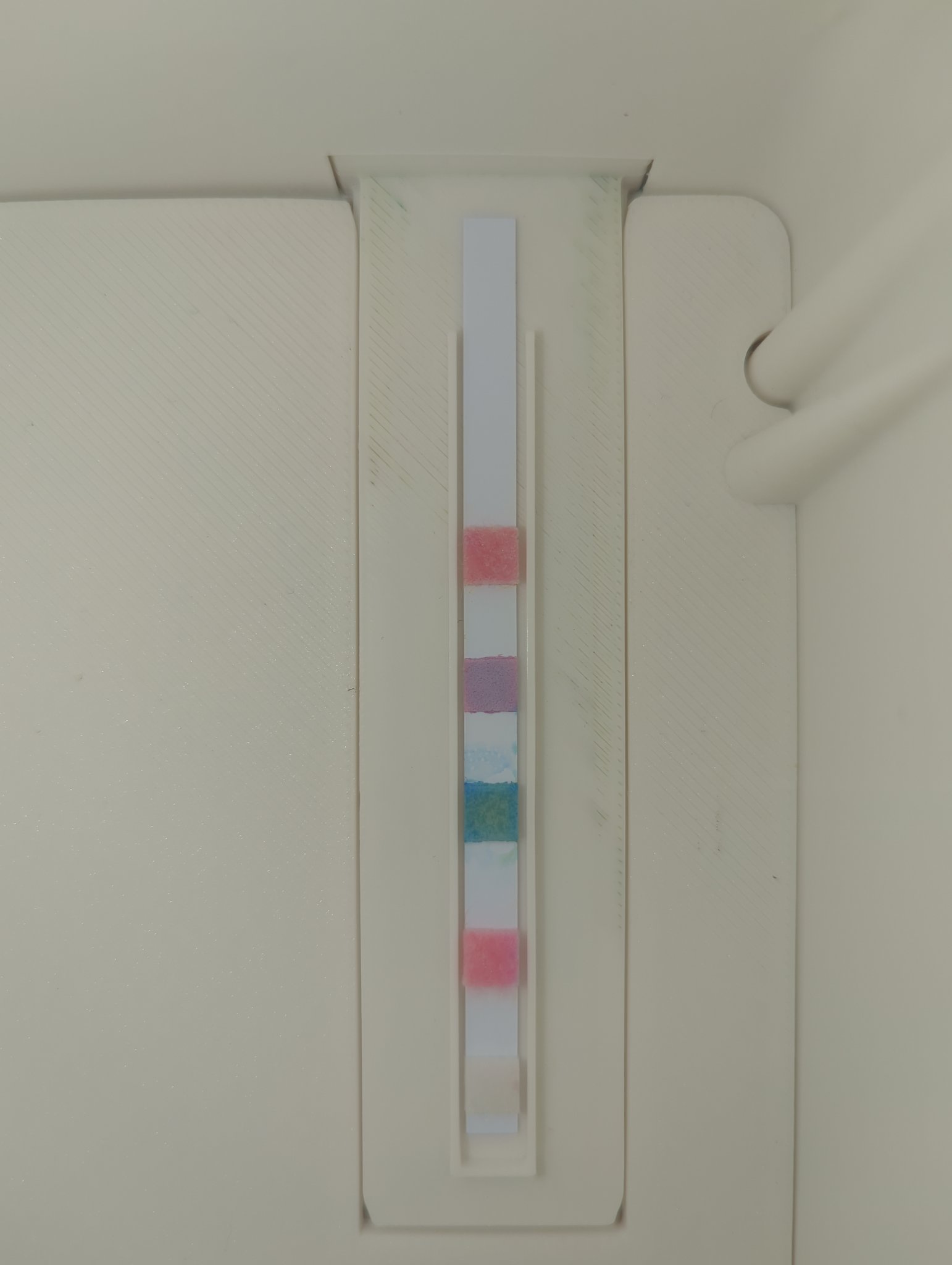

Original frame with sampling overlays for 20260728T191000_testold.jpg
Original frame + sampling zones
Rectified strip preview for 20260728T191000_testold.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc9d9f 56 ppm
Total Hardness #cbabc1 0 ppm
Total Alkalinity #6faaa8 177 ppm
pH #fe9ead 7.7
Free Available Chlorine #fcf3e3 0 ppm


HTH 5-Way Download original

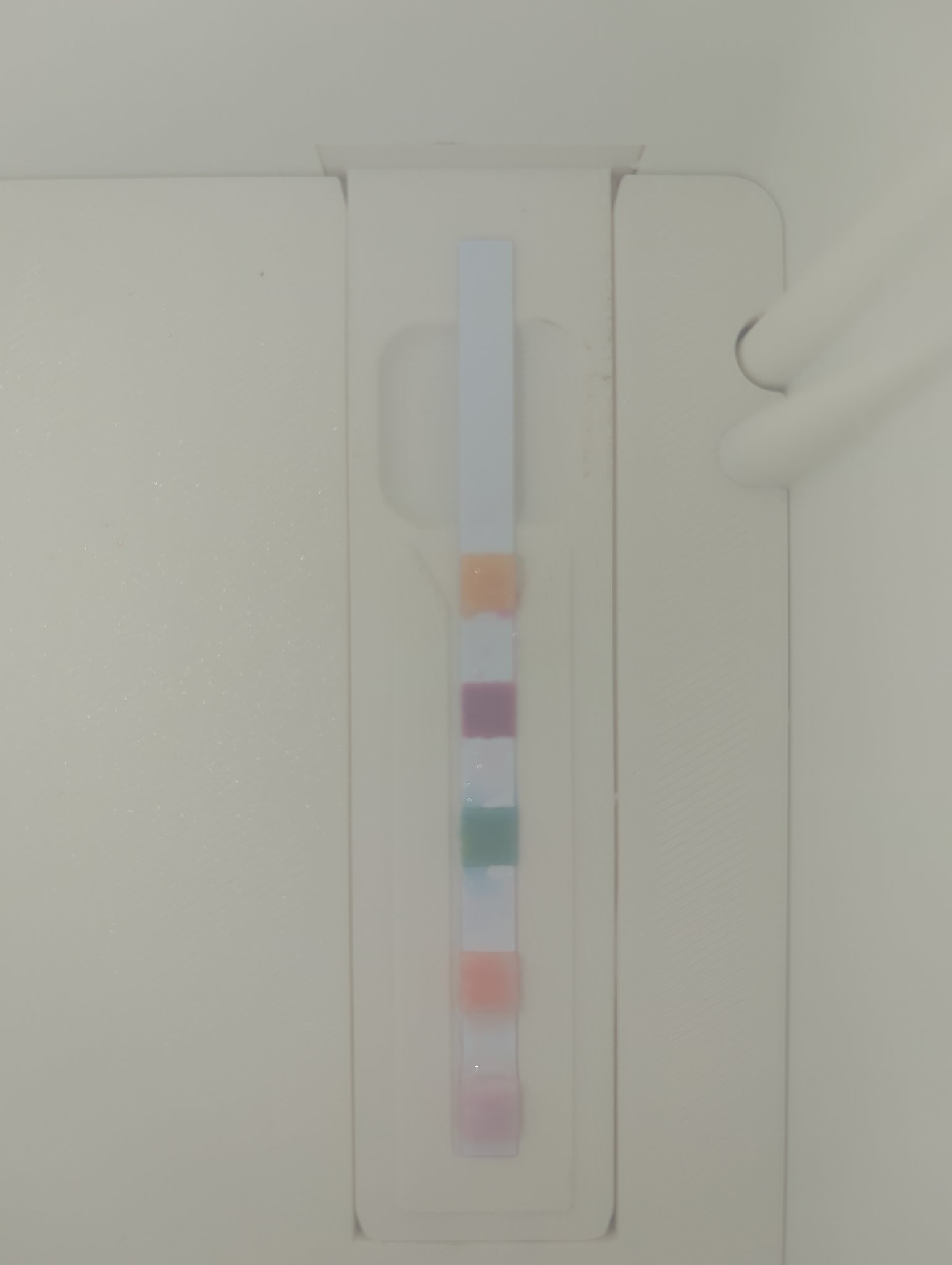

Original frame with sampling overlays for 20260728T182700_1-1.jpg
Original frame + sampling zones
Rectified strip preview for 20260728T182700_1-1.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fee3cb 11 ppm
Total Hardness #e3ccd7 0 ppm
Total Alkalinity #c7d9da 138 ppm
pH #ffdfd8 7.3
Free Available Chlorine #fde4e5 1 ppm


Clorox 6-Way Download original

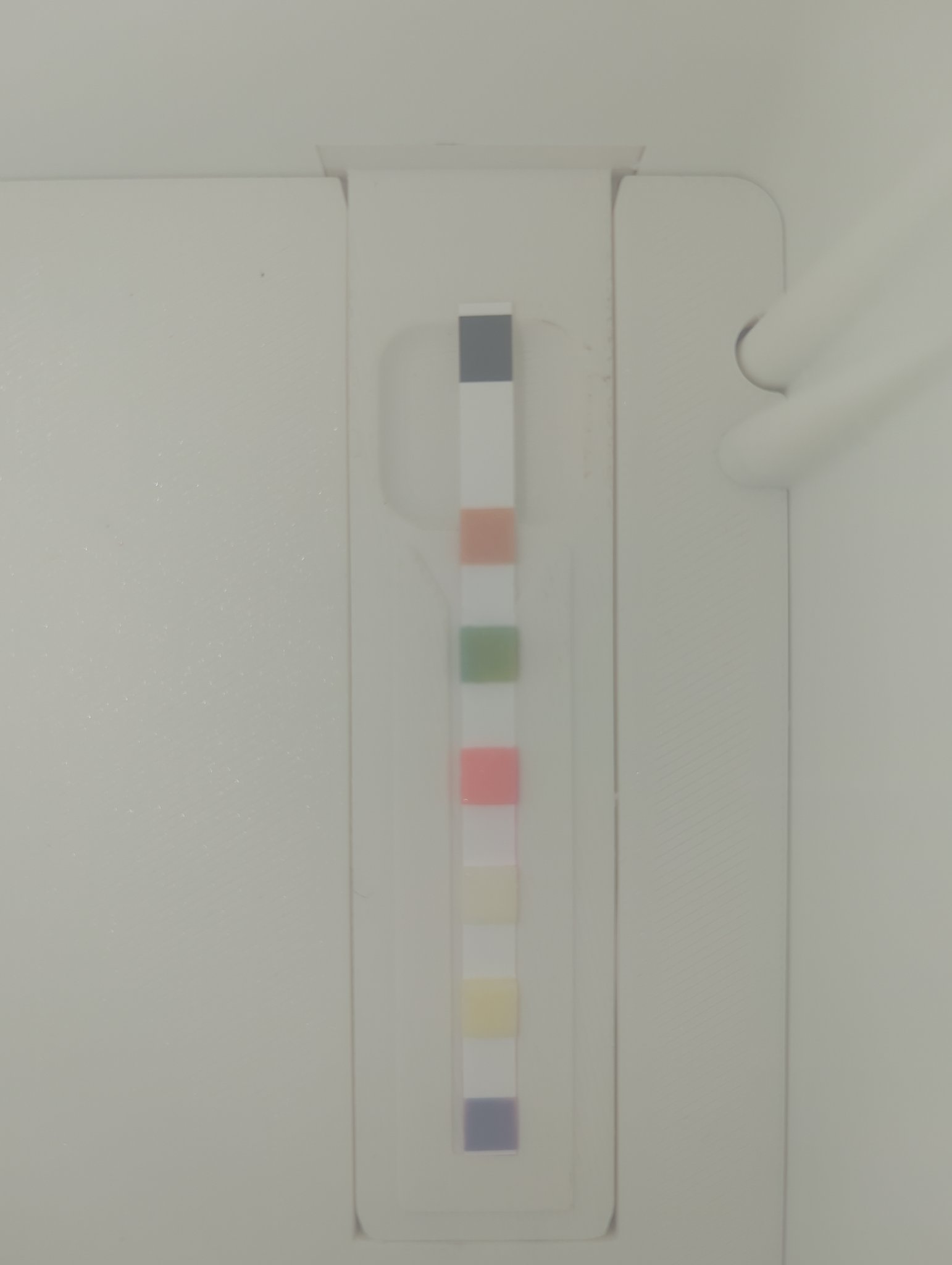

Original frame with sampling overlays for 20260728T175846_testnewapp4.jpg
Original frame + sampling zones
Rectified strip preview for 20260728T175846_testnewapp4.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #f1c5ba 0 ppm
Total Alkalinity #b6c8b2 82 ppm
pH #feb9bd 6.2
Free Chlorine #fbf5ea 0 ppm
Total Chlorine #fcf2d5 1 ppm
Total Hardness #afafc6 0 ppm


HTH 5-Way Download original

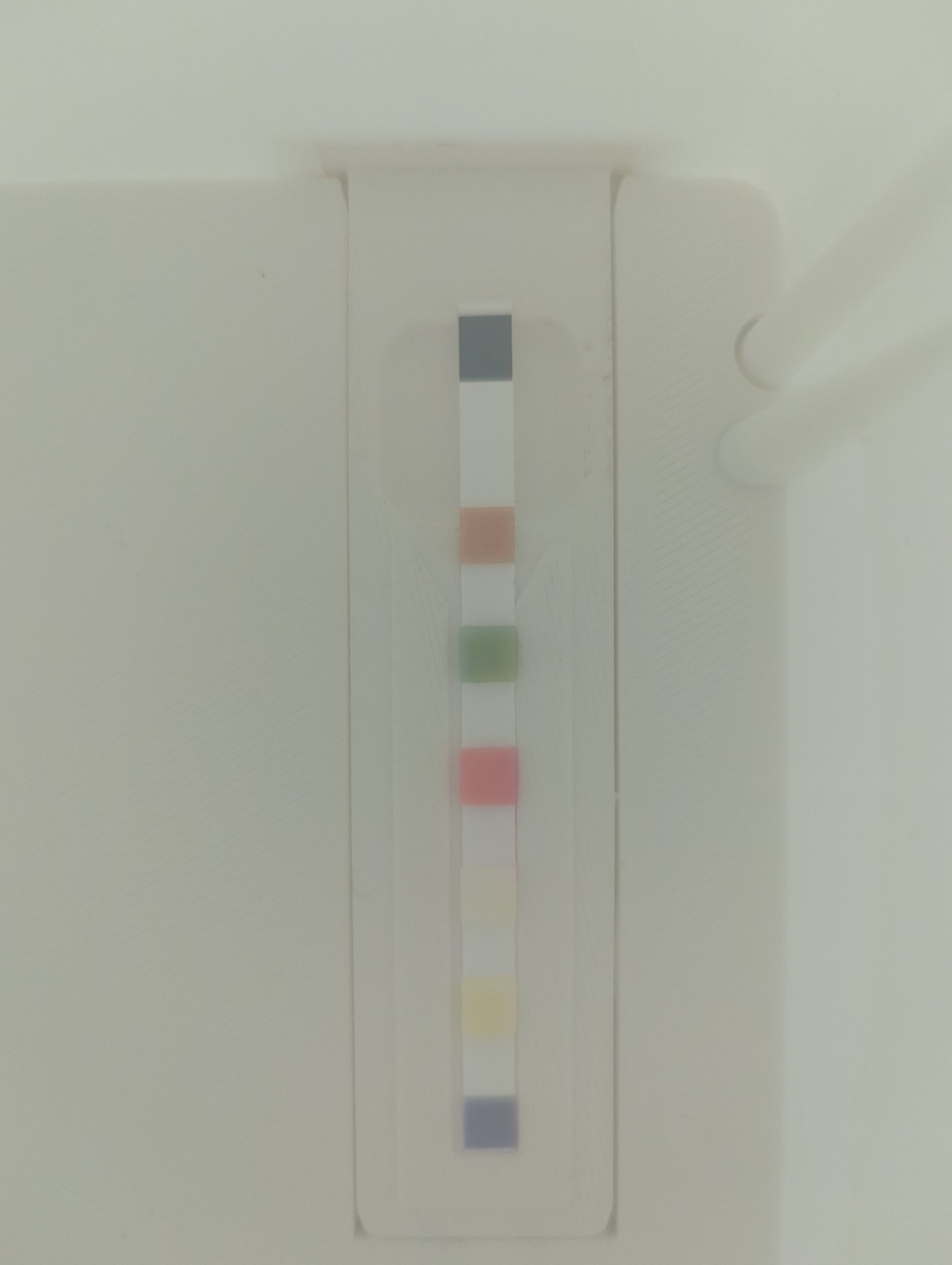

Original frame with sampling overlays for 20260728T175731_testnewapp.jpg
Original frame + sampling zones
Rectified strip preview for 20260728T175731_testnewapp.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #ead7d1 0 ppm
Total Hardness #d7e0d8 0 ppm
Total Alkalinity #f8d8de 0 ppm
pH #fefcfc 6.4
Free Available Chlorine #f1f1f5 0 ppm


Clorox 6-Way Download original

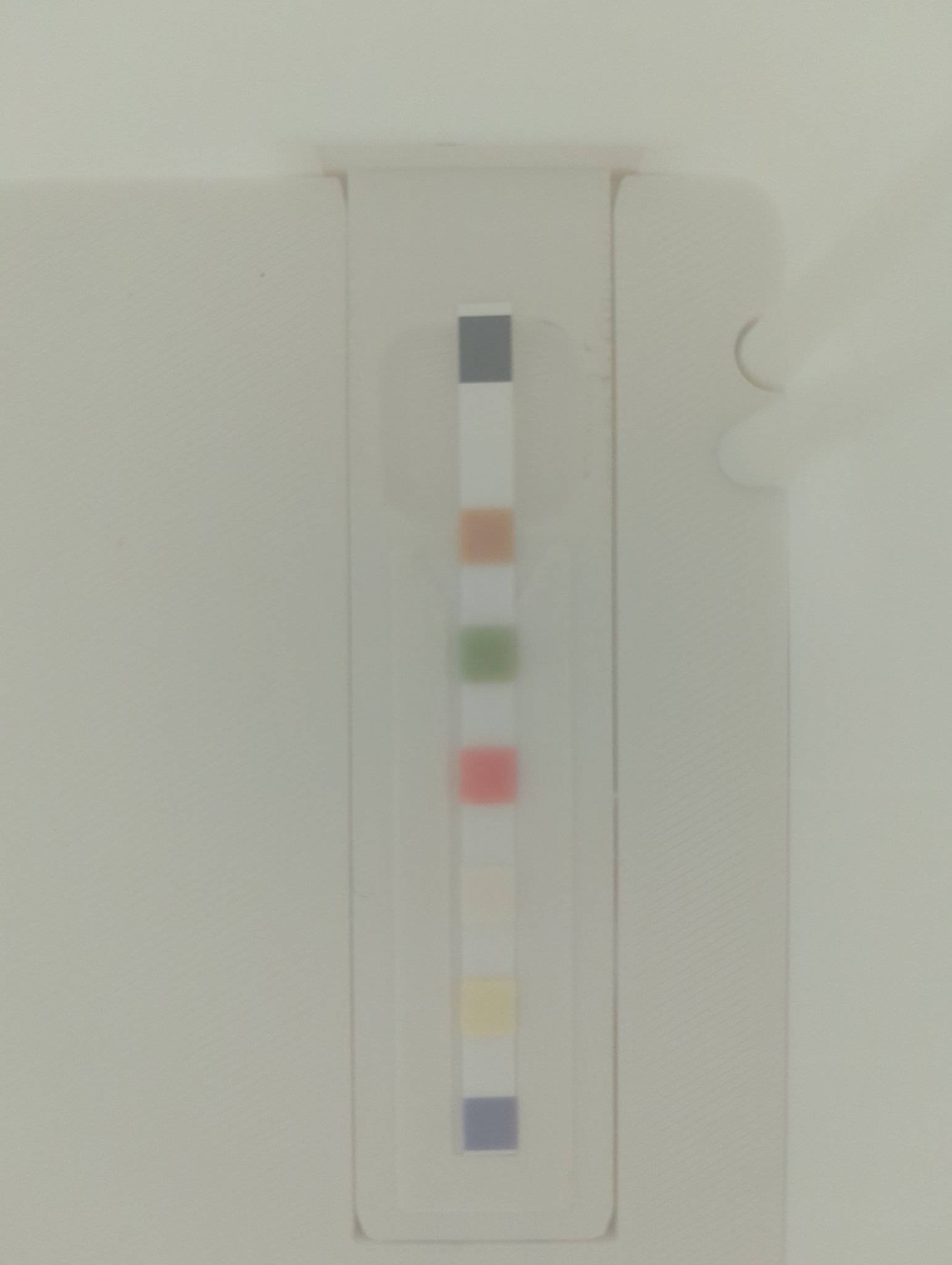

Original frame with sampling overlays for 20260728T175705_testnewapp.jpg
Original frame + sampling zones
Rectified strip preview for 20260728T175705_testnewapp.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #eac6b5 0 ppm
Total Alkalinity #bdcab2 0 ppm
pH #fdb2b4 6.2
Free Chlorine #fefcf7 0 ppm
Total Chlorine #fffde2 2 ppm
Total Hardness #babdd7 0 ppm


Clorox 6-Way Download original

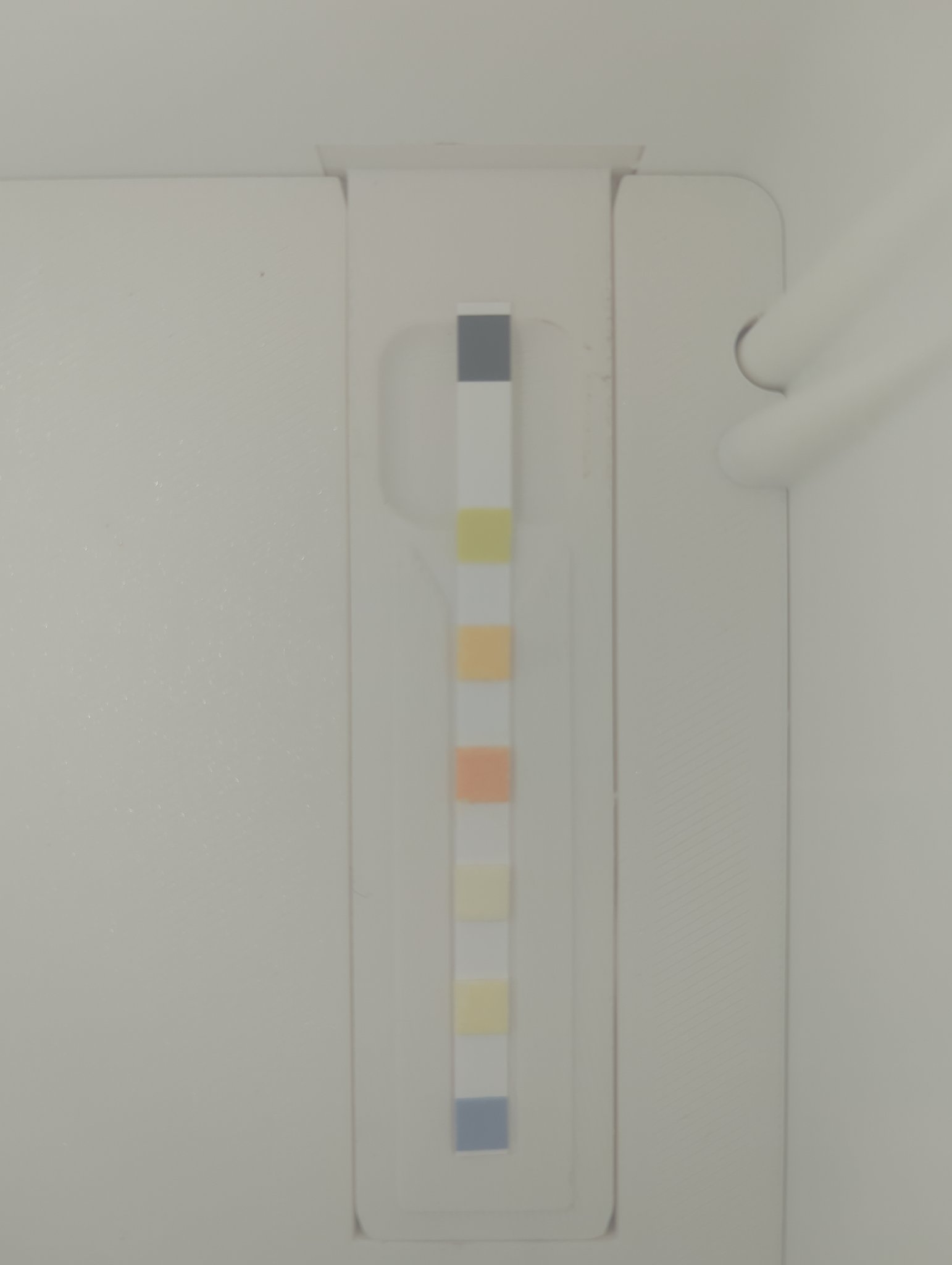

Original frame with sampling overlays for 20260728T144433_testnew.jpg
Original frame + sampling zones
Rectified strip preview for 20260728T144433_testnew.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #f5f0b5 0 ppm
Total Alkalinity #fee9ba 19 ppm
pH #fed2b5 6.2
Free Chlorine #fefae8 0 ppm
Total Chlorine #fef7d5 1 ppm
Total Hardness #b2bed6 0 ppm


Clorox 6-Way Download original

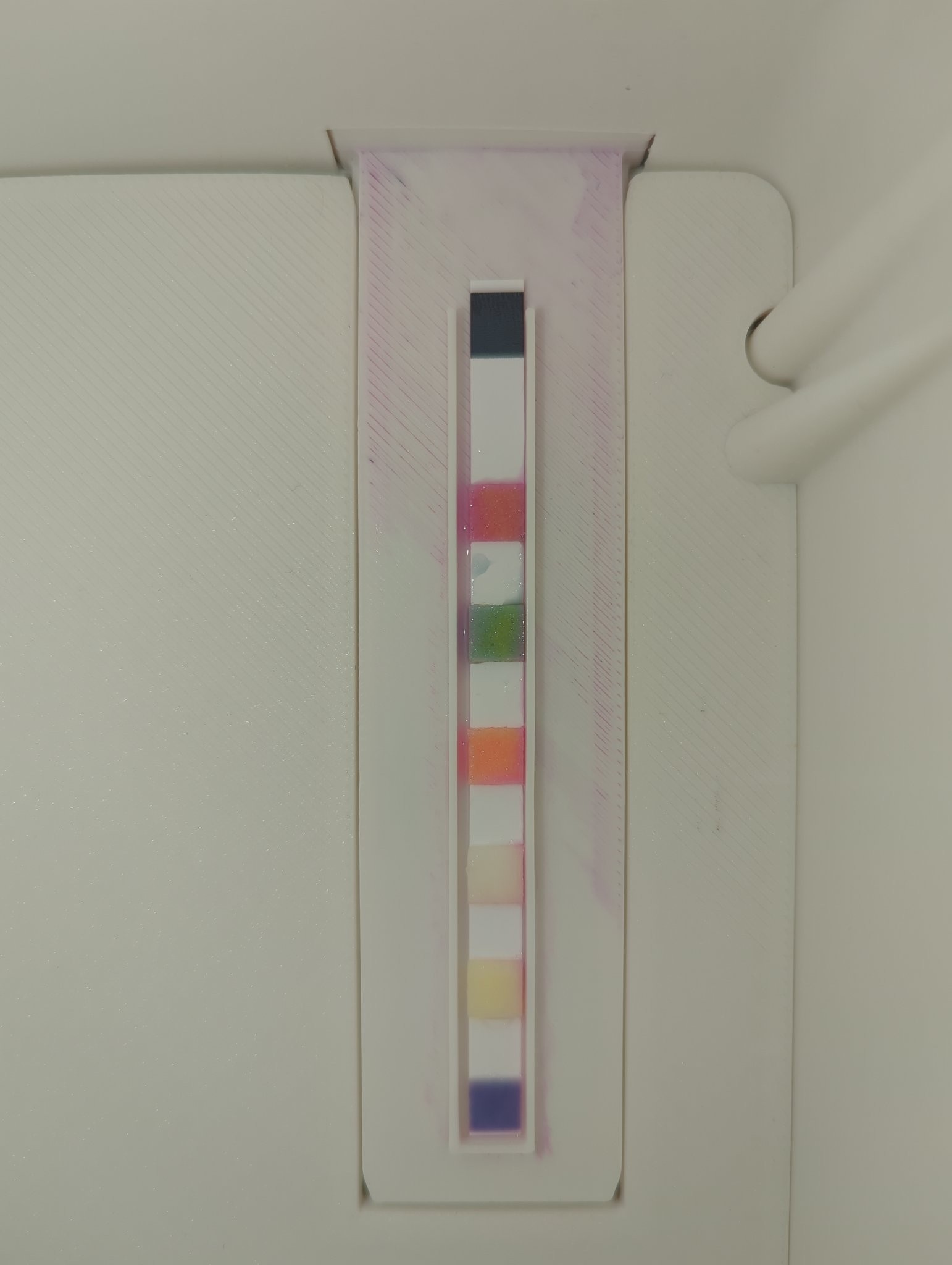

Original frame with sampling overlays for 20260705T202233_17.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T202233_17.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e35f60 86 ppm
Total Alkalinity #6b8f48 0 ppm
pH #fe935c 6.9
Free Chlorine #fbe9cb 0 ppm
Total Chlorine #fdecaa 0 ppm
Total Hardness #5c528b 166 ppm


HTH 5-Way Download original

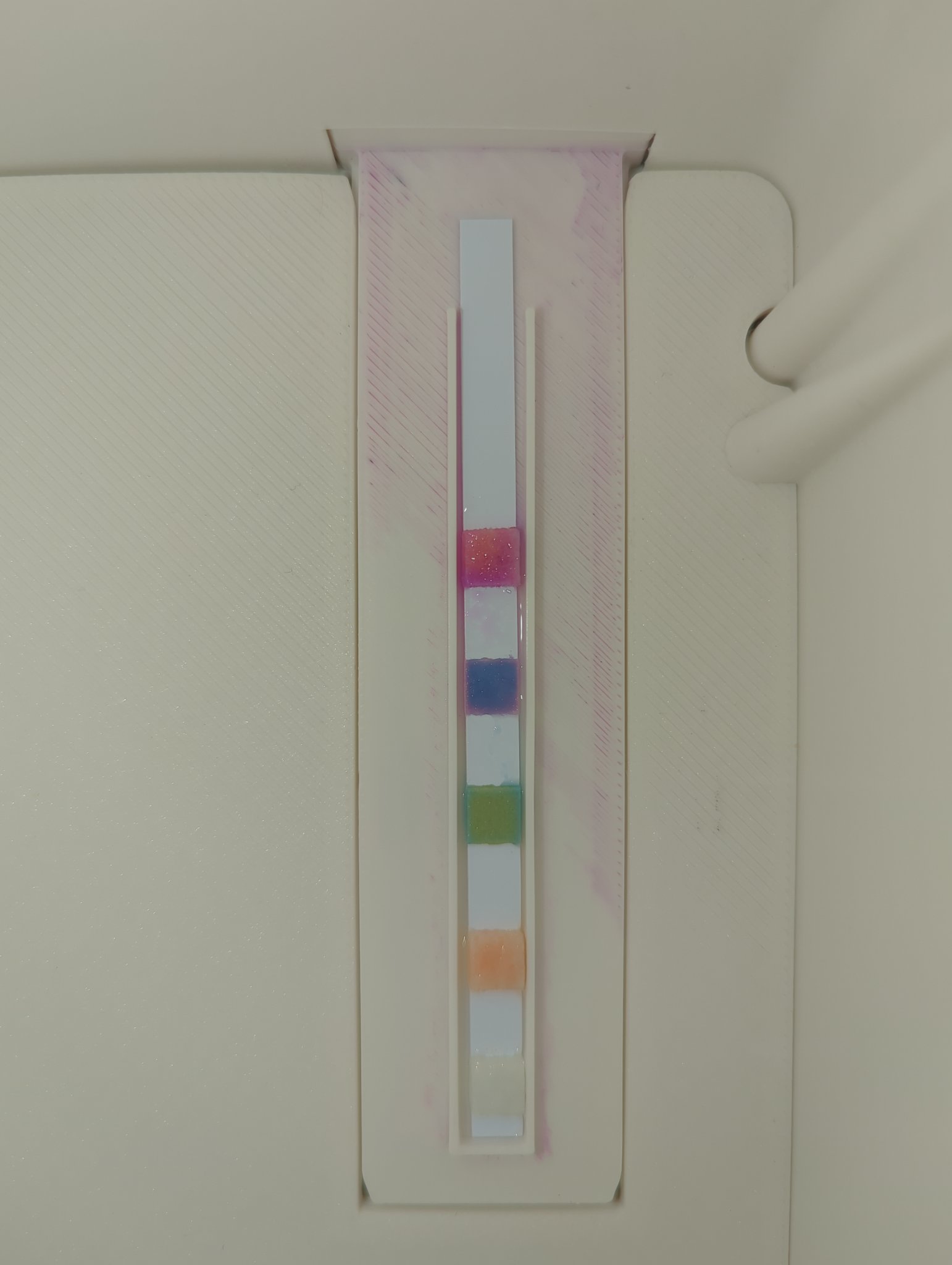

Original frame with sampling overlays for 20260705T202034_15.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T202034_15.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #eb6992 83 ppm
Total Hardness #7981b5 62 ppm
Total Alkalinity #9ab273 99 ppm
pH #fec797 6.6
Free Available Chlorine #fbf2df 0 ppm
