Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260705T202014_14.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T202014_14.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #ed6b91 85 ppm
Total Hardness #7982b4 63 ppm
Total Alkalinity #9ab275 99 ppm
pH #fec897 6.6
Free Available Chlorine #fbf3de 0 ppm


HTH 5-Way Download original

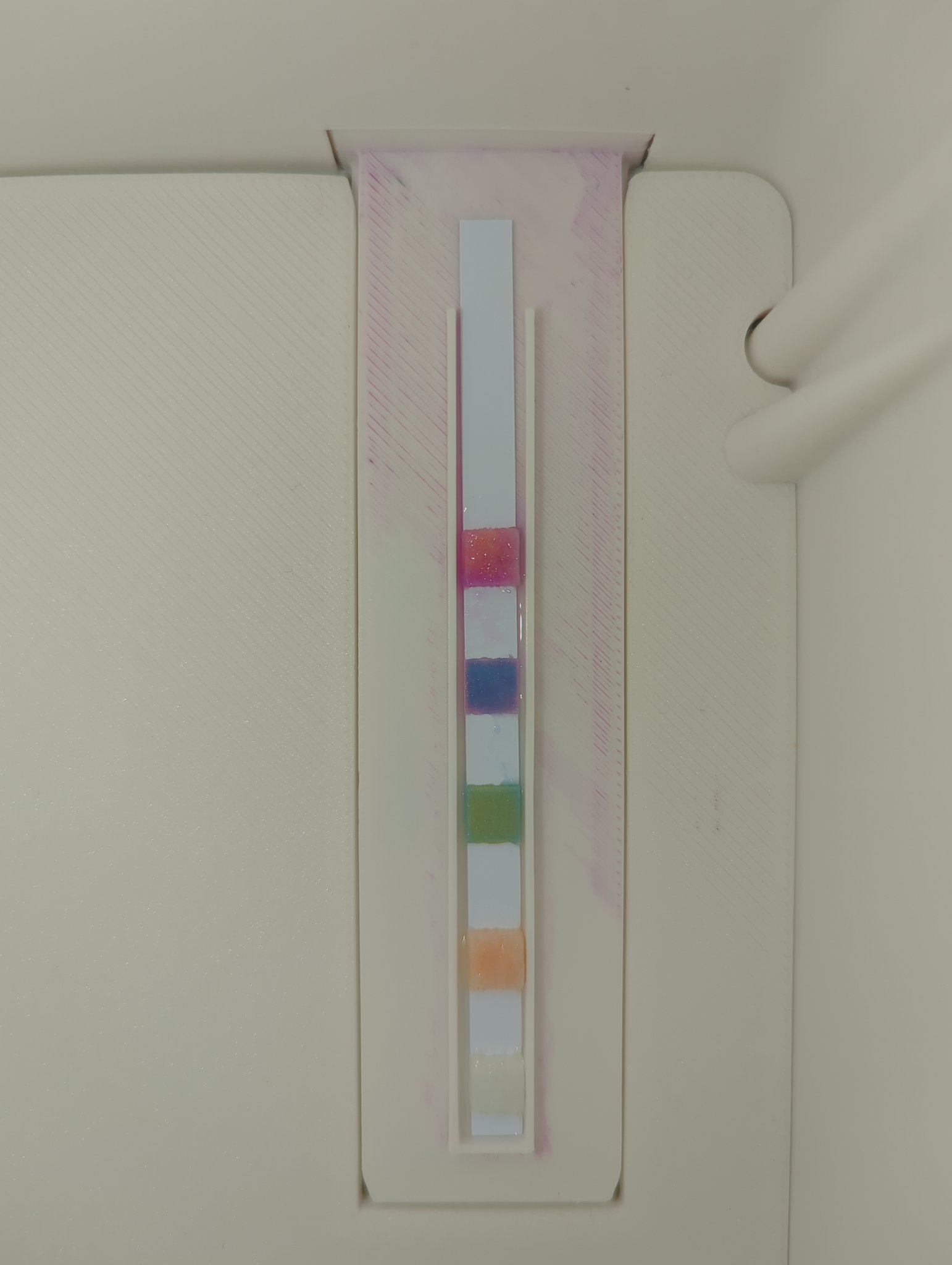

Original frame with sampling overlays for 20260705T201957_14.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T201957_14.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #ee6e90 88 ppm
Total Hardness #7a82b5 63 ppm
Total Alkalinity #99b277 99 ppm
pH #fec997 6.4
Free Available Chlorine #fcf3df 0 ppm


HTH 5-Way Download original

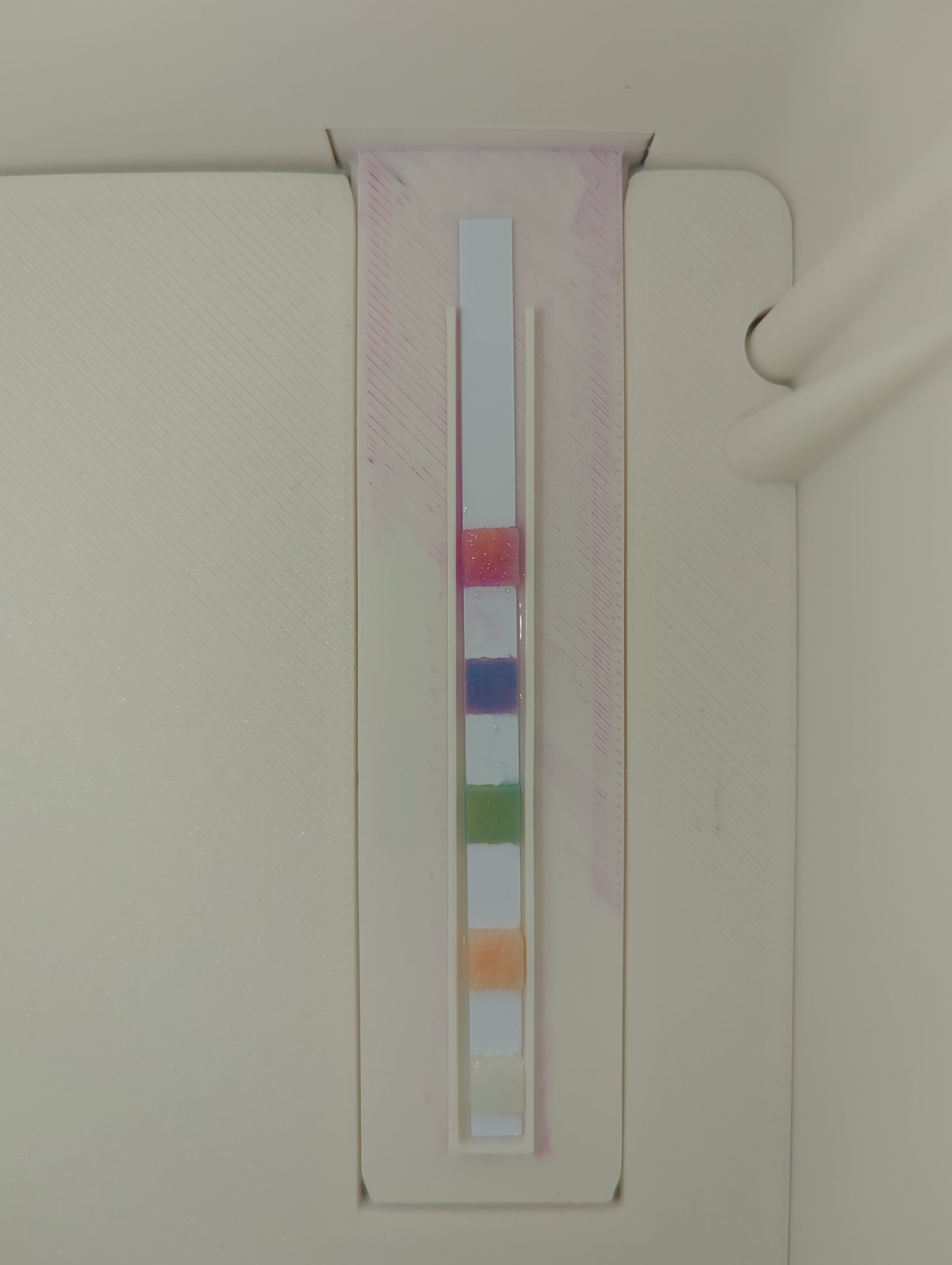

Original frame with sampling overlays for 20260705T201934_13.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T201934_13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f3758c 92 ppm
Total Hardness #8081b3 68 ppm
Total Alkalinity #97b37a 100 ppm
pH #feca97 6.4
Free Available Chlorine #fbf4e0 0 ppm


HTH 5-Way Download original

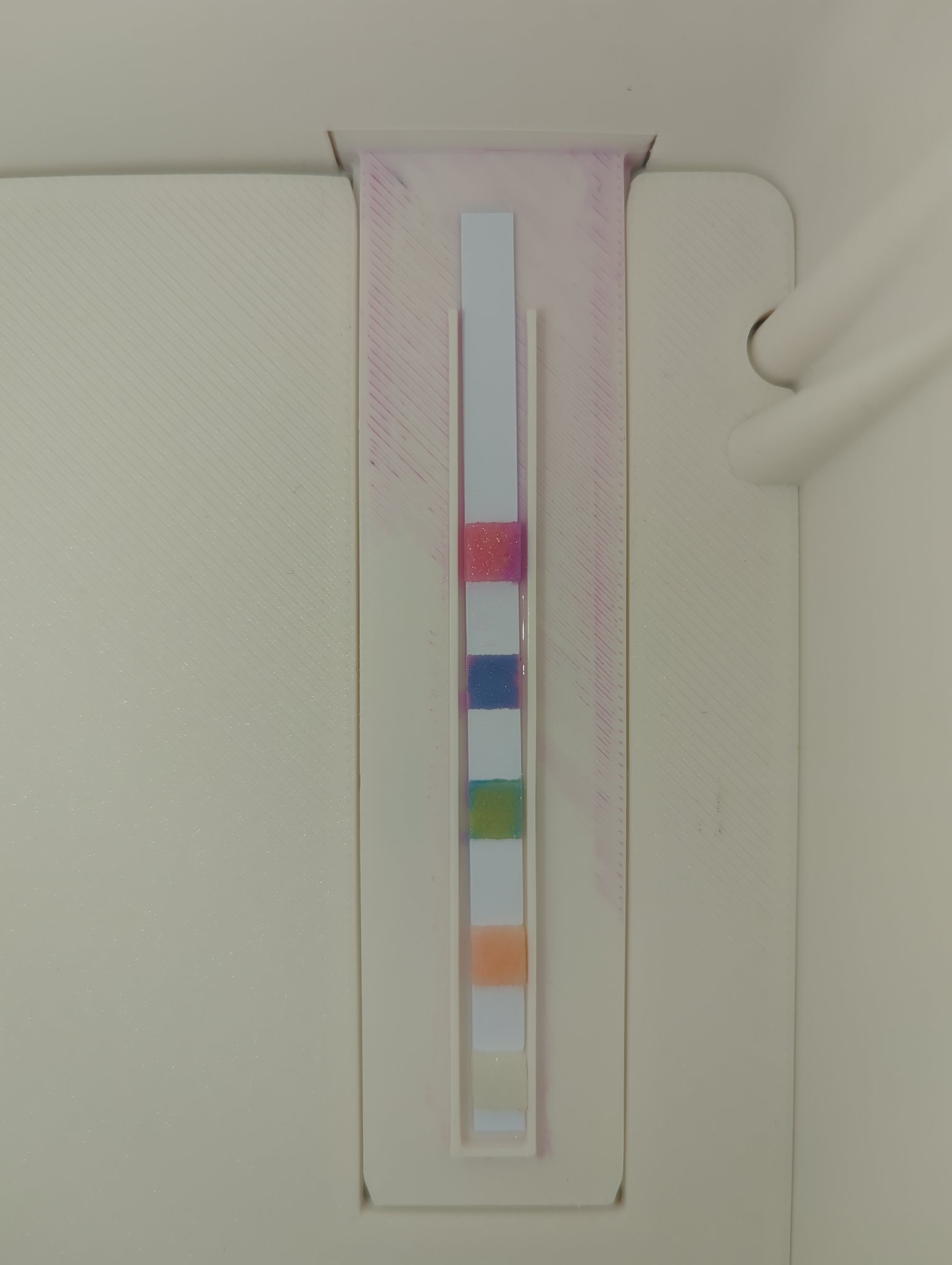

Original frame with sampling overlays for 20260705T200339_14.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T200339_14.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f58091 85 ppm
Total Hardness #7688b5 55 ppm
Total Alkalinity #9cae71 42 ppm
pH #fbbe93 7.0
Free Available Chlorine #f7ecd0 0 ppm


HTH 5-Way Download original

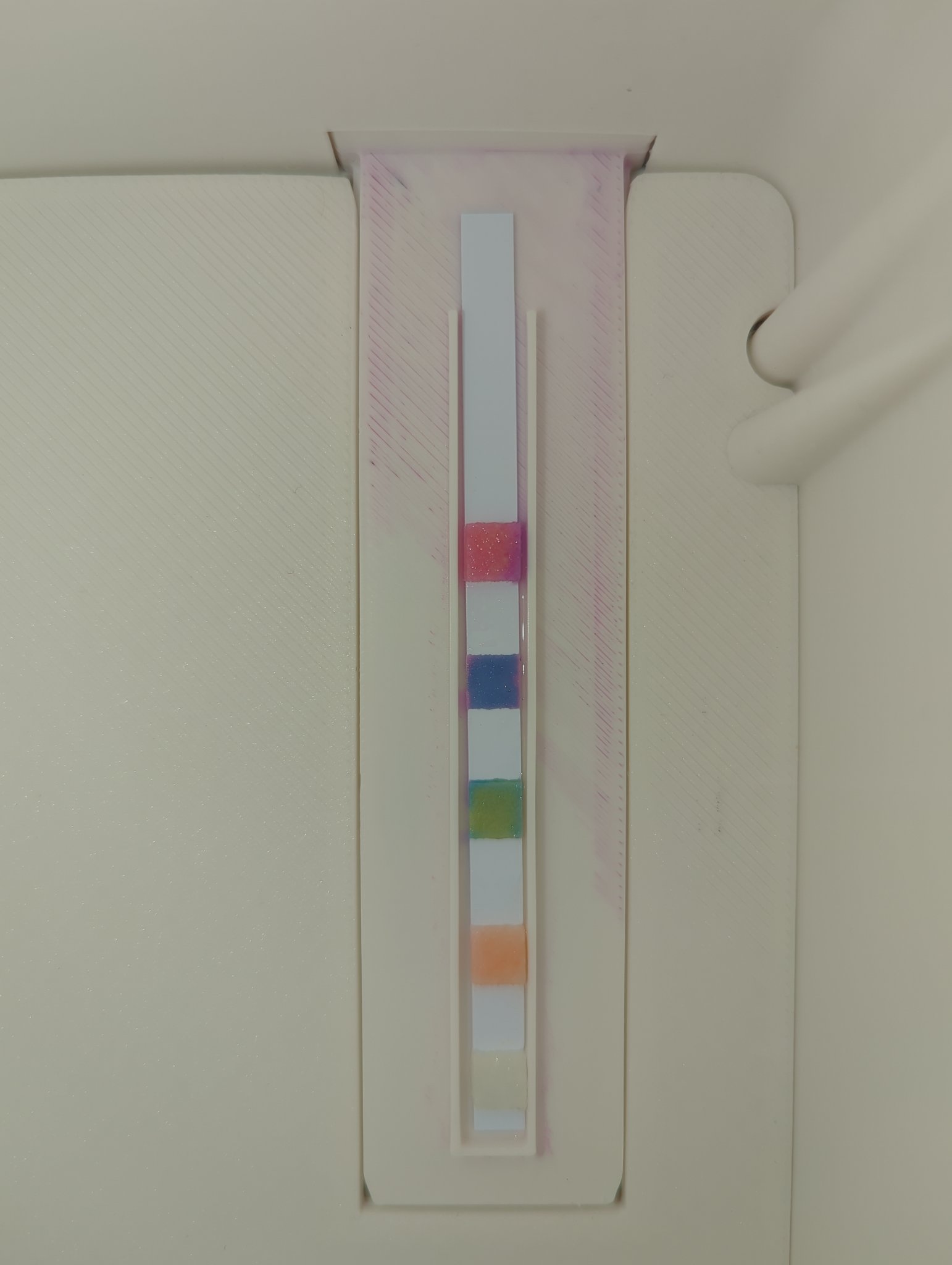

Original frame with sampling overlays for 20260705T200303_13.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T200303_13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f58091 83 ppm
Total Hardness #7589b5 53 ppm
Total Alkalinity #9baf71 42 ppm
pH #fbc093 7.0
Free Available Chlorine #f7edd1 0 ppm


Clorox 6-Way Download original

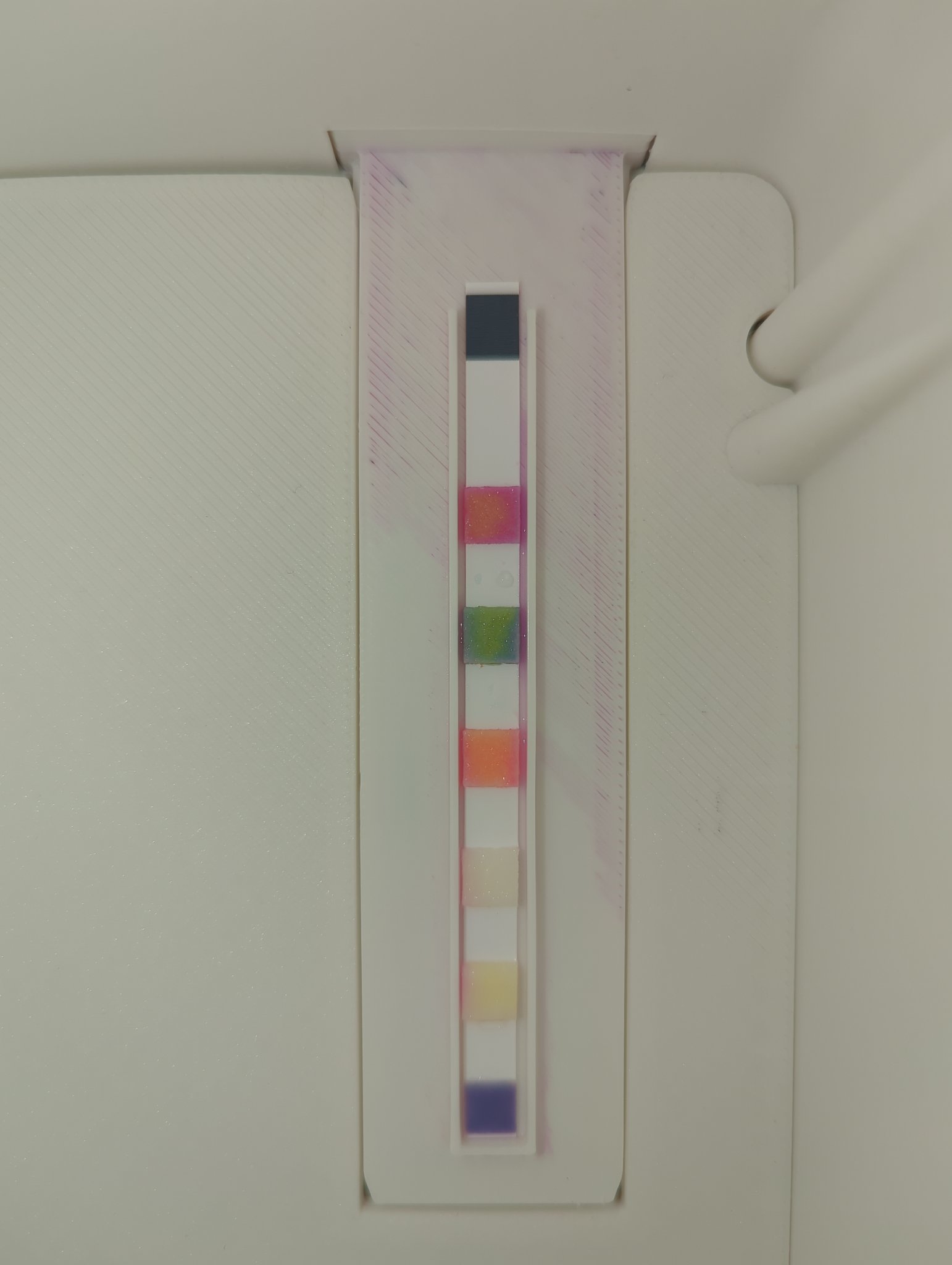

Original frame with sampling overlays for 20260705T195934_12.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195934_12.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e0595c 88 ppm
Total Alkalinity #6d8f3f 0 ppm
pH #fe8c59 6.9
Free Chlorine #faeecc 0 ppm
Total Chlorine #fdeaa6 0 ppm
Total Hardness #5d4f88 360 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260705T195913_11.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195913_11.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e0595c 88 ppm
Total Alkalinity #70913c 0 ppm
pH #fe8c57 6.9
Free Chlorine #f9f0ce 0 ppm
Total Chlorine #fdeda5 0 ppm
Total Hardness #5b4f88 359 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260705T195857_10.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195857_10.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e0595b 87 ppm
Total Alkalinity #749337 0 ppm
pH #fe8e55 6.9
Free Chlorine #faf1cd 0 ppm
Total Chlorine #fdeda4 0 ppm
Total Hardness #5b4f88 359 ppm
