Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

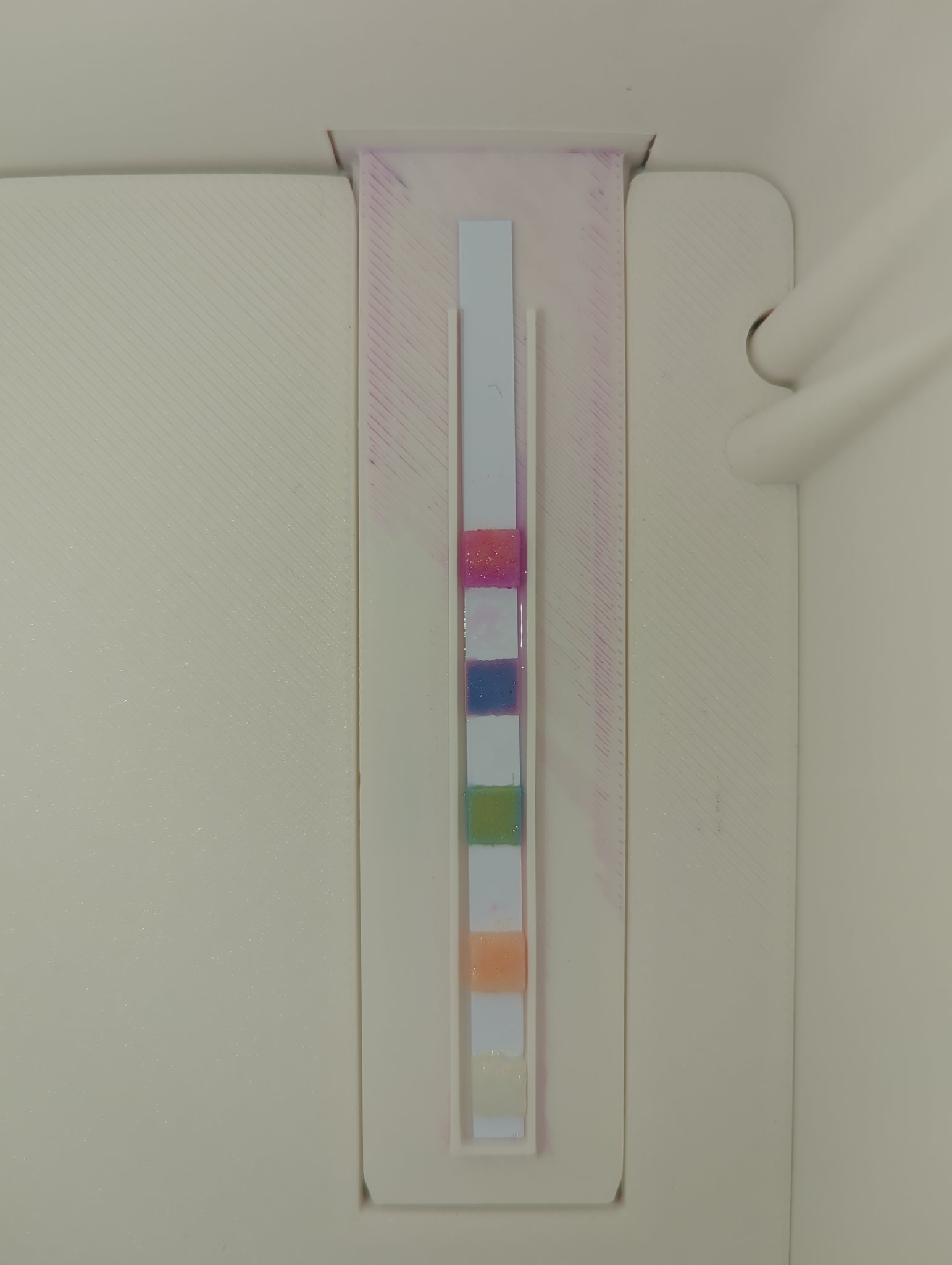

Original frame with sampling overlays for 20260705T195738_9.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195738_9.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #eb6992 83 ppm
Total Hardness #6f7dad 61 ppm
Total Alkalinity #9cb473 42 ppm
pH #fec492 6.6
Free Available Chlorine #faf1d6 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260705T195721_9.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195721_9.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #ed6b91 85 ppm
Total Hardness #6f7dad 60 ppm
Total Alkalinity #9bb475 99 ppm
pH #fec592 6.6
Free Available Chlorine #fbf2d7 0 ppm


HTH 5-Way Download original

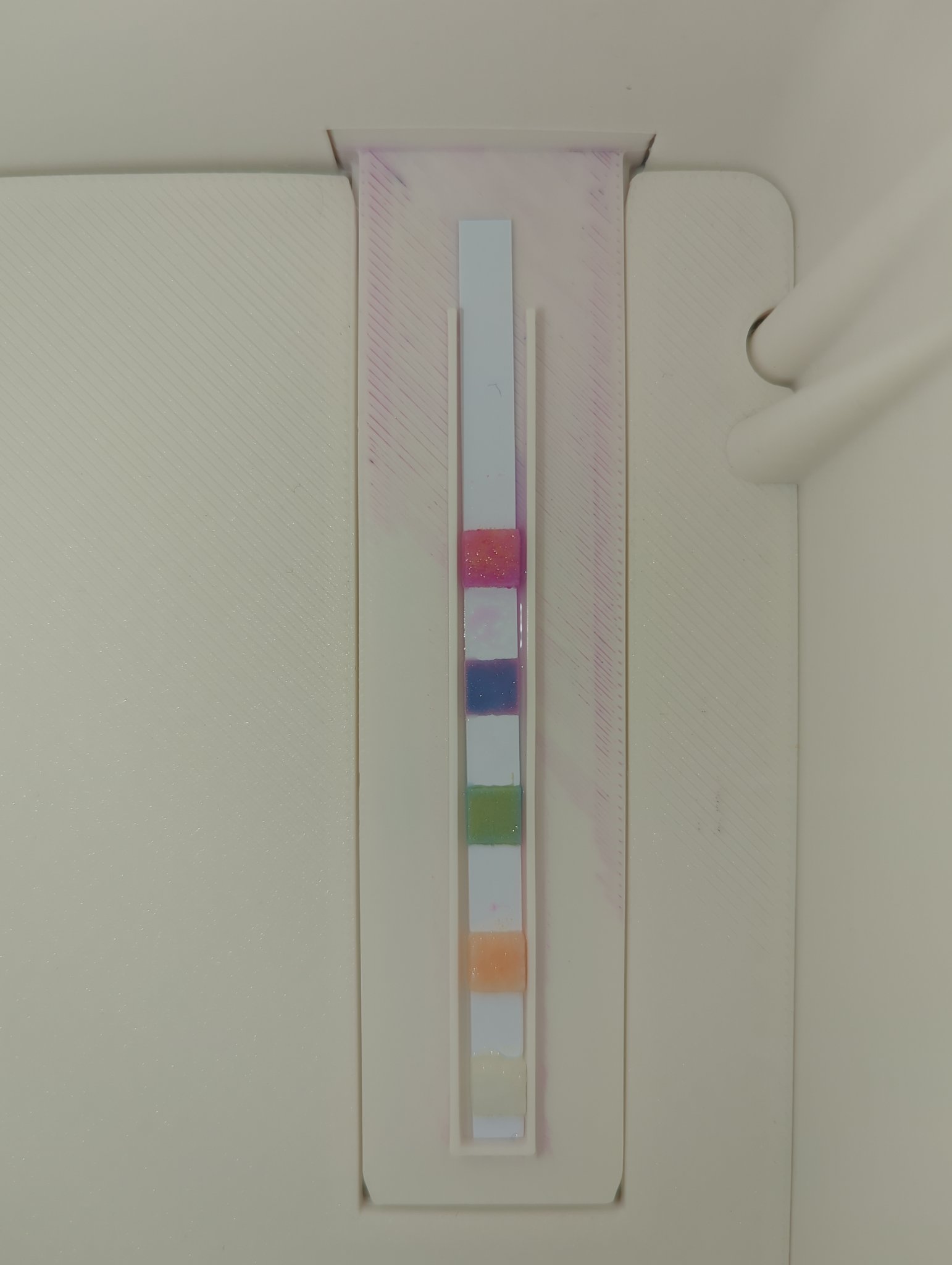

Original frame with sampling overlays for 20260705T195657_8.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195657_8.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f1718e 91 ppm
Total Hardness #727cad 63 ppm
Total Alkalinity #9cb477 99 ppm
pH #fec792 6.6
Free Available Chlorine #fbf1d8 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260705T195636_7.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195636_7.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f4768b 90 ppm
Total Hardness #767aac 66 ppm
Total Alkalinity #9ab479 99 ppm
pH #fec791 6.6
Free Available Chlorine #fbf1d8 0 ppm


Clorox 6-Way Download original

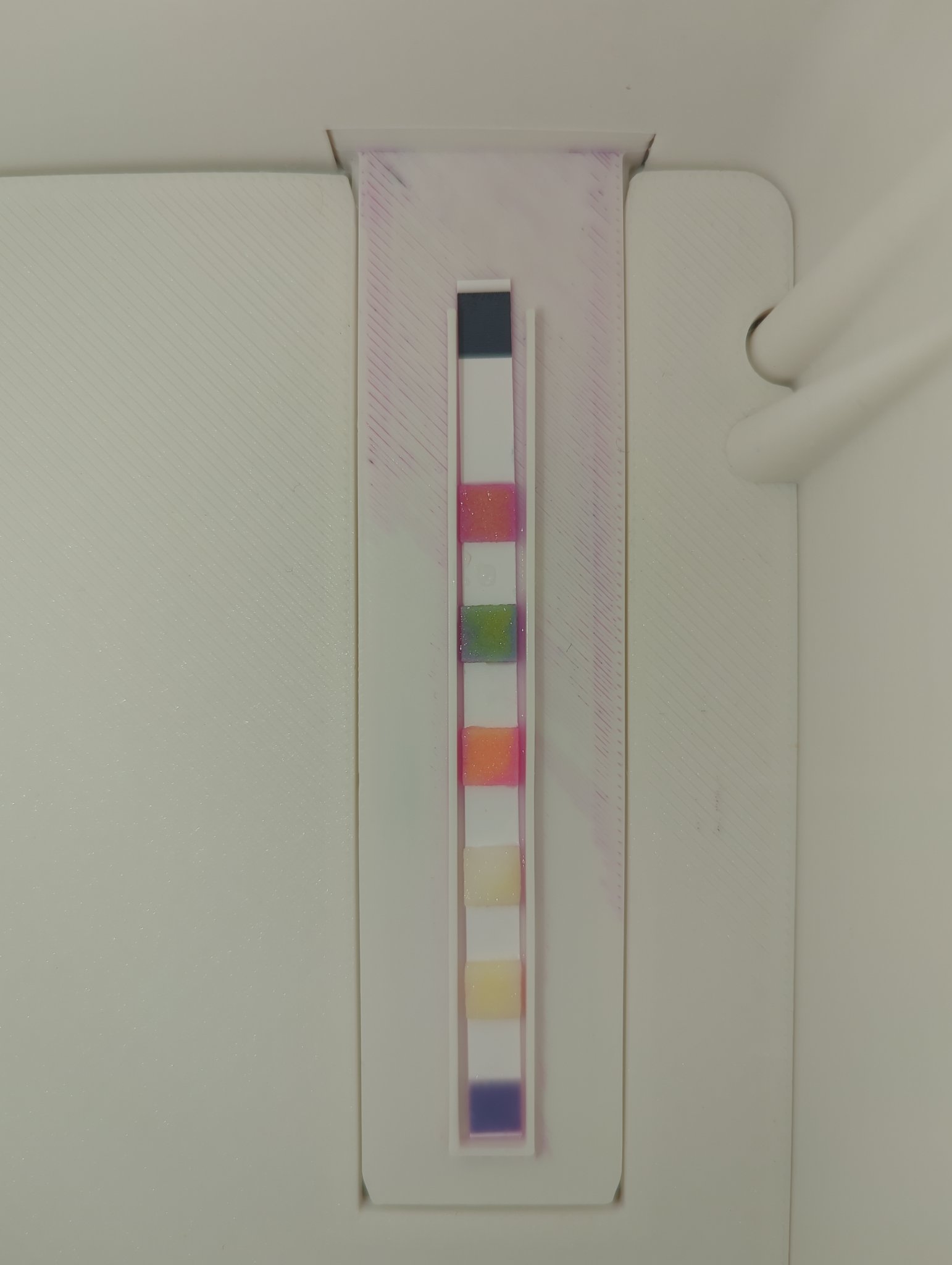

Original frame with sampling overlays for 20260705T195443_5.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195443_5.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e05f5f 87 ppm
Total Alkalinity #749148 0 ppm
pH #fe8b5a 6.9
Free Chlorine #f3dfb7 0 ppm
Total Chlorine #fce9a5 0 ppm
Total Hardness #766491 250 ppm


HTH 5-Way Download original

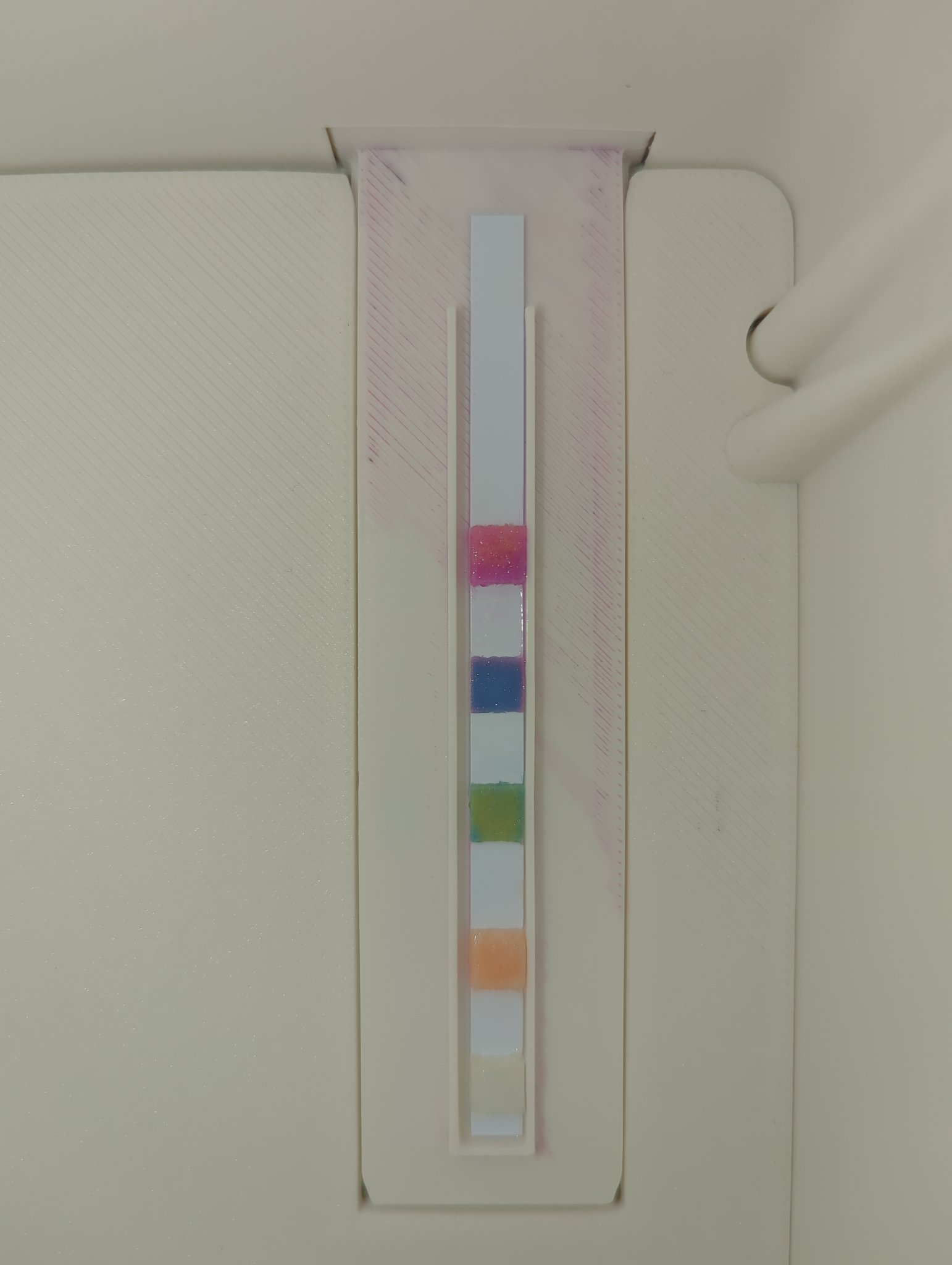

Original frame with sampling overlays for 20260705T195231_3.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195231_3.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #ec759e 83 ppm
Total Hardness #758ab3 53 ppm
Total Alkalinity #a5b374 41 ppm
pH #fdbf8f 7.0
Free Available Chlorine #f9edd3 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260705T195210_2.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T195210_2.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #ee789c 86 ppm
Total Hardness #758bb4 51 ppm
Total Alkalinity #a4b375 41 ppm
pH #fdc08d 6.6
Free Available Chlorine #faecd3 0 ppm


HTH 5-Way Download original

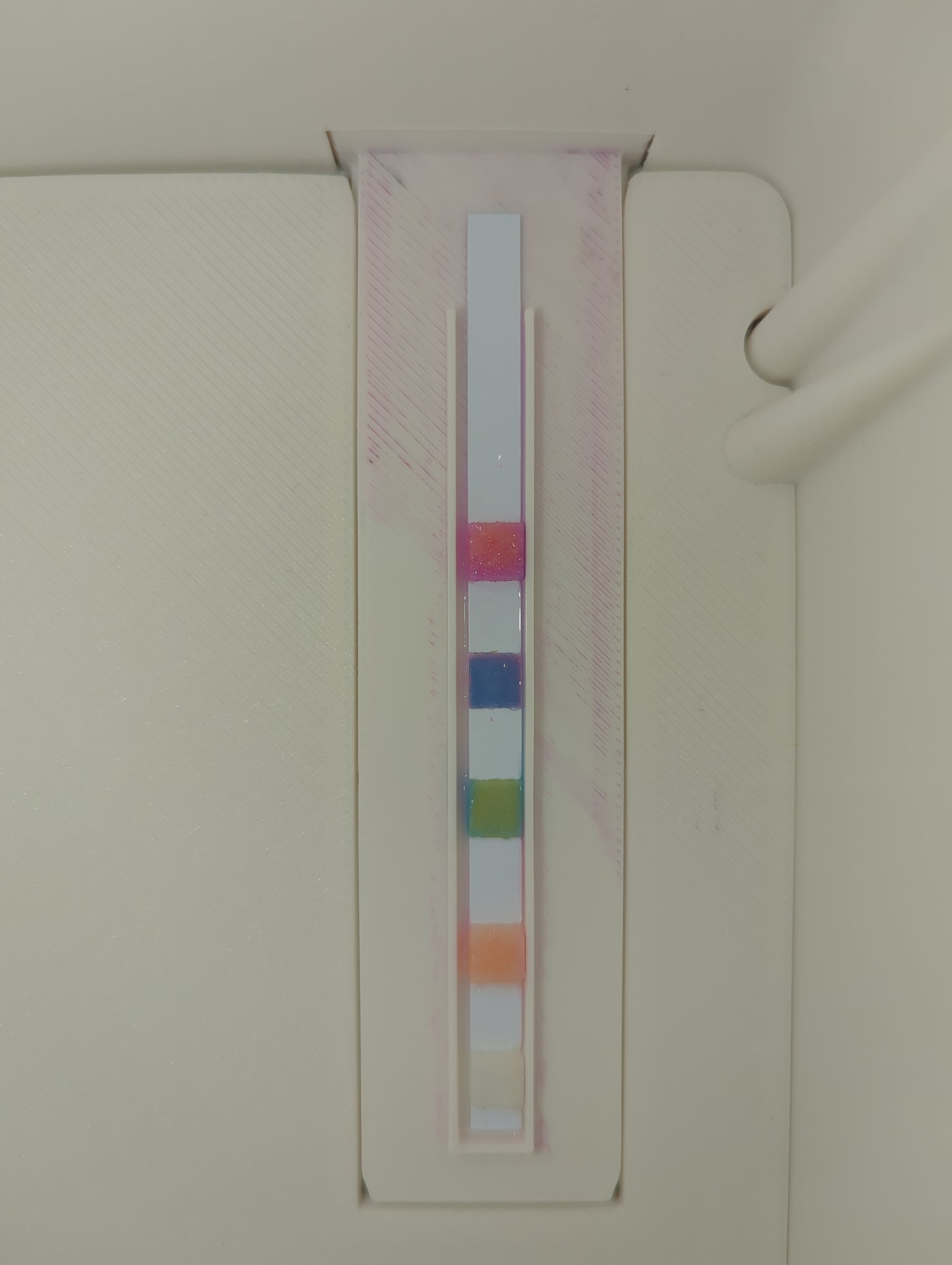

Original frame with sampling overlays for 20260705T194210_3.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T194210_3.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f17c9b 90 ppm
Total Hardness #7e91b9 49 ppm
Total Alkalinity #99b079 100 ppm
pH #feb78c 7.1
Free Available Chlorine #fbeed7 0 ppm
