Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

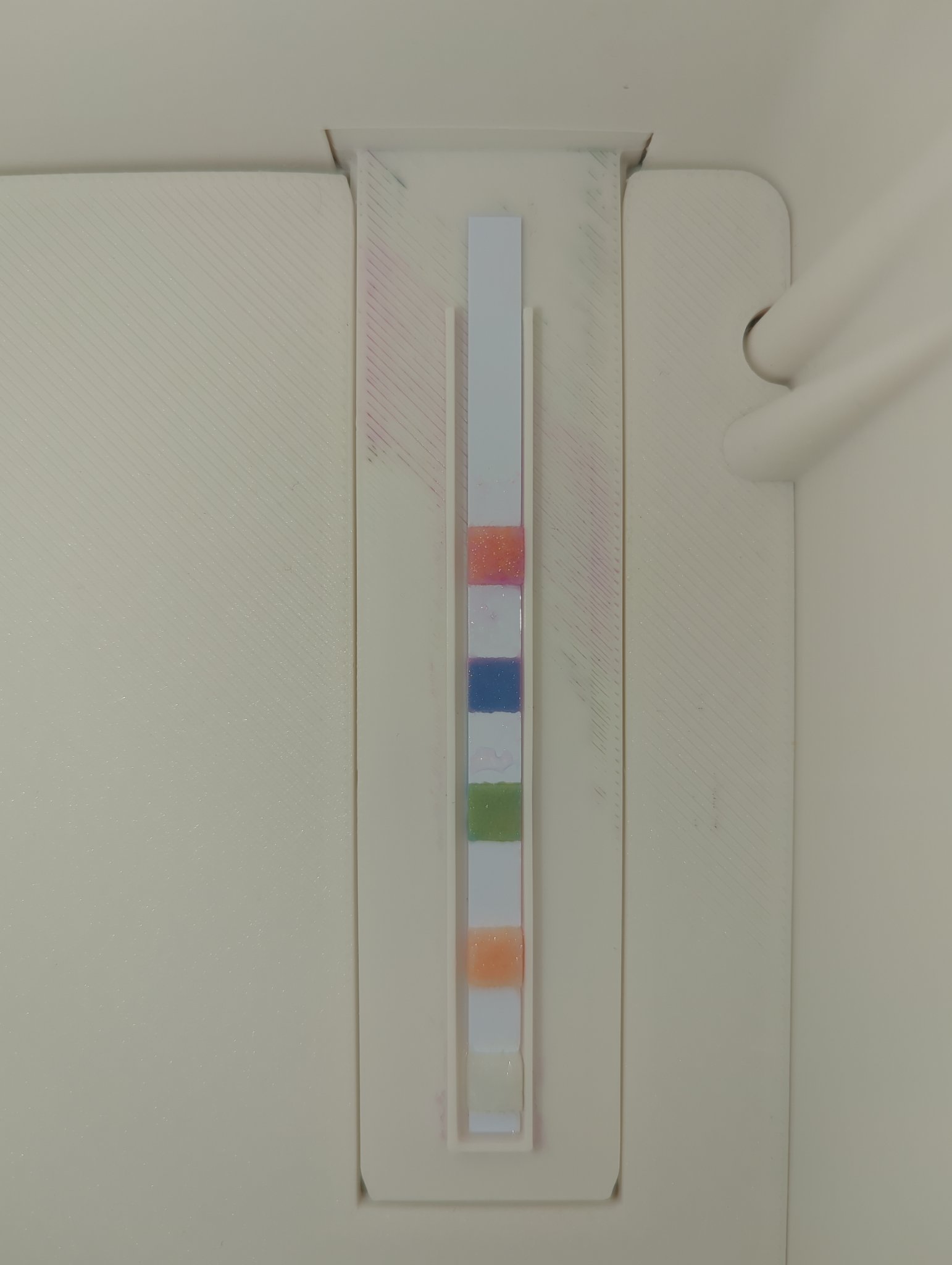

Original frame with sampling overlays for 20260705T191522_1.jpg
Original frame + sampling zones
Rectified strip preview for 20260705T191522_1.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fa978f 39 ppm
Total Hardness #6e8bb9 44 ppm
Total Alkalinity #9bb179 99 ppm
pH #febb8b 7.0
Free Available Chlorine #fbefdc 0 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260702T184305_18.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T184305_18.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ea853c 36 ppm
Total Alkalinity #6d8f30 0 ppm
pH #fe6c5f 7.6
Free Chlorine #feedc9 0 ppm
Total Chlorine #feeca6 0 ppm
Total Hardness #934873 500 ppm


Clorox 6-Way Download original

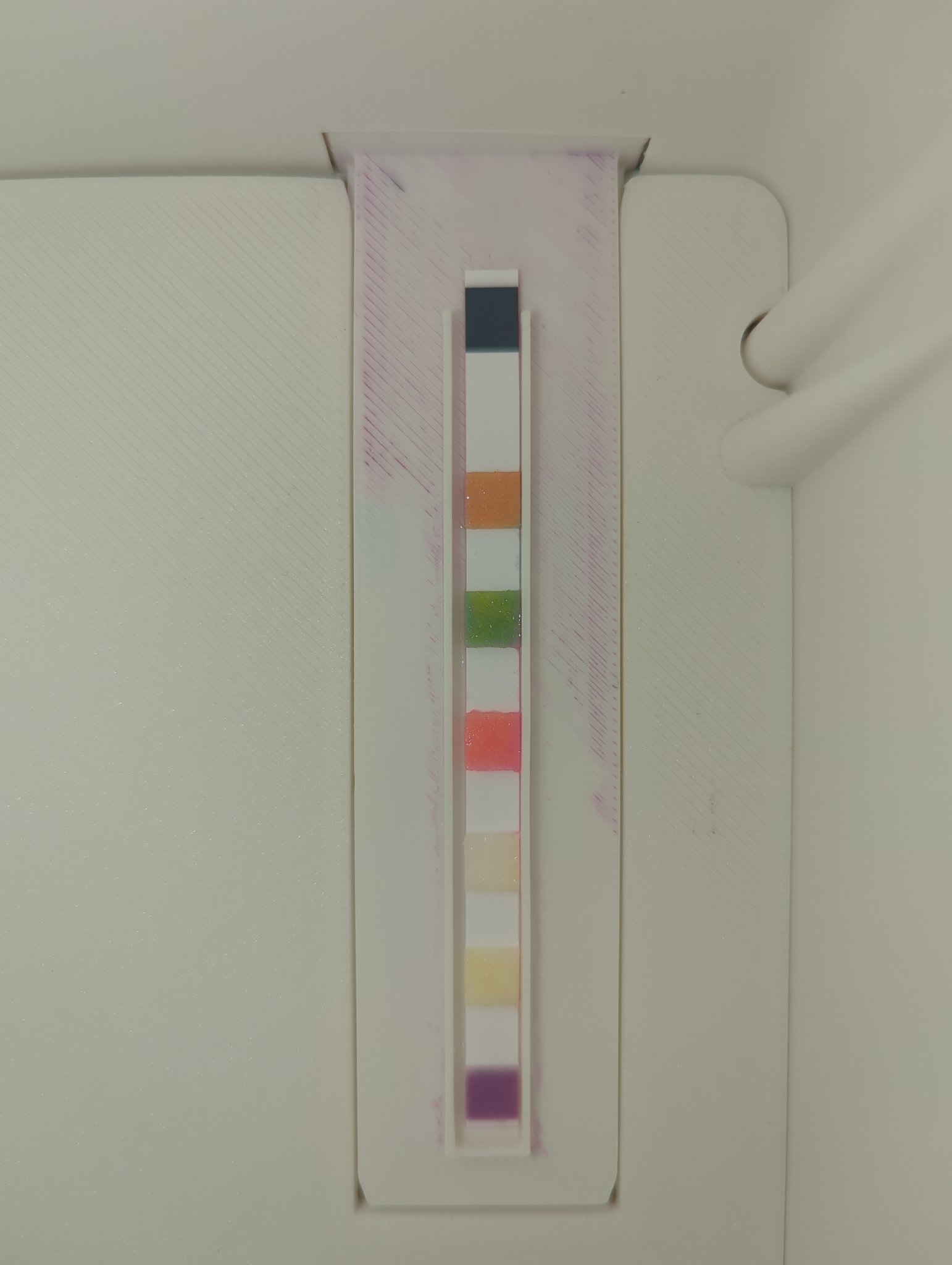

Original frame with sampling overlays for 20260702T184250_17.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T184250_17.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #eb8839 34 ppm
Total Alkalinity #6f902b 0 ppm
pH #fe6e5c 7.6
Free Chlorine #feefc9 0 ppm
Total Chlorine #feeea6 0 ppm
Total Hardness #924974 500 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T184129_15.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T184129_15.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feac73 10 ppm
Total Hardness #e57599 545 ppm
Total Alkalinity #b0ba76 0 ppm
pH #fea99c 7.4
Free Available Chlorine #fef3e2 0 ppm


HTH 5-Way Download original

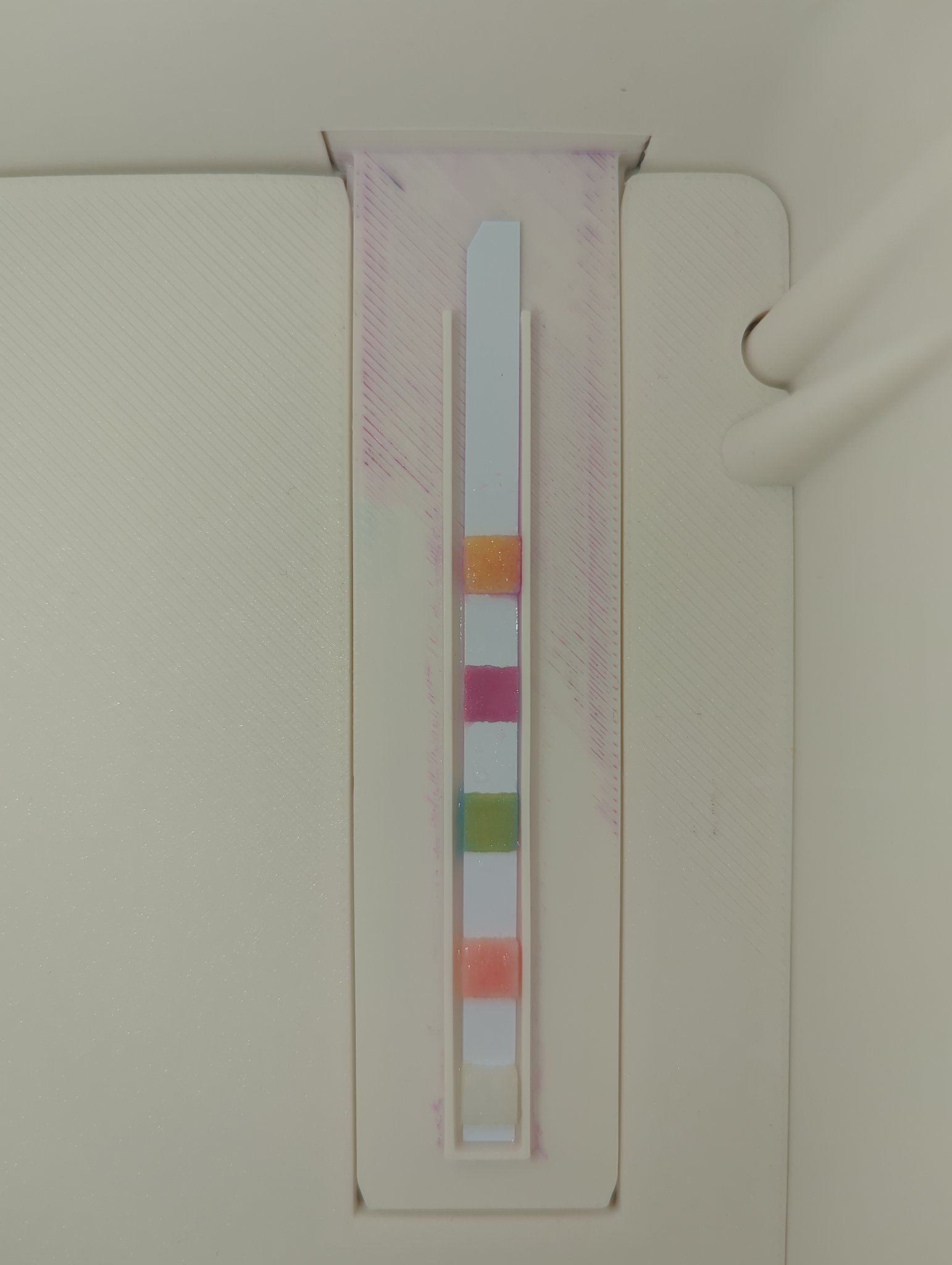

Original frame with sampling overlays for 20260702T184112_14.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T184112_14.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb070 8 ppm
Total Hardness #e37499 551 ppm
Total Alkalinity #b0bb79 0 ppm
pH #feac9c 7.4
Free Available Chlorine #fef4e3 0 ppm


HTH 5-Way Download original

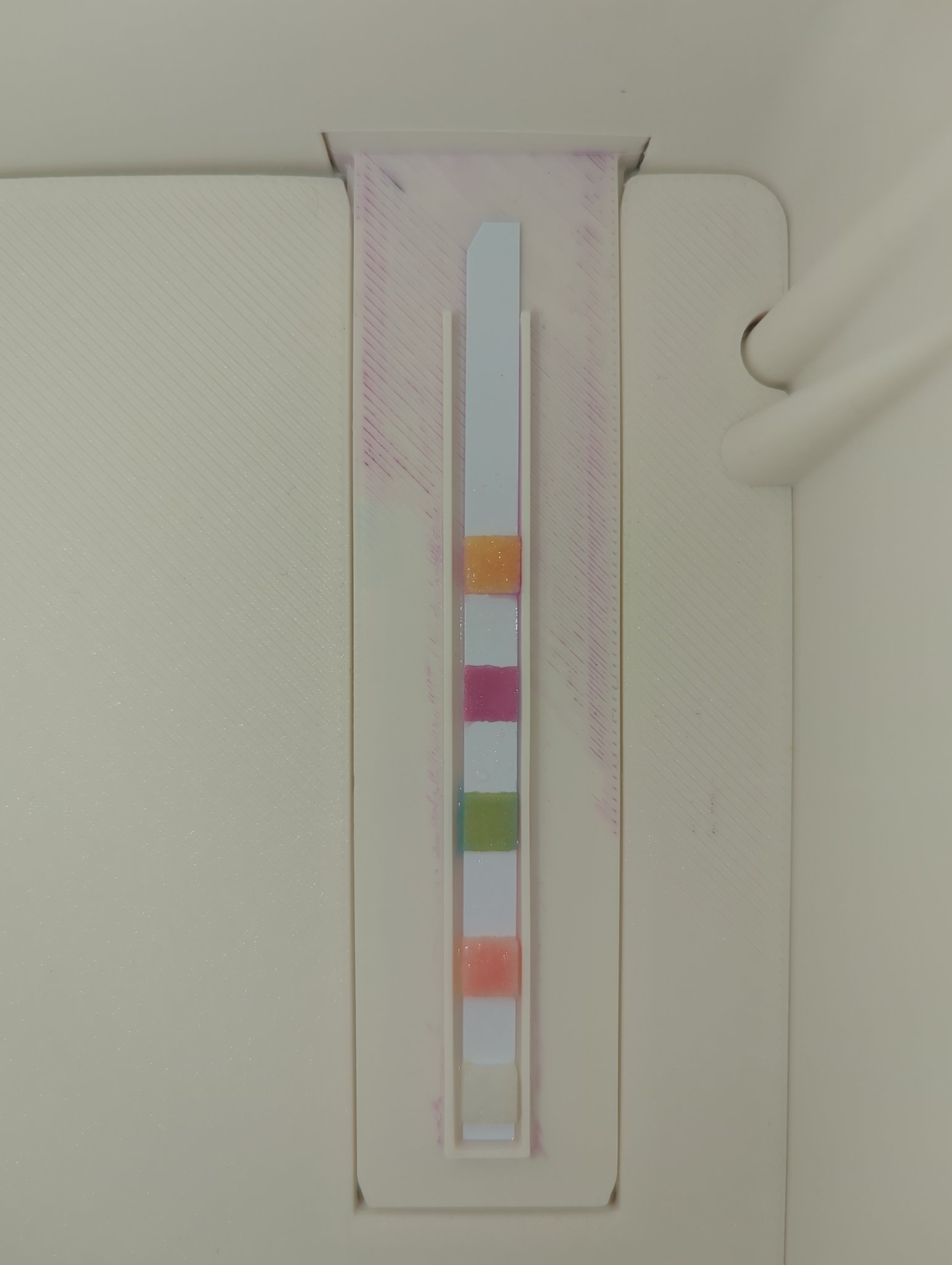

Original frame with sampling overlays for 20260702T184058_13.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T184058_13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb56e 5 ppm
Total Hardness #e07398 561 ppm
Total Alkalinity #b0ba77 0 ppm
pH #feac9a 7.3
Free Available Chlorine #fef3e2 0 ppm


Clorox 6-Way Download original

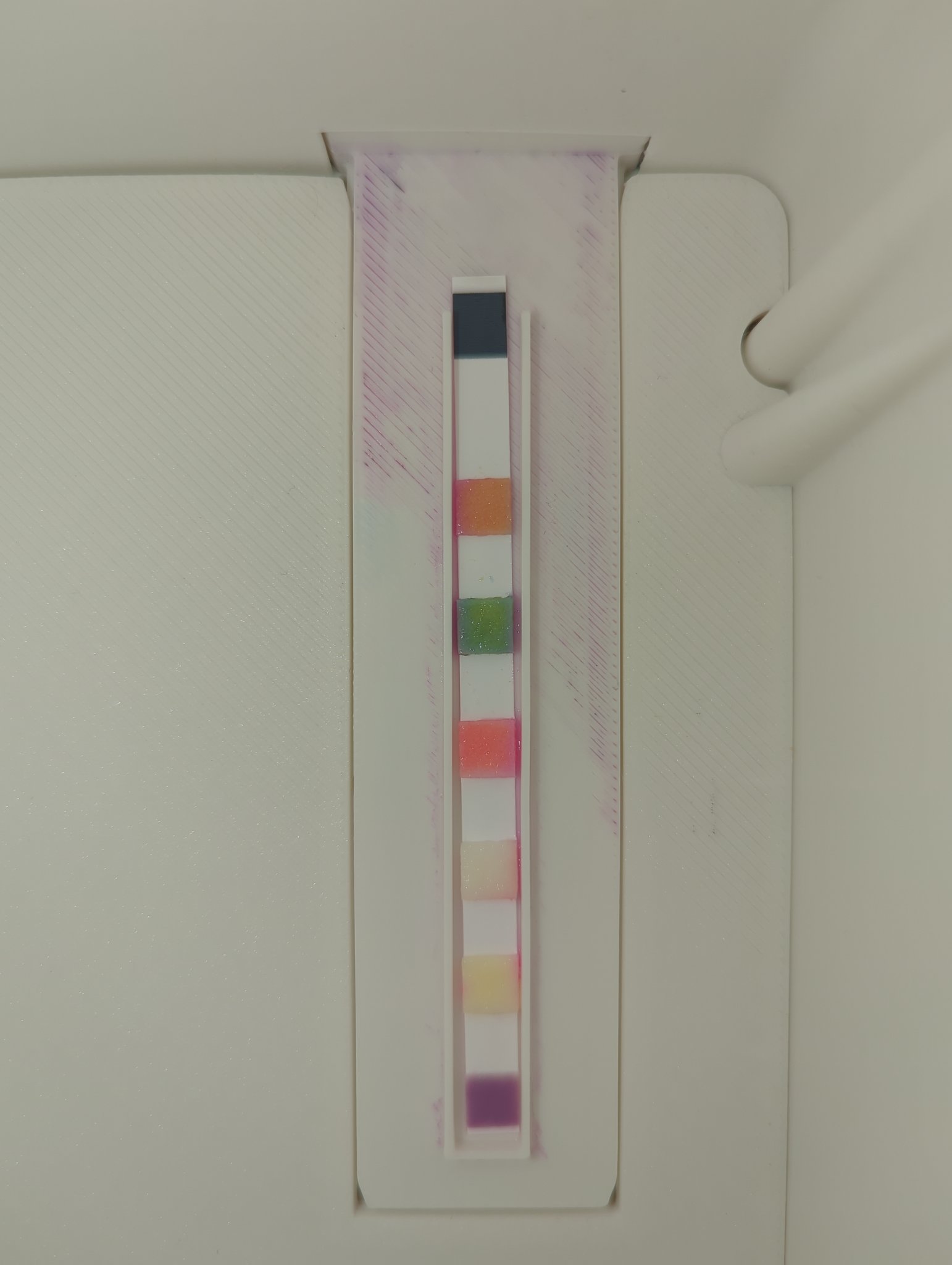

Original frame with sampling overlays for 20260702T183950_12.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T183950_12.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e97e49 35 ppm
Total Alkalinity #699144 0 ppm
pH #fe7468 7.6
Free Chlorine #fae9cb 0 ppm
Total Chlorine #fee7a8 0 ppm
Total Hardness #9c507d 500 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260702T183936_11.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T183936_11.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ea804a 35 ppm
Total Alkalinity #6b9144 0 ppm
pH #fe7668 7.6
Free Chlorine #fbeacc 0 ppm
Total Chlorine #fee9a8 0 ppm
Total Hardness #9b4f7e 500 ppm
