Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

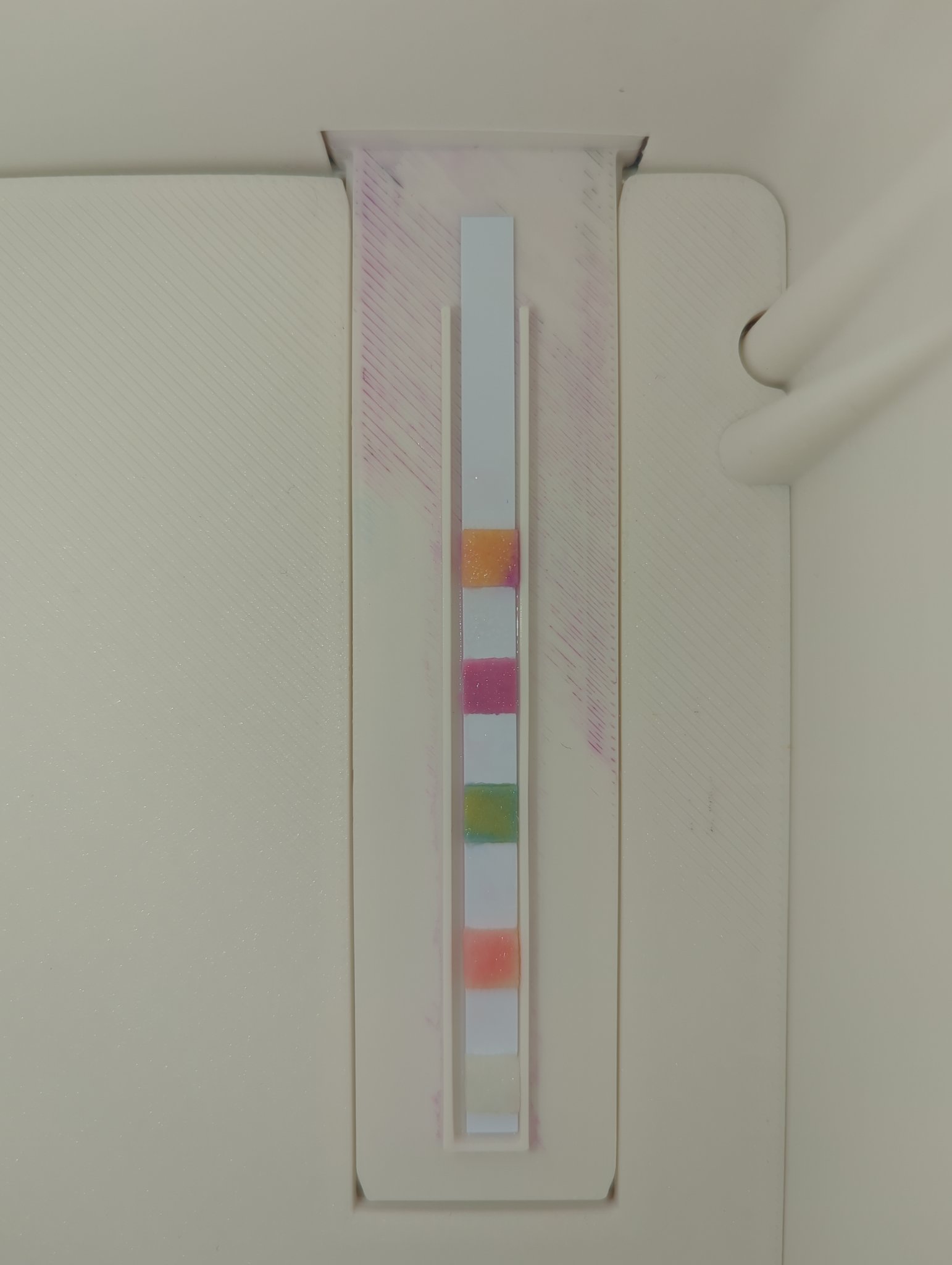

Original frame with sampling overlays for 20260702T183345_2.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T183345_2.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feaf74 9 ppm
Total Hardness #e875a0 533 ppm
Total Alkalinity #acb771 0 ppm
pH #ffa497 7.4
Free Available Chlorine #fdf5e3 0 ppm


HTH 5-Way Download original

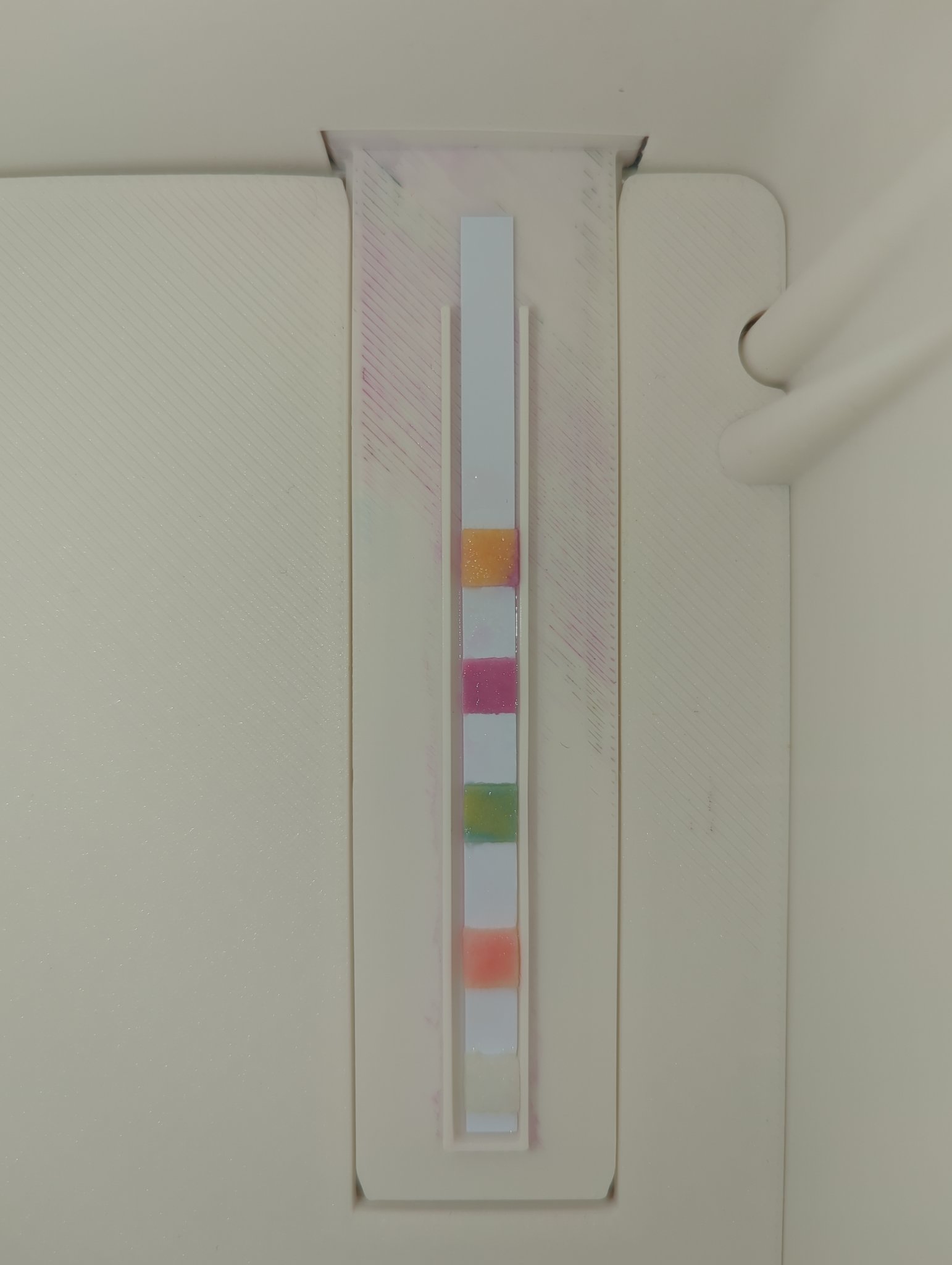

Original frame with sampling overlays for 20260702T183318_1.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T183318_1.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb871 5 ppm
Total Hardness #e674a0 534 ppm
Total Alkalinity #a8b775 40 ppm
pH #ffa694 7.4
Free Available Chlorine #fef5e3 0 ppm


Clorox 6-Way Download original

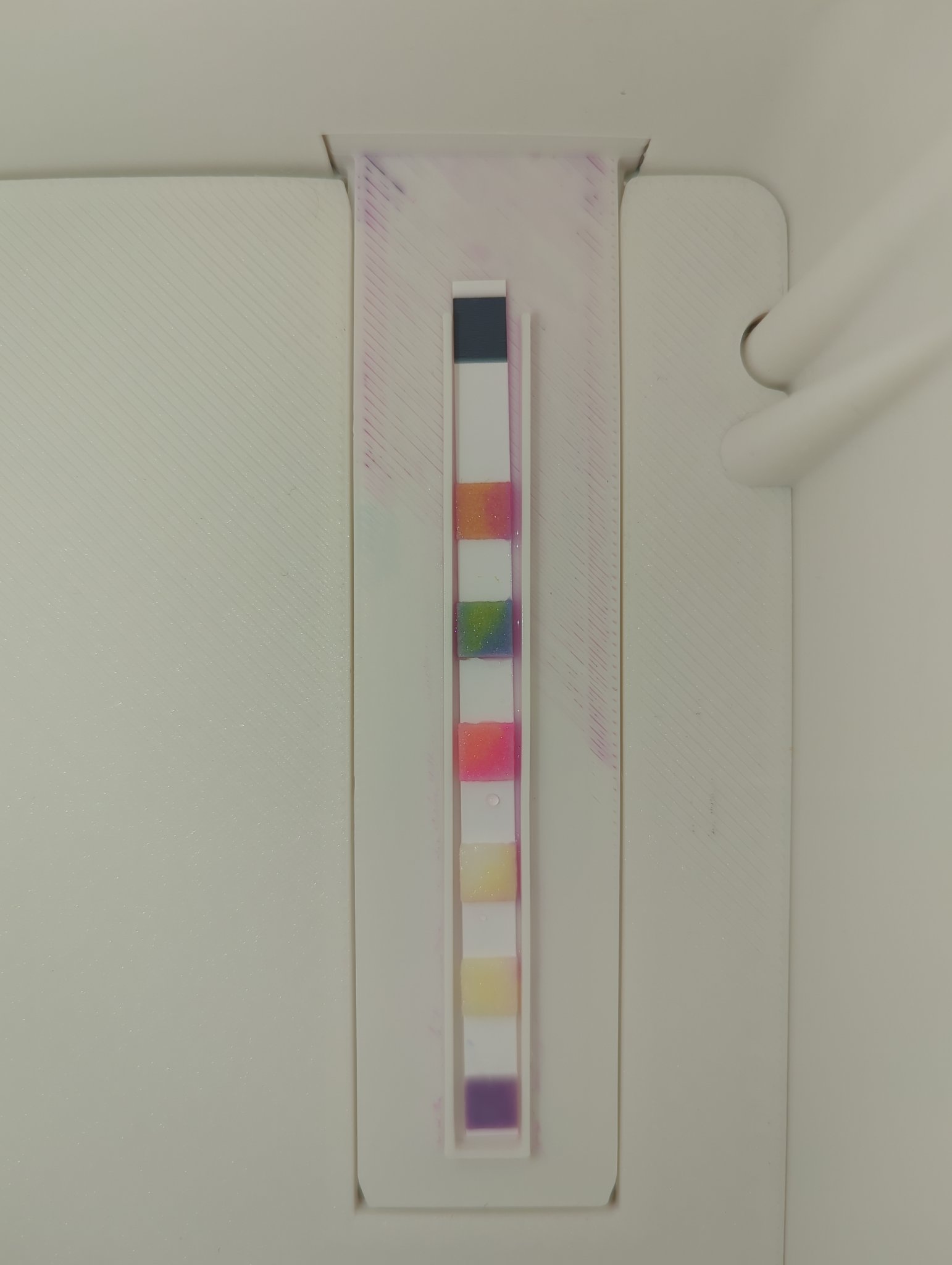

Original frame with sampling overlays for 20260702T180019_18.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T180019_18.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e47051 71 ppm
Total Alkalinity #678149 240 ppm
pH #fe5f70 8.0
Free Chlorine #fae2ae 0 ppm
Total Chlorine #fdeead 0 ppm
Total Hardness #936890 500 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260702T175952_17.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175952_17.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e8863e 36 ppm
Total Alkalinity #6b8c42 0 ppm
pH #fe6369 8.0
Free Chlorine #fce9ac 0 ppm
Total Chlorine #fdefaa 0 ppm
Total Hardness #8b608c 451 ppm


Clorox 6-Way Download original

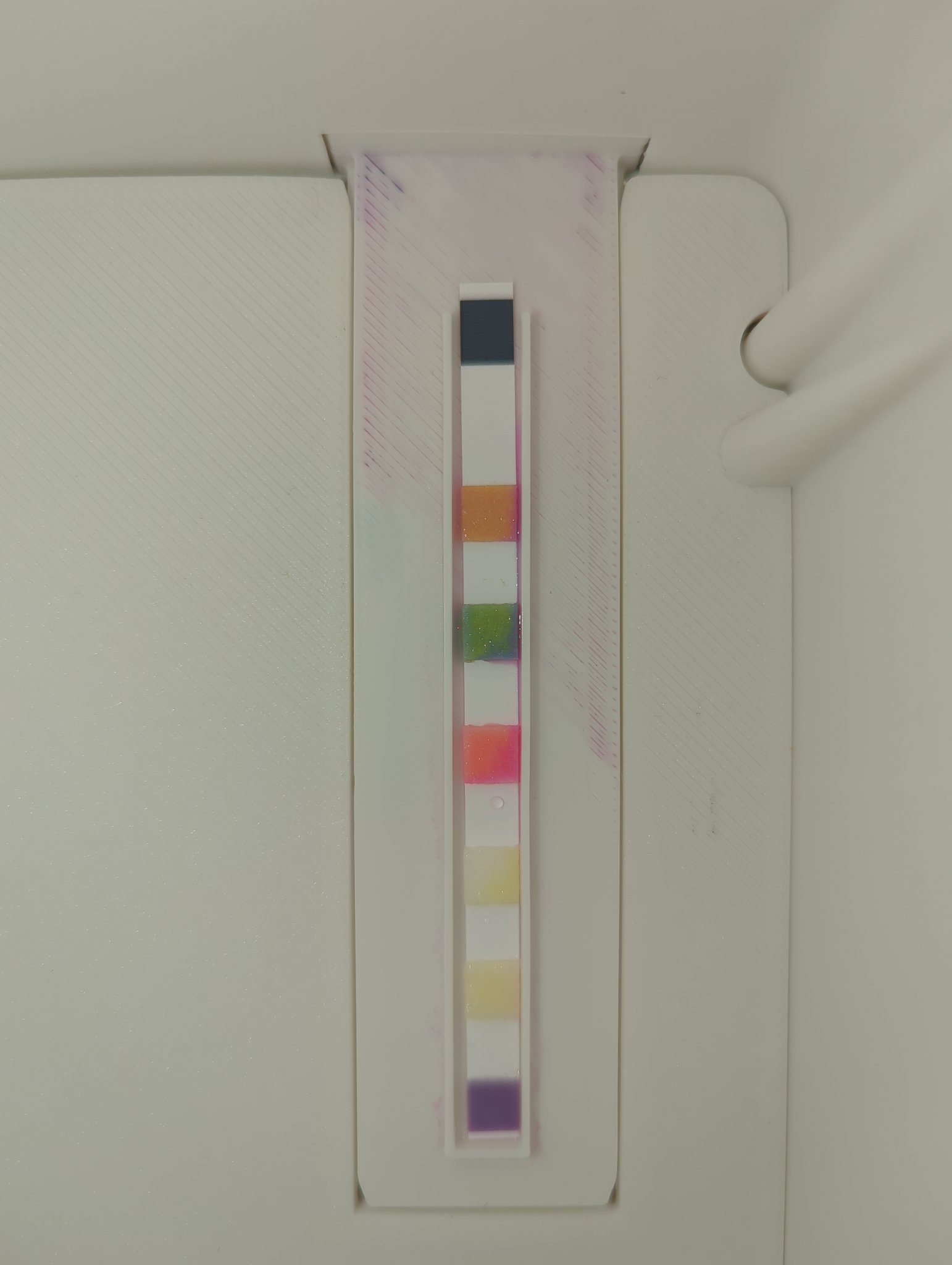

Original frame with sampling overlays for 20260702T175937_16.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175937_16.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e98b3c 33 ppm
Total Alkalinity #6e8f3b 0 ppm
pH #fe6d65 7.6
Free Chlorine #fcf1b1 0 ppm
Total Chlorine #fdf0a7 0 ppm
Total Hardness #8a608d 445 ppm


HTH 5-Way Download original

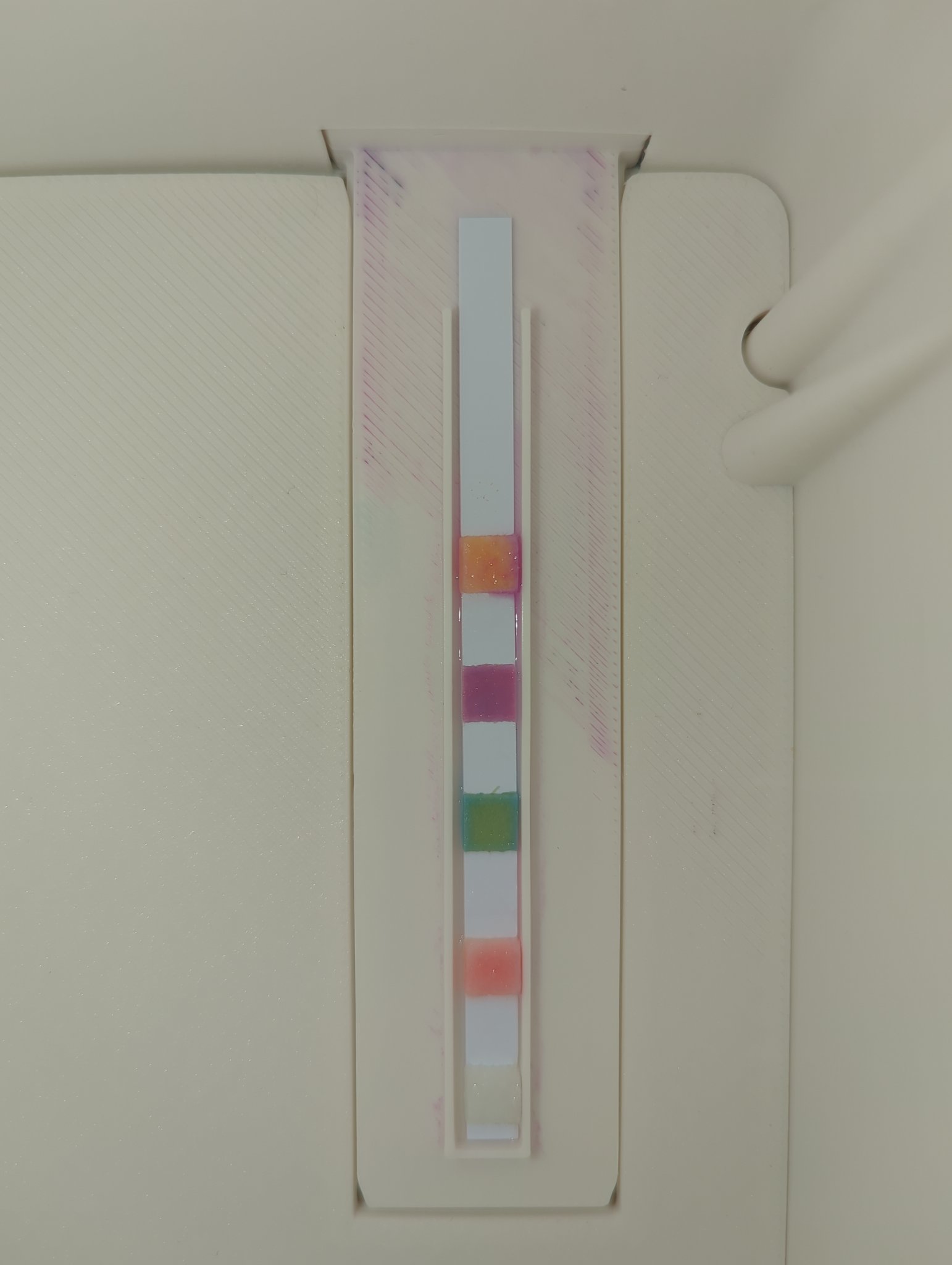

Original frame with sampling overlays for 20260702T175845_15.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175845_15.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea676 14 ppm
Total Hardness #cc719b 316 ppm
Total Alkalinity #8eb385 102 ppm
pH #feb0a3 7.4
Free Available Chlorine #fef8e8 0 ppm


HTH 5-Way Download original

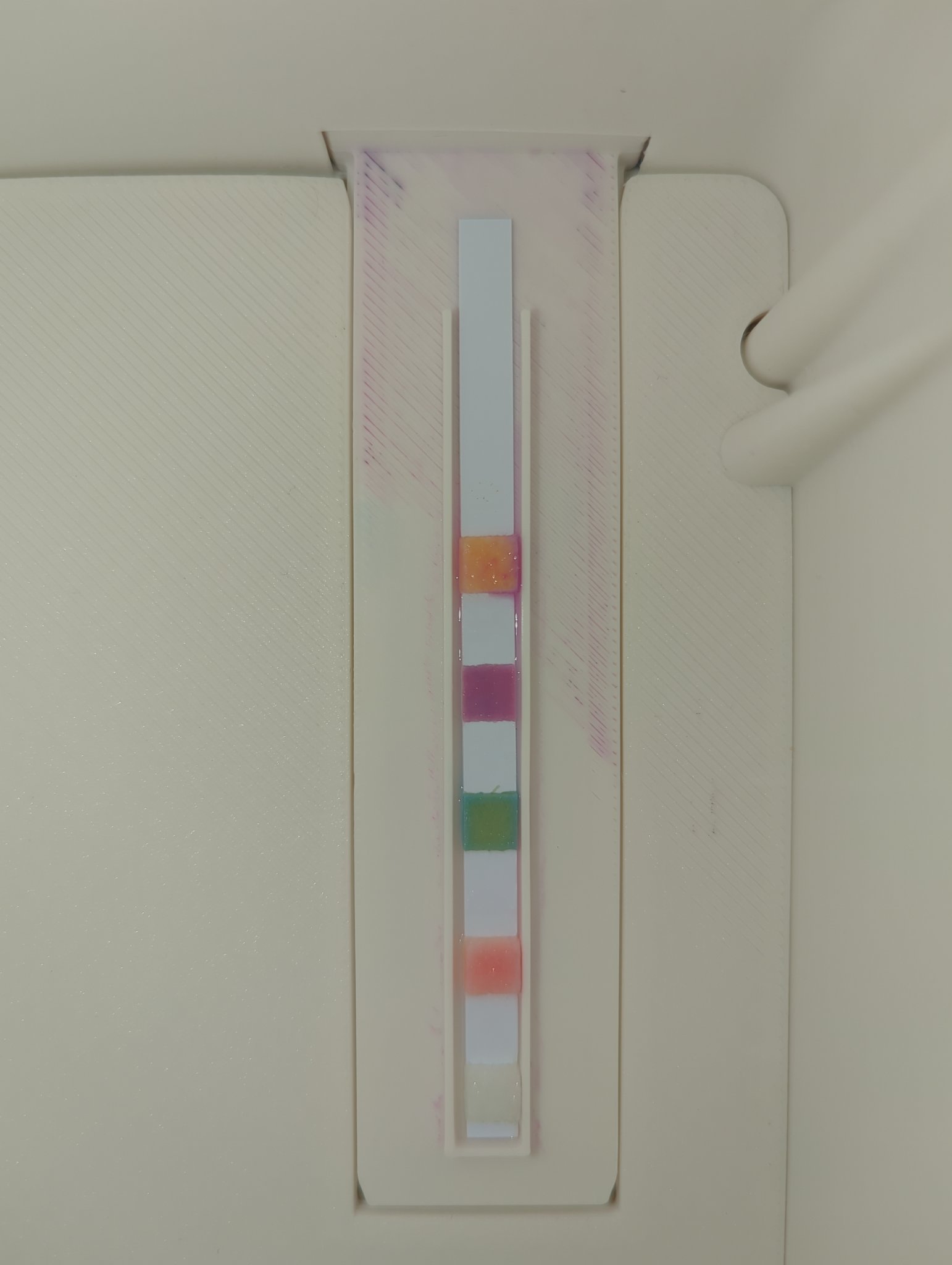

Original frame with sampling overlays for 20260702T175830_14.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175830_14.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feab74 11 ppm
Total Hardness #cc719b 301 ppm
Total Alkalinity #8bb185 103 ppm
pH #ffb0a1 7.4
Free Available Chlorine #fef8e7 0 ppm


HTH 5-Way Download original

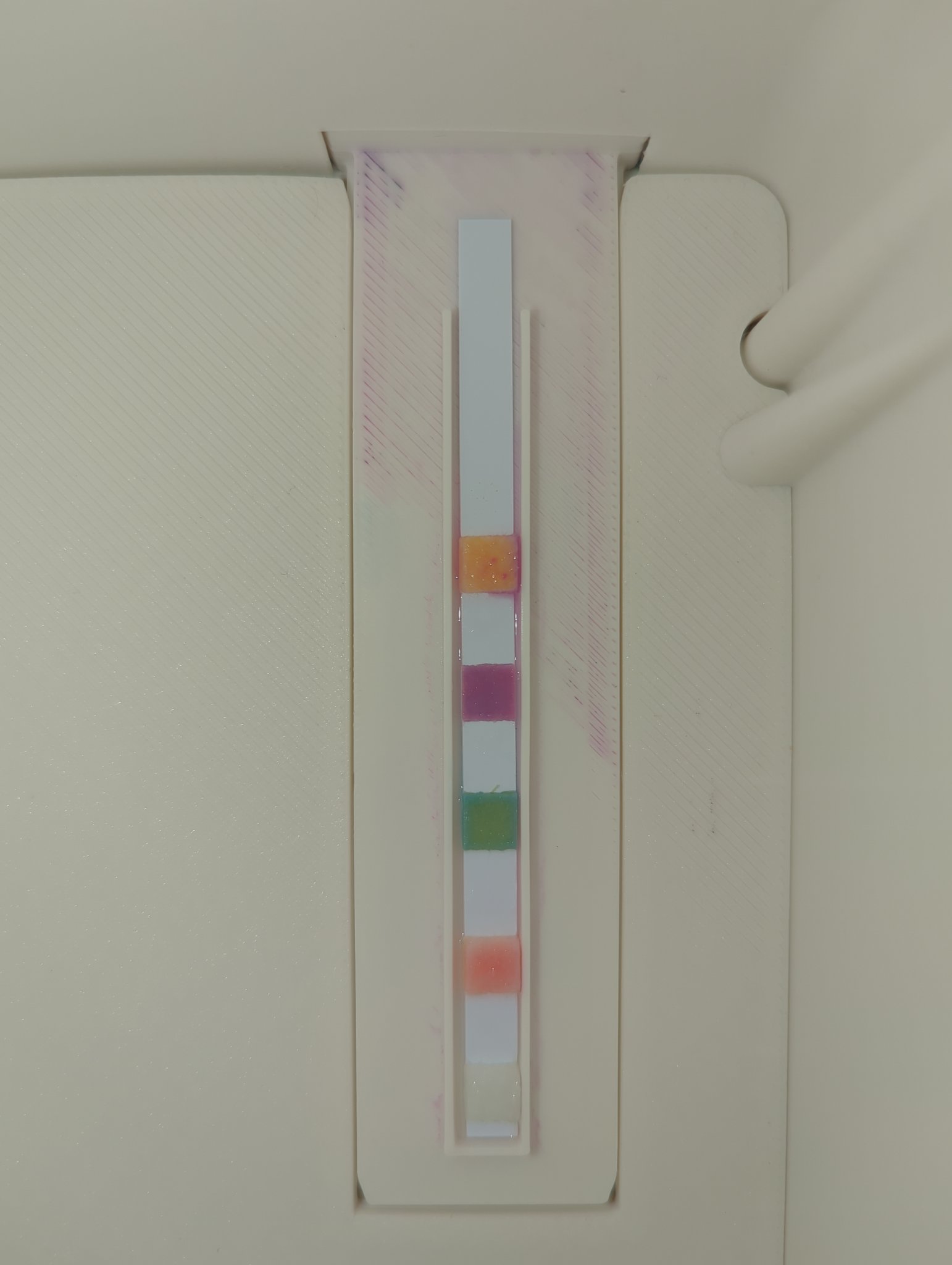

Original frame with sampling overlays for 20260702T175811_13.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175811_13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb16f 7 ppm
Total Hardness #c6719c 264 ppm
Total Alkalinity #89b185 103 ppm
pH #feb2a0 7.3
Free Available Chlorine #fef8e7 0 ppm
