Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


Clorox 6-Way Download original

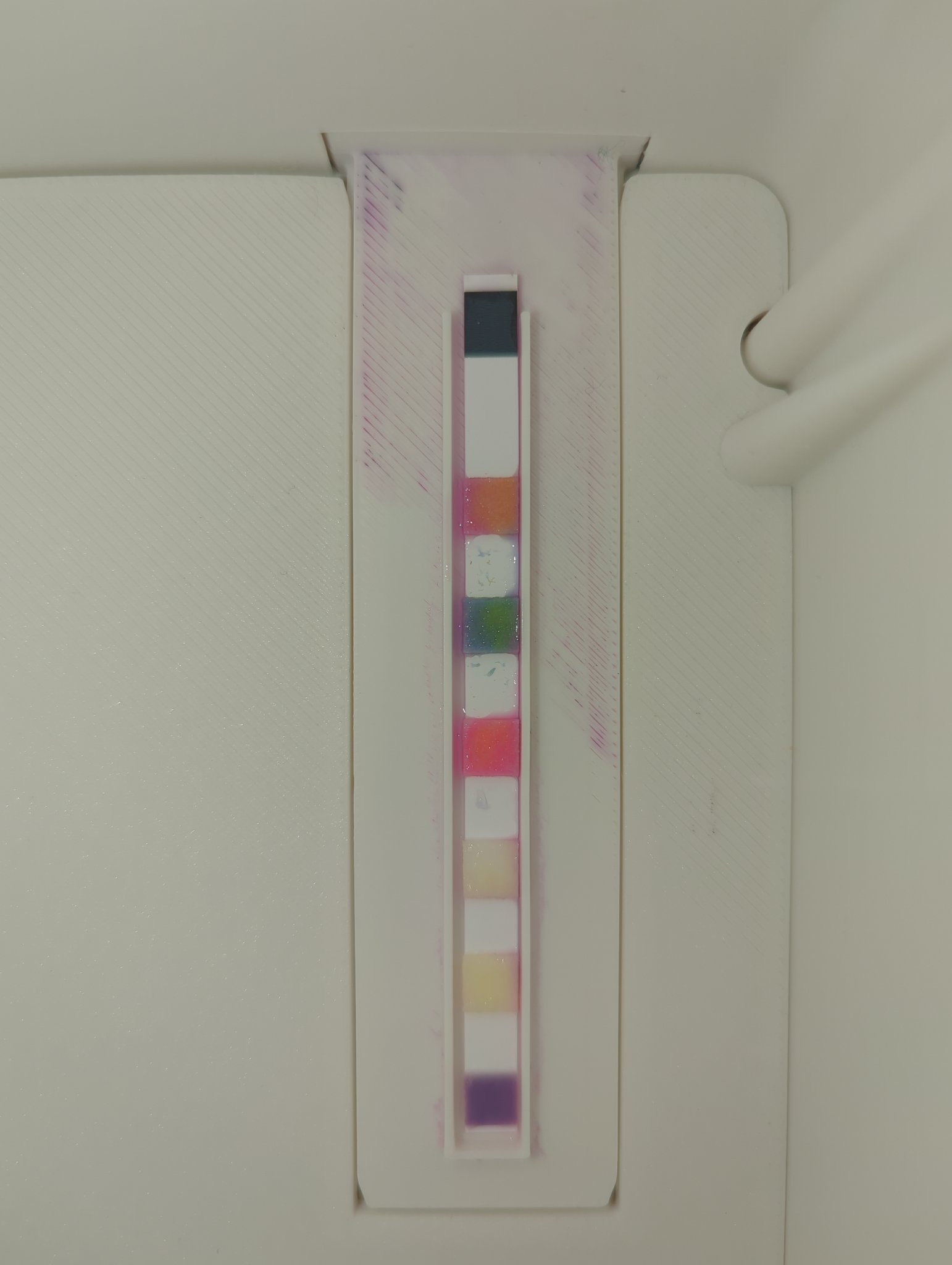

Original frame with sampling overlays for 20260702T175647_12.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175647_12.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e3715c 76 ppm
Total Alkalinity #5d7753 240 ppm
pH #fe5c6d 8.0
Free Chlorine #f9e4c2 0 ppm
Total Chlorine #fee9ae 0 ppm
Total Hardness #9e6c92 500 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260702T175630_11.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175630_11.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e37457 72 ppm
Total Alkalinity #5e7a4b 240 ppm
pH #fe5d67 8.0
Free Chlorine #fae8c0 0 ppm
Total Chlorine #fde9ab 0 ppm
Total Hardness #895a89 468 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260702T175616_10.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175616_10.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e47857 70 ppm
Total Alkalinity #638045 240 ppm
pH #fe6163 8.0
Free Chlorine #fdedc6 0 ppm
Total Chlorine #fdeba9 0 ppm
Total Hardness #885b8c 467 ppm


HTH 5-Way Download original

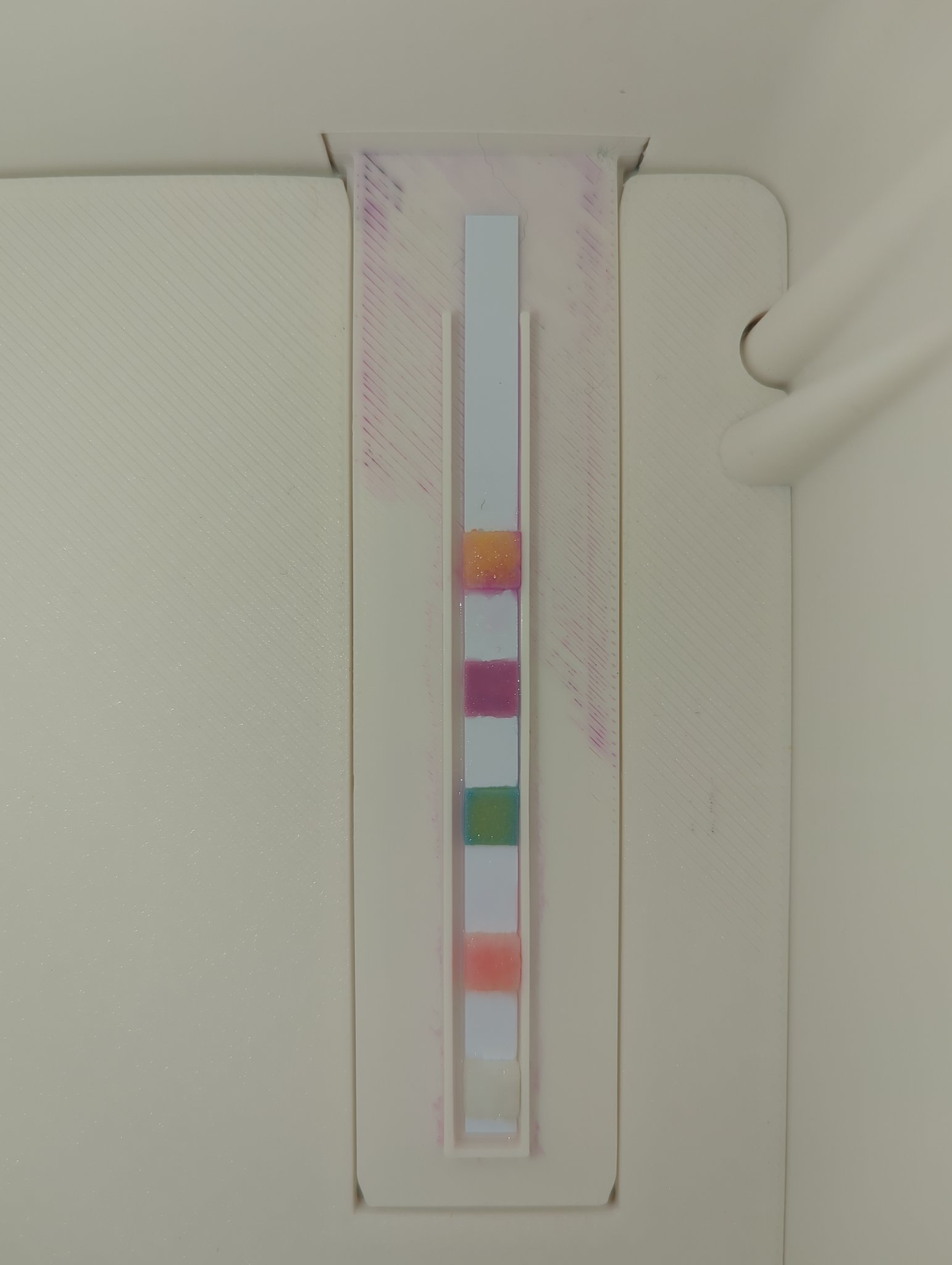

Original frame with sampling overlays for 20260702T175526_9.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175526_9.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fba177 16 ppm
Total Hardness #cc6c95 354 ppm
Total Alkalinity #82a87e 138 ppm
pH #fea39a 7.6
Free Available Chlorine #fdf1e1 0 ppm


HTH 5-Way Download original

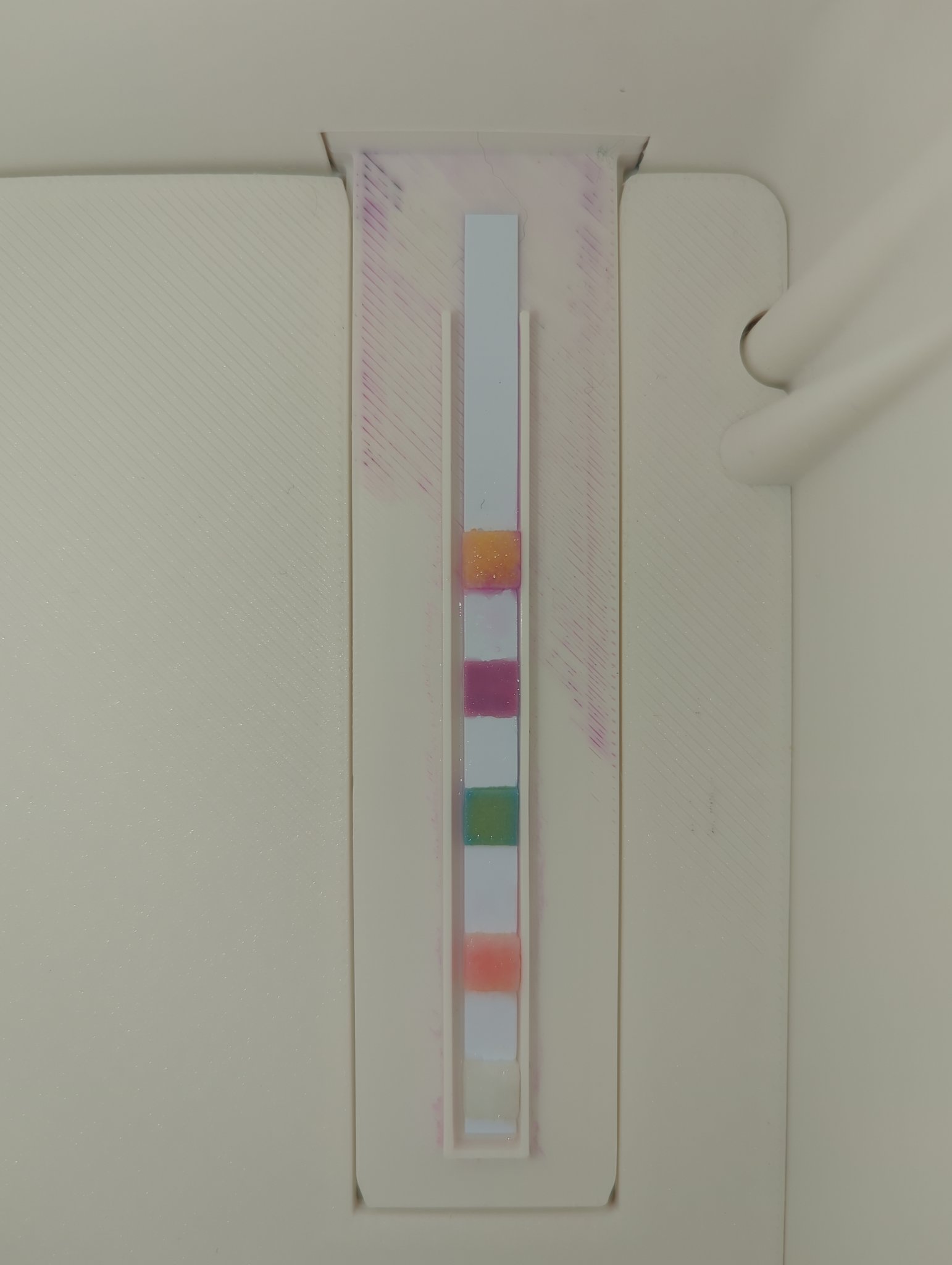

Original frame with sampling overlays for 20260702T175510_8.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175510_8.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fba675 13 ppm
Total Hardness #c96b95 340 ppm
Total Alkalinity #7fa77e 138 ppm
pH #fea498 7.4
Free Available Chlorine #fbf1e0 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T175455_7.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175455_7.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcad70 9 ppm
Total Hardness #c56b97 318 ppm
Total Alkalinity #81a77f 138 ppm
pH #fea798 7.4
Free Available Chlorine #fdf2e2 0 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260702T175350_6.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175350_6.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e9864c 35 ppm
Total Alkalinity #618b46 0 ppm
pH #fe7168 7.6
Free Chlorine #fdeed2 0 ppm
Total Chlorine #feebaa 0 ppm
Total Hardness #95628c 500 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260702T175322_5.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175322_5.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e9884a 35 ppm
Total Alkalinity #628c43 0 ppm
pH #fe7166 7.6
Free Chlorine #fdefd2 0 ppm
Total Chlorine #fdeca8 0 ppm
Total Hardness #8b5786 462 ppm
