Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

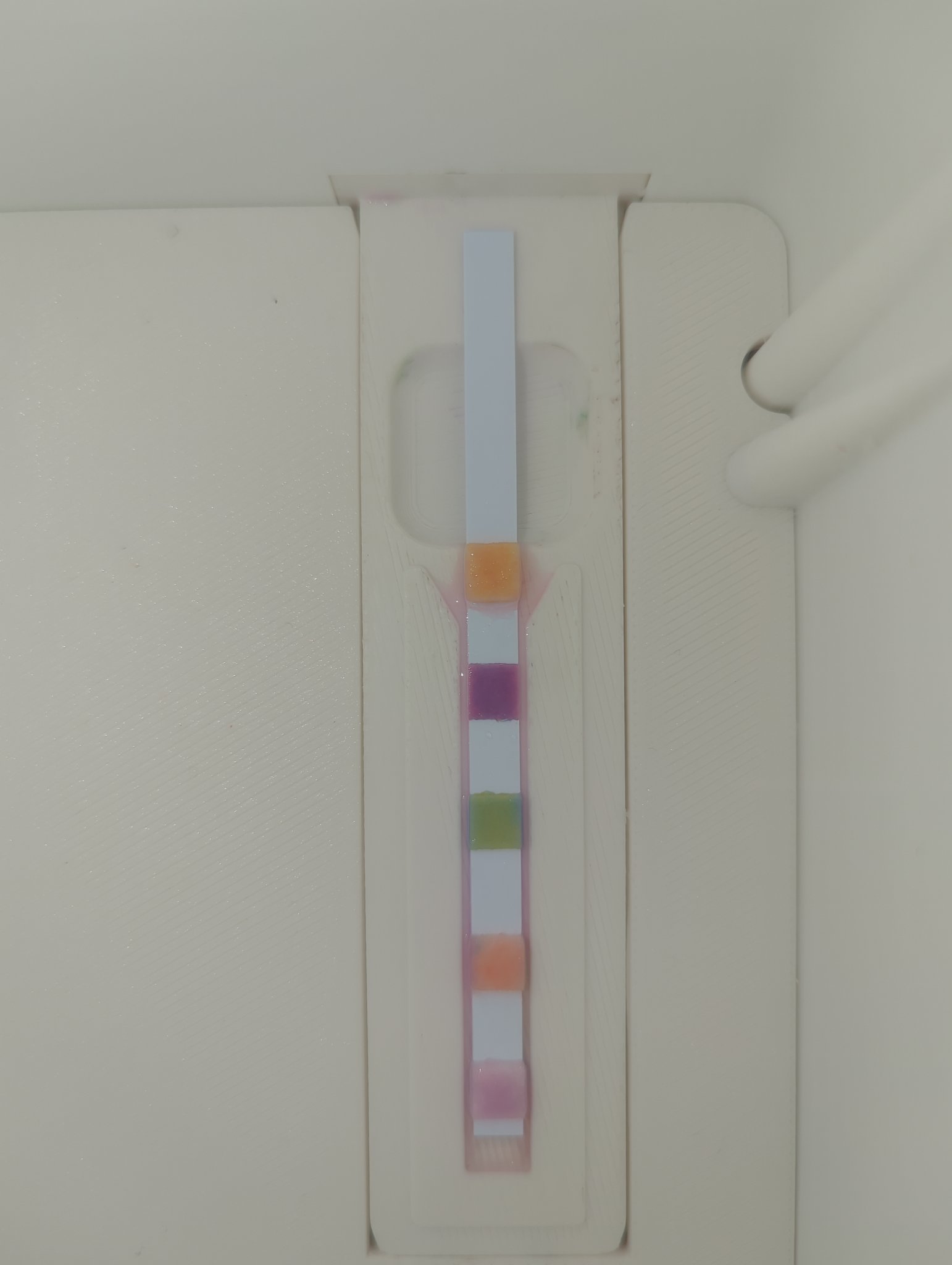

Original frame with sampling overlays for 20260813T013857_fcl07.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T013857_fcl07.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fec083 4 ppm
Total Hardness #bf7da6 306 ppm
Total Alkalinity #b9bd91 44 ppm
pH #f9b2a1 7.3
Free Available Chlorine #f4bdcb 6 ppm


HTH 5-Way Download original

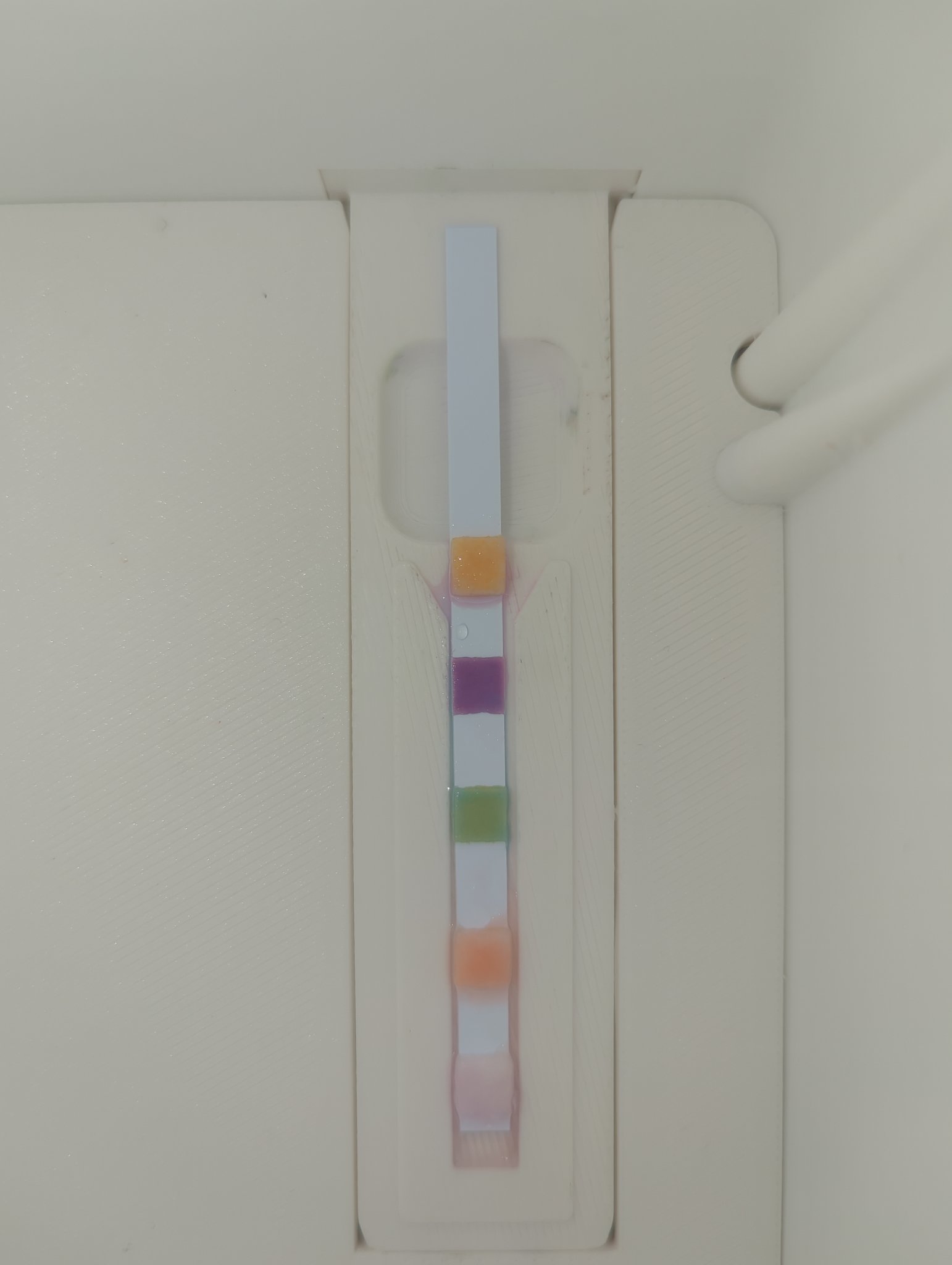

Original frame with sampling overlays for 20260813T013349_fcl-02.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T013349_fcl-02.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feca81 0 ppm
Total Hardness #b57eb0 163 ppm
Total Alkalinity #b1c790 48 ppm
pH #ffc7a3 7.0
Free Available Chlorine #ffeced 1 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260813T013148_fcl02.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T013148_fcl02.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fed1a2 6 ppm
Total Hardness #c78fba 365 ppm
Total Alkalinity #c8d7aa 67 ppm
pH #ffceb2 6.9
Free Available Chlorine #fef3eb 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260813T012826_cya02.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T012826_cya02.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea682 18 ppm
Total Hardness #ae7ba7 163 ppm
Total Alkalinity #86b091 138 ppm
pH #ffaa97 7.4
Free Available Chlorine #f6aec2 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260813T012825_cya02.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T012825_cya02.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdb190 16 ppm
Total Hardness #b791be 151 ppm
Total Alkalinity #a4bf89 99 ppm
pH #ffb19f 7.3
Free Available Chlorine #f8bad1 5 ppm


HTH 5-Way Download original

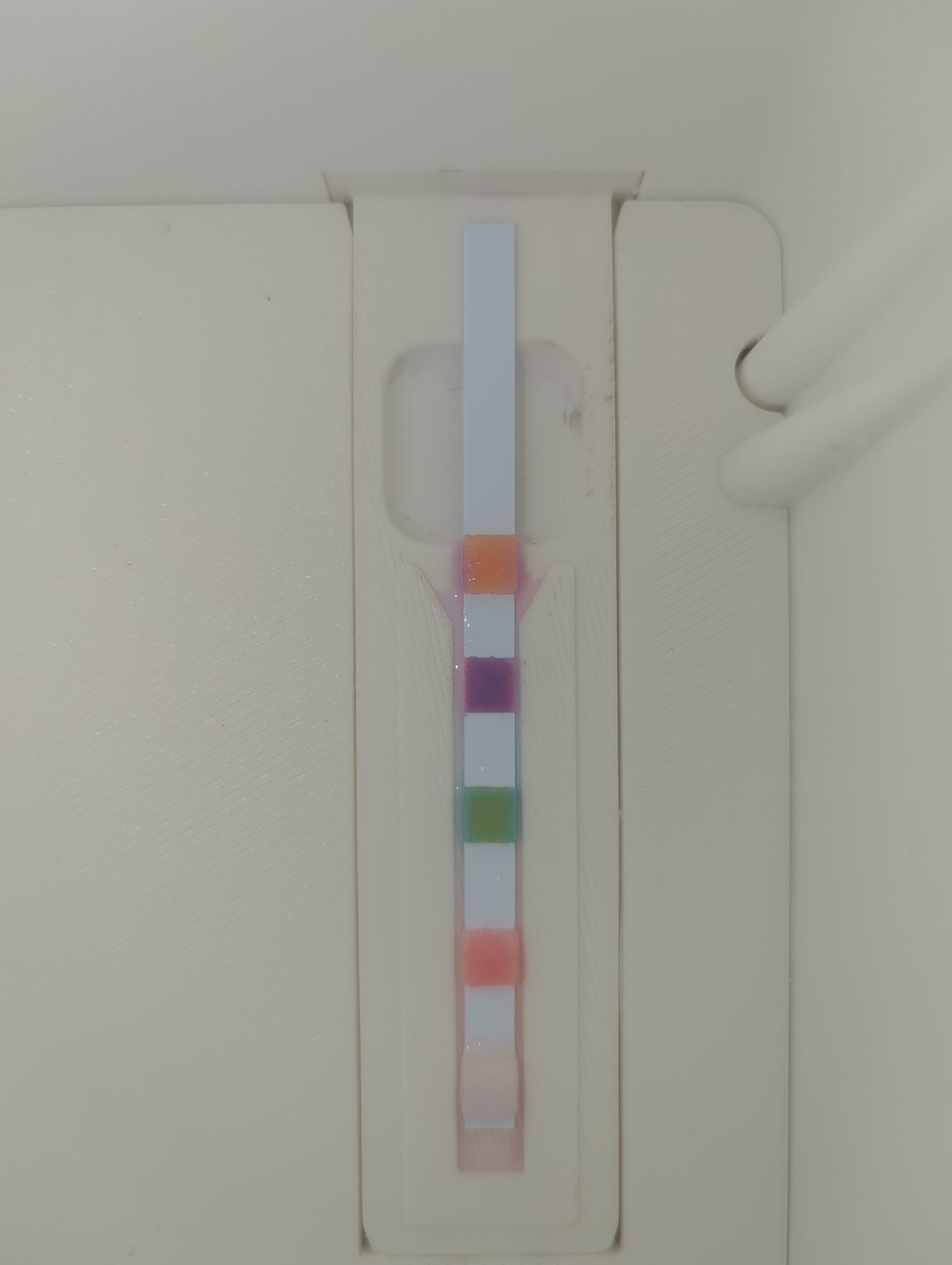

Original frame with sampling overlays for 20260813T012824_cya01.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T012824_cya01.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea783 18 ppm
Total Hardness #b076a3 331 ppm
Total Alkalinity #94b581 101 ppm
pH #ffa49c 7.6
Free Available Chlorine #feeadb 0 ppm


HTH 5-Way Download original

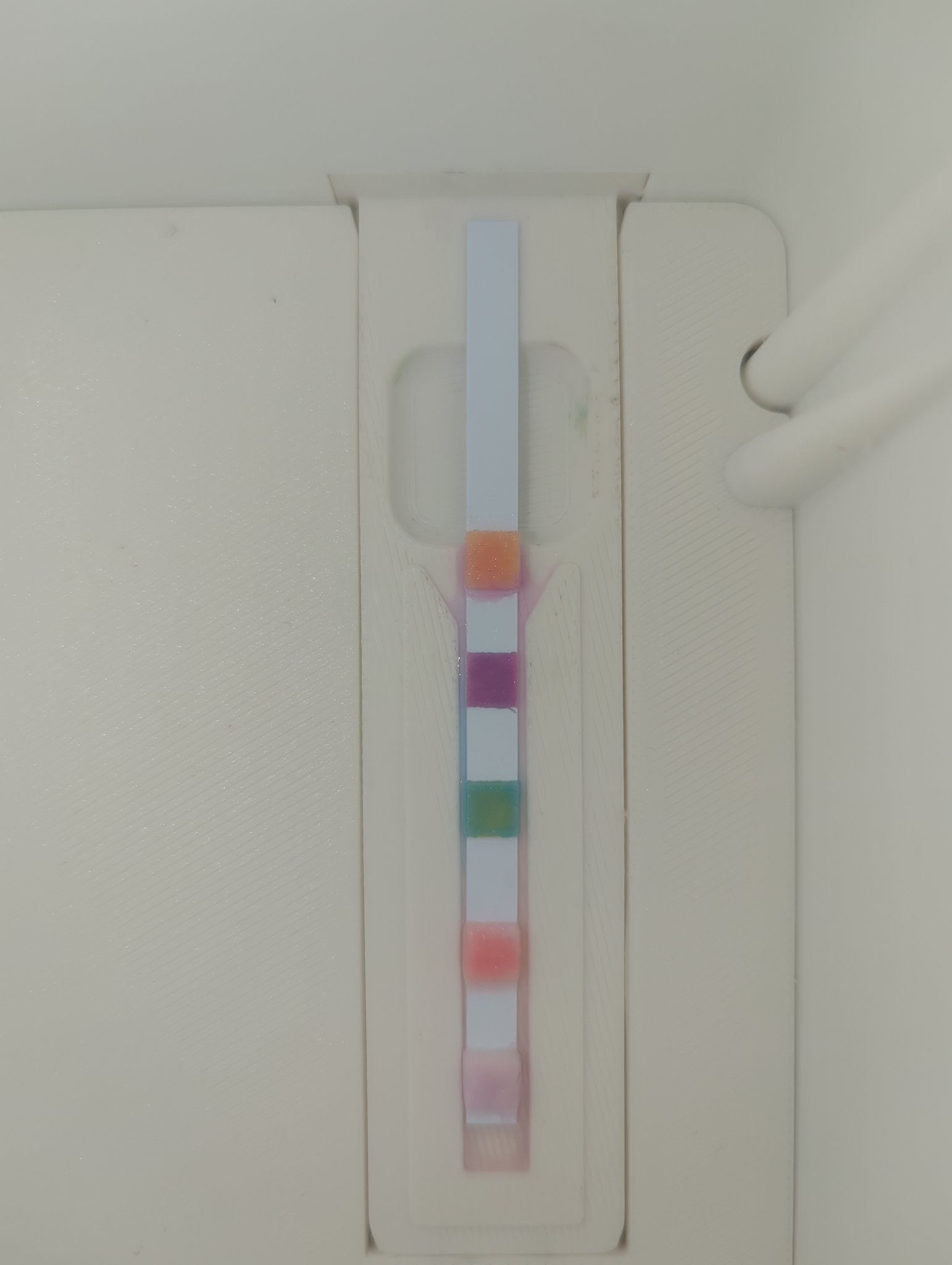

Original frame with sampling overlays for 20260813T012823_cya03.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T012823_cya03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea788 19 ppm
Total Hardness #c184ac 337 ppm
Total Alkalinity #87b091 138 ppm
pH #ffa7a1 7.6
Free Available Chlorine #fdd0d5 3 ppm


HTH 5-Way Download original

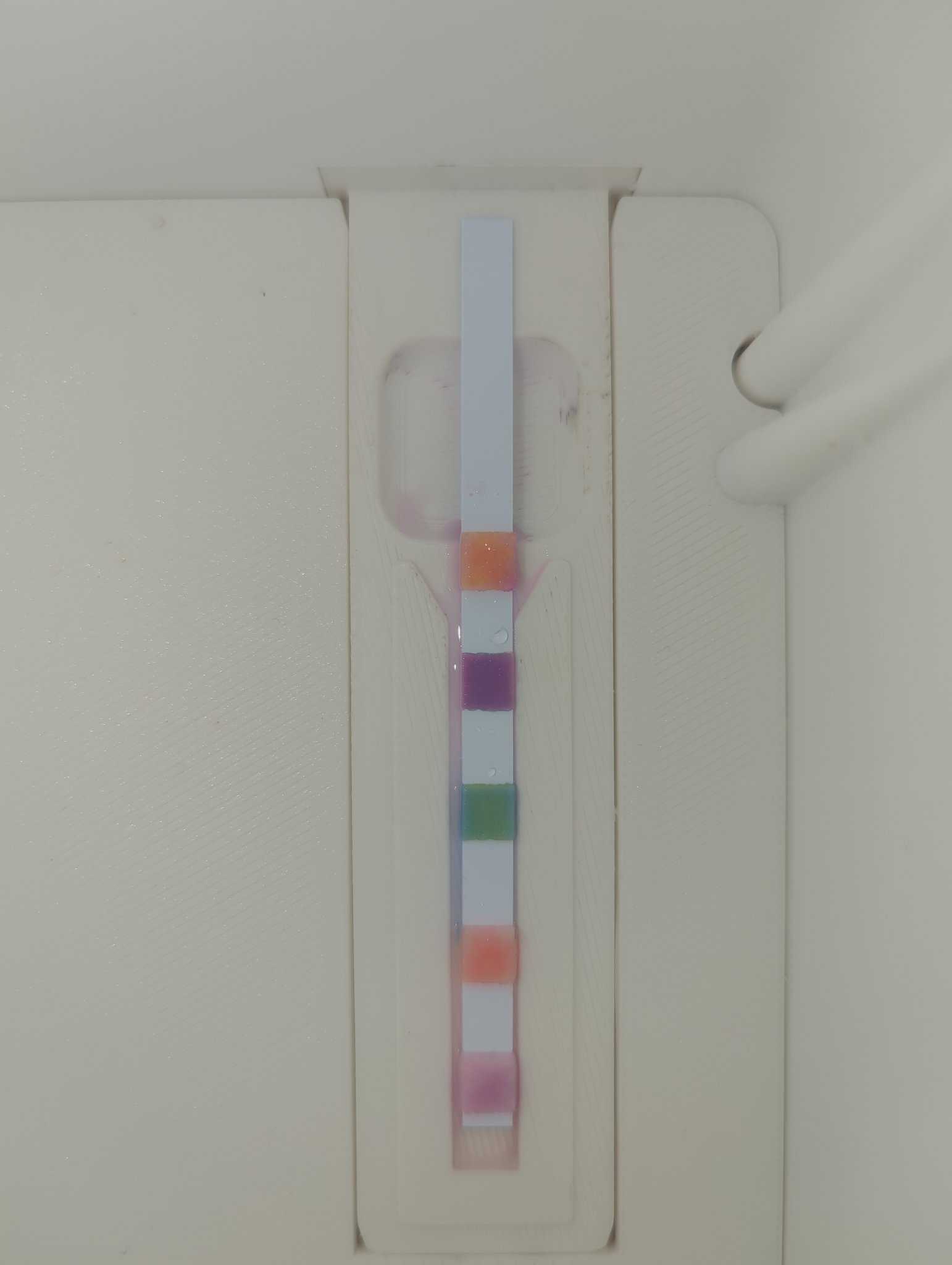

Original frame with sampling overlays for 20260813T010421_cya02.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T010421_cya02.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea682 18 ppm
Total Hardness #ae7ba7 163 ppm
Total Alkalinity #86b091 138 ppm
pH #ffaa97 7.4
Free Available Chlorine #f6aec2 5 ppm
