Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


Clorox 6-Way Download original

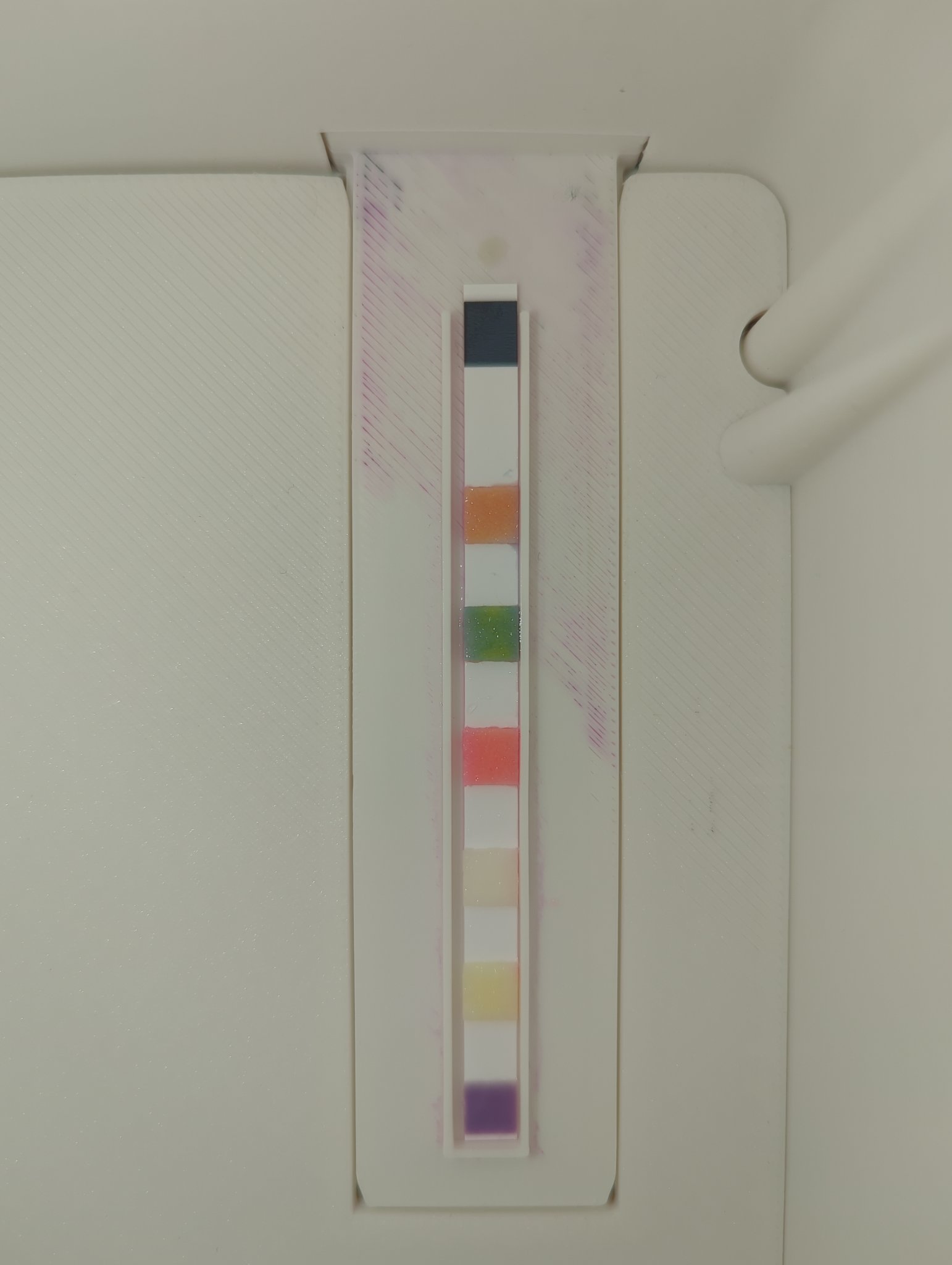

Original frame with sampling overlays for 20260702T175308_4.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175308_4.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #eb8c47 33 ppm
Total Alkalinity #668c40 0 ppm
pH #fe7364 7.6
Free Chlorine #fdefd3 0 ppm
Total Chlorine #fdeca7 0 ppm
Total Hardness #905f89 500 ppm


HTH 5-Way Download original

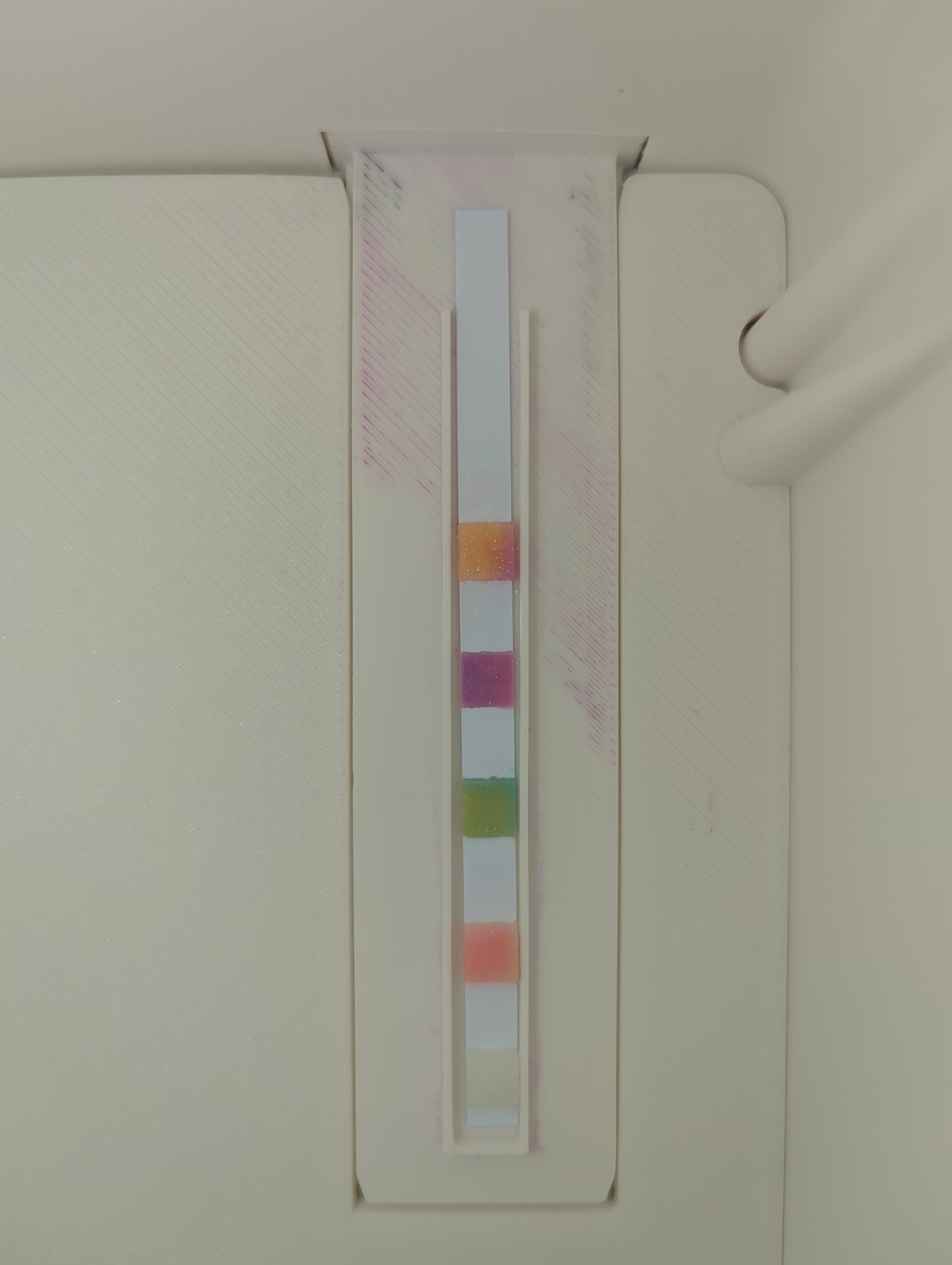

Original frame with sampling overlays for 20260702T175207_3.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175207_3.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fbb289 13 ppm
Total Hardness #cc82ac 339 ppm
Total Alkalinity #a8ba6e 0 ppm
pH #fea998 7.4
Free Available Chlorine #faf6dd 0 ppm


HTH 5-Way Download original

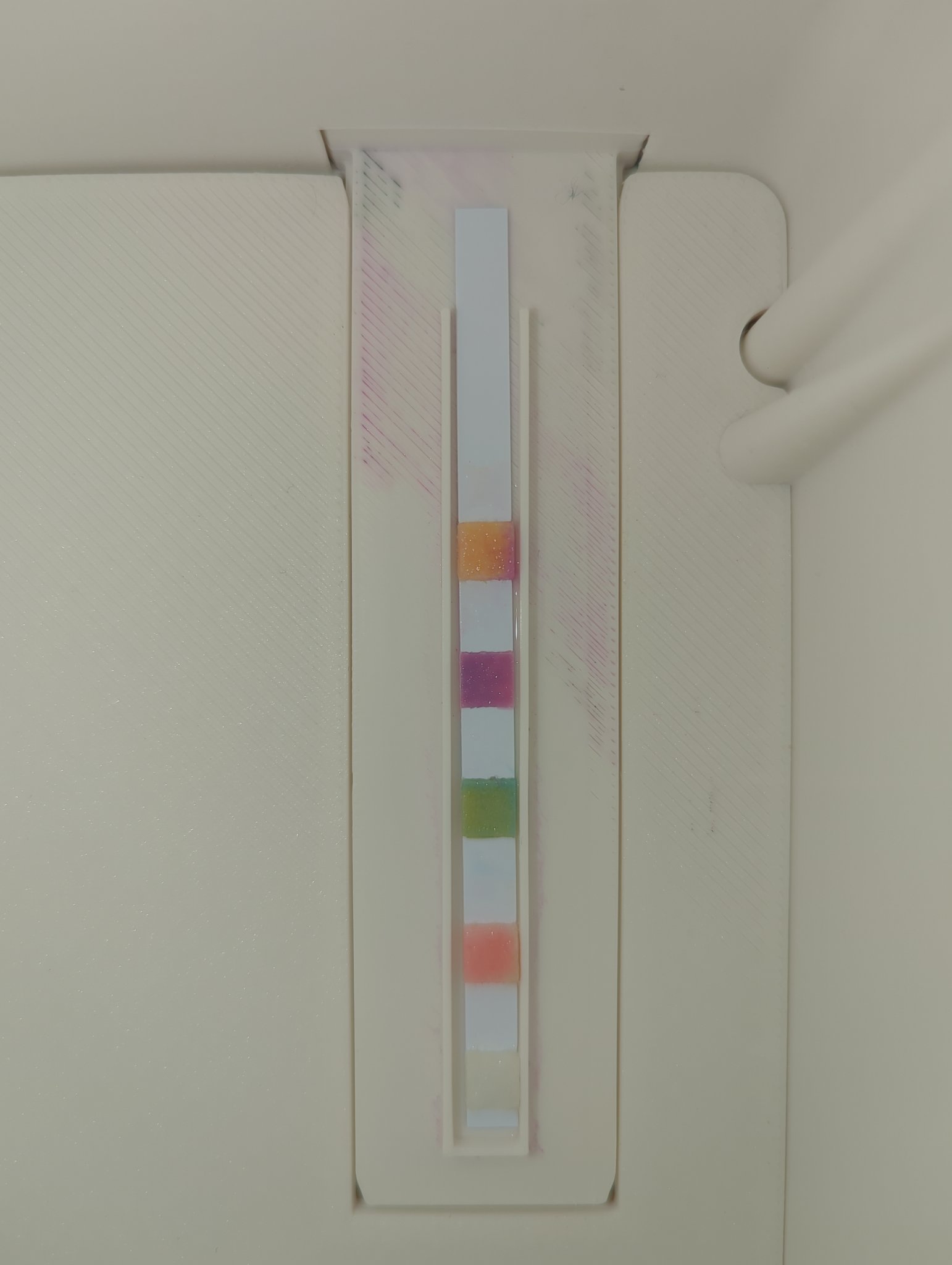

Original frame with sampling overlays for 20260702T175153_2.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175153_2.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fbb587 10 ppm
Total Hardness #cc81ac 334 ppm
Total Alkalinity #a6b970 0 ppm
pH #ffa998 7.4
Free Available Chlorine #fbf6df 0 ppm


HTH 5-Way Download original

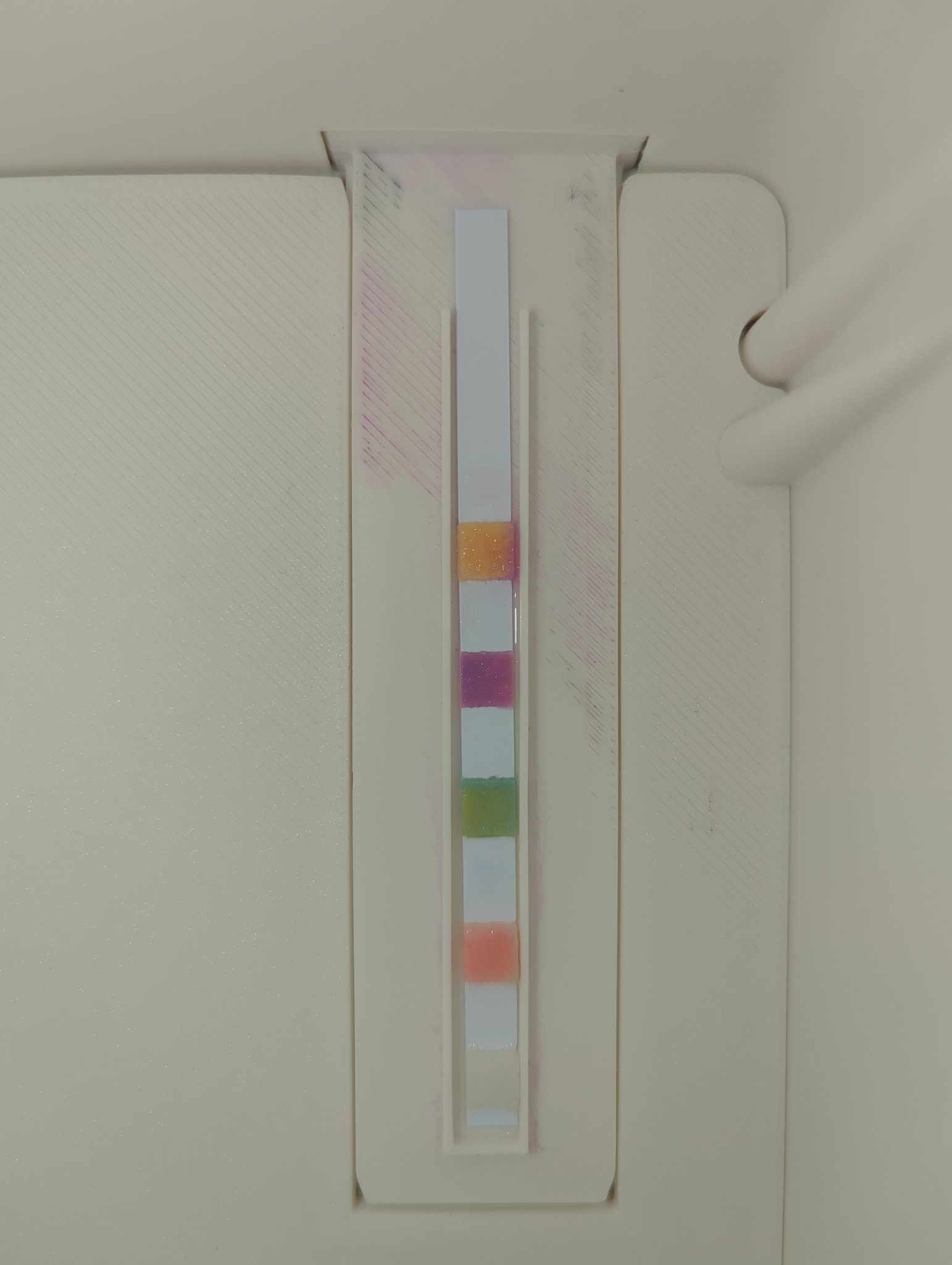

Original frame with sampling overlays for 20260702T175140_1.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T175140_1.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fbba84 7 ppm
Total Hardness #c981ad 330 ppm
Total Alkalinity #a4b972 41 ppm
pH #ffaa95 7.3
Free Available Chlorine #f9f5de 0 ppm


HTH 5-Way Download original

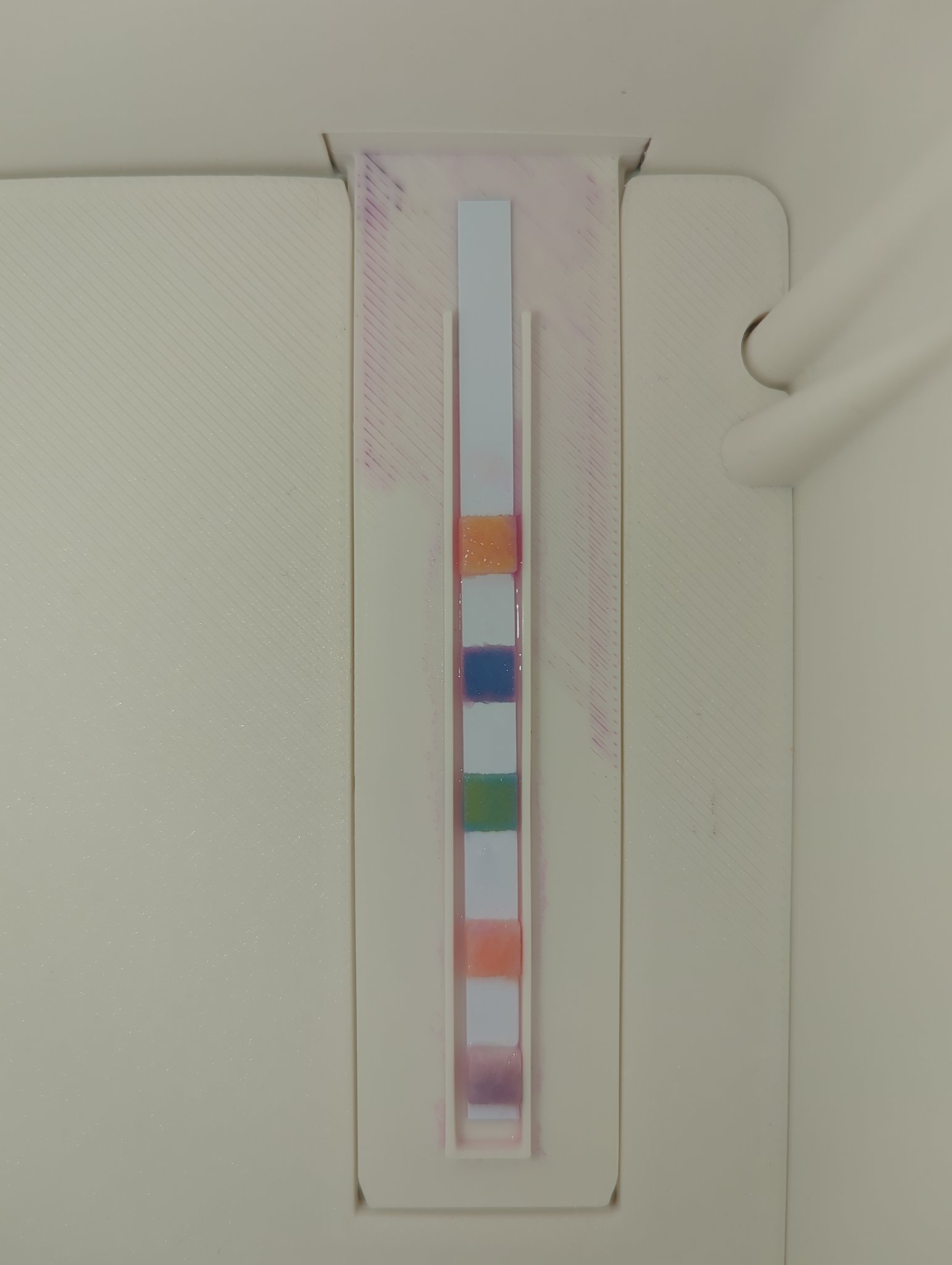

Original frame with sampling overlays for 20260702T170932_28.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170932_28.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcbd94 10 ppm
Total Hardness #8095bd 47 ppm
Total Alkalinity #83aa84 138 ppm
pH #fead95 7.3
Free Available Chlorine #d3a1b1 6 ppm


HTH 5-Way Download original

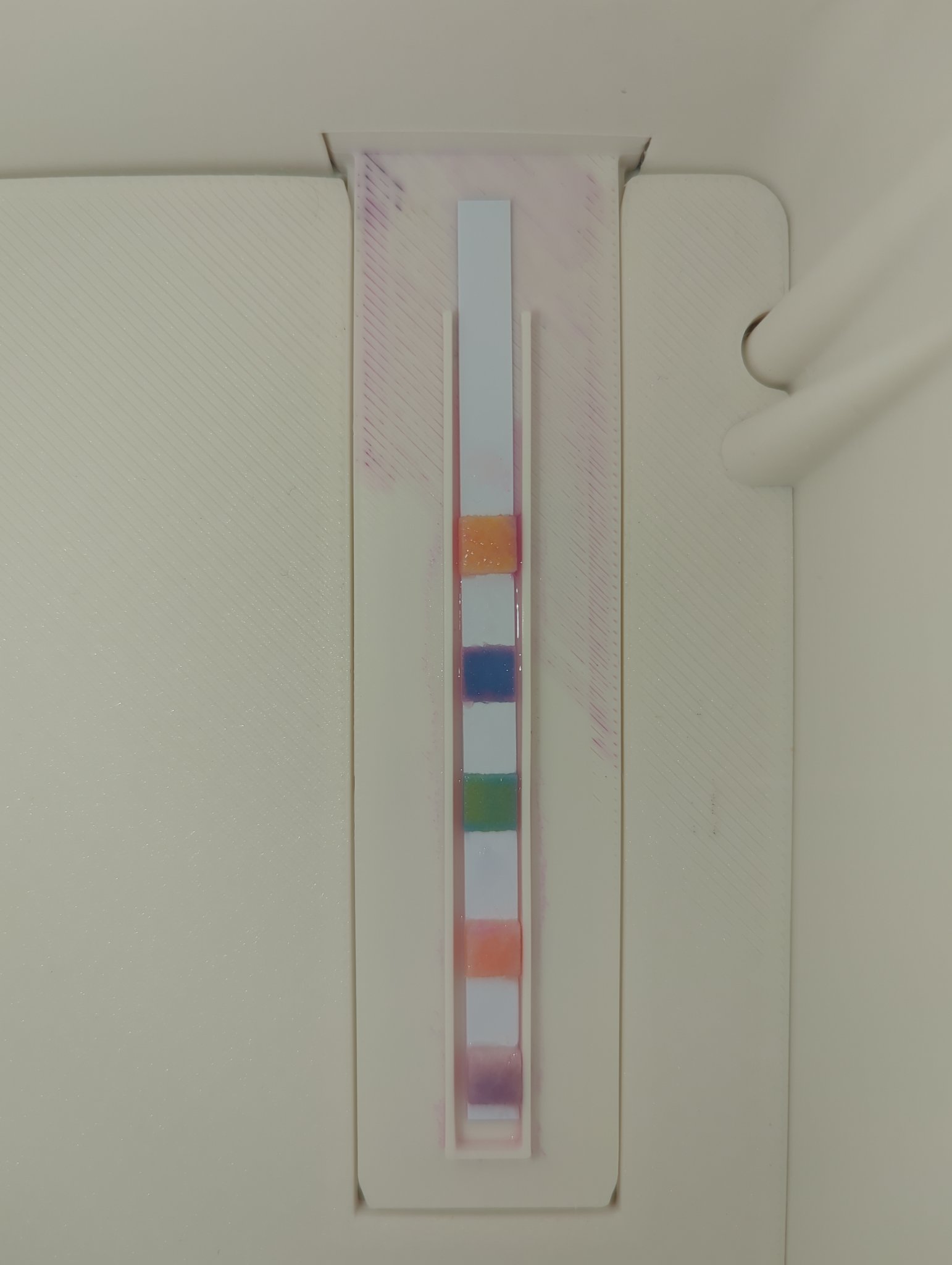

Original frame with sampling overlays for 20260702T170917_27.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170917_27.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcbf94 9 ppm
Total Hardness #8395bd 49 ppm
Total Alkalinity #82aa85 138 ppm
pH #feae95 7.3
Free Available Chlorine #d29aaf 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T170700_26.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170700_26.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f7a2a4 56 ppm
Total Hardness #959fc4 52 ppm
Total Alkalinity #85a78a 138 ppm
pH #fe9b9e 7.6
Free Available Chlorine #dcacbc 6 ppm


HTH 5-Way Download original

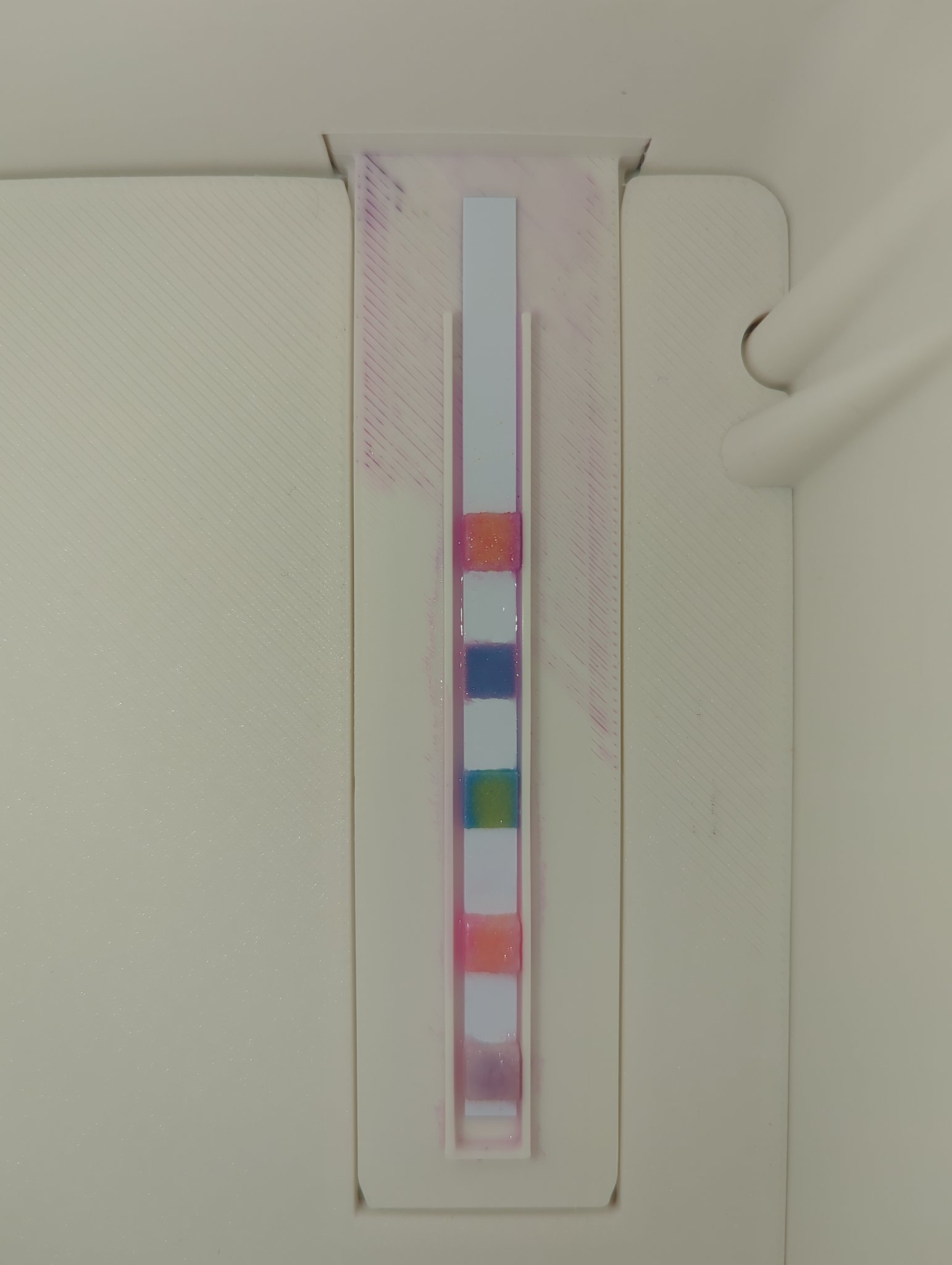

Original frame with sampling overlays for 20260702T170625_25.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170625_25.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f7a4a5 55 ppm
Total Hardness #93a0c5 49 ppm
Total Alkalinity #87a889 138 ppm
pH #fe9c9e 7.6
Free Available Chlorine #daa9bb 6 ppm
