Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

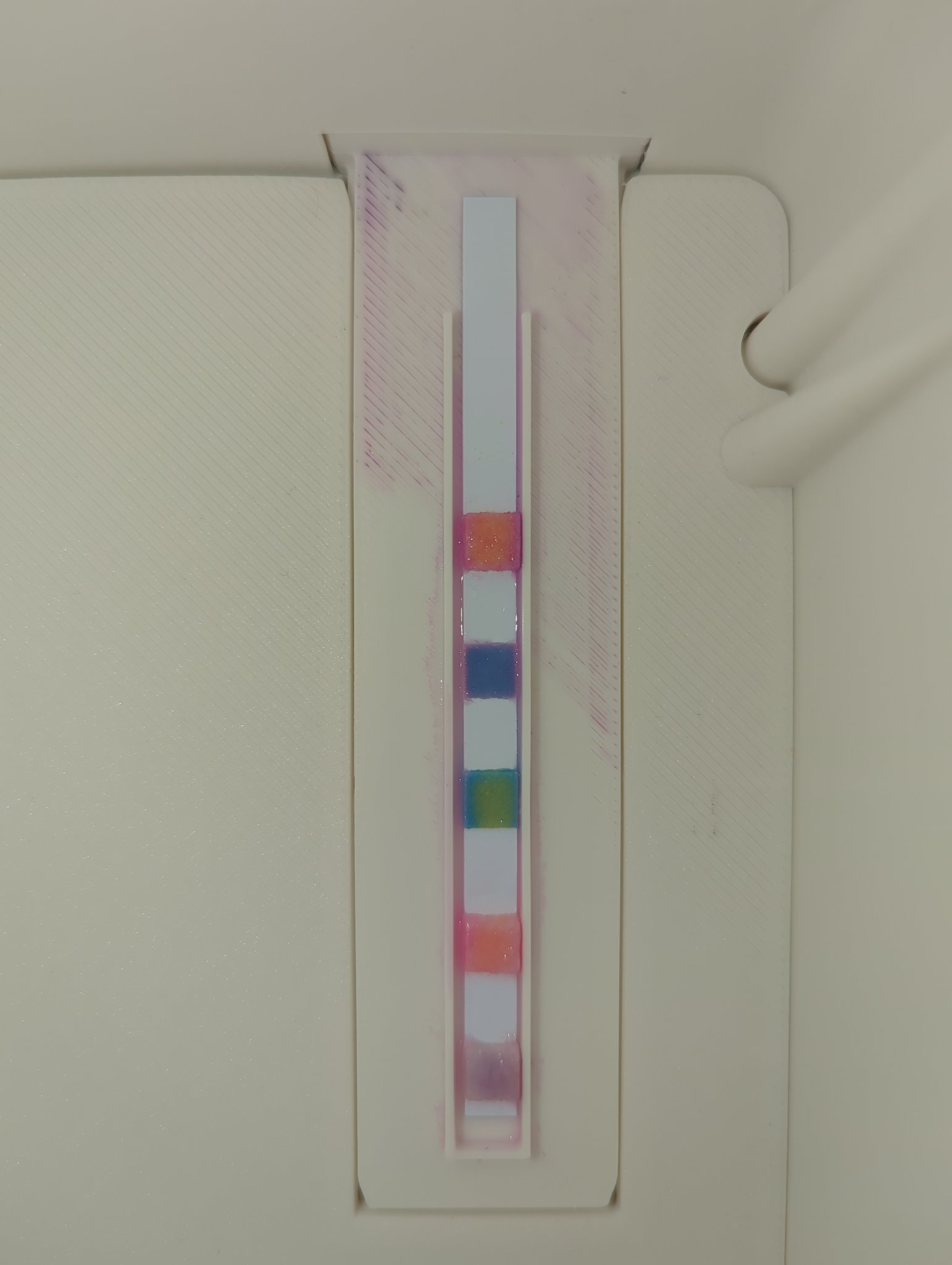

Original frame with sampling overlays for 20260702T170606_24.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170606_24.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f7a6a4 54 ppm
Total Hardness #92a0c5 47 ppm
Total Alkalinity #87a98a 138 ppm
pH #fe9d9e 7.6
Free Available Chlorine #d9a7b9 6 ppm


HTH 5-Way Download original

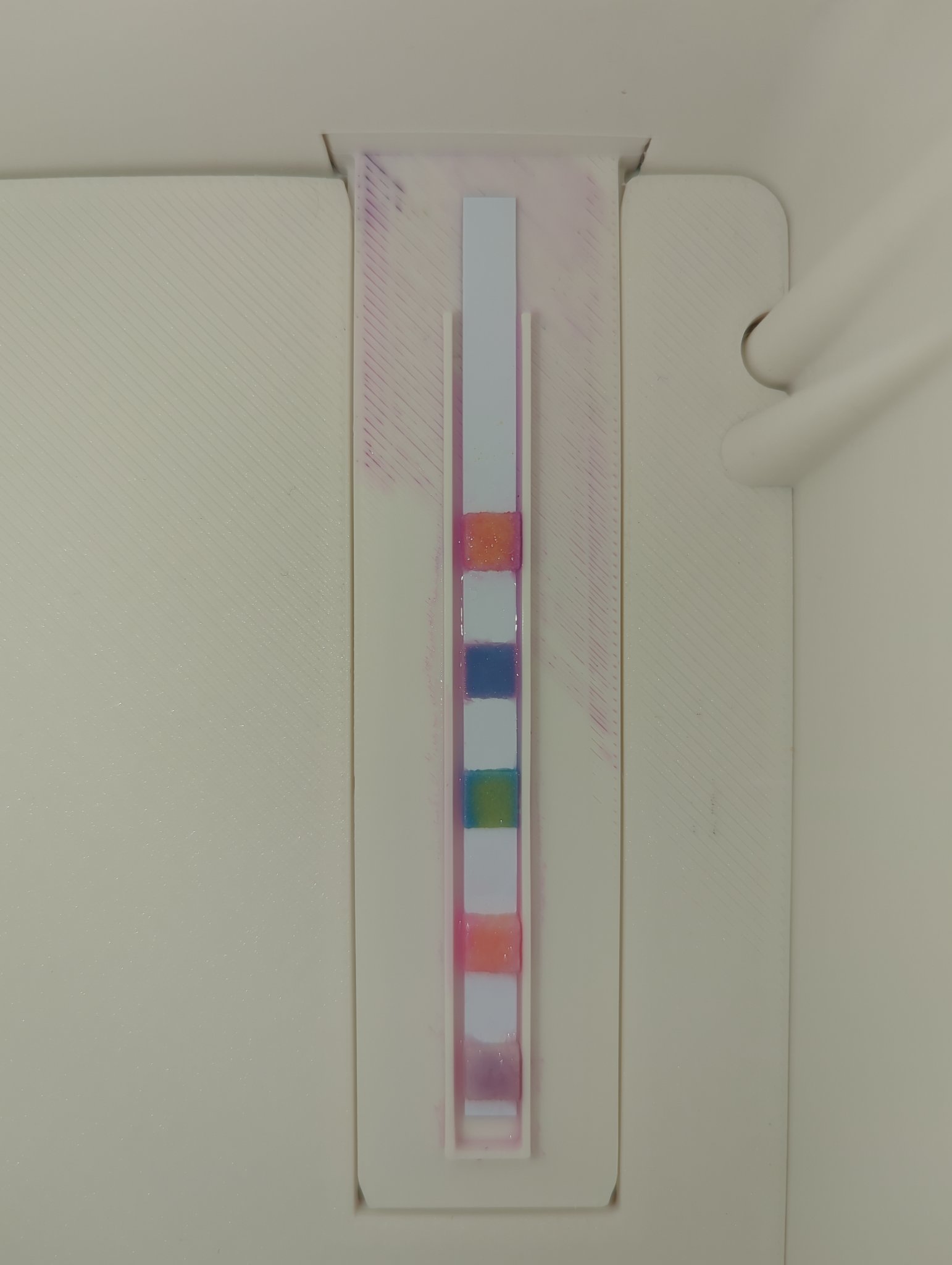

Original frame with sampling overlays for 20260702T170535_23.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170535_23.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f7a9a4 53 ppm
Total Hardness #91a0c6 44 ppm
Total Alkalinity #87a98a 137 ppm
pH #fe9f9e 7.6
Free Available Chlorine #d9a3b8 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T170511_23.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170511_23.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f8ada3 52 ppm
Total Hardness #91a2c7 41 ppm
Total Alkalinity #89ab8c 137 ppm
pH #fea19e 7.5
Free Available Chlorine #d9a0b7 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T170453_22.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170453_22.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f8b0a2 53 ppm
Total Hardness #90a2c7 39 ppm
Total Alkalinity #88ab8c 137 ppm
pH #fea29d 7.6
Free Available Chlorine #d99bb4 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T170436_21.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170436_21.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f8b3a1 19 ppm
Total Hardness #90a3c7 37 ppm
Total Alkalinity #89ac8e 137 ppm
pH #fea59f 7.6
Free Available Chlorine #d999b4 5 ppm


HTH 5-Way Download original

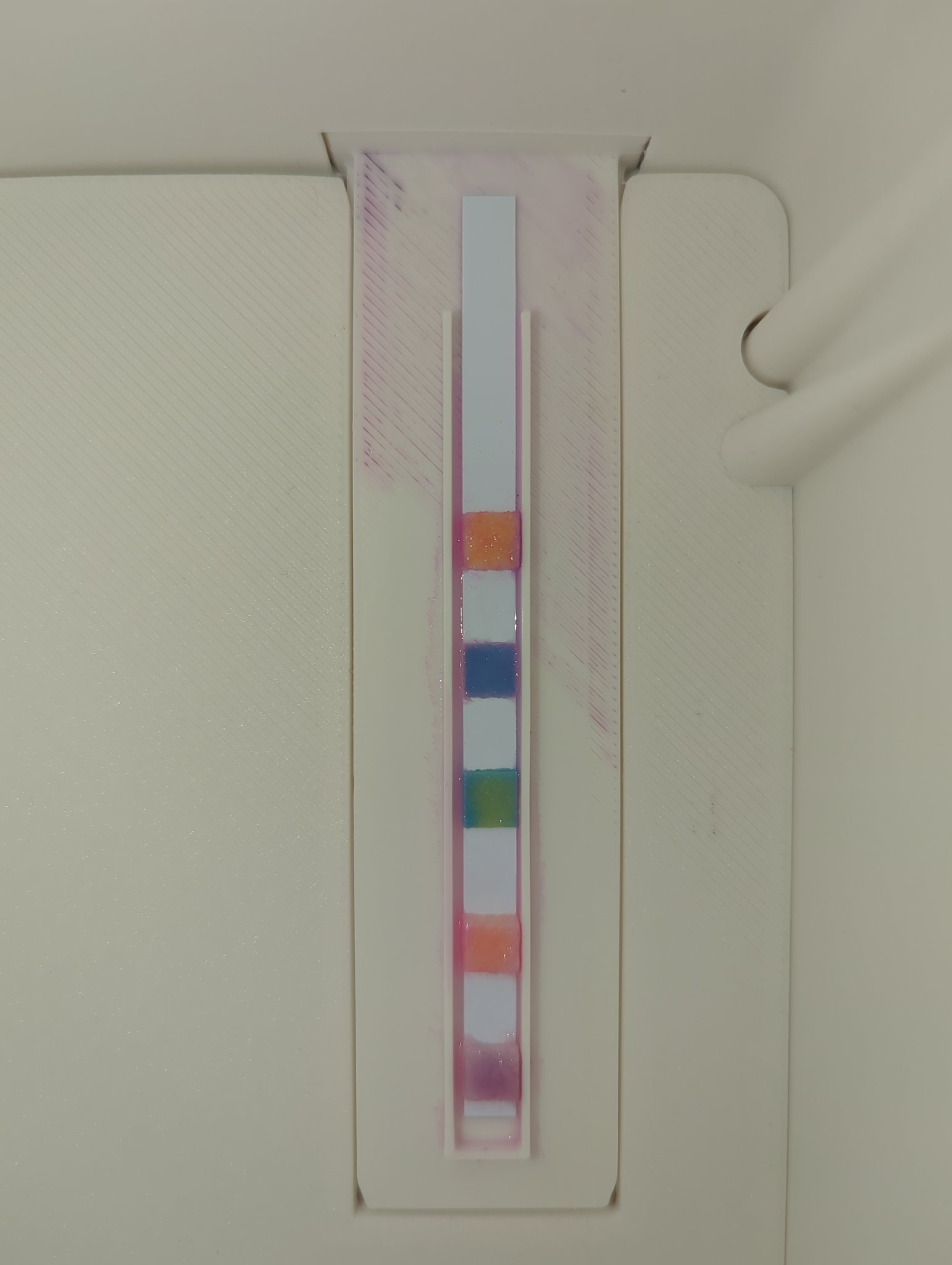

Original frame with sampling overlays for 20260702T170420_20.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170420_20.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f9b6a0 18 ppm
Total Hardness #90a2c6 39 ppm
Total Alkalinity #88ab8d 138 ppm
pH #fea59b 7.6
Free Available Chlorine #d891ae 5 ppm


HTH 5-Way Download original

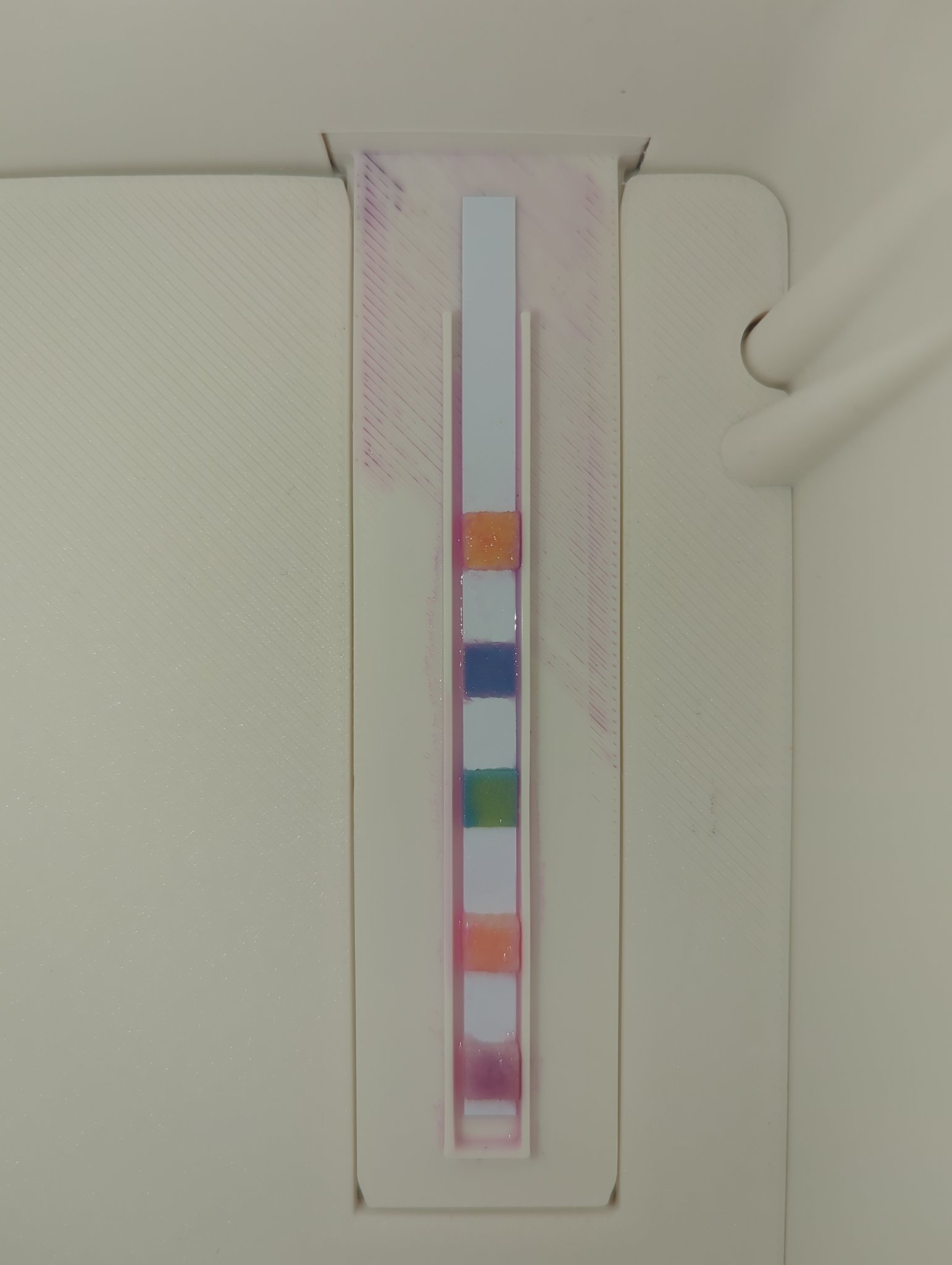

Original frame with sampling overlays for 20260702T170405_19.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170405_19.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f9bc9e 14 ppm
Total Hardness #96a2c5 46 ppm
Total Alkalinity #8bad8e 137 ppm
pH #feab9b 7.4
Free Available Chlorine #dc8da9 5 ppm


Clorox 6-Way Download original

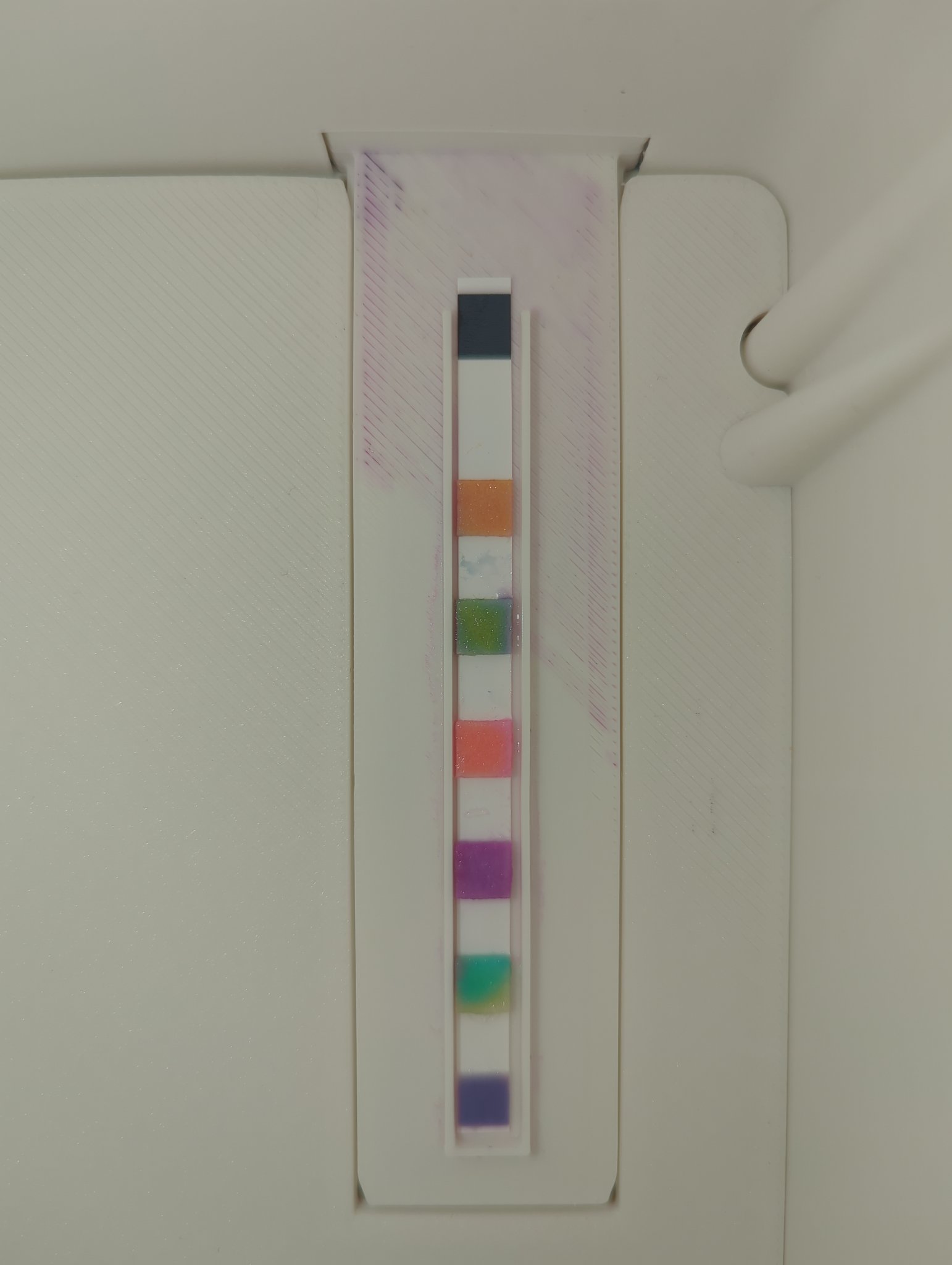

Original frame with sampling overlays for 20260702T170251_18.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T170251_18.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #eb8541 36 ppm
Total Alkalinity #6a8d3d 0 ppm
pH #fe7565 7.6
Free Chlorine #a64092 10 ppm
Total Chlorine #4cb57e 10 ppm
Total Hardness #635688 356 ppm
