Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

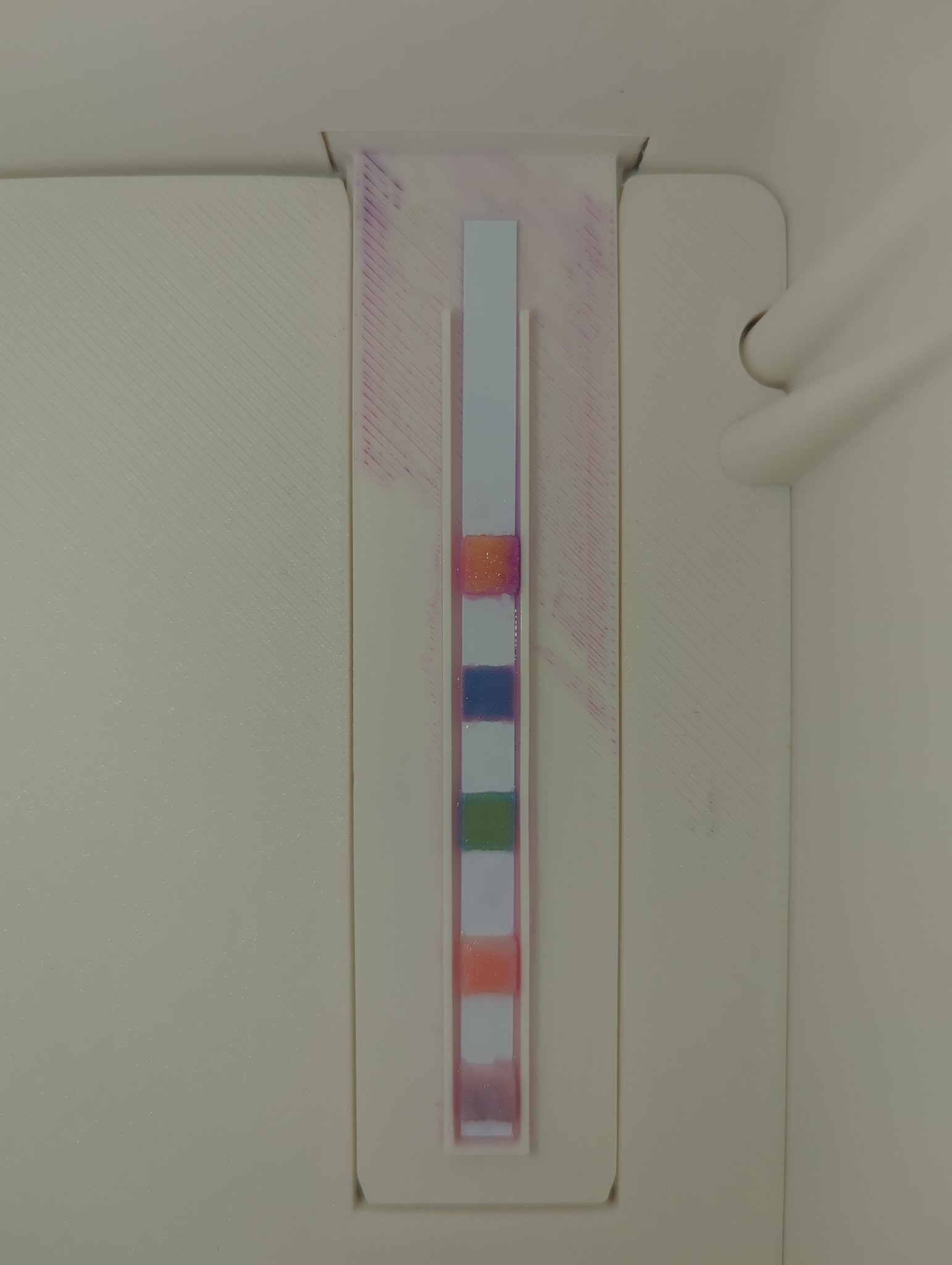

Original frame with sampling overlays for 20260702T165701_9.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165701_9.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc8f73 48 ppm
Total Hardness #667aab 56 ppm
Total Alkalinity #86a57c 102 ppm
pH #fea593 7.4
Free Available Chlorine #e5acb5 6 ppm


HTH 5-Way Download original

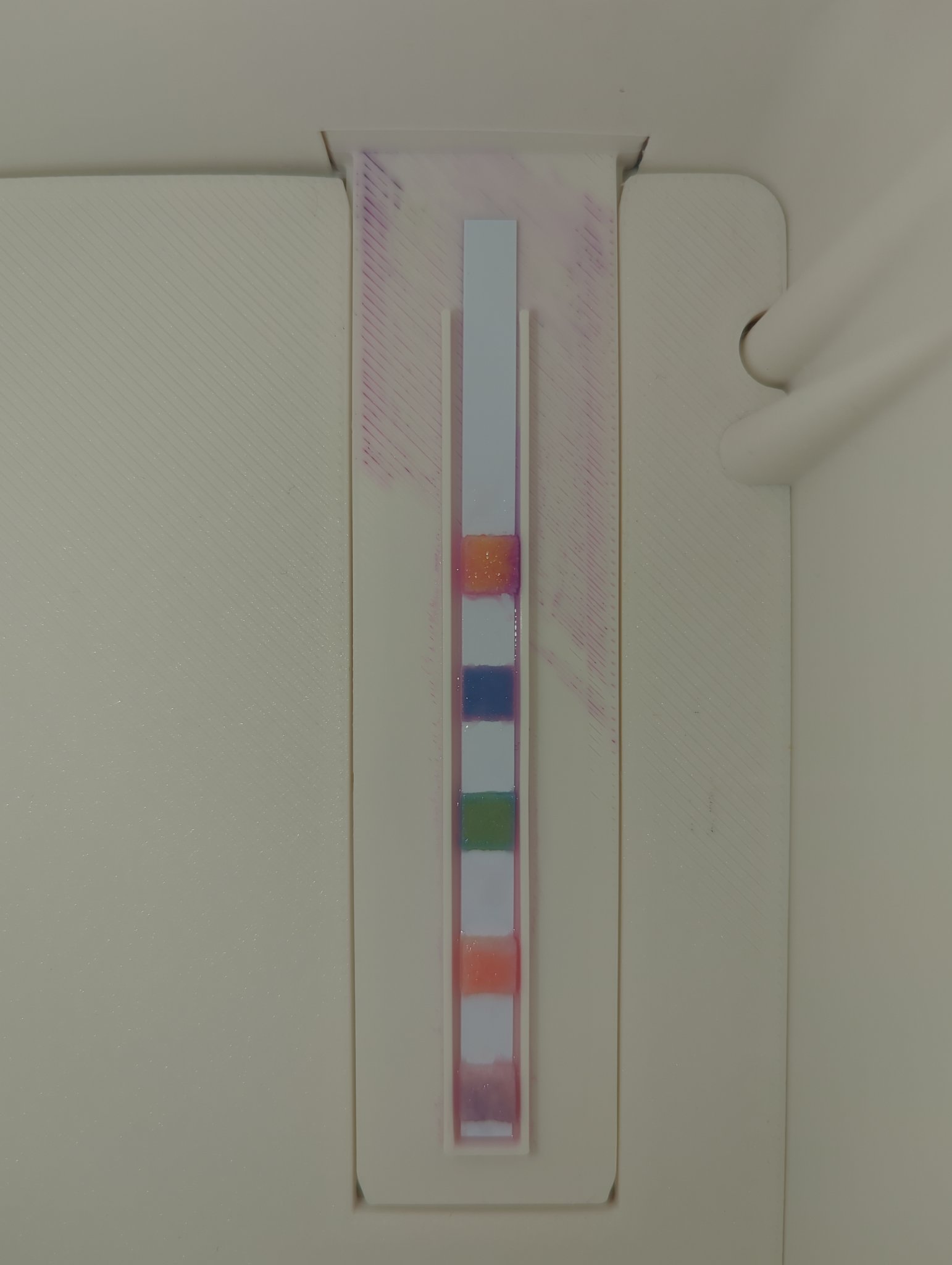

Original frame with sampling overlays for 20260702T165641_8.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165641_8.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fd9472 21 ppm
Total Hardness #667aab 56 ppm
Total Alkalinity #85a67c 102 ppm
pH #fea692 7.4
Free Available Chlorine #e4a8b2 6 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T165625_7.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165625_7.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc9e78 19 ppm
Total Hardness #6b7daf 56 ppm
Total Alkalinity #88aa83 137 ppm
pH #feab9c 7.4
Free Available Chlorine #e2a9b7 7 ppm


Clorox 6-Way Download original

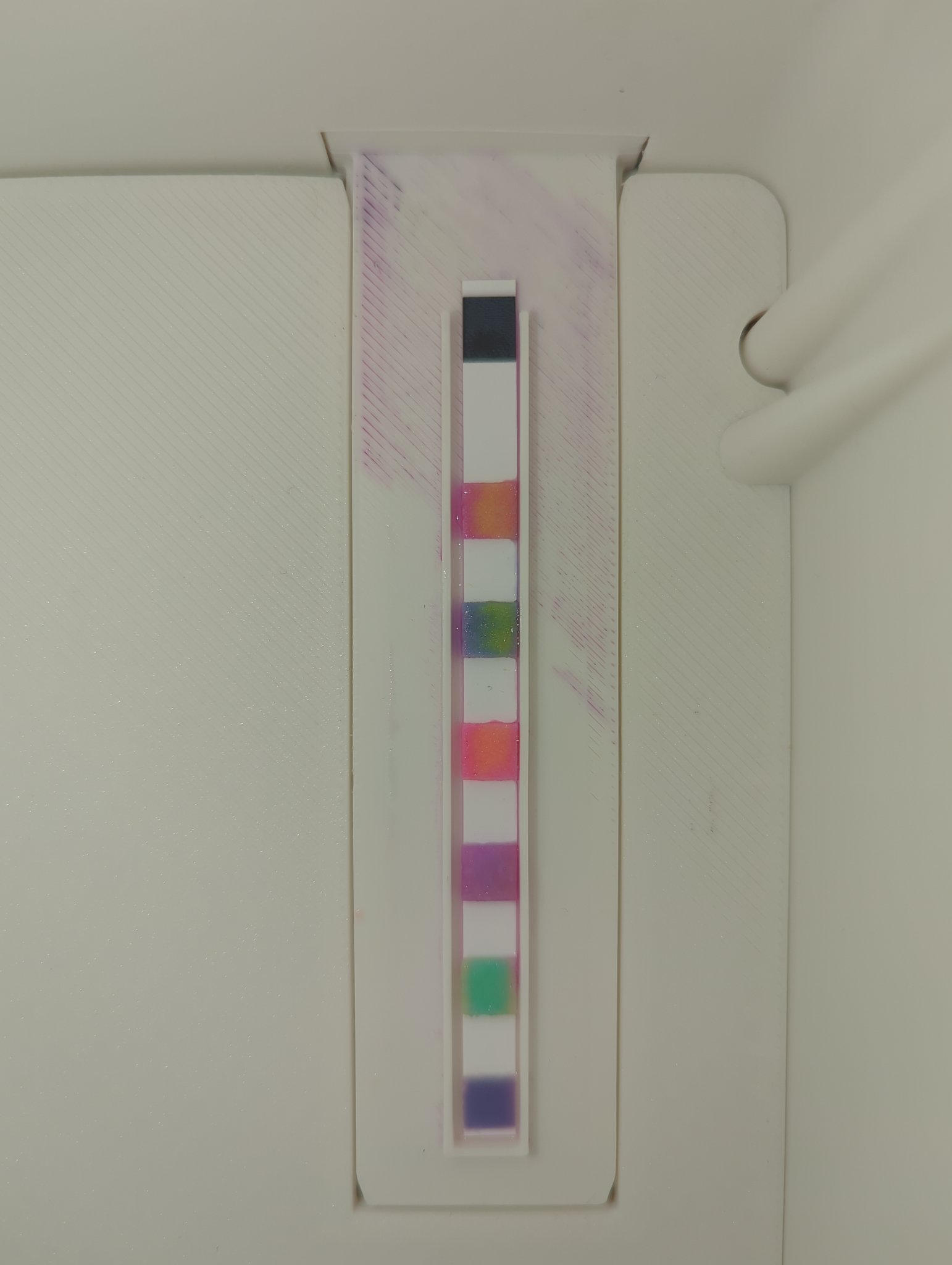

Original frame with sampling overlays for 20260702T165308_6.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165308_6.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e4796a 77 ppm
Total Alkalinity #6d895f 144 ppm
pH #fe7077 8.0
Free Chlorine #bc63aa 10 ppm
Total Chlorine #60c597 4 ppm
Total Hardness #6b5f99 200 ppm


Clorox 6-Way Download original

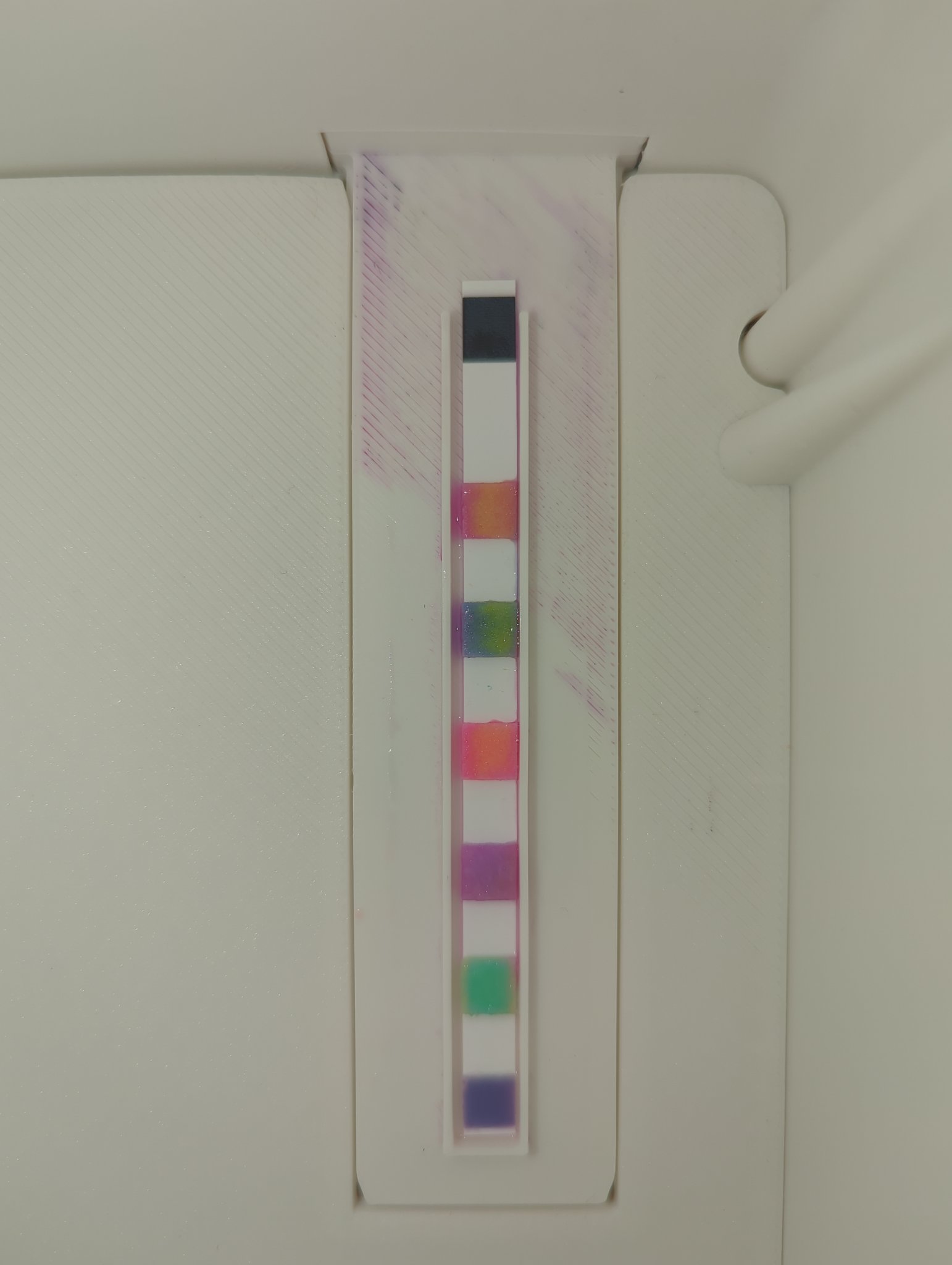

Original frame with sampling overlays for 20260702T165252_5.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165252_5.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e67c67 75 ppm
Total Alkalinity #6c8955 87 ppm
pH #fe7377 8.0
Free Chlorine #bd64ac 10 ppm
Total Chlorine #58c596 7 ppm
Total Hardness #6b5f9a 200 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260702T165239_4.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165239_4.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e78064 71 ppm
Total Alkalinity #758e50 82 ppm
pH #fe7773 7.6
Free Chlorine #bc62ac 10 ppm
Total Chlorine #51c596 7 ppm
Total Hardness #695e99 181 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T165131_3.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165131_3.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb27c 10 ppm
Total Hardness #6283b9 45 ppm
Total Alkalinity #acbb7a 40 ppm
pH #ffb2a0 7.3
Free Available Chlorine #f3b1c7 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260702T165115_2.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165115_2.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb379 8 ppm
Total Hardness #5f82b8 45 ppm
Total Alkalinity #aab97a 41 ppm
pH #feb29e 7.3
Free Available Chlorine #f2adc3 5 ppm
