Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

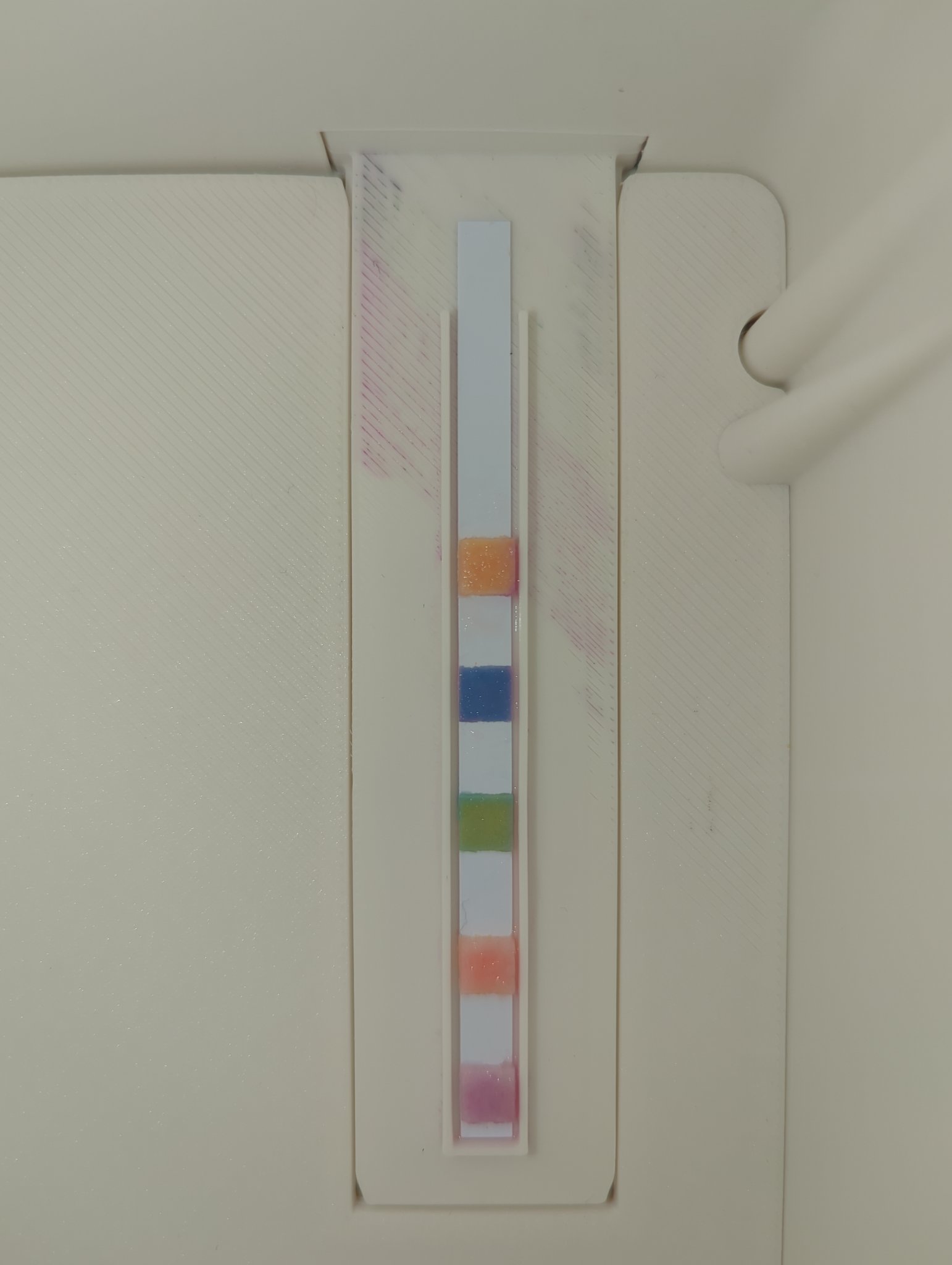

Original frame with sampling overlays for 20260702T165059_1.jpg
Original frame + sampling zones
Rectified strip preview for 20260702T165059_1.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb678 7 ppm
Total Hardness #5f82b8 45 ppm
Total Alkalinity #a9b97b 41 ppm
pH #ffb39e 7.3
Free Available Chlorine #f2acc2 5 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260630T204113_36.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T204113_36.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ea9156 32 ppm
Total Alkalinity #76985b 82 ppm
pH #fe8470 7.4
Free Chlorine #ba63b8 10 ppm
Total Chlorine #67c79b 4 ppm
Total Hardness #665a96 175 ppm


Clorox 6-Way Download original

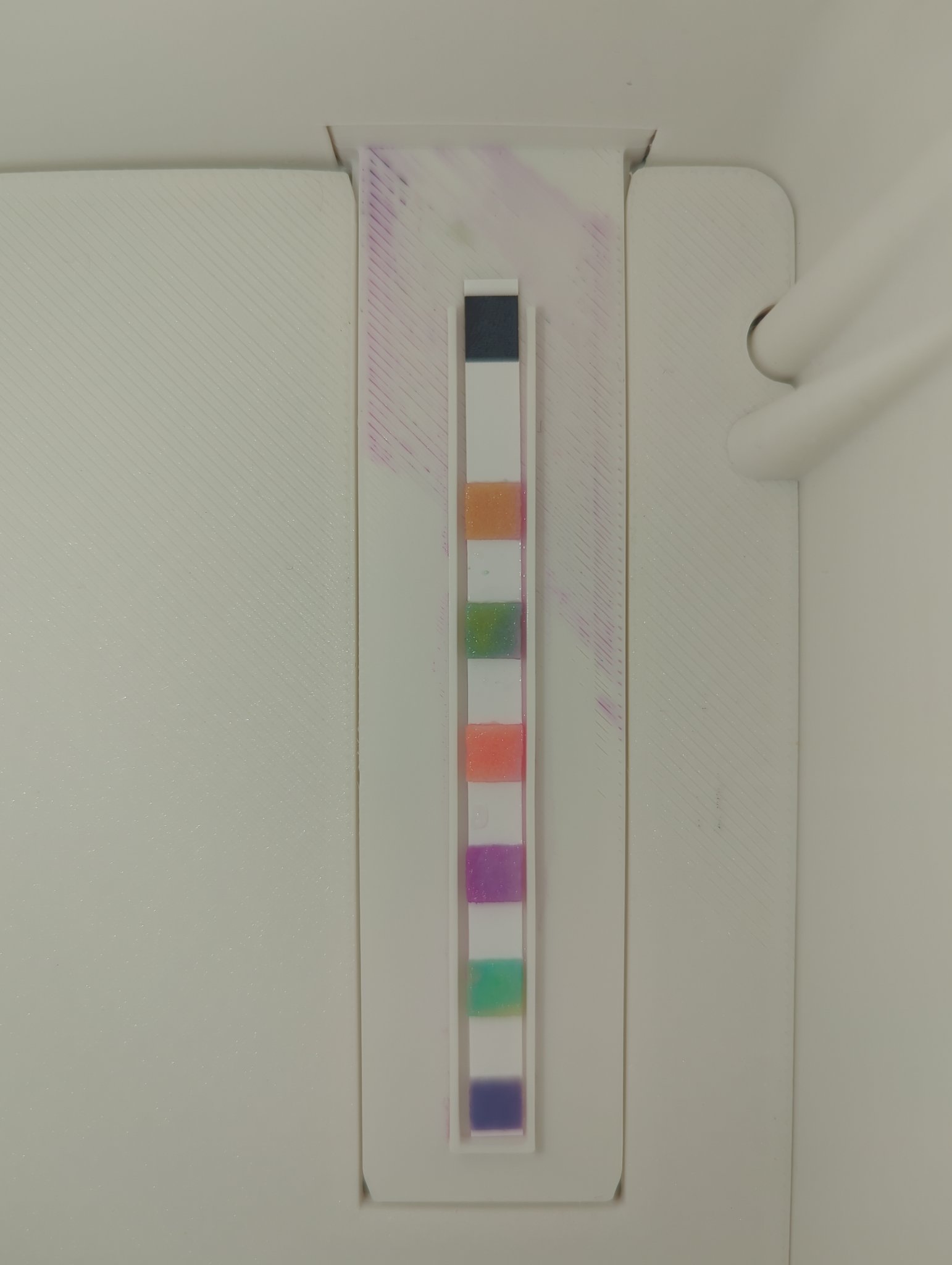

Original frame with sampling overlays for 20260630T204055_35.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T204055_35.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ea9252 31 ppm
Total Alkalinity #759858 82 ppm
pH #fe846d 7.3
Free Chlorine #ba61b5 10 ppm
Total Chlorine #66c899 4 ppm
Total Hardness #685d96 179 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260630T204040_34.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T204040_34.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ec9350 30 ppm
Total Alkalinity #759952 0 ppm
pH #fe856b 7.3
Free Chlorine #ba60b3 10 ppm
Total Chlorine #64c997 4 ppm
Total Hardness #665c94 176 ppm


Clorox 6-Way Download original

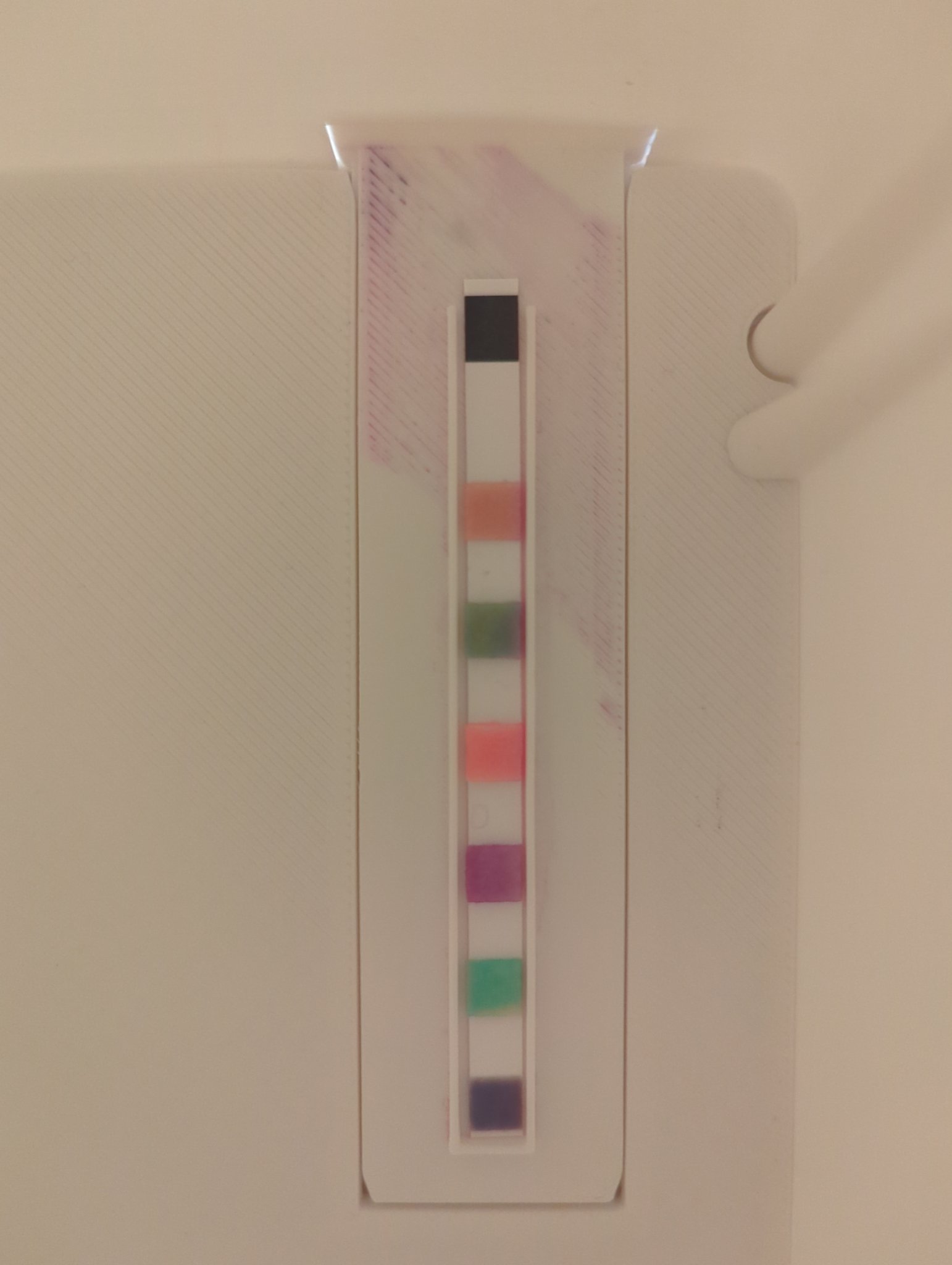

Original frame with sampling overlays for 20260630T204024_33.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T204024_33.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ea9480 0 ppm
Total Alkalinity #73896e 140 ppm
pH #ff8d8e 7.4
Free Chlorine #bb5f95 10 ppm
Total Chlorine #64c9a2 4 ppm
Total Hardness #665b7c 250 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260630T204015_32.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T204015_32.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ea957f 28 ppm
Total Alkalinity #758a6e 140 ppm
pH #ff8e8e 7.4
Free Chlorine #bc5f95 10 ppm
Total Chlorine #64c8a4 4 ppm
Total Hardness #685b7d 250 ppm


Clorox 6-Way Download original

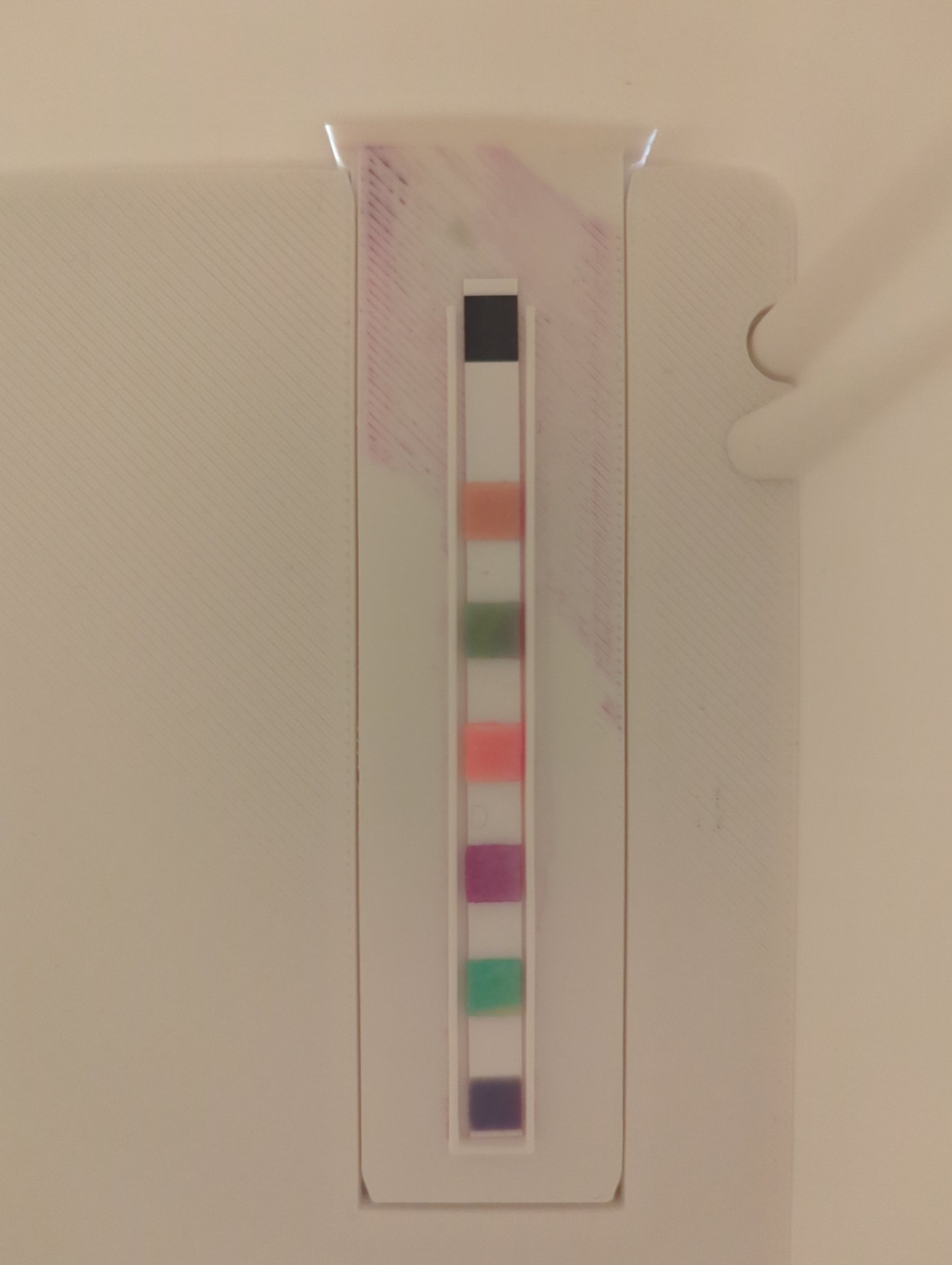

Original frame with sampling overlays for 20260630T204004_31.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T204004_31.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ea987c 28 ppm
Total Alkalinity #778f6b 140 ppm
pH #ff918b 7.4
Free Chlorine #bb6091 10 ppm
Total Chlorine #62caa0 4 ppm
Total Hardness #685d7c 250 ppm


HTH 5-Way Download original

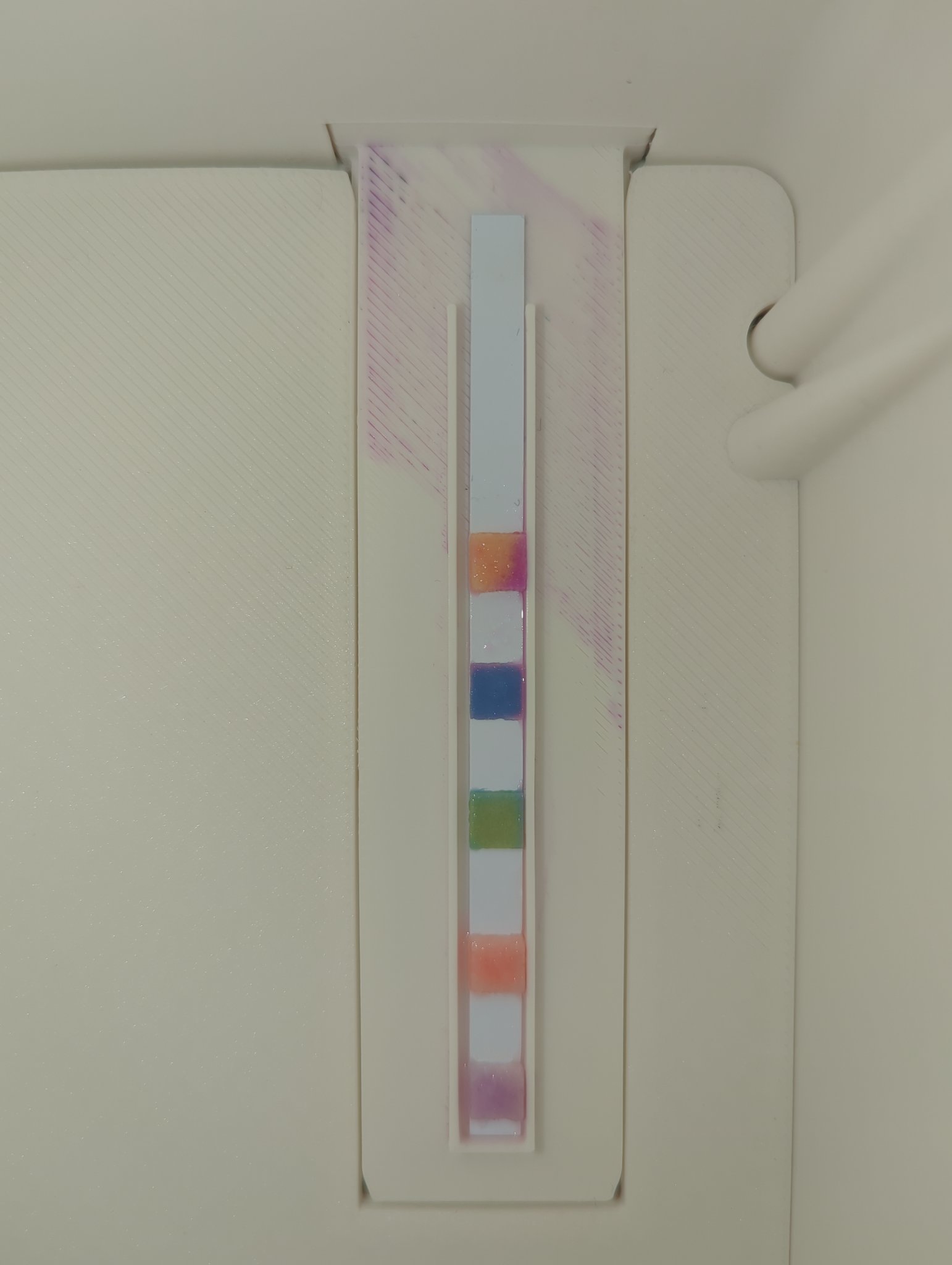

Original frame with sampling overlays for 20260630T203819_30.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T203819_30.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fbaa84 16 ppm
Total Hardness #7689b4 55 ppm
Total Alkalinity #a2b480 99 ppm
pH #feac96 7.3
Free Available Chlorine #e3abbf 5 ppm
