Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

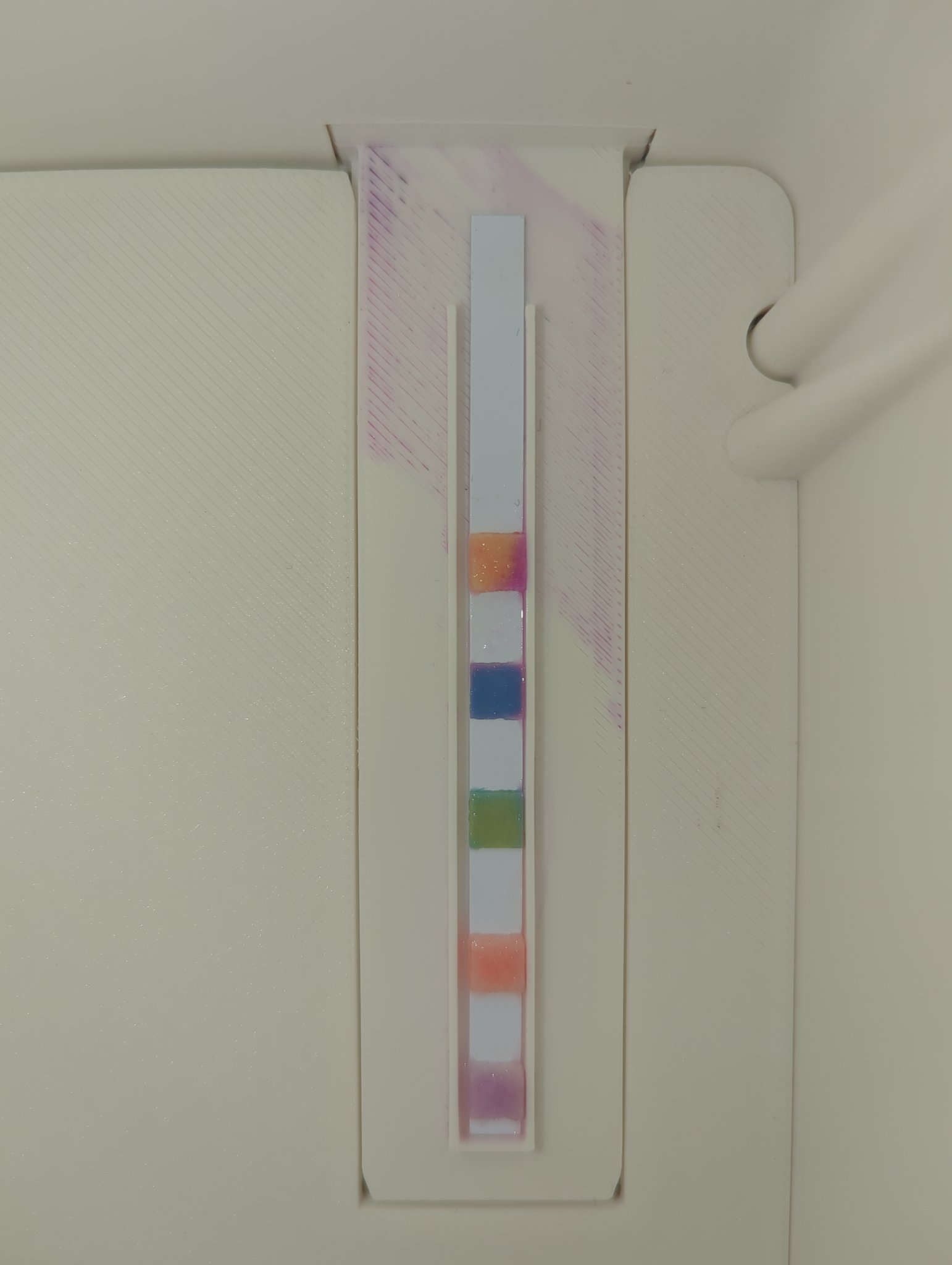

Original frame with sampling overlays for 20260630T203800_28.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T203800_28.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fbab83 15 ppm
Total Hardness #7489b3 53 ppm
Total Alkalinity #a2b480 99 ppm
pH #feac95 7.3
Free Available Chlorine #e3a7bd 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260630T203743_27.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T203743_27.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fbad82 13 ppm
Total Hardness #7289b3 51 ppm
Total Alkalinity #a1b481 99 ppm
pH #fead95 7.3
Free Available Chlorine #e2a4bc 4 ppm


HTH 5-Way Download original

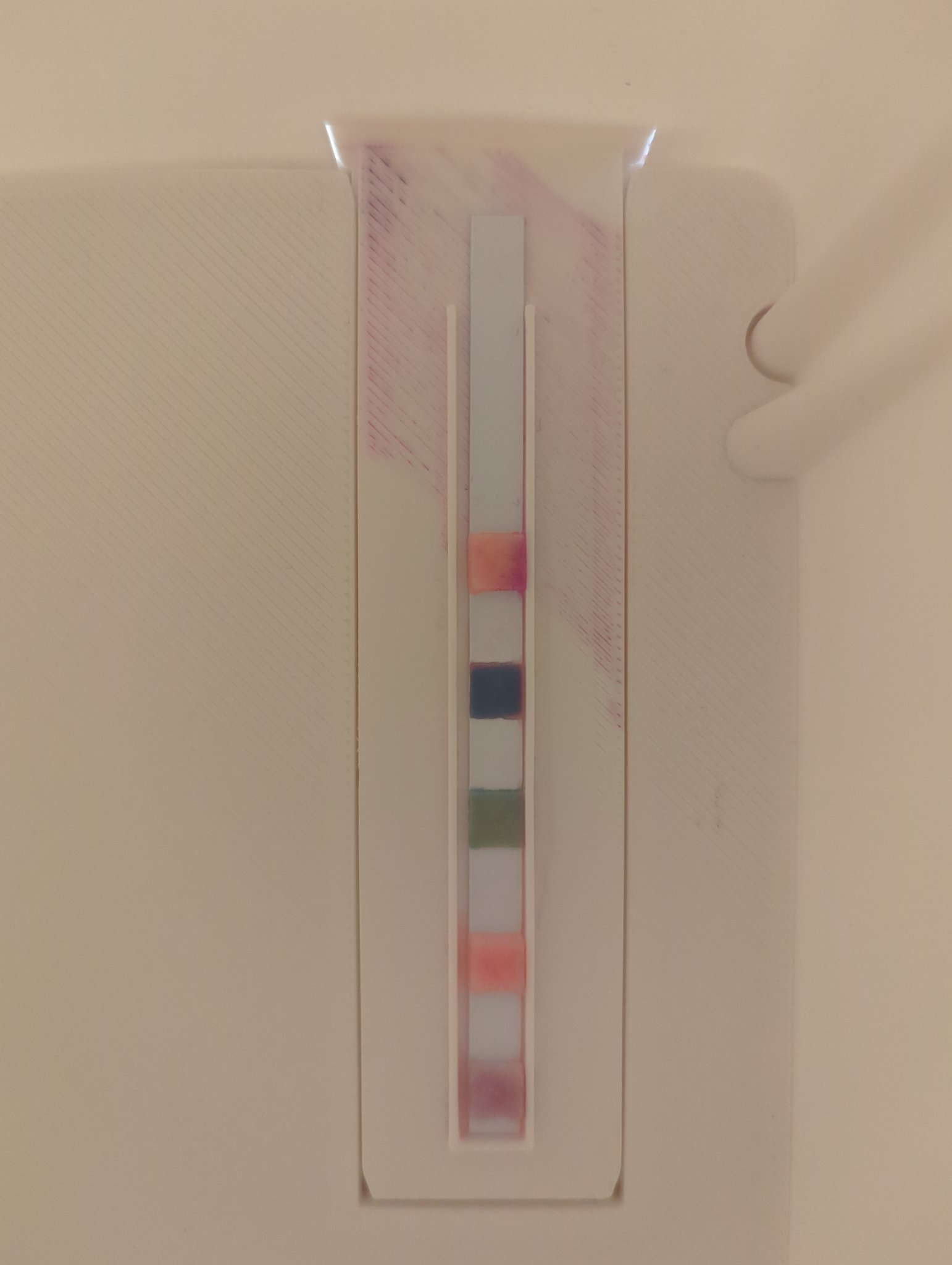

Original frame with sampling overlays for 20260630T203724_27.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T203724_27.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcada4 53 ppm
Total Hardness #778198 63 ppm
Total Alkalinity #a2ab9a 103 ppm
pH #feb6b6 7.6
Free Available Chlorine #e8afbf 6 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260630T203714_26.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T203714_26.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcafa5 53 ppm
Total Hardness #76819a 62 ppm
Total Alkalinity #a1ab9a 103 ppm
pH #feb6b8 7.6
Free Available Chlorine #e7aebd 6 ppm


HTH 5-Way Download original

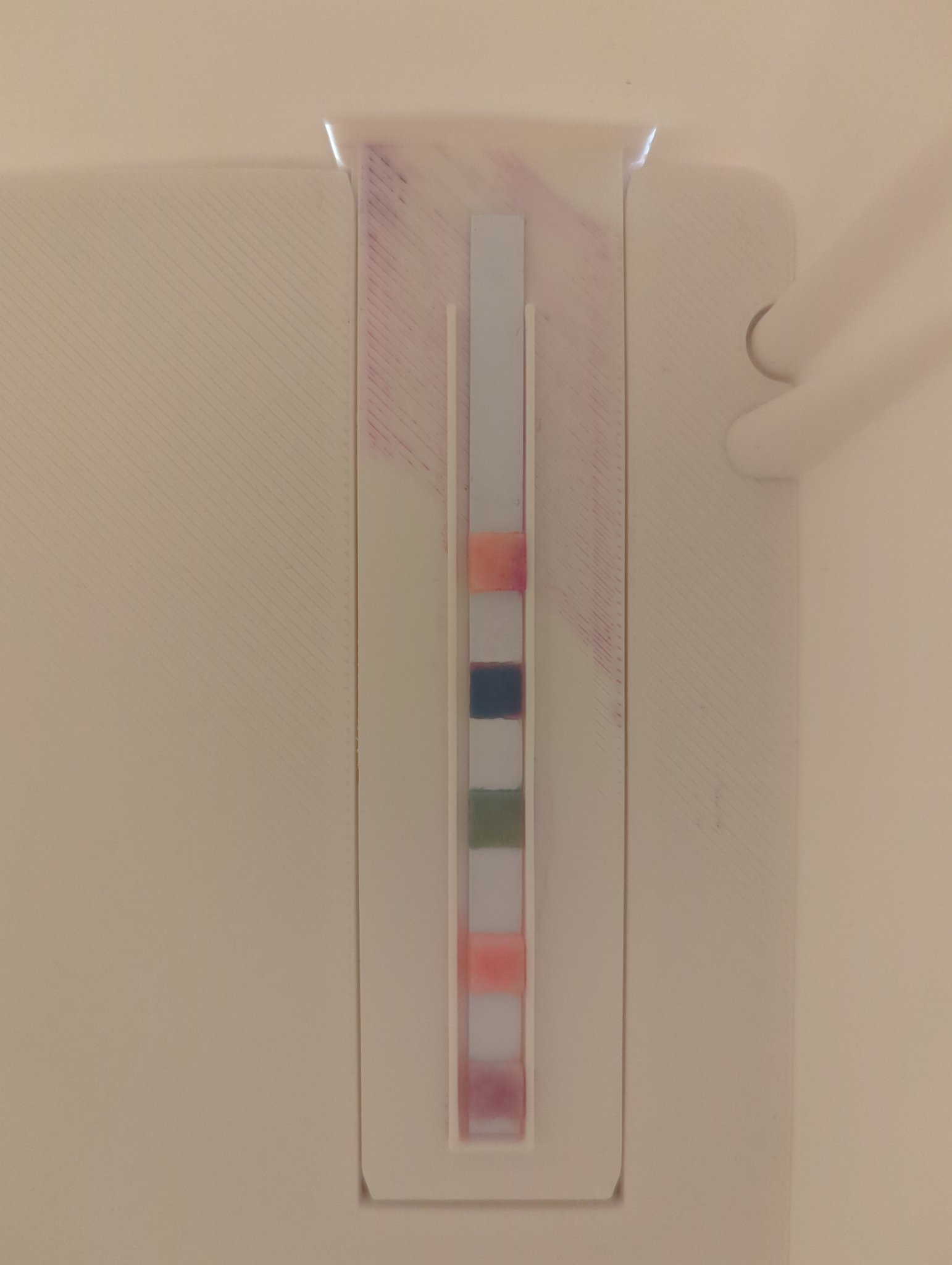

Original frame with sampling overlays for 20260630T203703_25.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T203703_25.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcb2a5 54 ppm
Total Hardness #768198 60 ppm
Total Alkalinity #a2ac9b 137 ppm
pH #feb6b7 7.6
Free Available Chlorine #e9abbd 5 ppm


Clorox 6-Way Download original

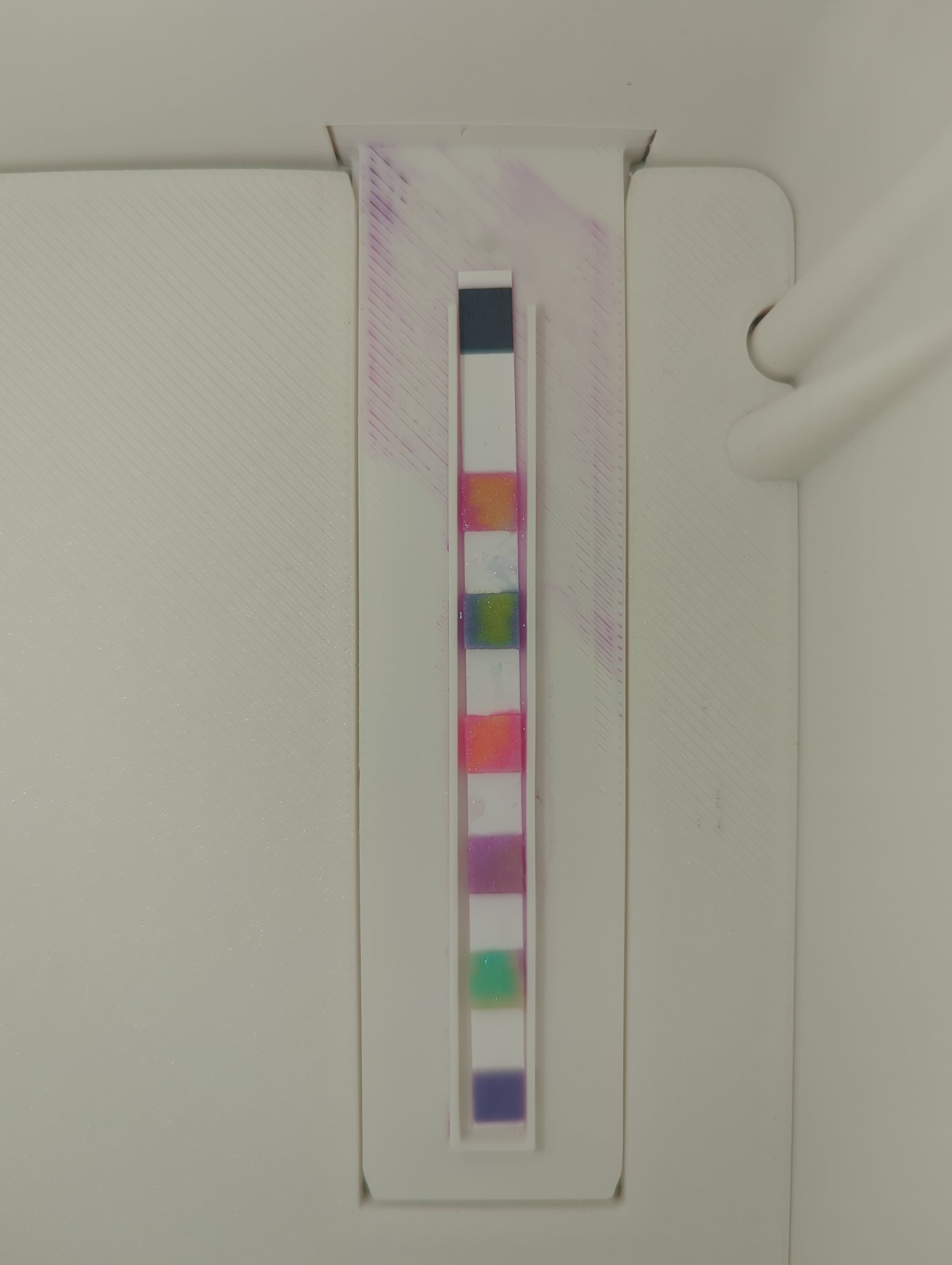

Original frame with sampling overlays for 20260630T203029_24.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T203029_24.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #51b840 0 ppm
Total Alkalinity #a04f48 0 ppm
pH #fd521d 7.4
Free Chlorine #466f0c 0 ppm
Total Chlorine #d06a09 0 ppm
Total Hardness #e6eaa0 1000 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260630T203013_23.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T203013_23.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e77d4b 35 ppm
Total Alkalinity #6a8139 0 ppm
pH #fe6663 8.0
Free Chlorine #ba6191 10 ppm
Total Chlorine #6cc487 5 ppm
Total Hardness #807296 250 ppm


Clorox 6-Way Download original

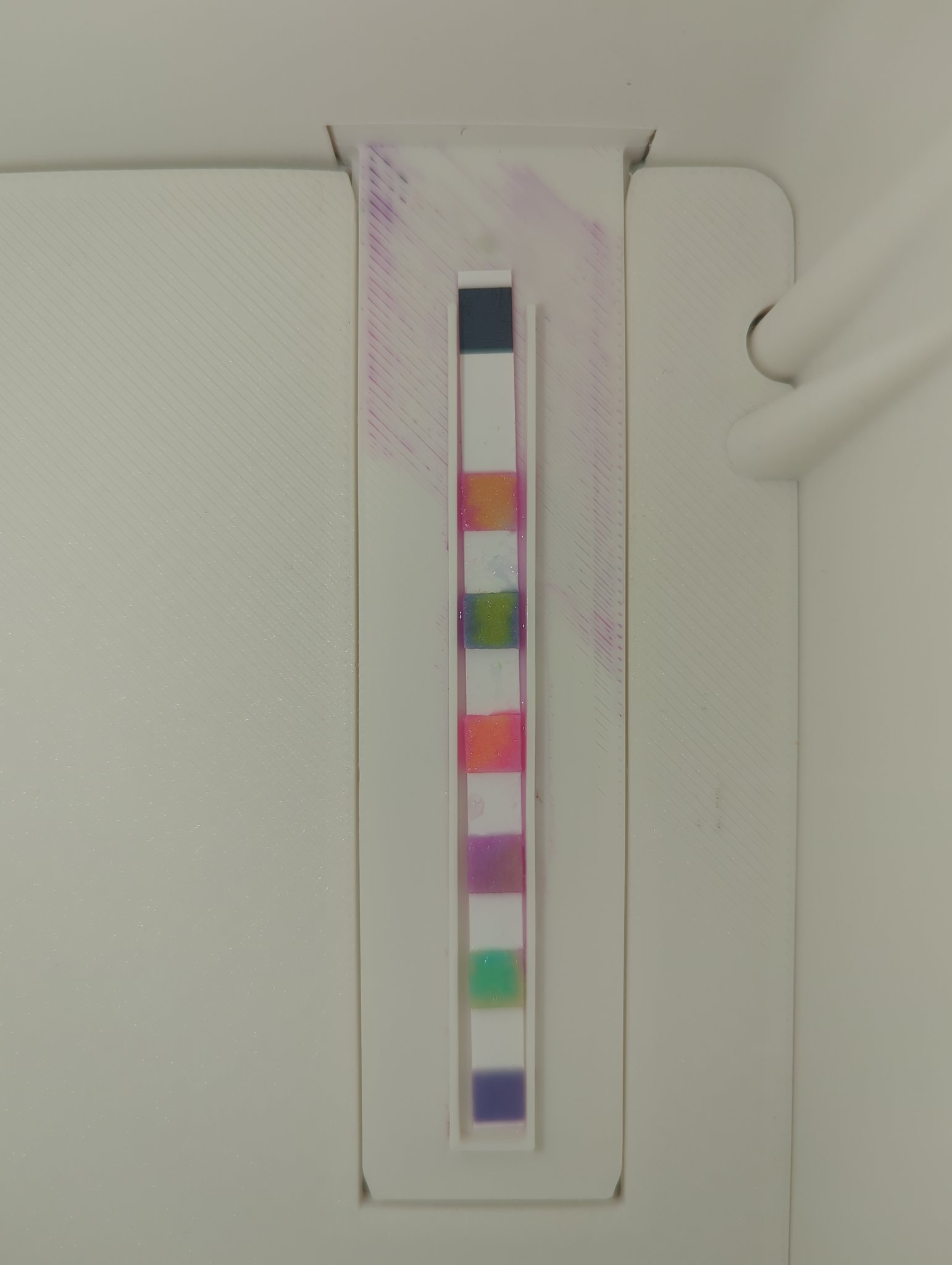

Original frame with sampling overlays for 20260630T202953_22.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T202953_22.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e68247 36 ppm
Total Alkalinity #6d8432 0 ppm
pH #fe685e 7.6
Free Chlorine #ba6191 10 ppm
Total Chlorine #65c583 5 ppm
Total Hardness #807295 250 ppm
