Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260630T195152_30.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T195152_30.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc8f9e 72 ppm
Total Hardness #797793 123 ppm
Total Alkalinity #96a293 139 ppm
pH #feb8bd 7.6
Free Available Chlorine #fdeff3 1 ppm


HTH 5-Way Download original

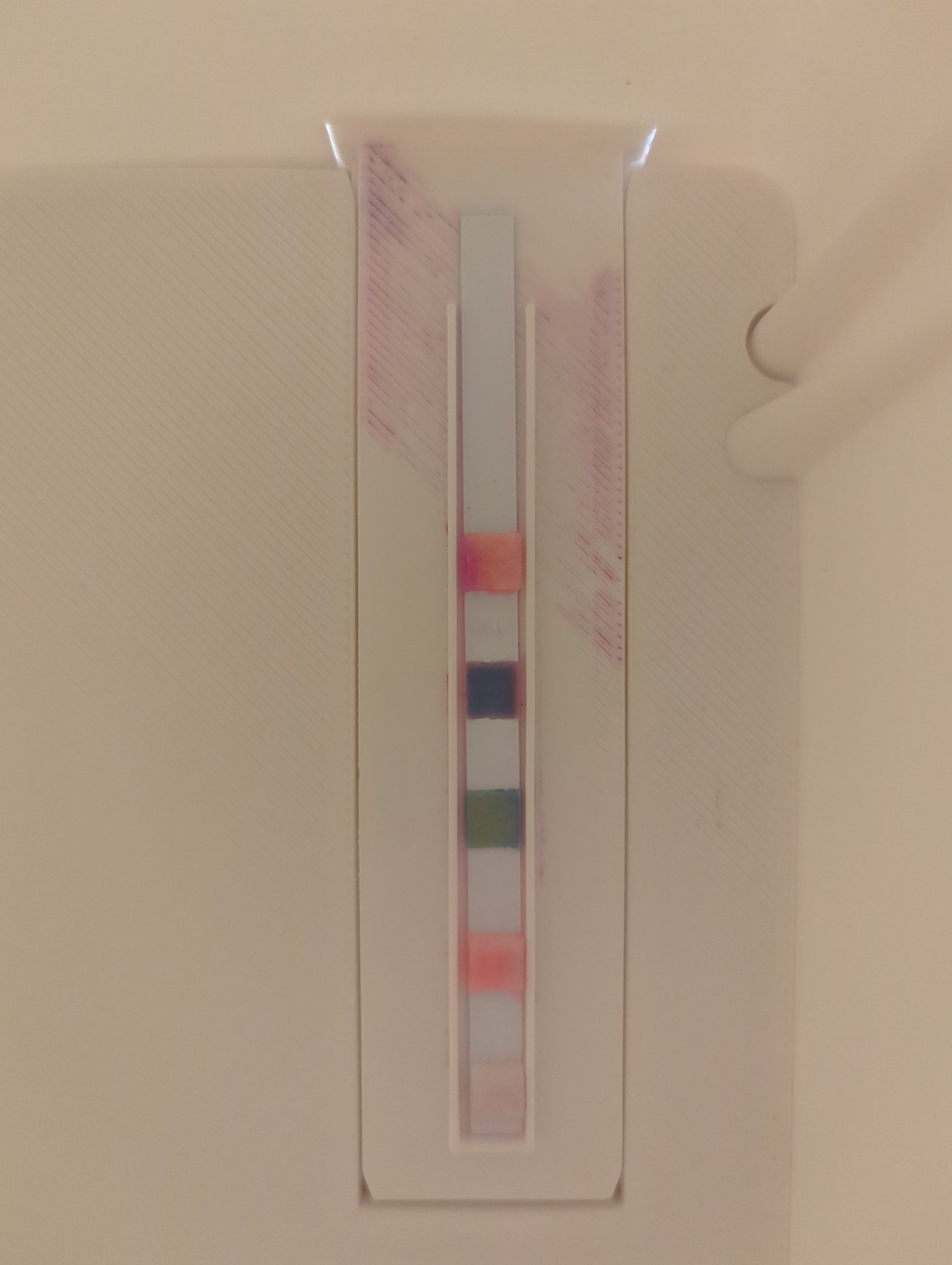

Original frame with sampling overlays for 20260630T195130_29.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T195130_29.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc919c 68 ppm
Total Hardness #787693 124 ppm
Total Alkalinity #97a294 139 ppm
pH #ffb9bd 7.6
Free Available Chlorine #fdf0f2 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260630T195117_28.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T195117_28.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fd949d 63 ppm
Total Hardness #797795 123 ppm
Total Alkalinity #97a296 139 ppm
pH #ffb9be 7.6
Free Available Chlorine #fdeff3 1 ppm


HTH 5-Way Download original

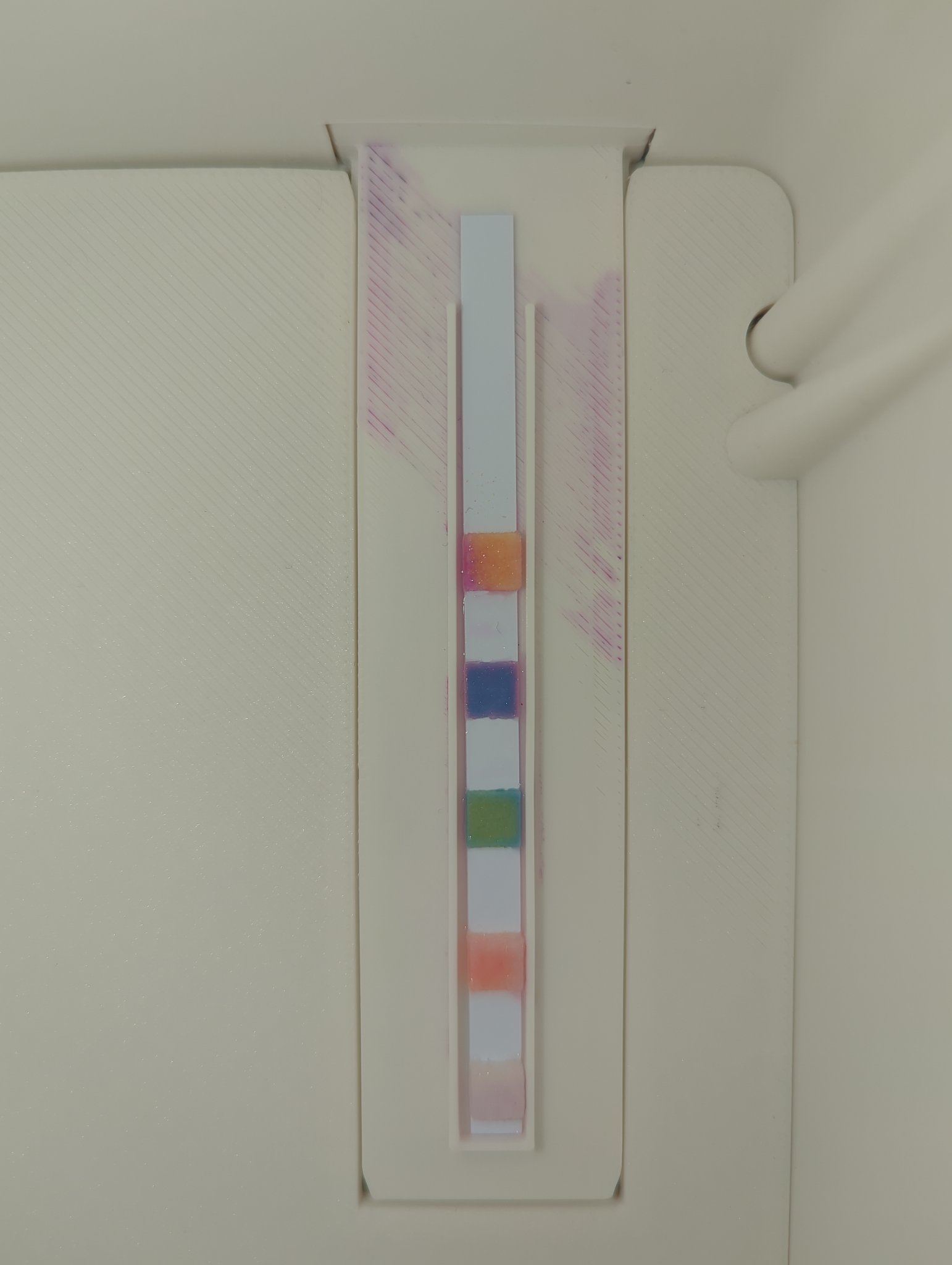

Original frame with sampling overlays for 20260630T195058_27.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T195058_27.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fb977d 47 ppm
Total Hardness #717cb1 60 ppm
Total Alkalinity #8faa80 102 ppm
pH #feac9c 7.4
Free Available Chlorine #fbddda 1 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260630T195043_26.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T195043_26.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fb9a7c 49 ppm
Total Hardness #717cb0 61 ppm
Total Alkalinity #8faa80 102 ppm
pH #feac9b 7.4
Free Available Chlorine #fbdcd8 1 ppm


Clorox 6-Way Download original

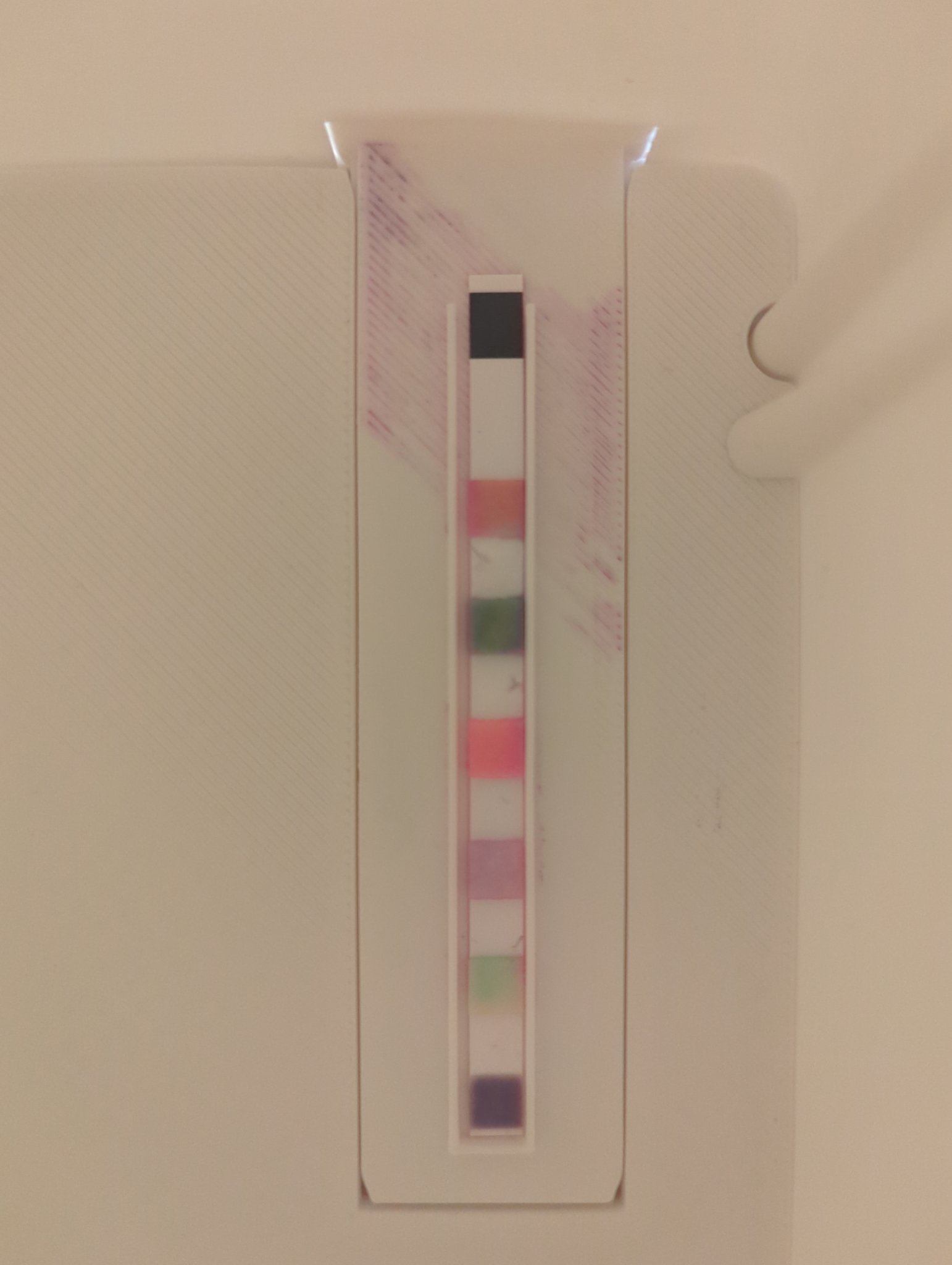

Original frame with sampling overlays for 20260630T194604_24.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T194604_24.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e58582 79 ppm
Total Alkalinity #eef0ca 0 ppm
pH #fe8790 8.0
Free Chlorine #e1a9b5 4 ppm
Total Chlorine #d9dfb4 2 ppm
Total Hardness #876f83 368 ppm


Clorox 6-Way Download original

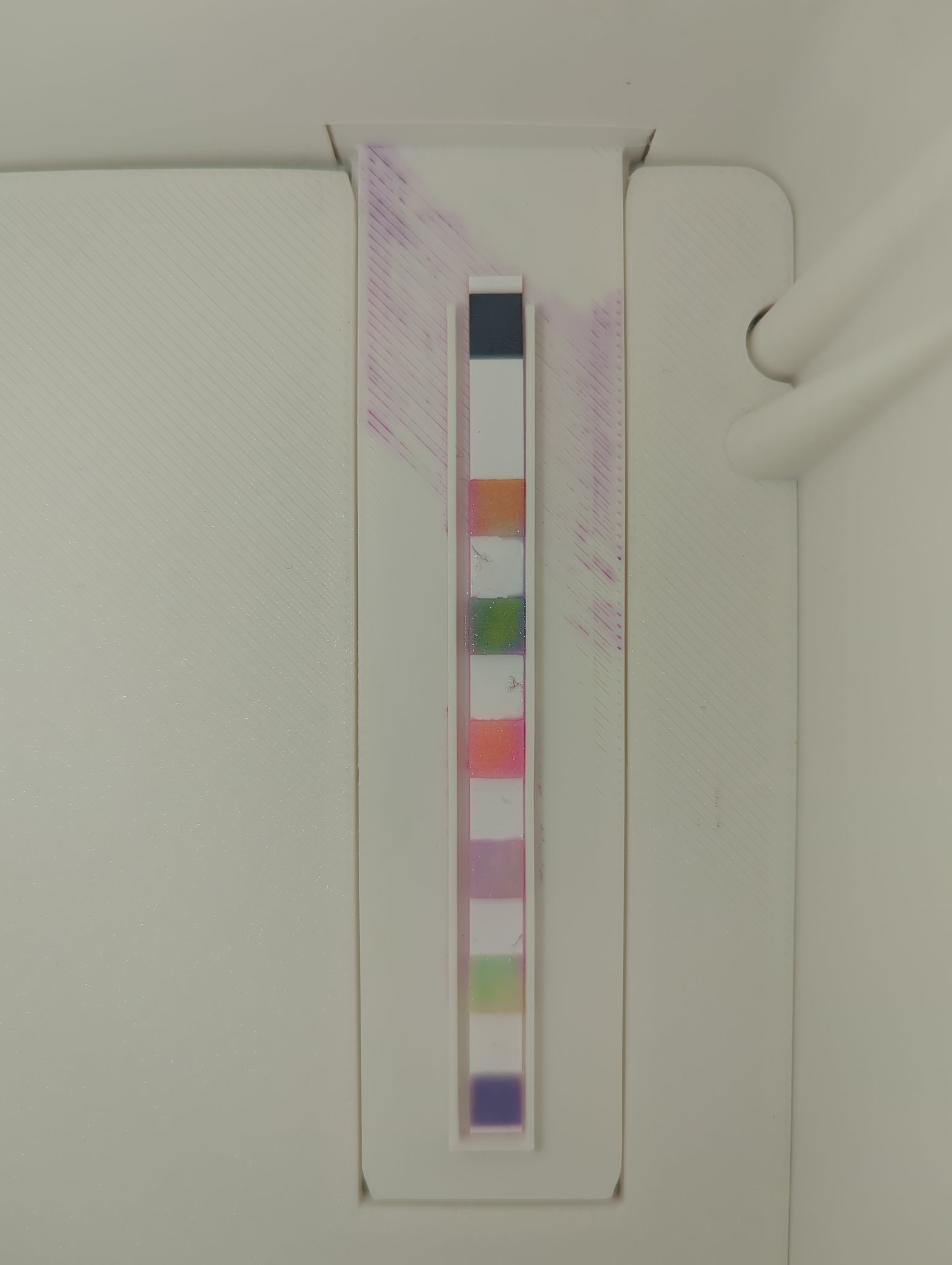

Original frame with sampling overlays for 20260630T194550_23.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T194550_23.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e78855 34 ppm
Total Alkalinity #688943 0 ppm
pH #fe7e75 7.6
Free Chlorine #dda6ba 4 ppm
Total Chlorine #cad695 2 ppm
Total Hardness #725a8e 362 ppm


Clorox 6-Way Download original

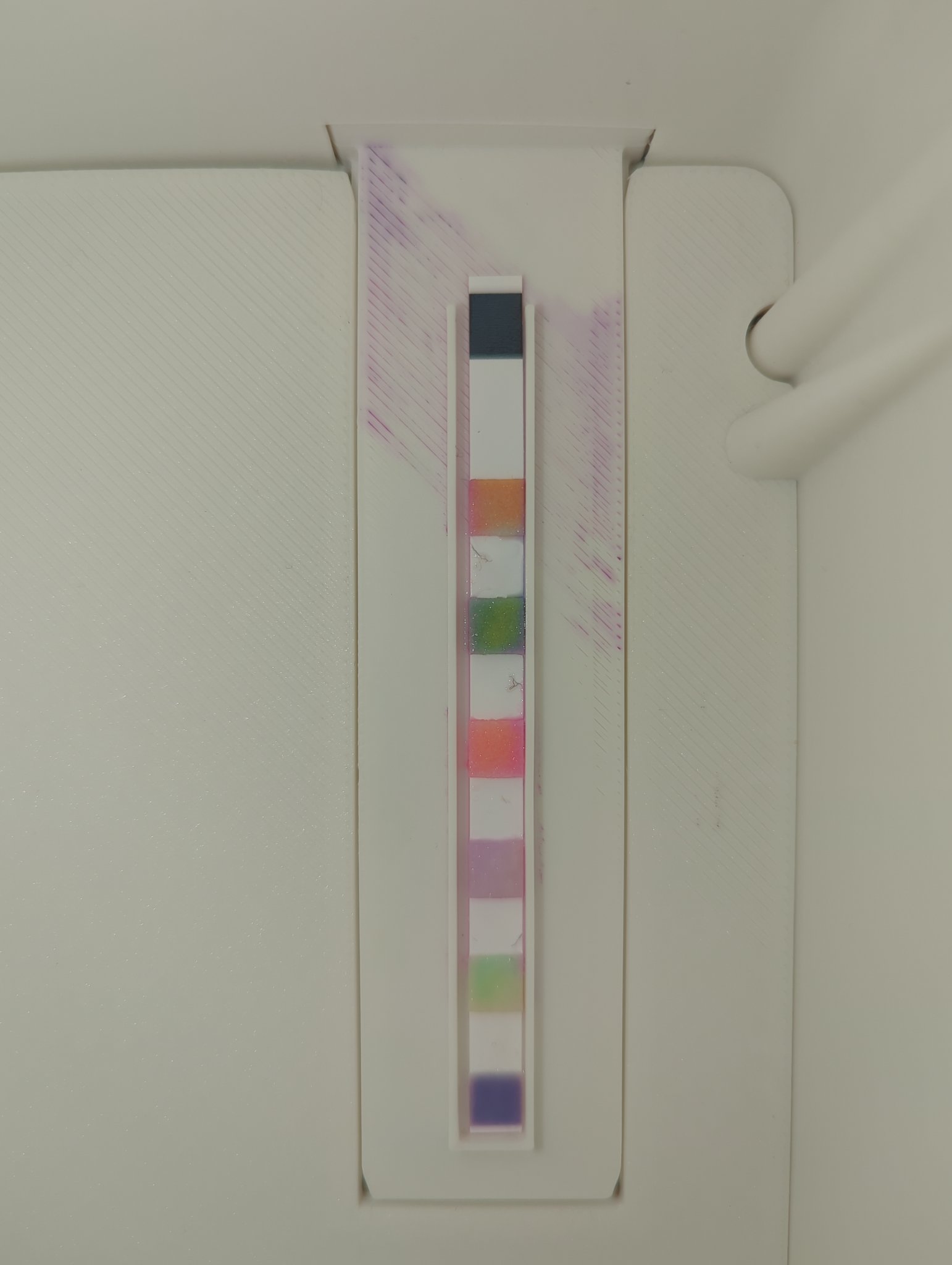

Original frame with sampling overlays for 20260630T194533_22.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T194533_22.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e78a56 34 ppm
Total Alkalinity #6a8a43 0 ppm
pH #fe7f75 7.6
Free Chlorine #dda5bc 4 ppm
Total Chlorine #c6d694 4 ppm
Total Hardness #6f5a8f 356 ppm
