Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

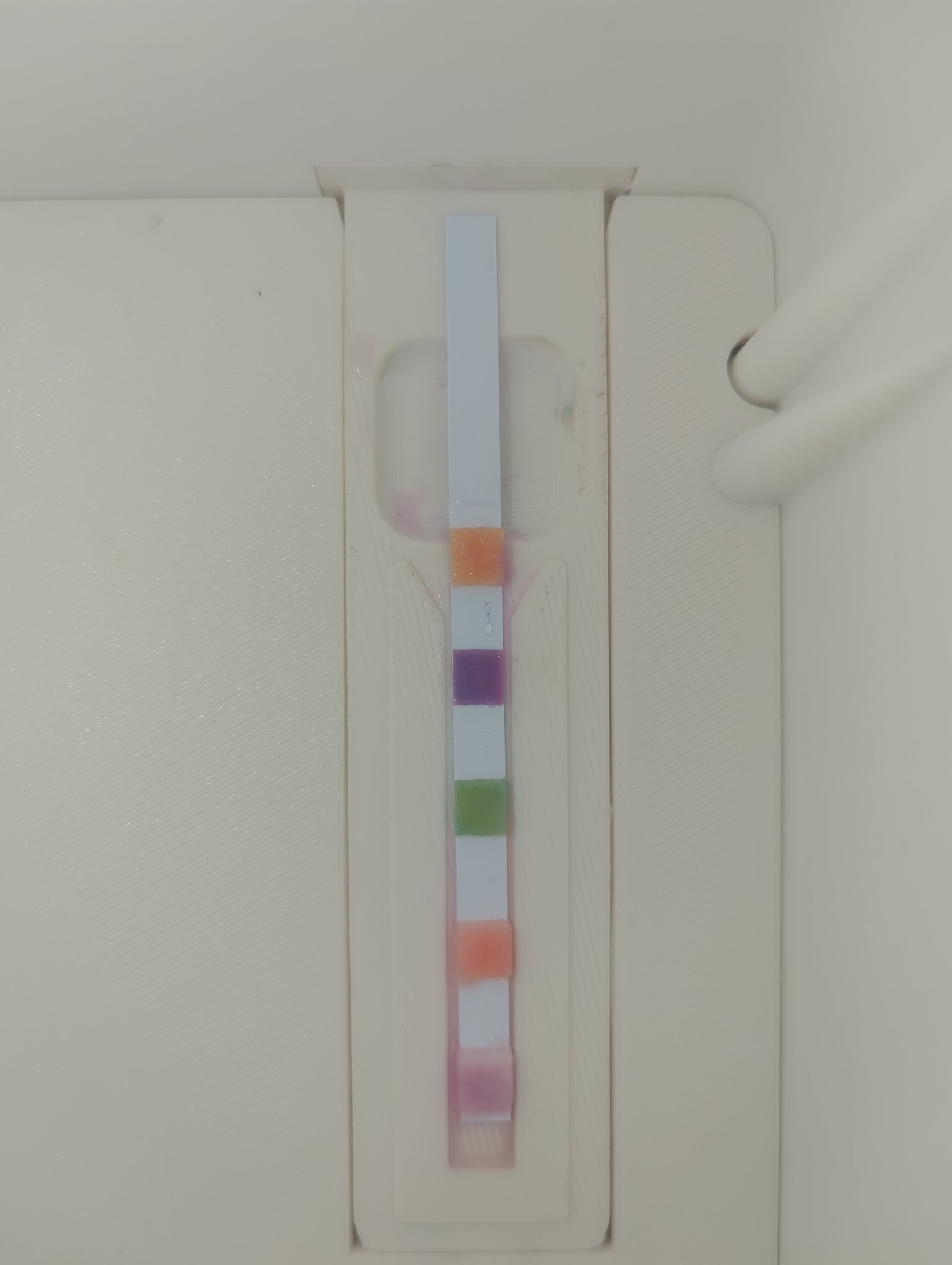

Original frame with sampling overlays for 20260813T010307_cya02.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T010307_cya02.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdb190 16 ppm
Total Hardness #b791be 151 ppm
Total Alkalinity #a4bf89 99 ppm
pH #ffb19f 7.3
Free Available Chlorine #f8bad1 5 ppm


HTH 5-Way Download original

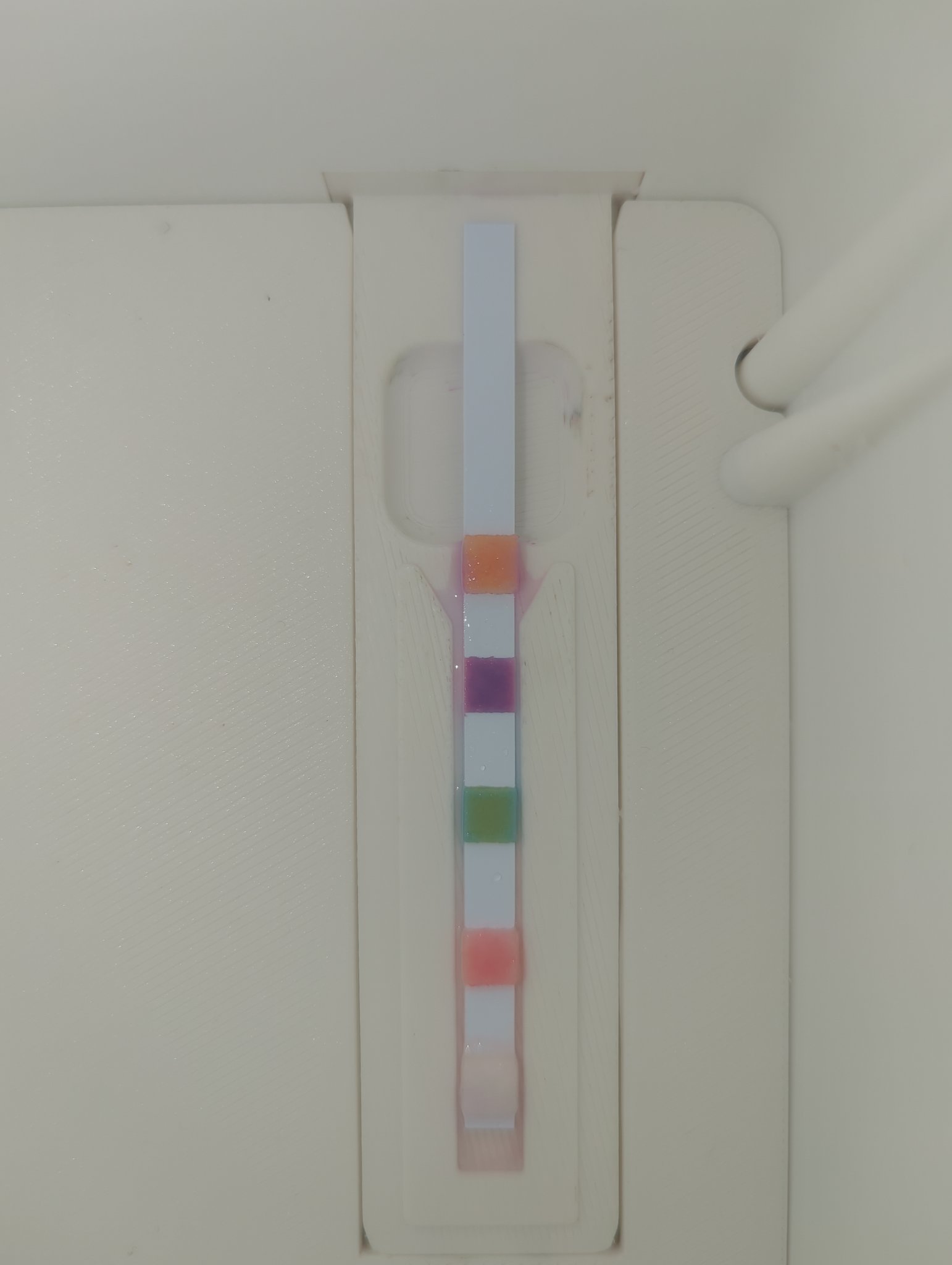

Original frame with sampling overlays for 20260813T005959_cya01.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T005959_cya01.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea783 18 ppm
Total Hardness #b076a3 331 ppm
Total Alkalinity #94b581 101 ppm
pH #ffa49c 7.6
Free Available Chlorine #feeadb 0 ppm


HTH 5-Way Download original

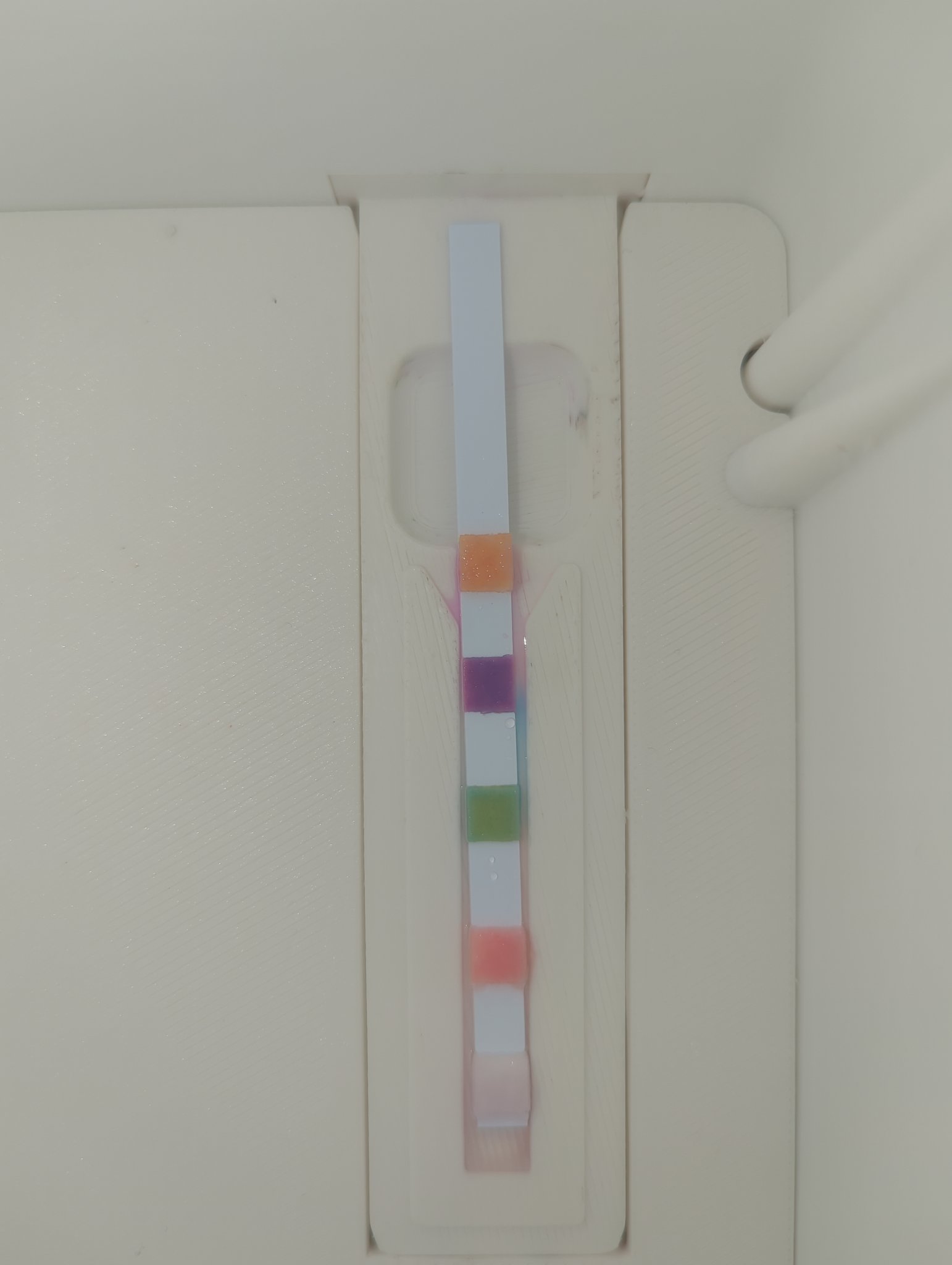

Original frame with sampling overlays for 20260813T005826_cya01.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T005826_cya01.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb584 10 ppm
Total Hardness #b177aa 164 ppm
Total Alkalinity #a6c08b 98 ppm
pH #ffb5ac 7.4
Free Available Chlorine #fde7e2 1 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260813T005433_cya03.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T005433_cya03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea788 19 ppm
Total Hardness #c184ac 337 ppm
Total Alkalinity #87b091 138 ppm
pH #ffa7a1 7.6
Free Available Chlorine #fdd0d5 3 ppm


HTH 5-Way Download original

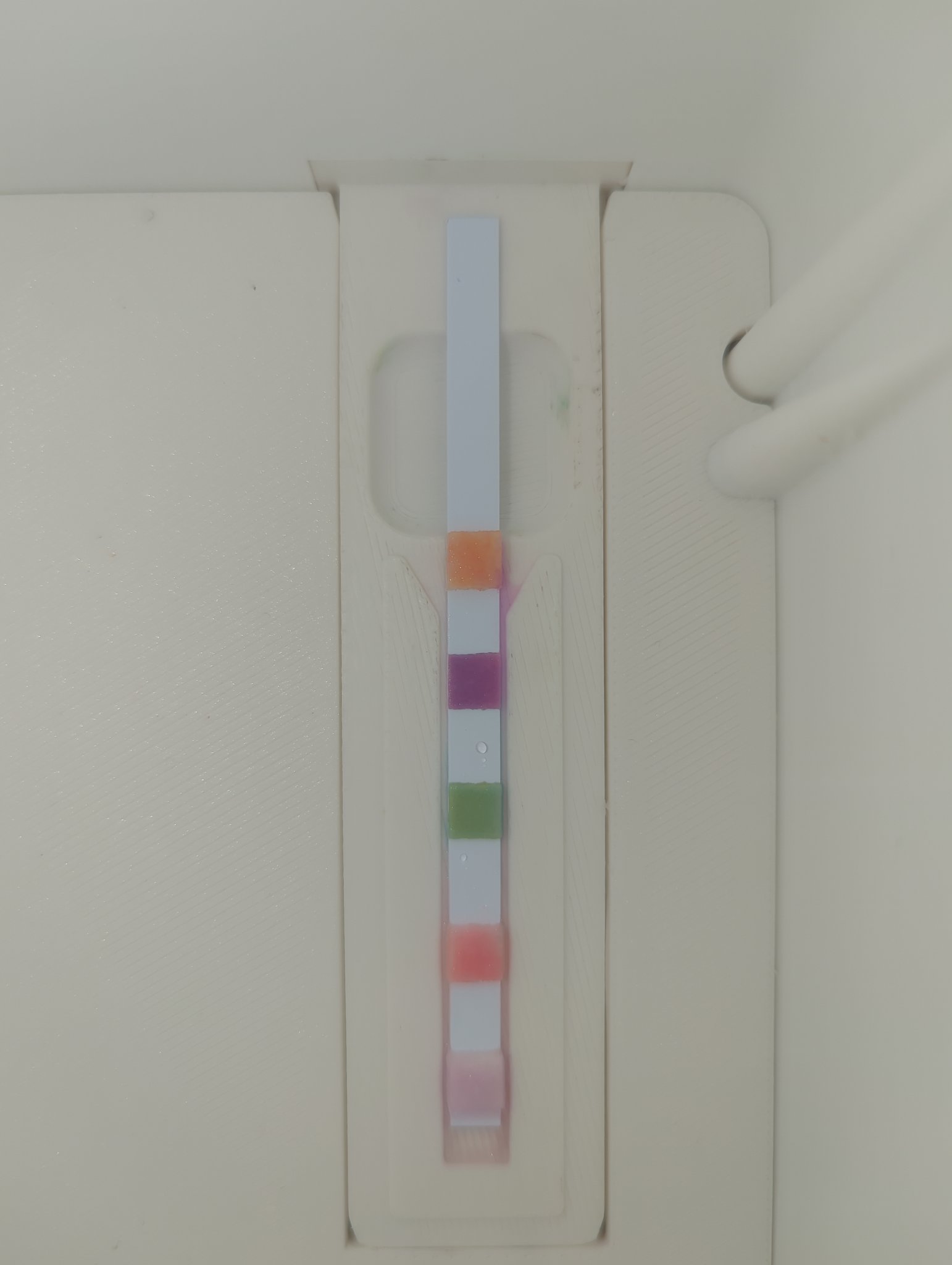

Original frame with sampling overlays for 20260813T005256_cya03.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T005256_cya03.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcb08f 16 ppm
Total Hardness #c987b6 353 ppm
Total Alkalinity #a5bf94 101 ppm
pH #fea8a5 7.5
Free Available Chlorine #fdd5dc 3 ppm


HTH 5-Way Download original

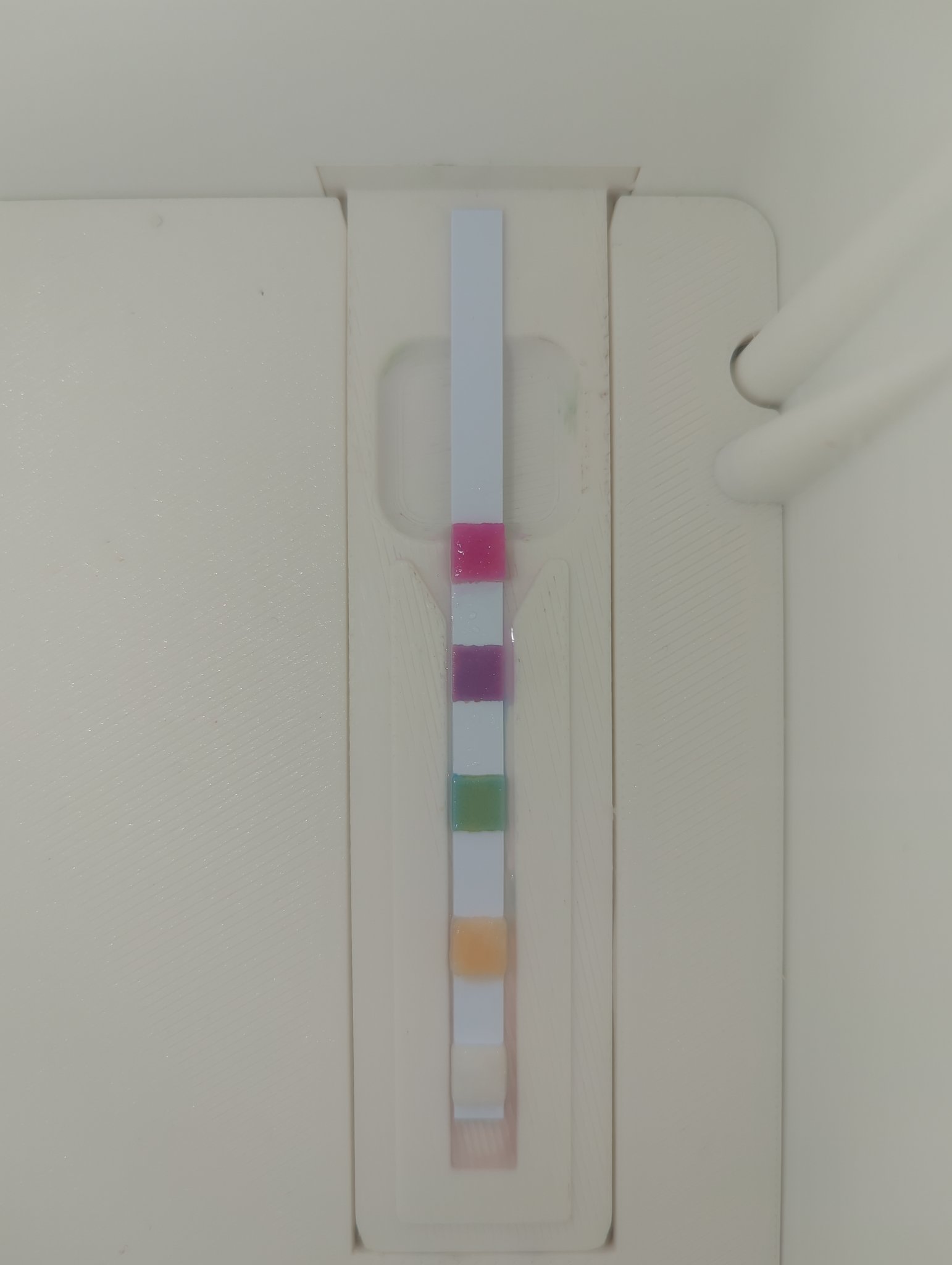

Original frame with sampling overlays for 20260813T005220_cya12.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T005220_cya12.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f573a6 81 ppm
Total Hardness #c497bd 375 ppm
Total Alkalinity #9ebf99 105 ppm
pH #fed6a0 6.4
Free Available Chlorine #fef9ed 0 ppm


HTH 5-Way Download original

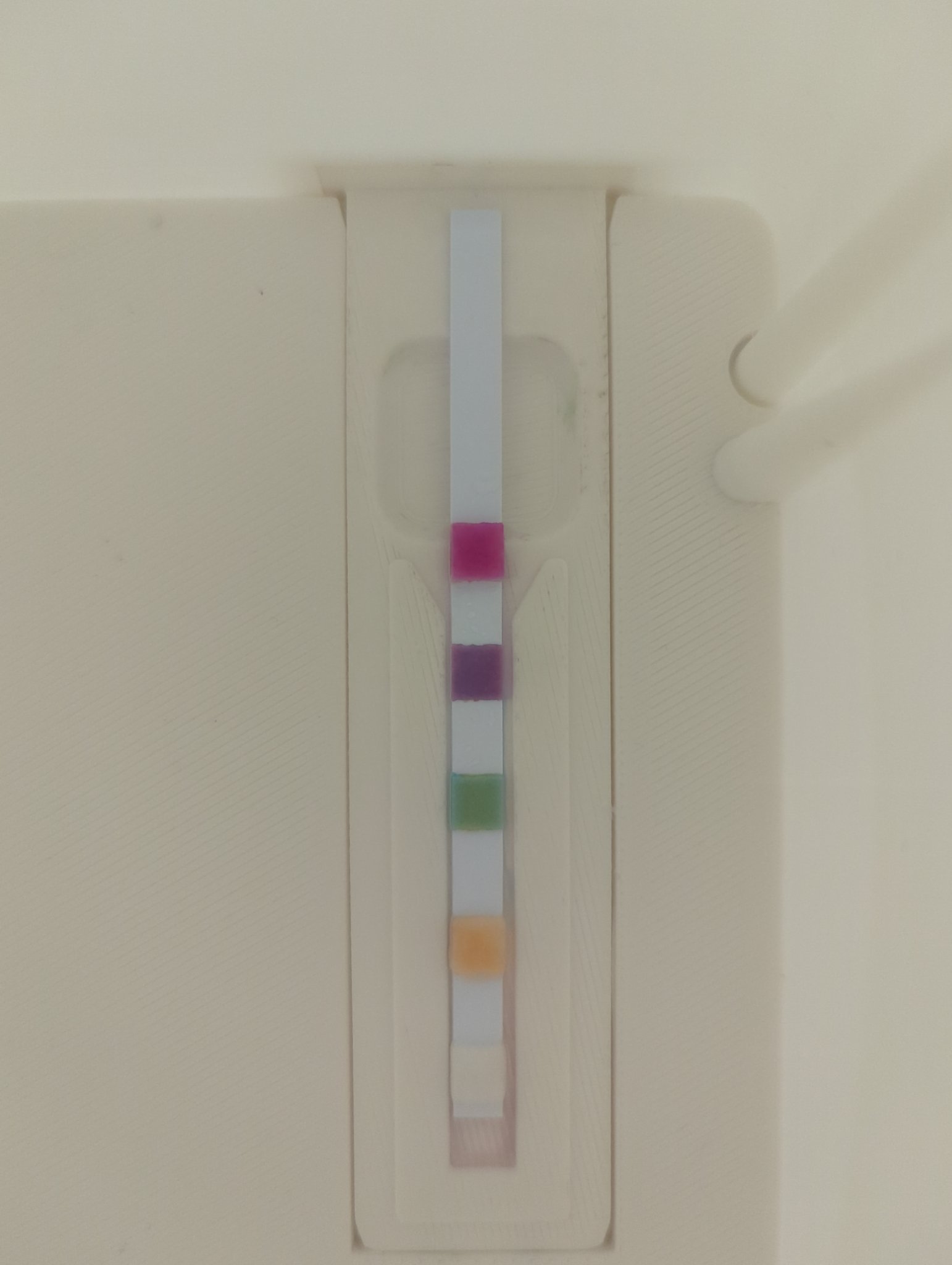

Original frame with sampling overlays for 20260813T005219_cya12.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T005219_cya12.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #d8649f 77 ppm
Total Hardness #b492b4 149 ppm
Total Alkalinity #a2bd9d 107 ppm
pH #fed39f 6.4
Free Available Chlorine #fefcf7 0 ppm


HTH 5-Way Download original

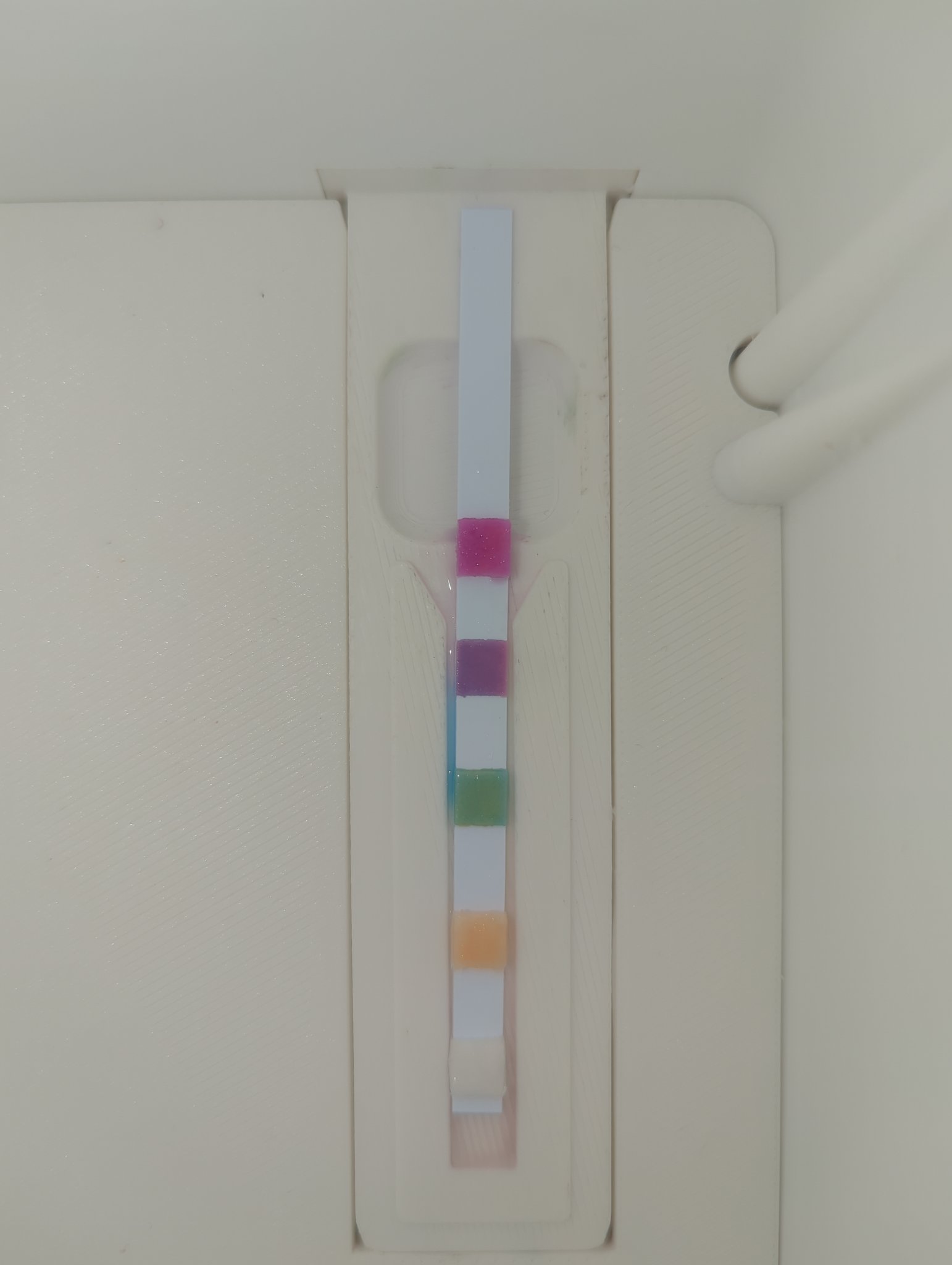

Original frame with sampling overlays for 20260813T005218_cya12.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T005218_cya12.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #eb78b1 78 ppm
Total Hardness #cfa7c5 390 ppm
Total Alkalinity #a6c2a2 107 ppm
pH #fed7a9 6.4
Free Available Chlorine #fdf4e6 0 ppm
