Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

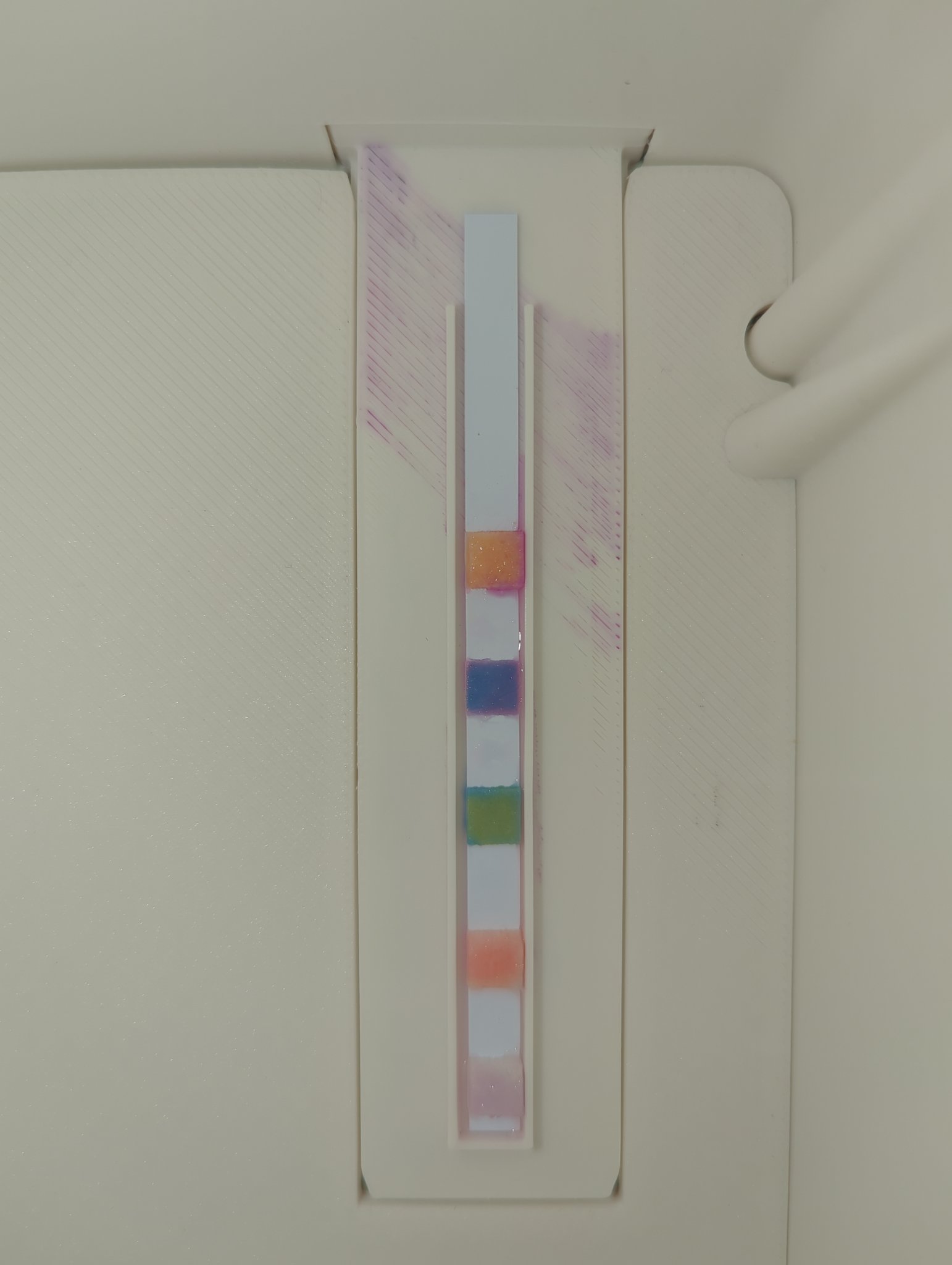

Original frame with sampling overlays for 20260630T194101_13.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T194101_13.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcab7d 13 ppm
Total Hardness #7a82b4 63 ppm
Total Alkalinity #91aa7b 101 ppm
pH #fead98 7.3
Free Available Chlorine #f8cfd2 3 ppm


Clorox 6-Way Download original

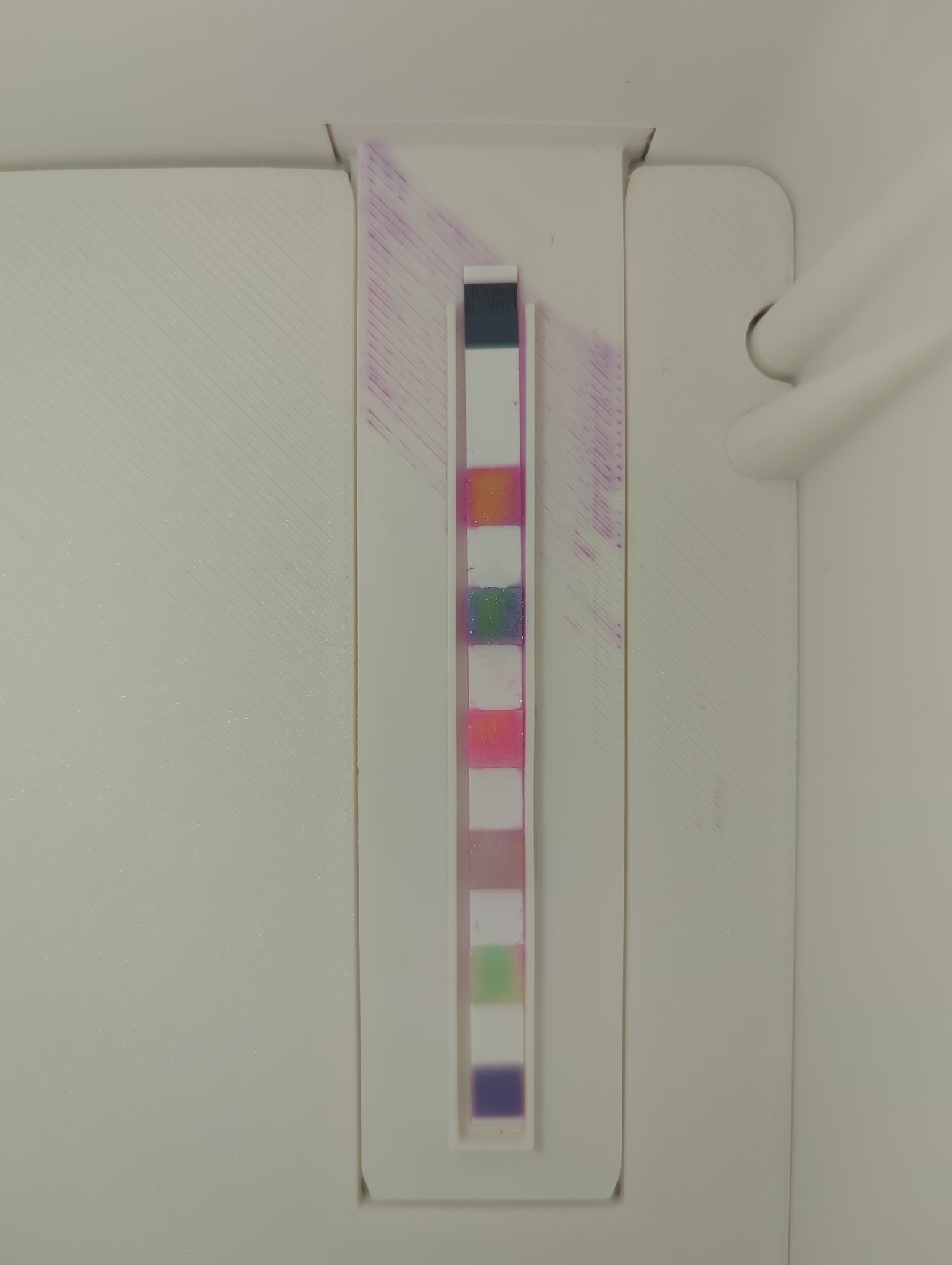

Original frame with sampling overlays for 20260630T193154_12.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T193154_12.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e57054 73 ppm
Total Alkalinity #647a75 211 ppm
pH #fe6685 8.1
Free Chlorine #d29ca1 4 ppm
Total Chlorine #bdd39a 4 ppm
Total Hardness #75628f 250 ppm


Clorox 6-Way Download original

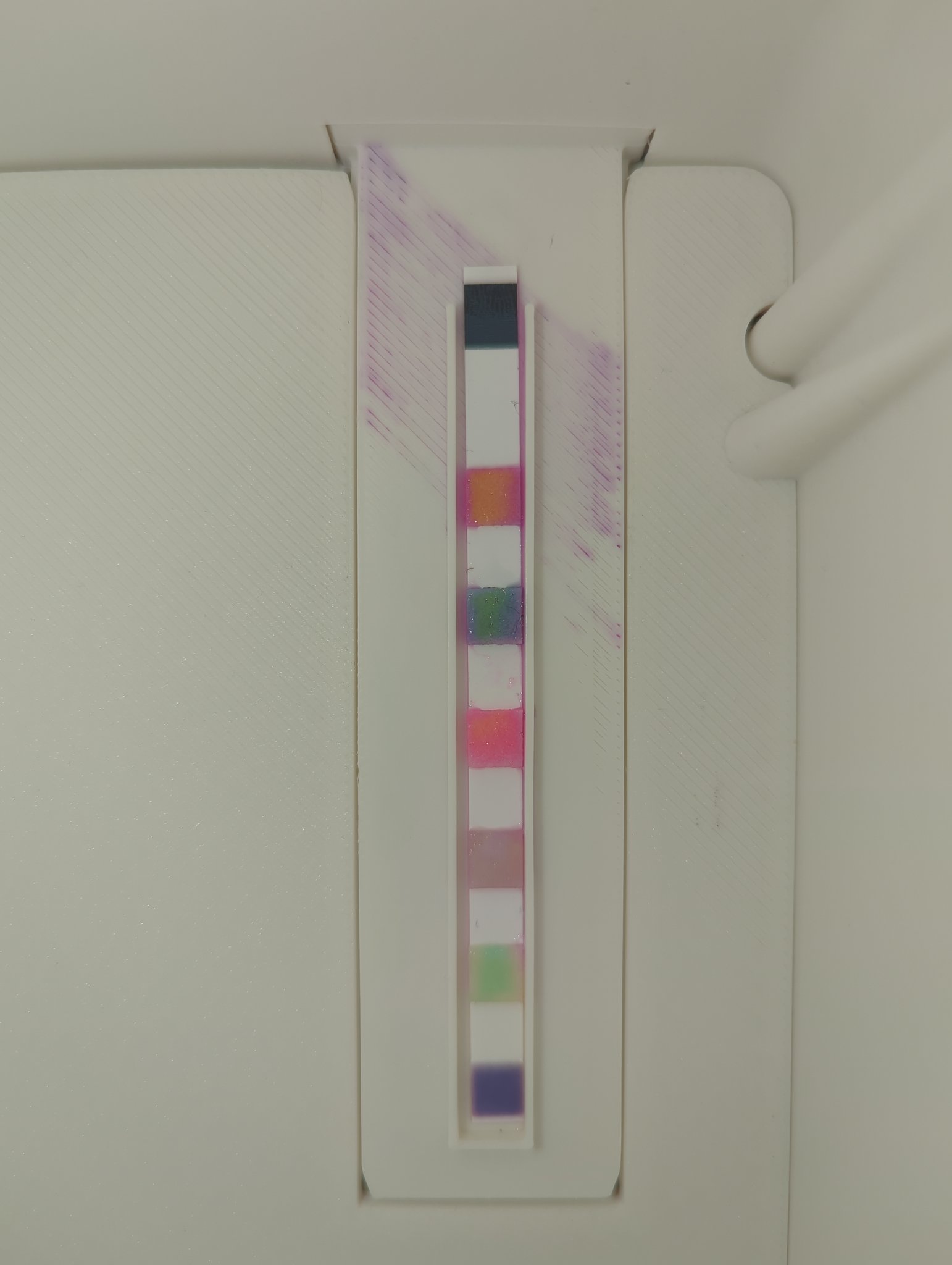

Original frame with sampling overlays for 20260630T193130_11.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T193130_11.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e67352 71 ppm
Total Alkalinity #647b71 150 ppm
pH #fe6781 8.1
Free Chlorine #d39ea0 4 ppm
Total Chlorine #bbd599 4 ppm
Total Hardness #6e5c8a 357 ppm


Clorox 6-Way Download original

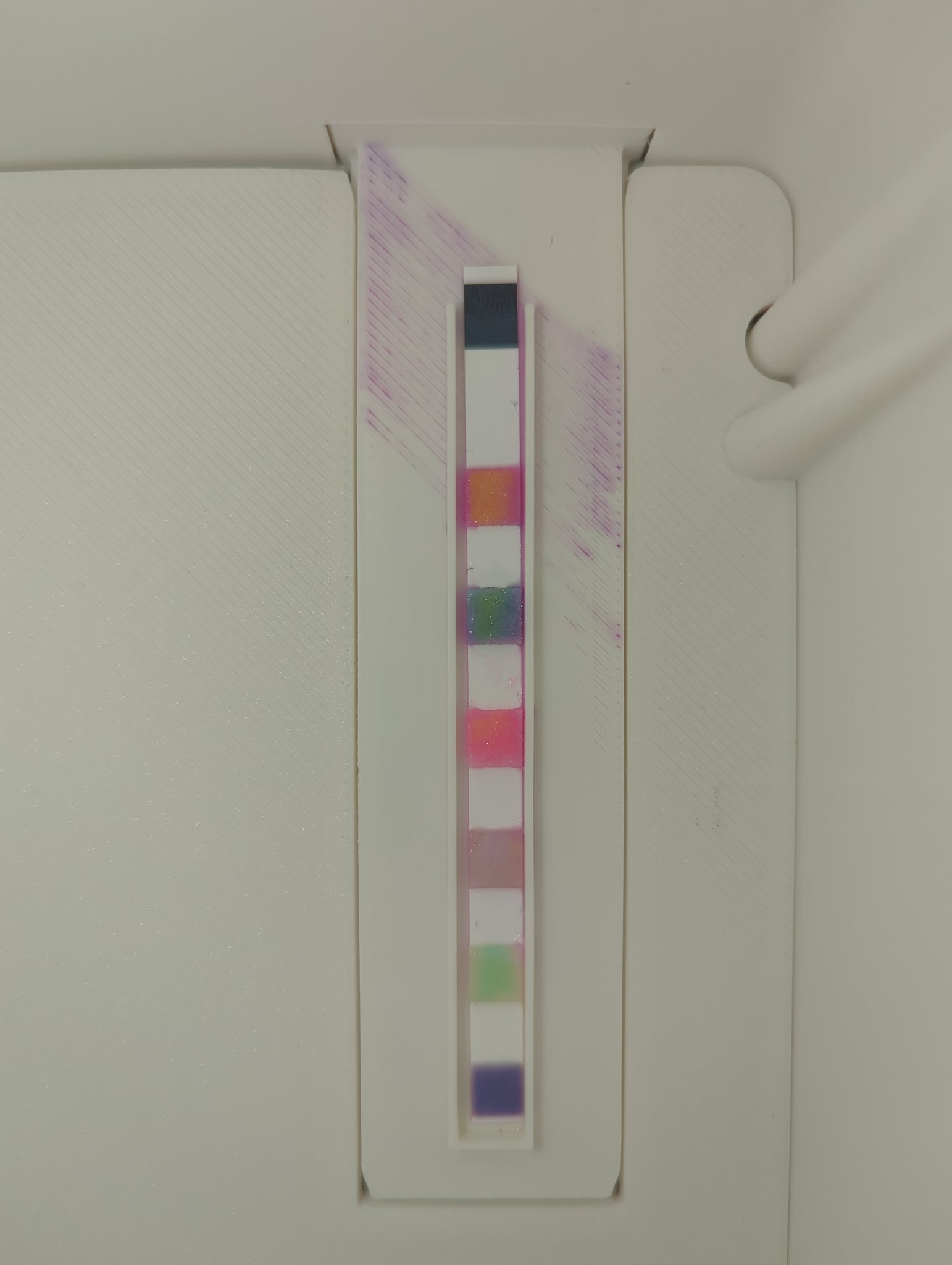

Original frame with sampling overlays for 20260630T193117_10.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T193117_10.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e77653 70 ppm
Total Alkalinity #647e72 149 ppm
pH #fe6982 8.1
Free Chlorine #d39ea1 4 ppm
Total Chlorine #b8d597 4 ppm
Total Hardness #6e5e8c 250 ppm


Clorox 6-Way Download original

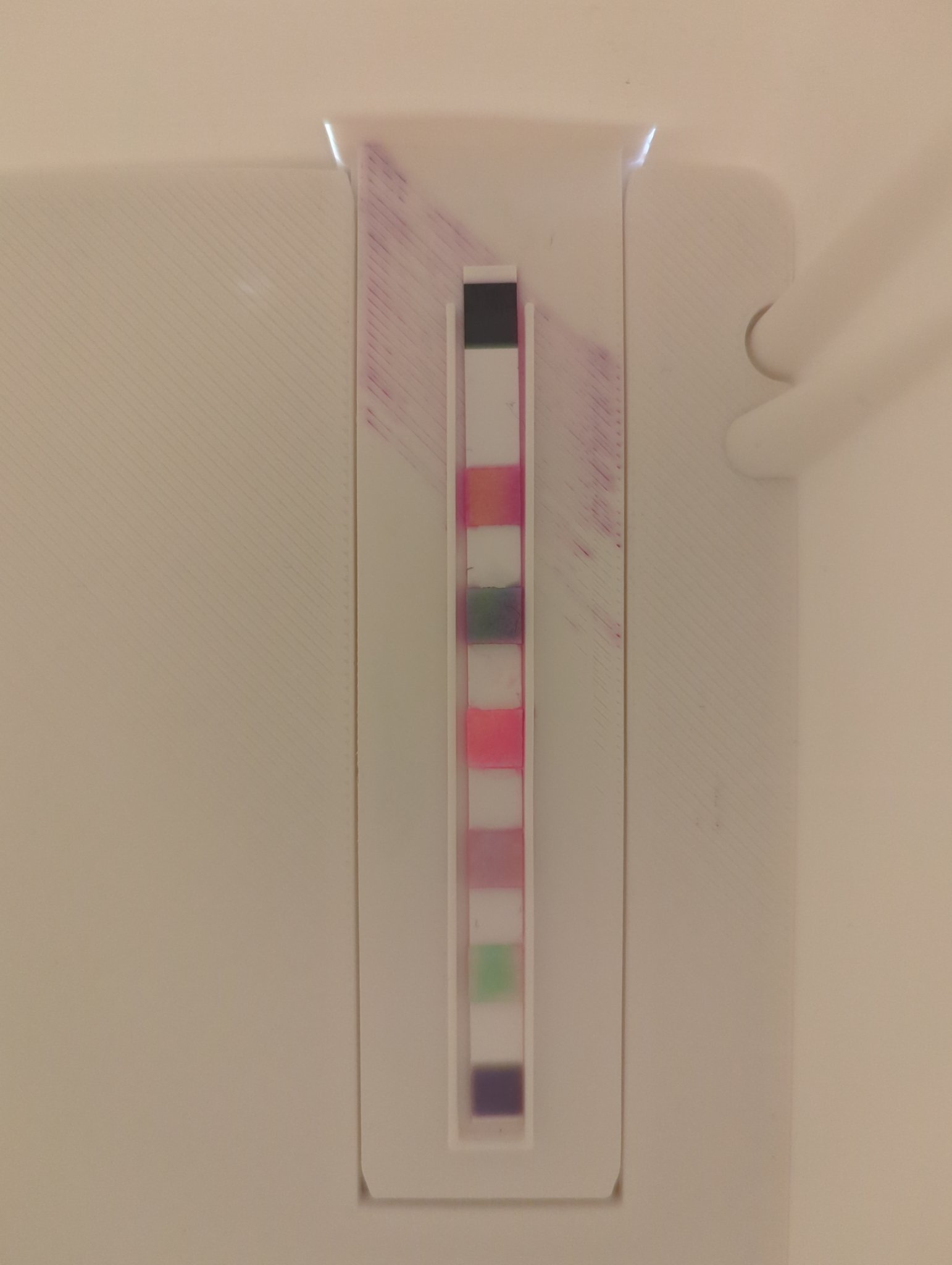

Original frame with sampling overlays for 20260630T193053_9.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T193053_9.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e77379 84 ppm
Total Alkalinity #666f6e 214 ppm
pH #fe6f89 8.1
Free Chlorine #da9aa4 4 ppm
Total Chlorine #bcdbab 4 ppm
Total Hardness #837185 357 ppm


Clorox 6-Way Download original

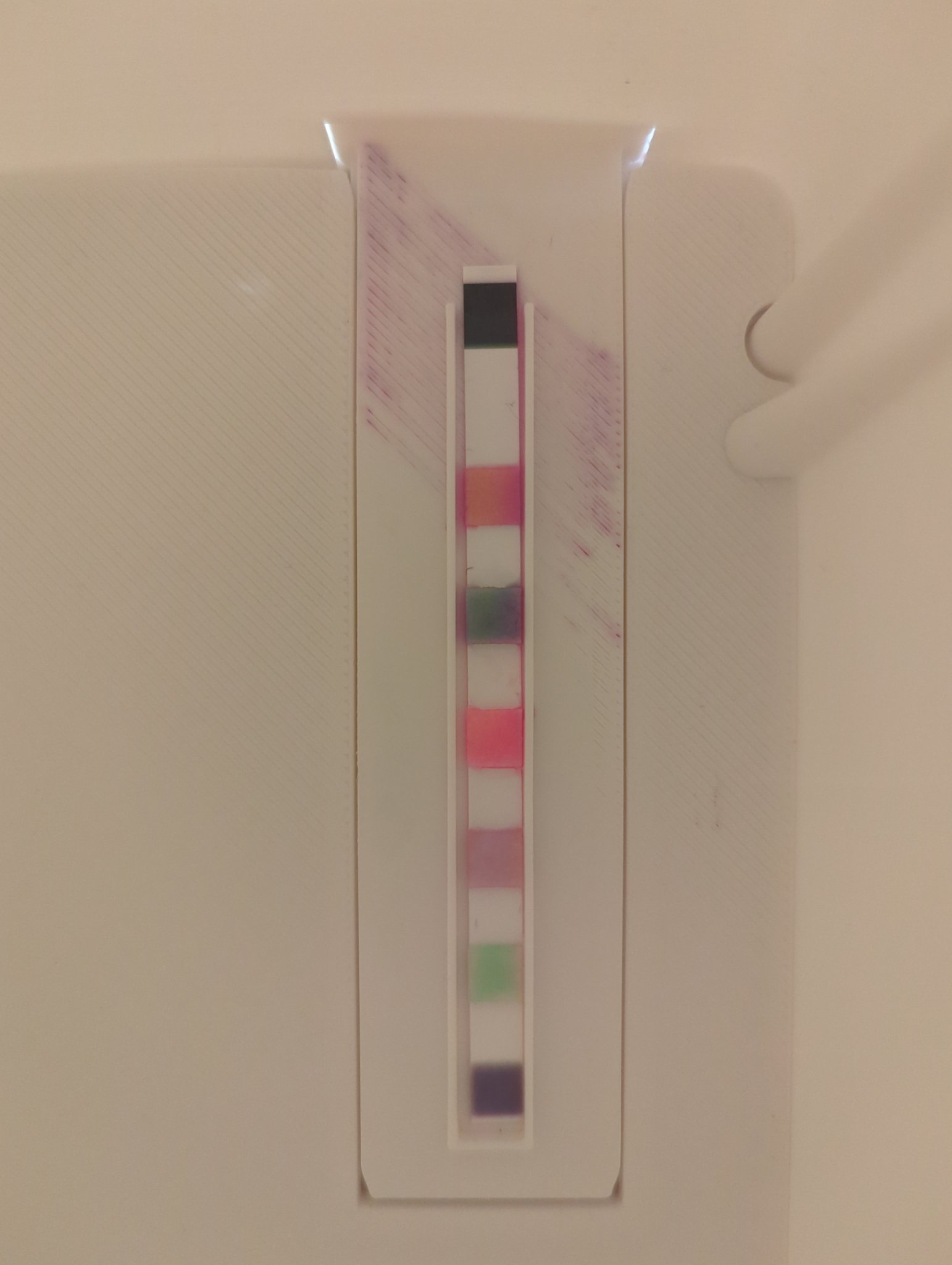

Original frame with sampling overlays for 20260630T193028_8.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T193028_8.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #e97a7a 82 ppm
Total Alkalinity #69726f 186 ppm
pH #ff7389 8.1
Free Chlorine #d99ca6 4 ppm
Total Chlorine #b7dca8 4 ppm
Total Hardness #837384 360 ppm


Clorox 6-Way Download original
Original frame with sampling overlays for 20260630T193014_7.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T193014_7.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Stabilizer #ea7d7b 81 ppm
Total Alkalinity #6c736d 181 ppm
pH #ff7688 8.1
Free Chlorine #d89ba7 4 ppm
Total Chlorine #b1daa4 4 ppm
Total Hardness #7e6c81 356 ppm


HTH 5-Way Download original

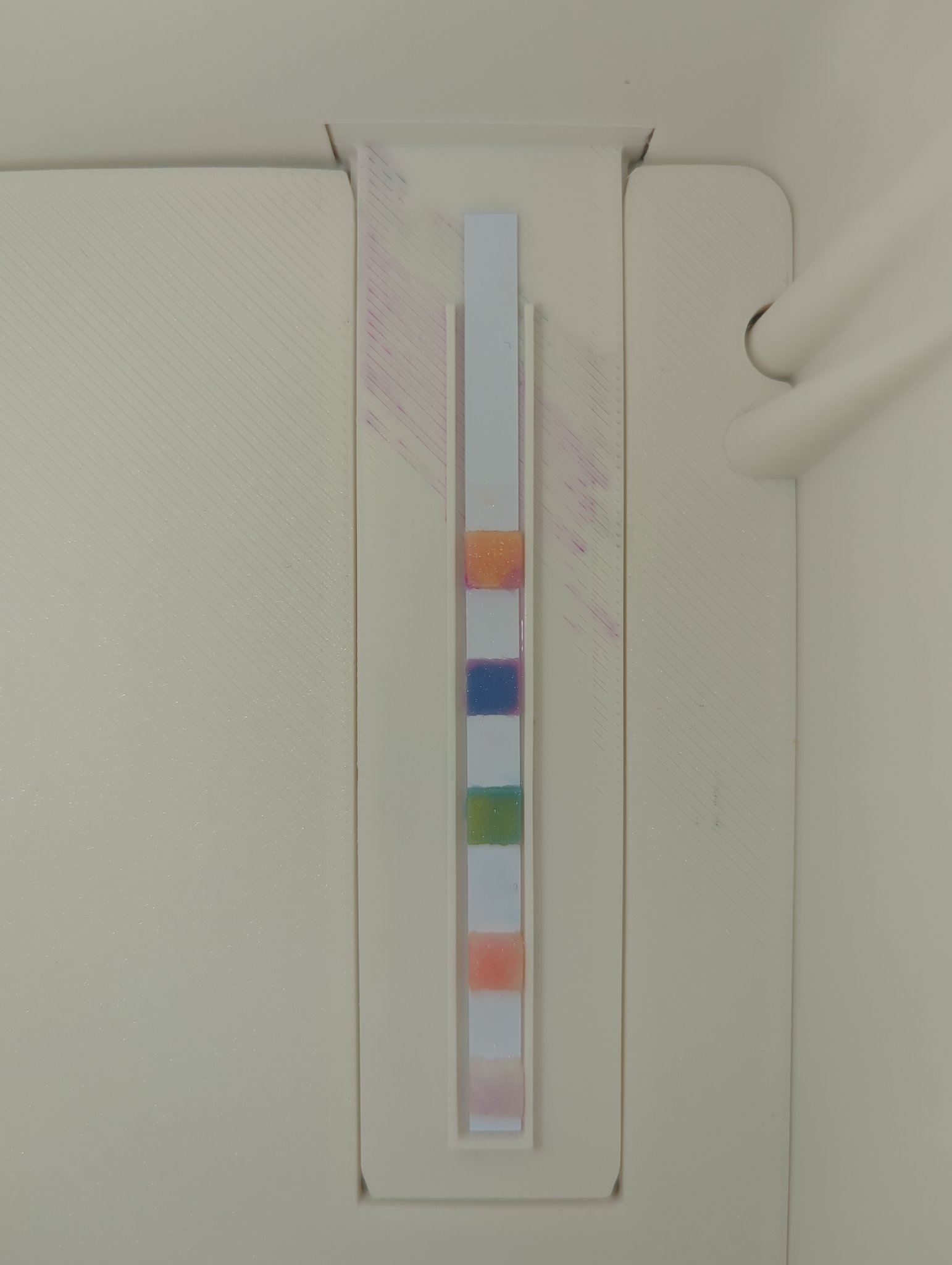

Original frame with sampling overlays for 20260630T192816_6.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T192816_6.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fda77e 16 ppm
Total Hardness #667fb2 52 ppm
Total Alkalinity #93ae7b 101 ppm
pH #fcb1a0 7.3
Free Available Chlorine #f7dadb 1 ppm
