Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260630T192800_5.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T192800_5.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fda87c 14 ppm
Total Hardness #657fb1 52 ppm
Total Alkalinity #91ae7c 101 ppm
pH #fcb1a0 7.3
Free Available Chlorine #f6dbda 1 ppm


HTH 5-Way Download original

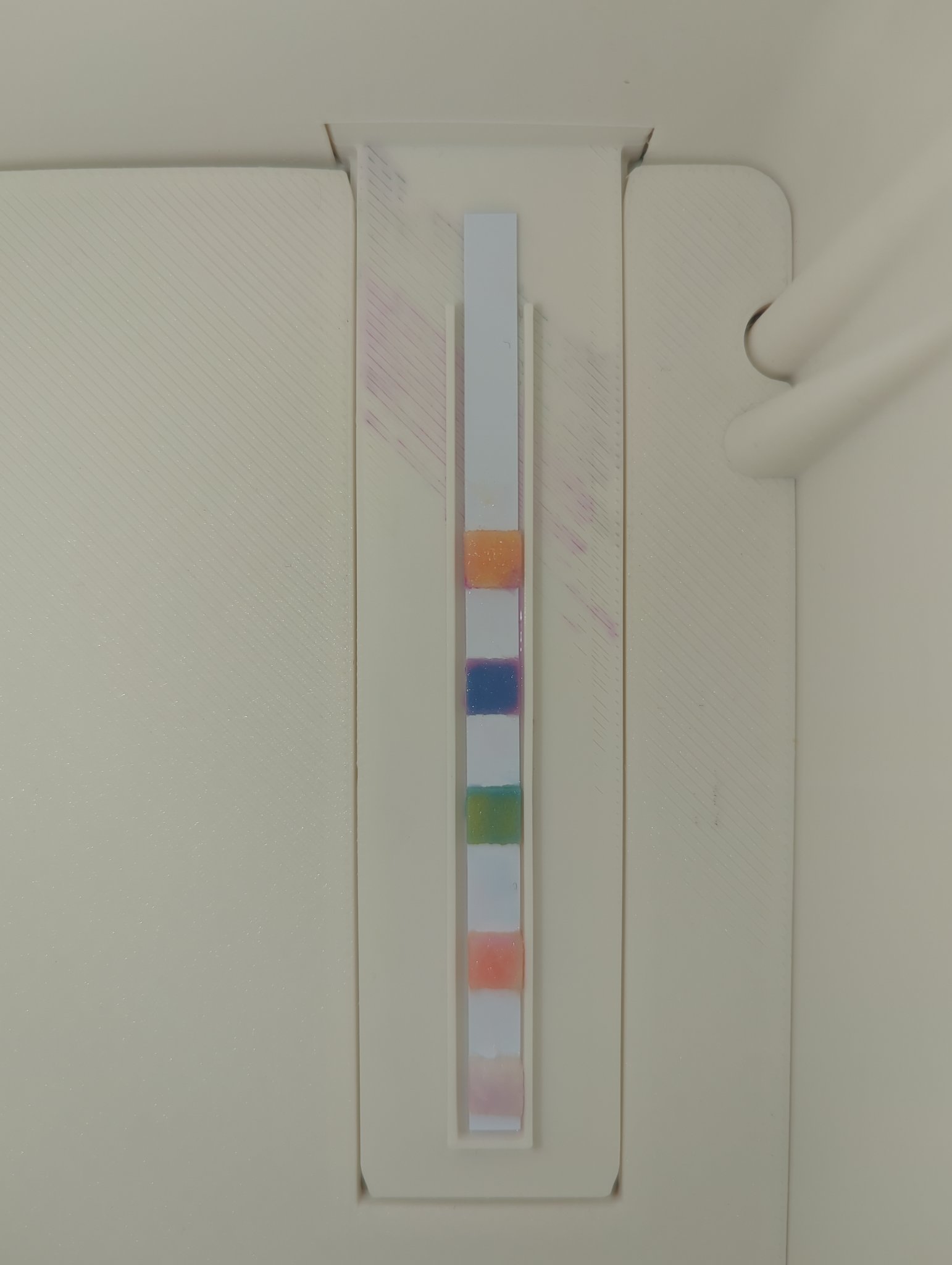

Original frame with sampling overlays for 20260630T192726_4.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T192726_4.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdad78 11 ppm
Total Hardness #647eb0 52 ppm
Total Alkalinity #8ead7d 102 ppm
pH #fcb09f 7.3
Free Available Chlorine #f6d9d8 1 ppm


HTH 5-Way Download original

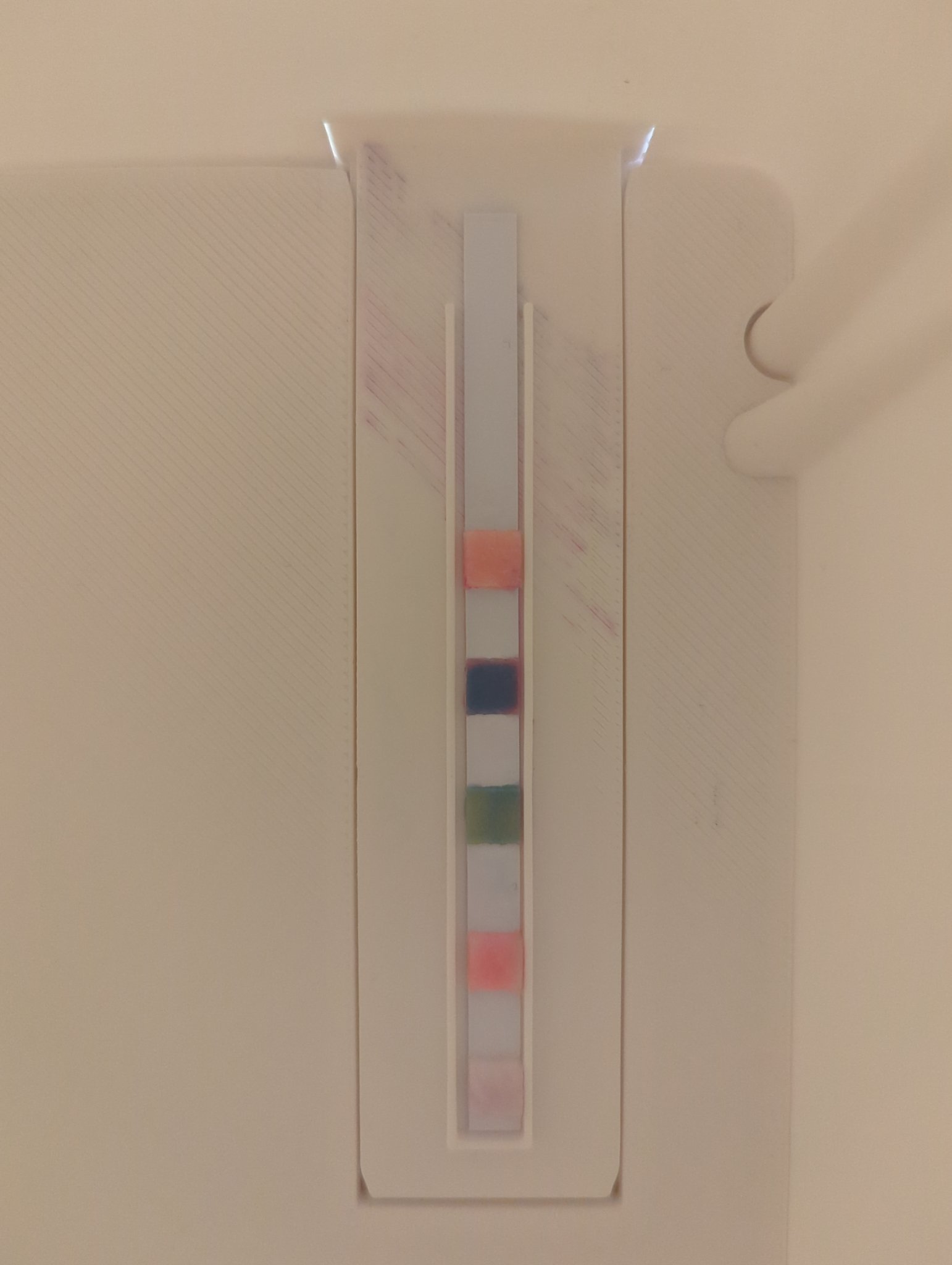

Original frame with sampling overlays for 20260630T192710_3.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T192710_3.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb1a3 53 ppm
Total Hardness #6e7794 65 ppm
Total Alkalinity #94a495 139 ppm
pH #febac0 7.6
Free Available Chlorine #fdecf2 1 ppm


HTH 5-Way Download original

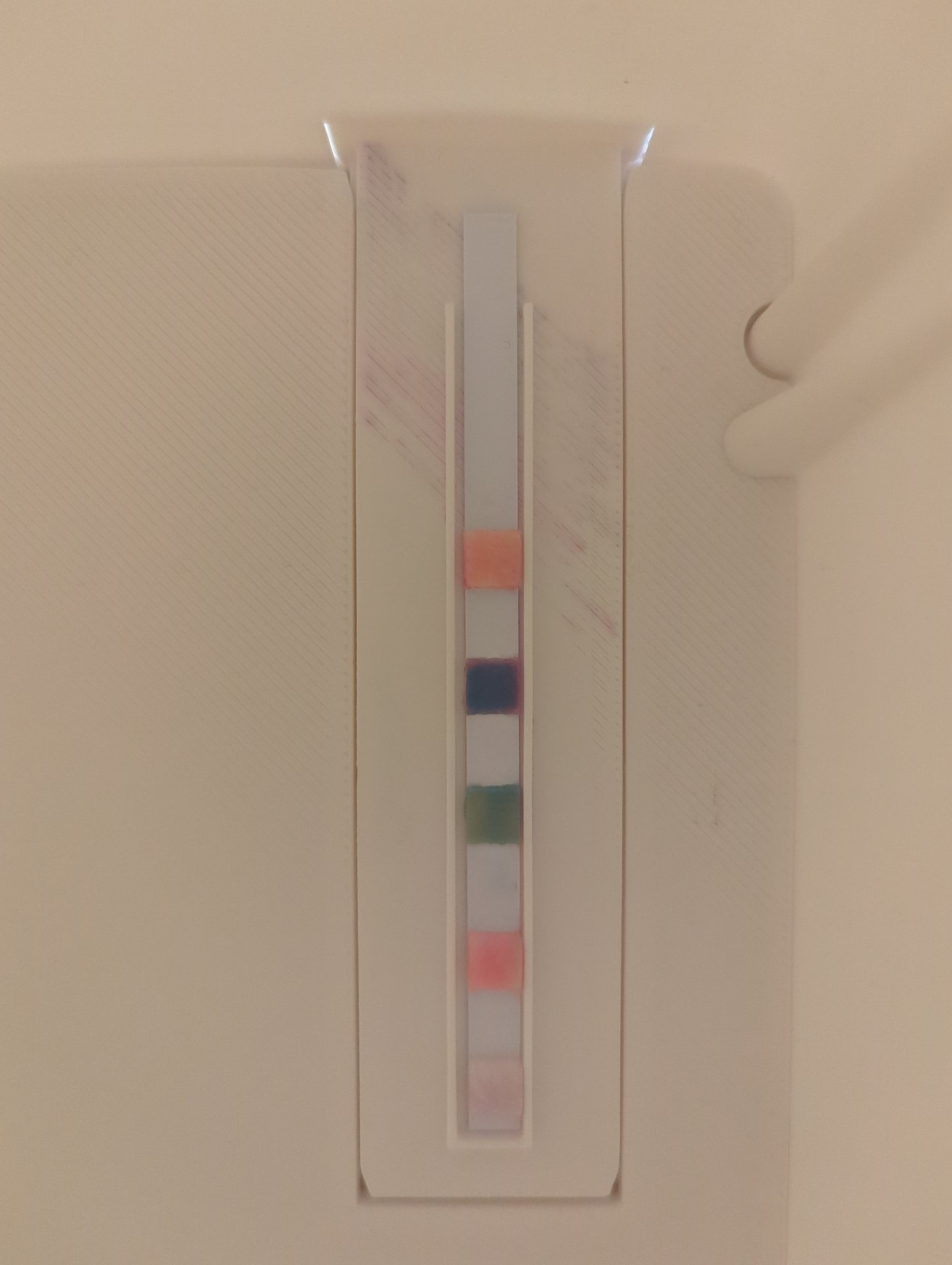

Original frame with sampling overlays for 20260630T192657_2.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T192657_2.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feb5a2 19 ppm
Total Hardness #6e7793 65 ppm
Total Alkalinity #92a496 140 ppm
pH #febac0 7.6
Free Available Chlorine #fdecf0 1 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260630T192642_1.jpg
Original frame + sampling zones
Rectified strip preview for 20260630T192642_1.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #febca5 17 ppm
Total Hardness #707792 68 ppm
Total Alkalinity #90a397 140 ppm
pH #febac0 7.6
Free Available Chlorine #fdecf2 1 ppm


HTH 5-Way Download original

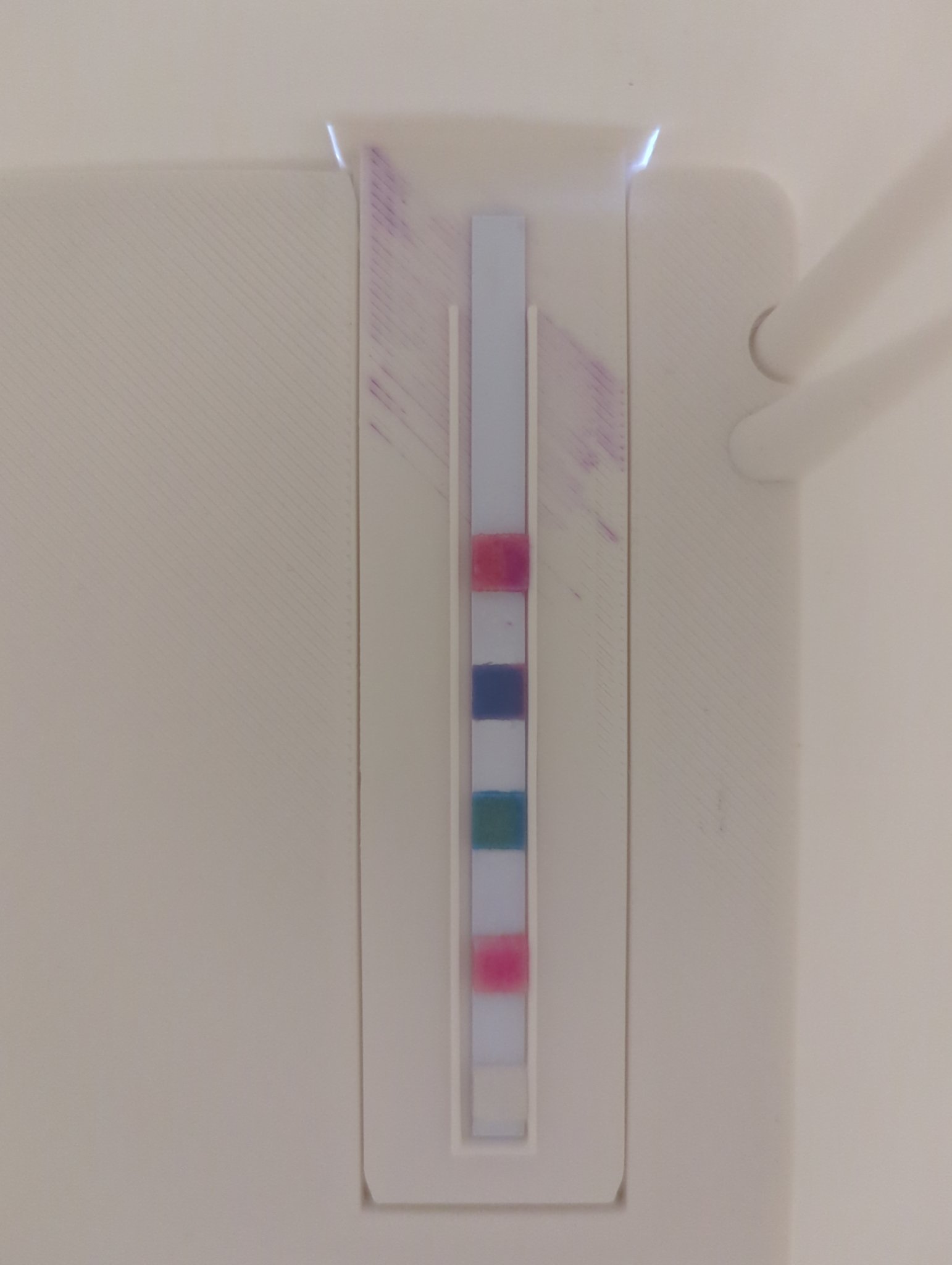

Original frame with sampling overlays for 20260626T234013_80.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T234013_80.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #e67992 89 ppm
Total Hardness #7f87ab 69 ppm
Total Alkalinity #7fa1a8 181 ppm
pH #fb94b3 7.9
Free Available Chlorine #fdf8f2 0 ppm


HTH 5-Way Download original

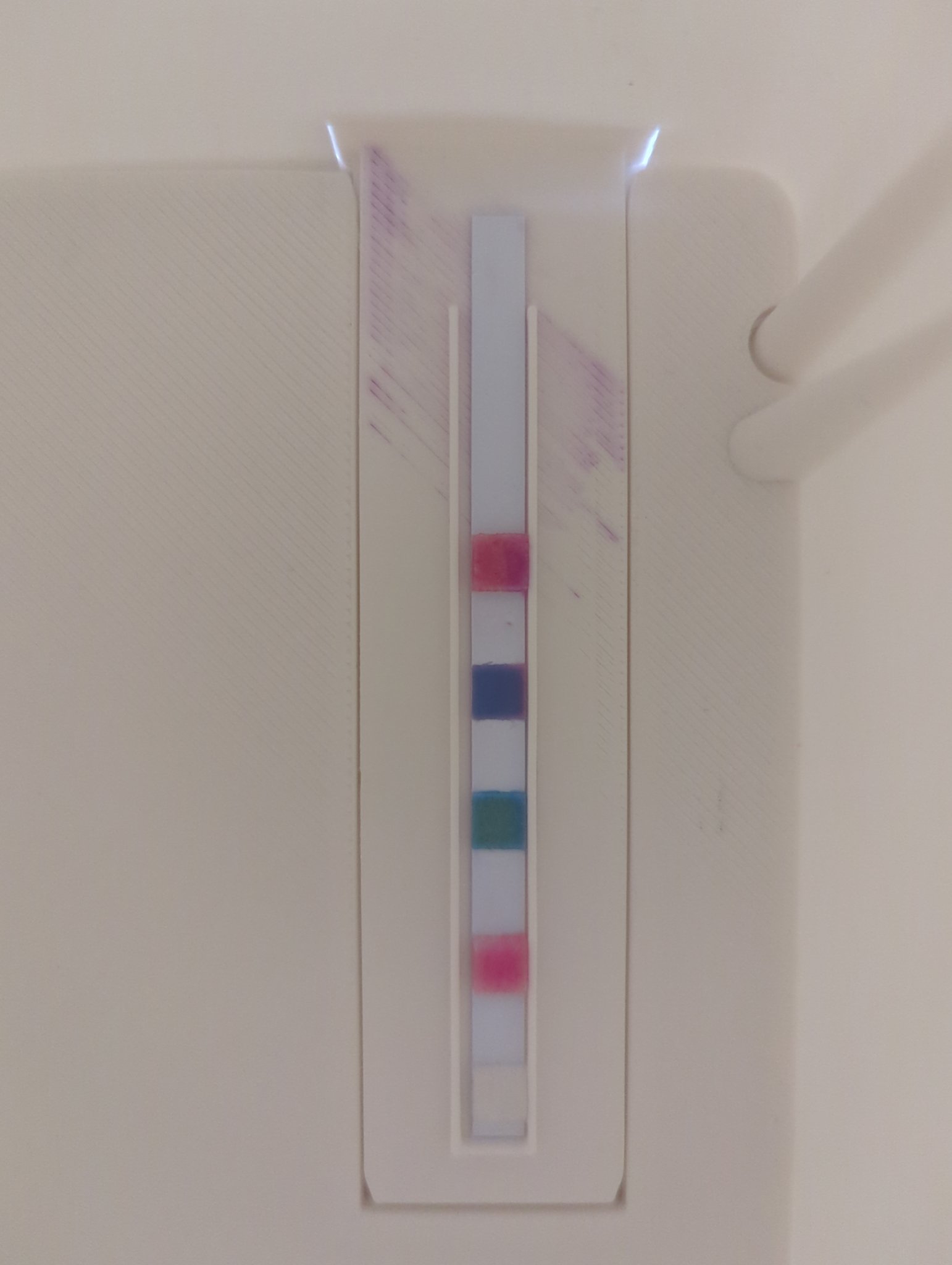

Original frame with sampling overlays for 20260626T234002_79.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T234002_79.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #e57890 89 ppm
Total Hardness #7f85ab 70 ppm
Total Alkalinity #7ea1a8 182 ppm
pH #fb92b3 8.0
Free Available Chlorine #fcf8f3 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T233952_78.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T233952_78.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #e67791 89 ppm
Total Hardness #7e86ac 69 ppm
Total Alkalinity #7ea1a8 182 ppm
pH #fb91b2 8.0
Free Available Chlorine #fdf8f2 0 ppm
