Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T233212_test62.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T233212_test62.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc9587 38 ppm
Total Hardness #6d80b2 55 ppm
Total Alkalinity #619e9f 184 ppm
pH #fca2a9 7.7
Free Available Chlorine #f7eddc 0 ppm


HTH 5-Way Download original

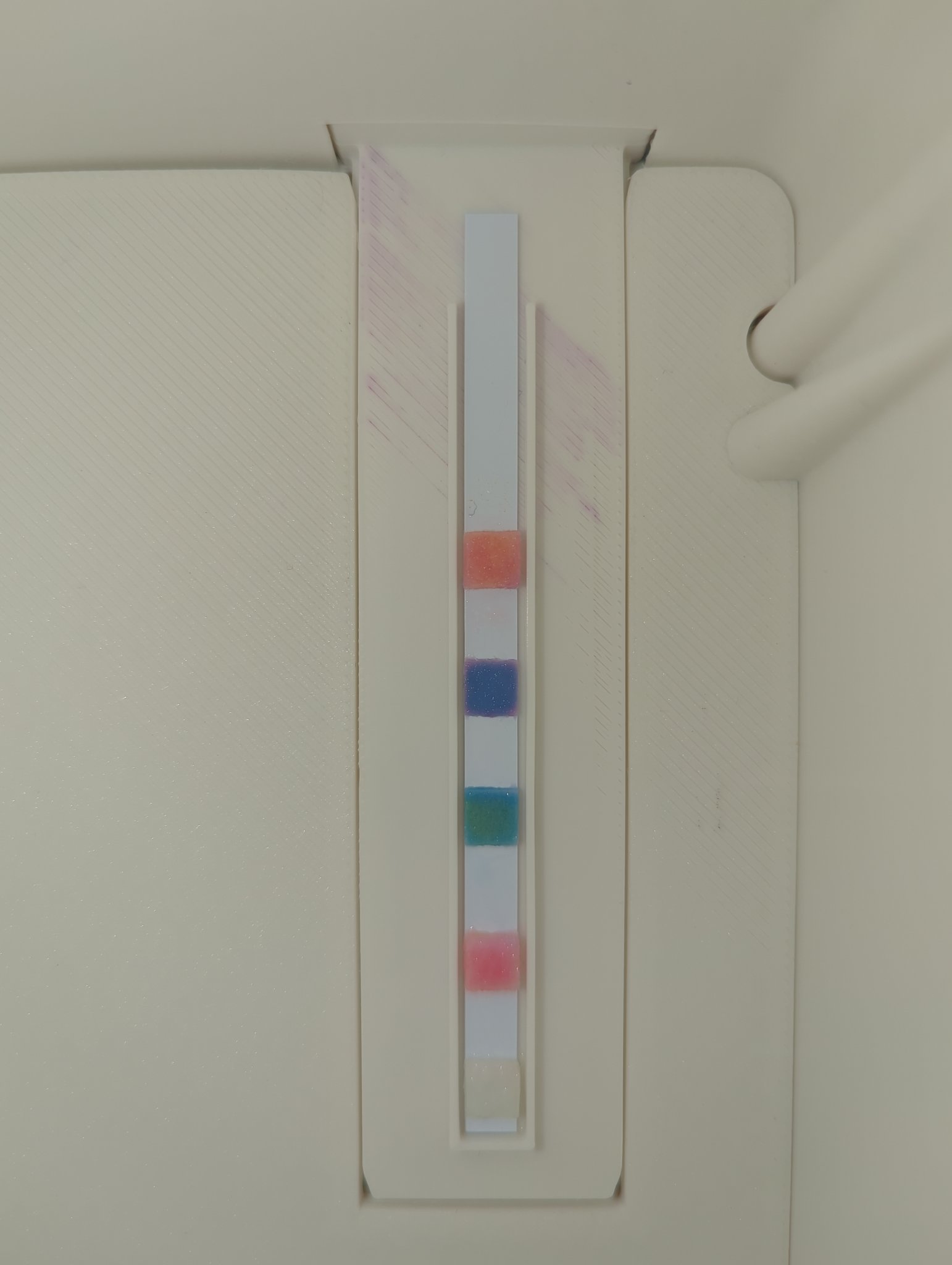

Original frame with sampling overlays for 20260626T233105_test61.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T233105_test61.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fe9686 40 ppm
Total Hardness #627db4 51 ppm
Total Alkalinity #589b9e 186 ppm
pH #fe9aa8 7.8
Free Available Chlorine #f9efdf 0 ppm


HTH 5-Way Download original

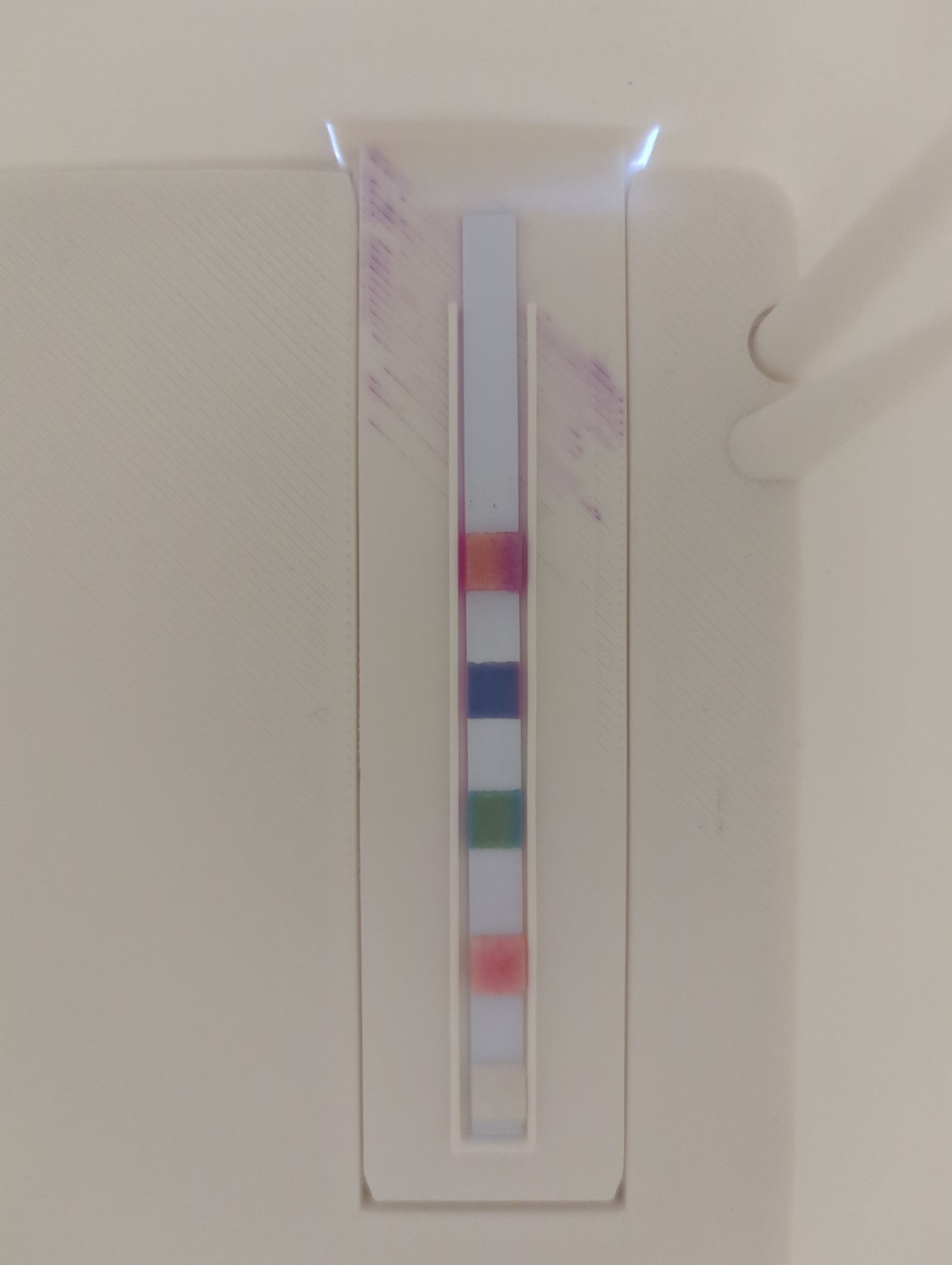

Original frame with sampling overlays for 20260626T232615_test60.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T232615_test60.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #e77f87 74 ppm
Total Hardness #6f77a6 65 ppm
Total Alkalinity #89a391 140 ppm
pH #fdacac 7.6
Free Available Chlorine #fdfaf0 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T232602_test59.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T232602_test59.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #e88087 73 ppm
Total Hardness #6f78a6 64 ppm
Total Alkalinity #89a391 140 ppm
pH #fcacad 7.6
Free Available Chlorine #fdfaf0 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T232549_test58.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T232549_test58.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #e88186 69 ppm
Total Hardness #6d78a6 63 ppm
Total Alkalinity #89a492 140 ppm
pH #fcacad 7.6
Free Available Chlorine #fefaf1 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T232537_test58.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T232537_test58.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #e88285 66 ppm
Total Hardness #6d78a6 63 ppm
Total Alkalinity #8aa492 140 ppm
pH #fcadae 7.6
Free Available Chlorine #fefaf0 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T232525_test56.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T232525_test56.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #e98487 66 ppm
Total Hardness #6c79a8 61 ppm
Total Alkalinity #8aa594 140 ppm
pH #fdadae 7.6
Free Available Chlorine #fdfaf1 0 ppm


HTH 5-Way Download original

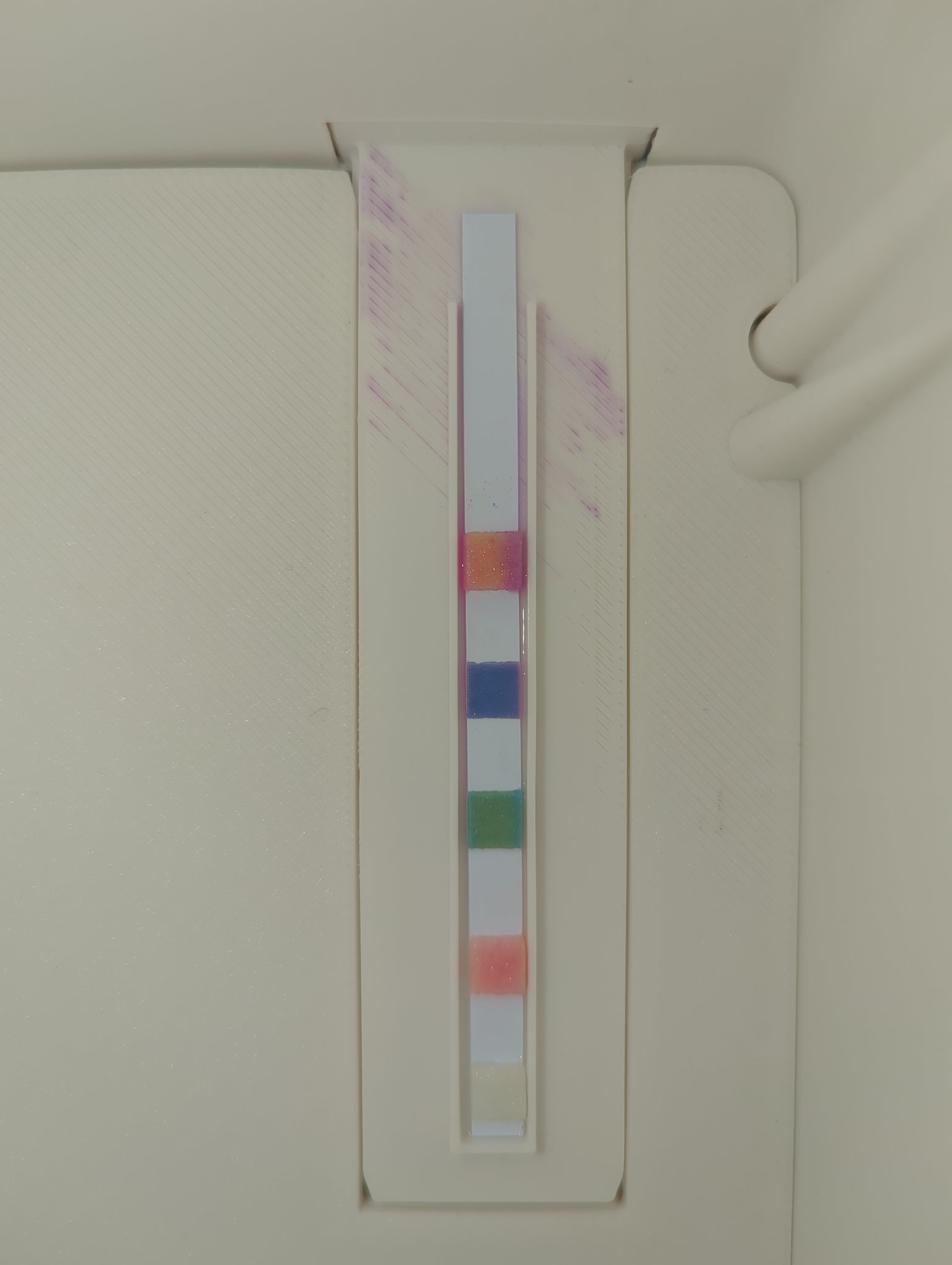

Original frame with sampling overlays for 20260626T232512_test55.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T232512_test55.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f99582 42 ppm
Total Hardness #6a7db1 56 ppm
Total Alkalinity #81a886 138 ppm
pH #fcb2a6 7.4
Free Available Chlorine #f8f0d9 0 ppm
