Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original

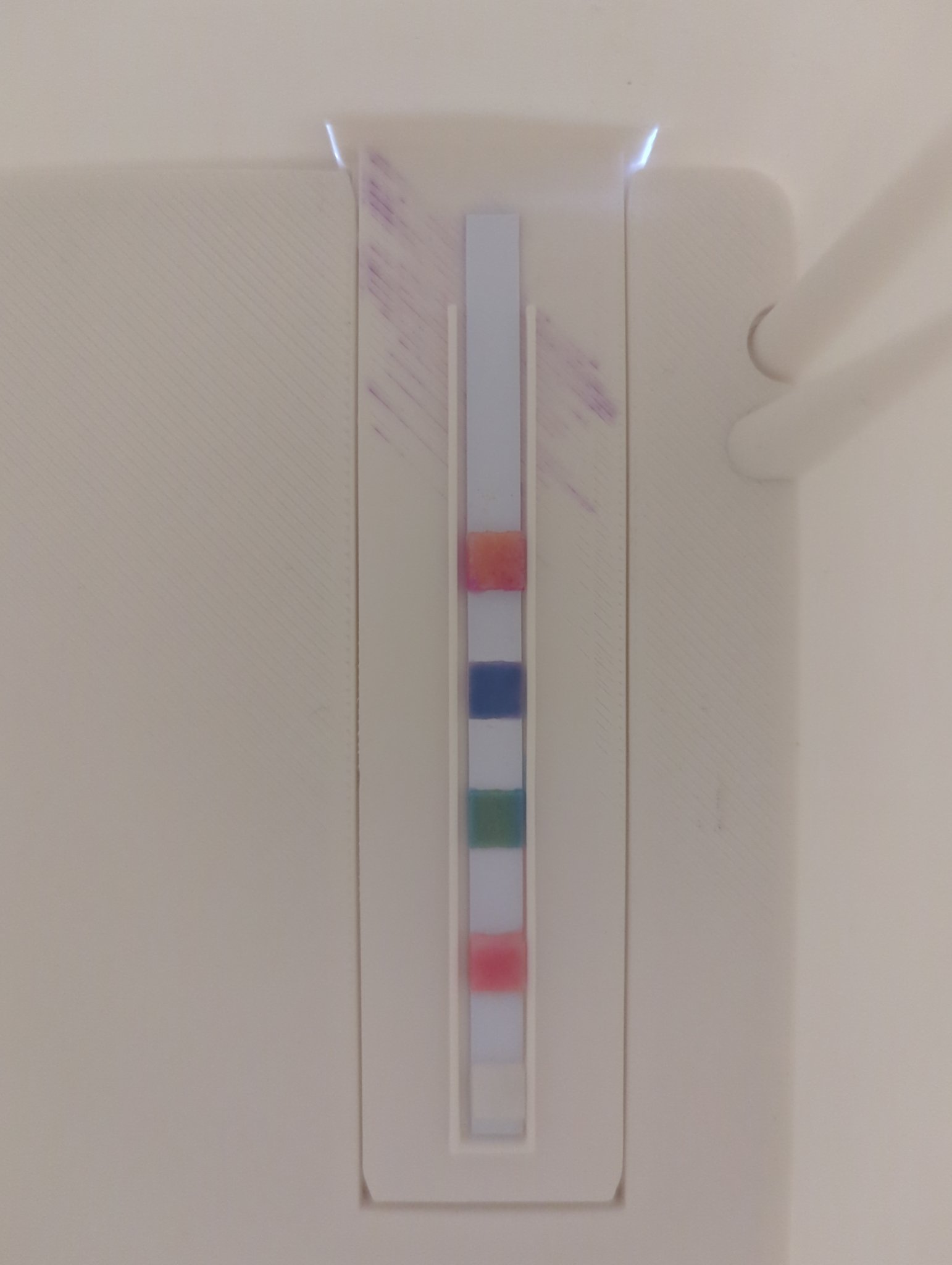

Original frame with sampling overlays for 20260626T231759_test46.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T231759_test46.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f28986 49 ppm
Total Hardness #7082ad 57 ppm
Total Alkalinity #86a59a 144 ppm
pH #fd98a3 7.7
Free Available Chlorine #fdfaf4 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T231743_test45.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T231743_test45.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc9b84 46 ppm
Total Hardness #6d86b6 49 ppm
Total Alkalinity #79a78e 141 ppm
pH #fda2a0 7.5
Free Available Chlorine #f8f0de 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T231727_test44.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T231727_test44.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc9c83 47 ppm
Total Hardness #6986b6 47 ppm
Total Alkalinity #77a790 142 ppm
pH #fda3a0 7.5
Free Available Chlorine #f8f0df 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T231650_test42.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T231650_test42.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fc9f81 21 ppm
Total Hardness #6786b5 44 ppm
Total Alkalinity #74a793 143 ppm
pH #fda39f 7.5
Free Available Chlorine #f8f1de 0 ppm


HTH 5-Way Download original

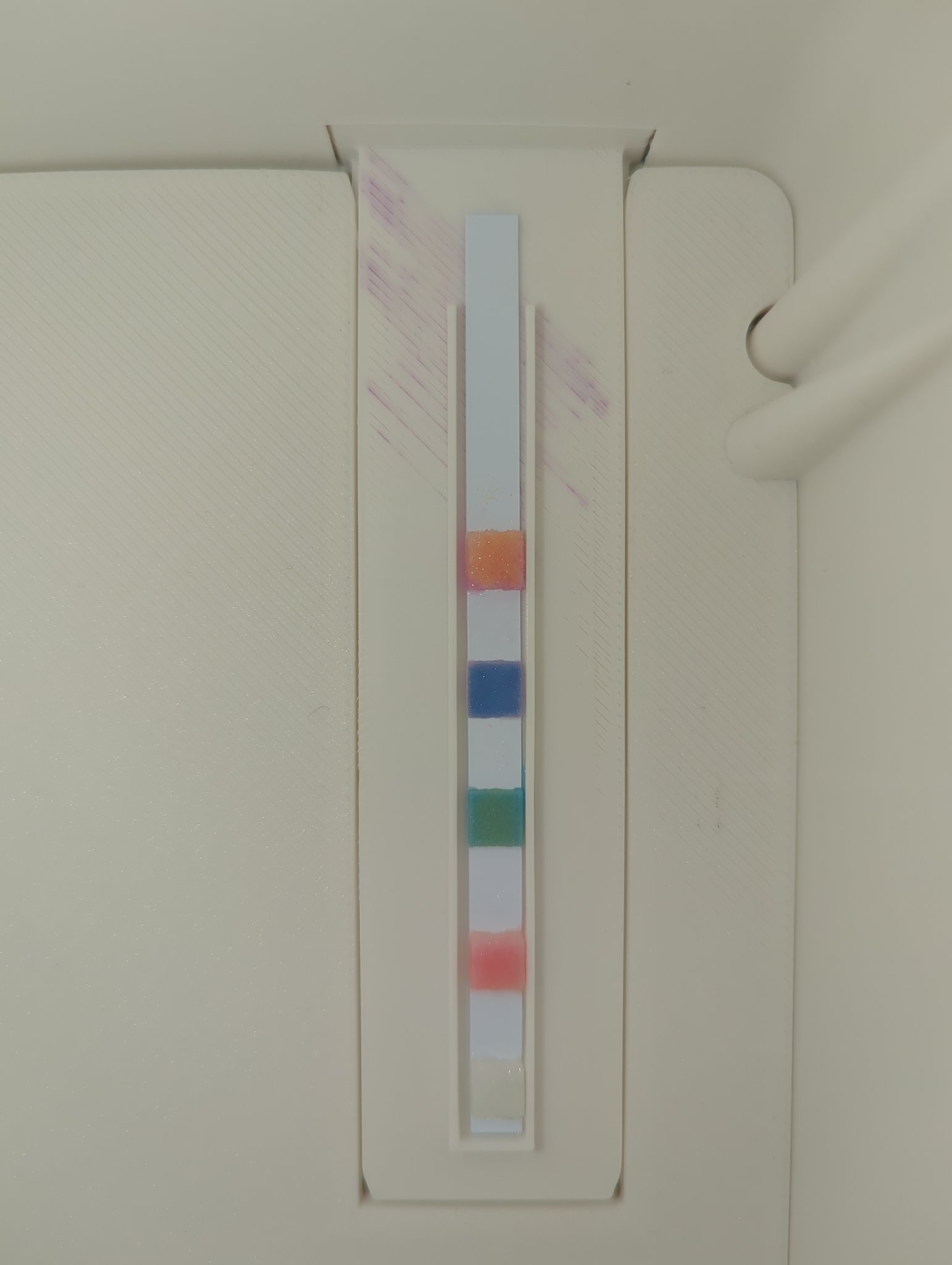

Original frame with sampling overlays for 20260626T231634_test41.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T231634_test41.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fda281 20 ppm
Total Hardness #6887b7 44 ppm
Total Alkalinity #76a796 144 ppm
pH #fda3a1 7.5
Free Available Chlorine #fbf0e0 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T231335_test40.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T231335_test40.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f68a87 47 ppm
Total Hardness #6675a8 59 ppm
Total Alkalinity #7a9e97 177 ppm
pH #ff97a4 7.8
Free Available Chlorine #fefefa 0 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260626T231324_test39.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T231324_test39.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f48b87 46 ppm
Total Hardness #6575a6 58 ppm
Total Alkalinity #789f94 177 ppm
pH #ff97a2 7.7
Free Available Chlorine #fefef7 0 ppm


HTH 5-Way Download original

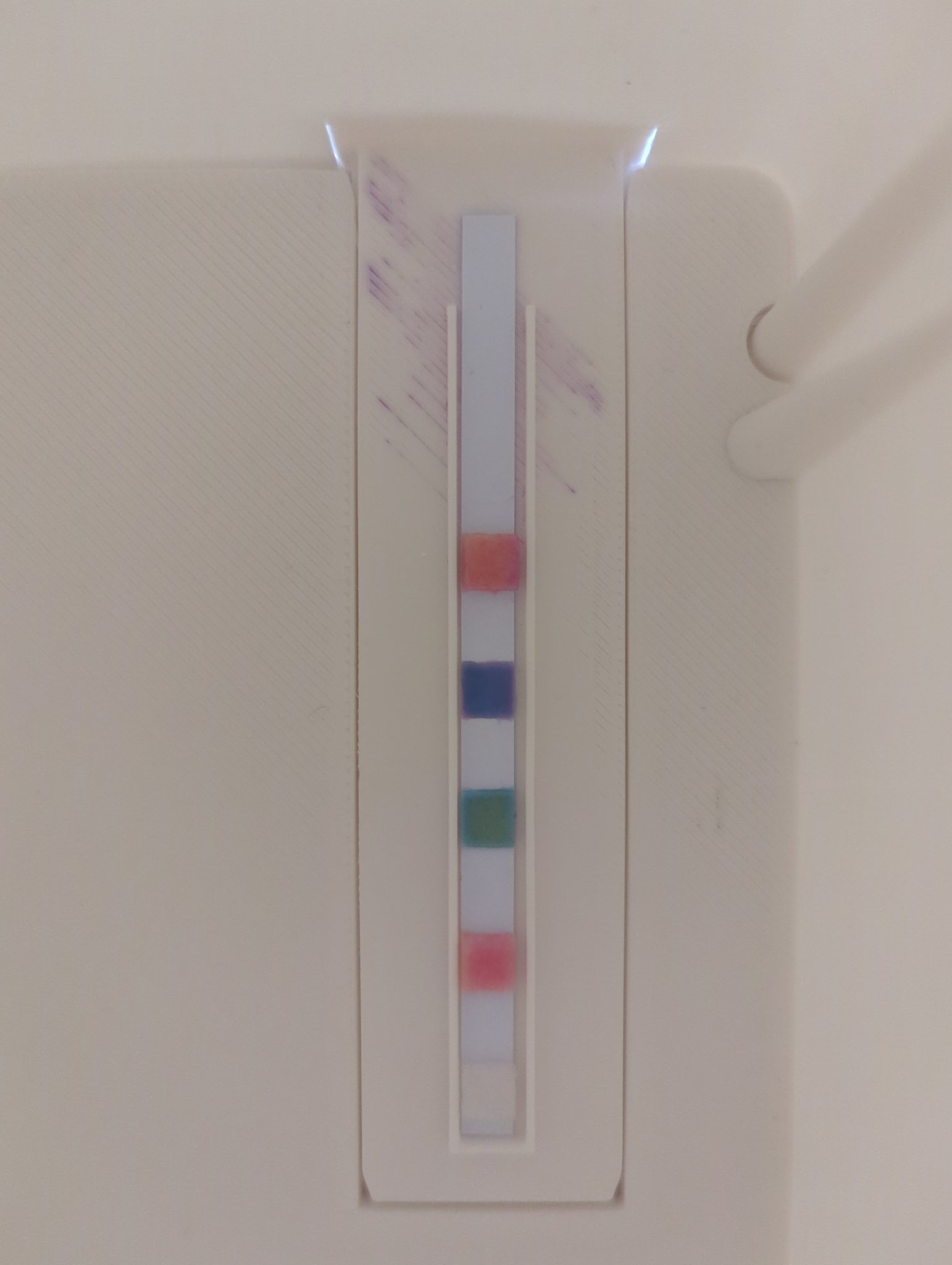

Original frame with sampling overlays for 20260626T231310_test38.jpg
Original frame + sampling zones
Rectified strip preview for 20260626T231310_test38.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #f58b87 45 ppm
Total Hardness #6475a7 58 ppm
Total Alkalinity #789f95 177 ppm
pH #ff96a4 7.8
Free Available Chlorine #fefefa 0 ppm
