Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260813T000753_cya08.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T000753_cya08.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fd939a 61 ppm
Total Hardness #c491b9 367 ppm
Total Alkalinity #98bb93 104 ppm
pH #feca9f 6.4
Free Available Chlorine #fdd2dd 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260813T000617_cya08.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T000617_cya08.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fe8f99 67 ppm
Total Hardness #c17eaf 325 ppm
Total Alkalinity #a0bd84 99 ppm
pH #fed1a7 6.4
Free Available Chlorine #fedadd 2 ppm


HTH 5-Way Download original

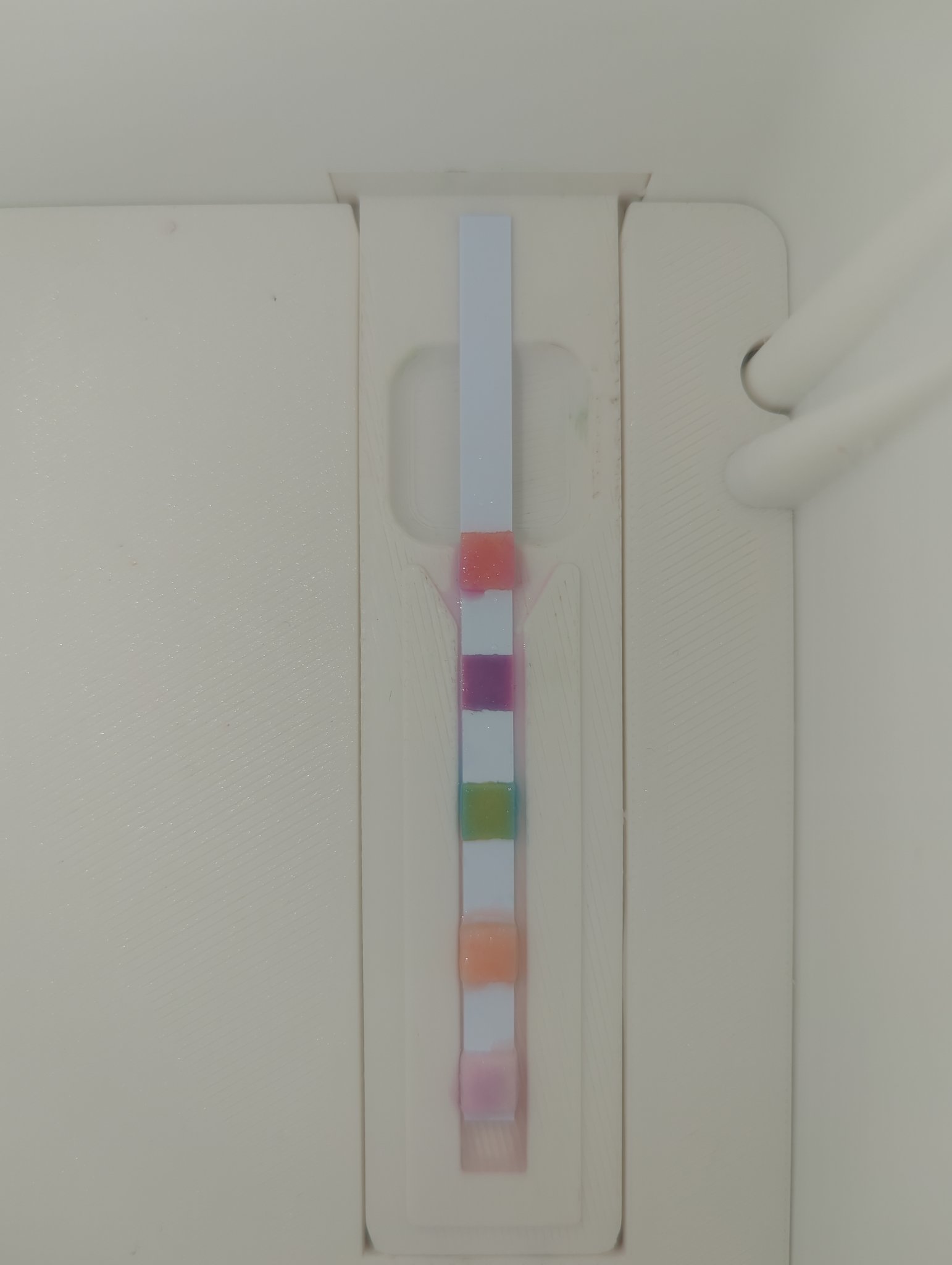

Original frame with sampling overlays for 20260813T000055_cya07.jpg
Original frame + sampling zones
Rectified strip preview for 20260813T000055_cya07.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fe8f8c 45 ppm
Total Hardness #b97aa8 319 ppm
Total Alkalinity #a1b875 42 ppm
pH #ffbf9b 7.1
Free Available Chlorine #fcccd4 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260812T235937_cya07.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T235937_cya07.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fe9192 52 ppm
Total Hardness #c589b4 354 ppm
Total Alkalinity #a6ba7d 43 ppm
pH #ffc19c 7.1
Free Available Chlorine #fecbd6 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260812T235906_cya07.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T235906_cya07.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fe9291 49 ppm
Total Hardness #c382b0 335 ppm
Total Alkalinity #a3ba7f 44 ppm
pH #ffc398 7.0
Free Available Chlorine #feccd6 4 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260812T235905_cya06.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T235905_cya06.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fe9f89 47 ppm
Total Hardness #b979a8 318 ppm
Total Alkalinity #abbe7c 41 ppm
pH #fec29c 7.1
Free Available Chlorine #fbcfd6 3 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260812T235904_cya06.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T235904_cya06.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea292 46 ppm
Total Hardness #c38cb7 359 ppm
Total Alkalinity #9dbc8e 102 ppm
pH #fec7a4 7.1
Free Available Chlorine #fdc1d4 5 ppm


HTH 5-Way Download original

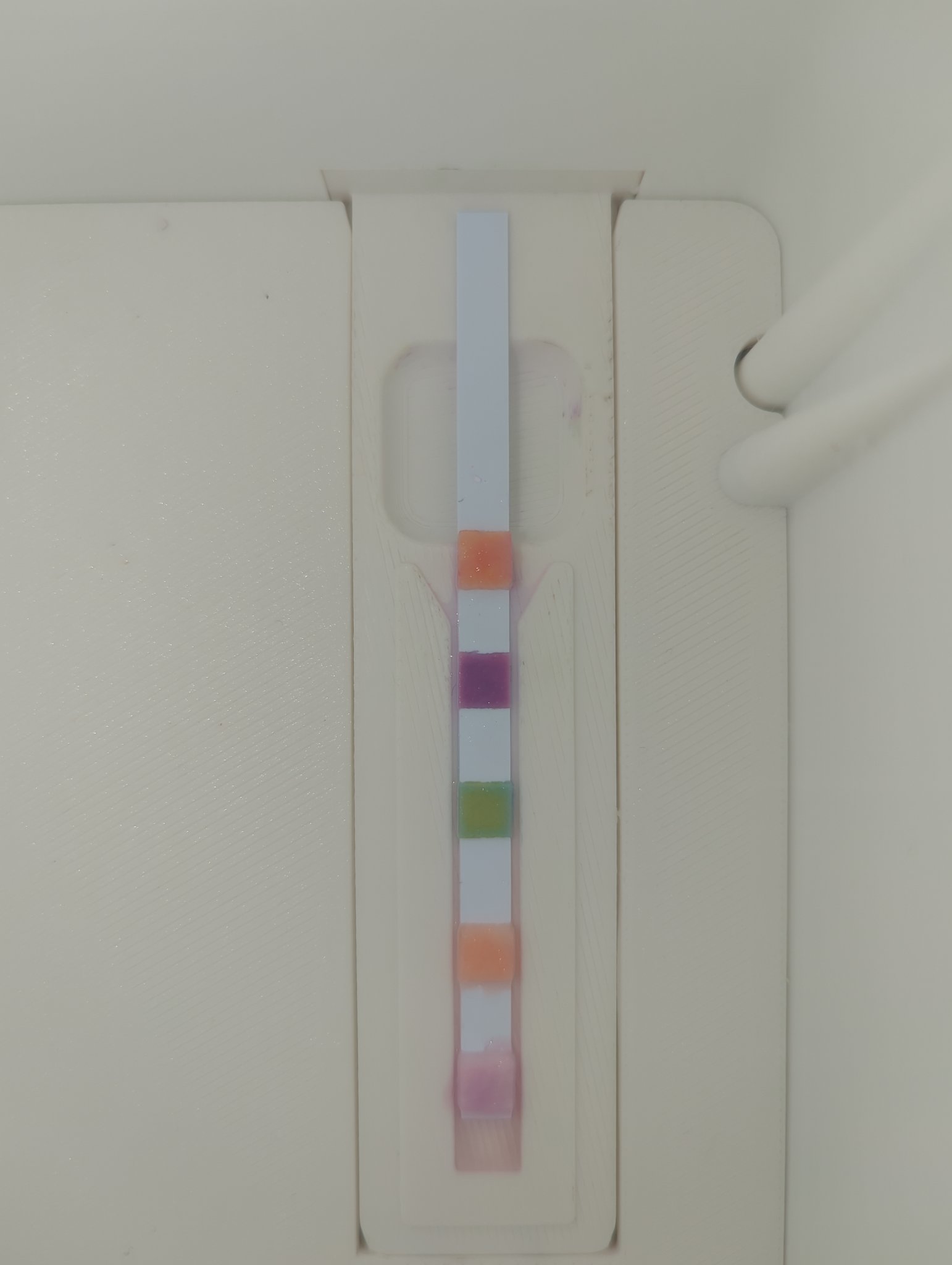

Original frame with sampling overlays for 20260812T235904_cya05.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T235904_cya05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea687 20 ppm
Total Hardness #b87ba9 324 ppm
Total Alkalinity #acbc7b 41 ppm
pH #ffbe9b 7.1
Free Available Chlorine #fcc1d2 6 ppm
