Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Finalize & Log stores each test in the training dataset; if you also ran a LaMotte SpinTouch, click Enter SpinTouch readings to attach the reference values (optional, but that's what makes a capture a labeled training row).

1063 / 10000 captures logged Export JSONL
Test images Recent uploads
Training data
Configure zones

1093 images available


HTH 5-Way Download original
Original frame with sampling overlays for 20260812T235903_cya05.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T235903_cya05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea888 18 ppm
Total Hardness #b572a5 326 ppm
Total Alkalinity #a8be8f 99 ppm
pH #ffc2a1 7.1
Free Available Chlorine #fdc5d9 6 ppm


HTH 5-Way Download original

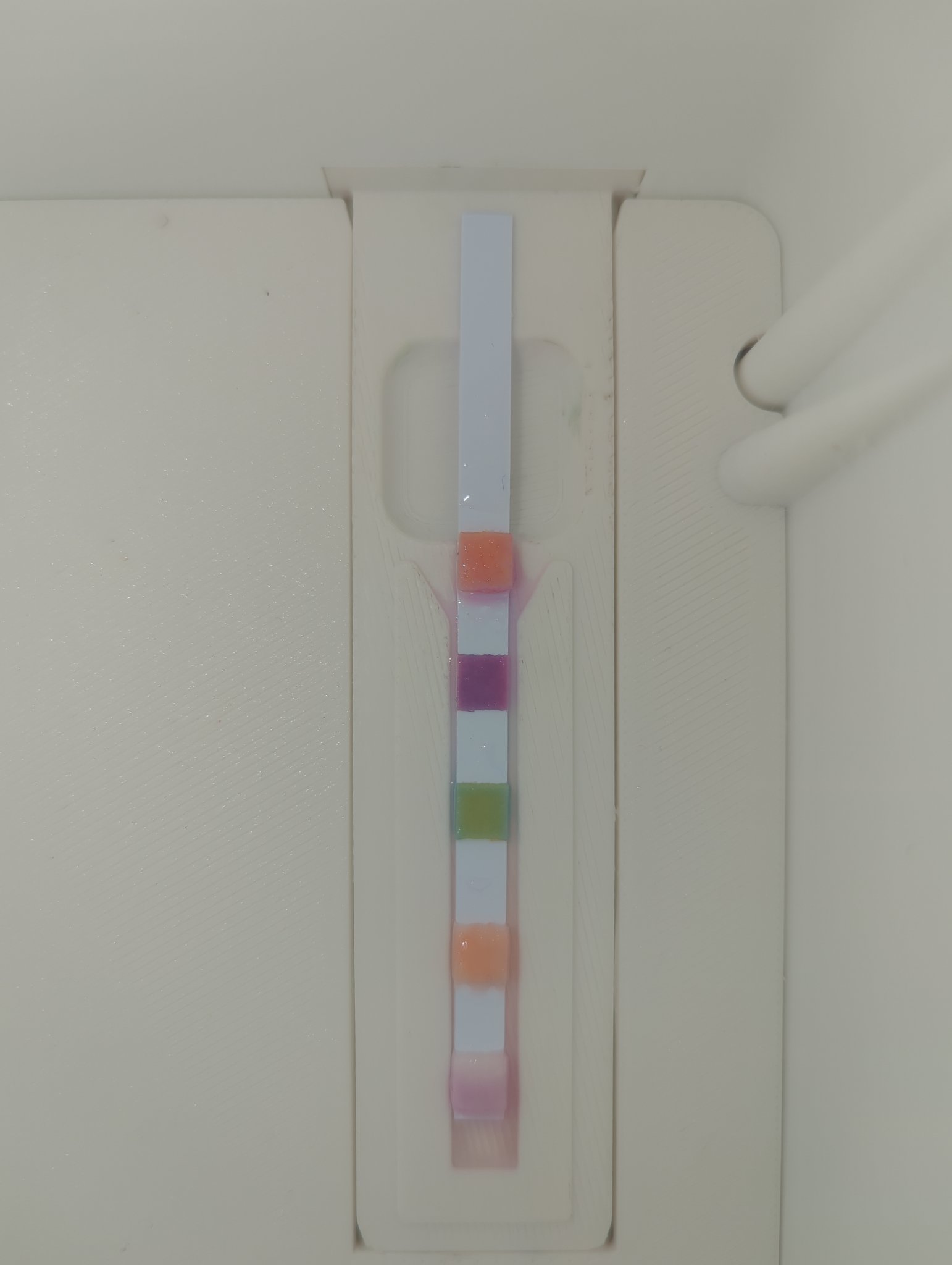

Original frame with sampling overlays for 20260812T235414_cya06.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T235414_cya06.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fe9f89 47 ppm
Total Hardness #b979a8 318 ppm
Total Alkalinity #abbe7c 41 ppm
pH #fec29c 7.1
Free Available Chlorine #fbcfd6 3 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260812T235241_cya06.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T235241_cya06.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea292 46 ppm
Total Hardness #c38cb7 359 ppm
Total Alkalinity #9dbc8e 102 ppm
pH #fec7a4 7.1
Free Available Chlorine #fdc1d4 5 ppm


HTH 5-Way Download original
Original frame with sampling overlays for 20260812T234708_cya05.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T234708_cya05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea687 20 ppm
Total Hardness #b87ba9 324 ppm
Total Alkalinity #acbc7b 41 ppm
pH #ffbe9b 7.1
Free Available Chlorine #fcc1d2 6 ppm


HTH 5-Way Download original

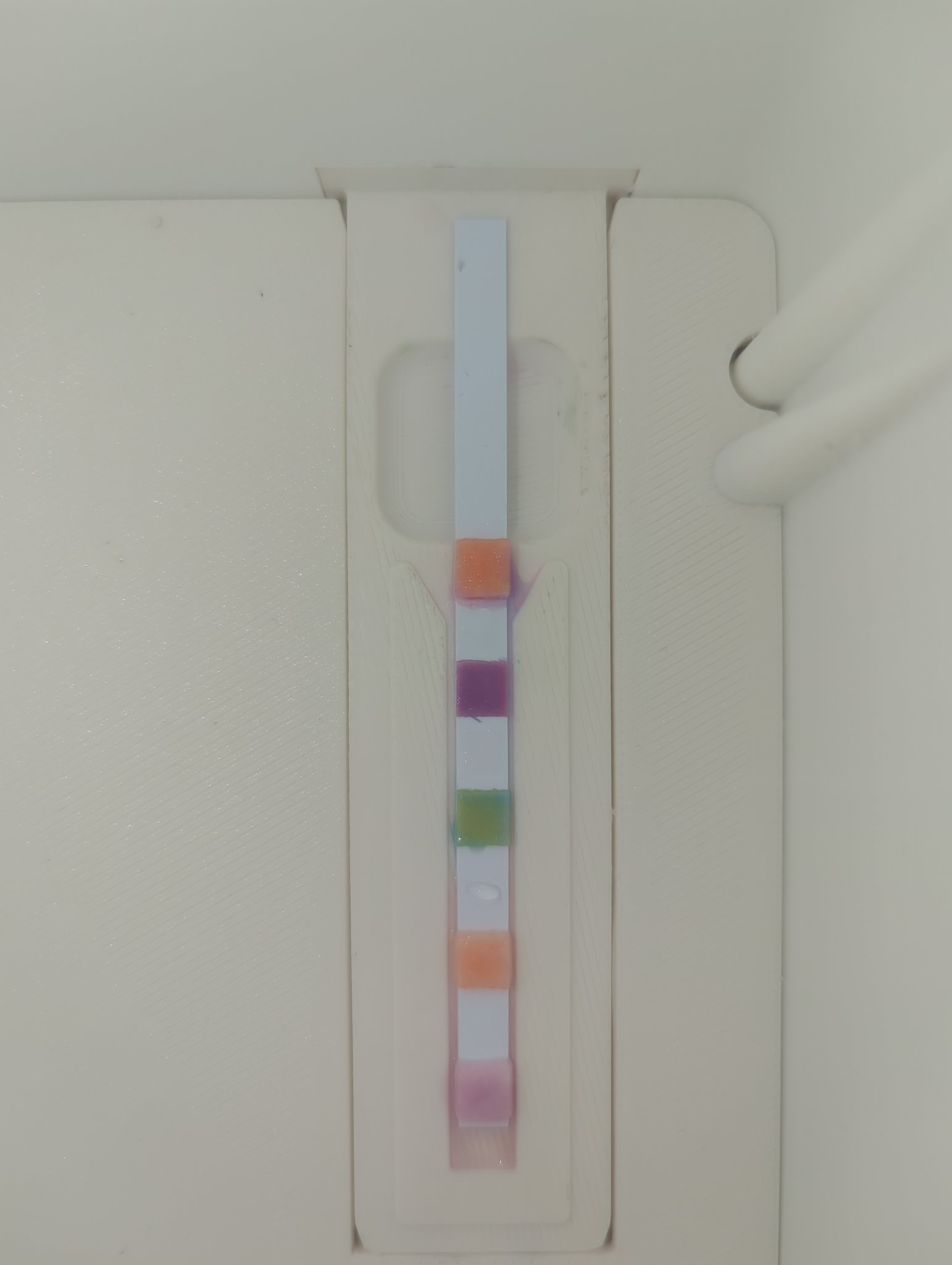

Original frame with sampling overlays for 20260812T234520_cya05.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T234520_cya05.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fea888 18 ppm
Total Hardness #b572a5 326 ppm
Total Alkalinity #a8be8f 99 ppm
pH #ffc2a1 7.1
Free Available Chlorine #fdc5d9 6 ppm


HTH 5-Way Download original

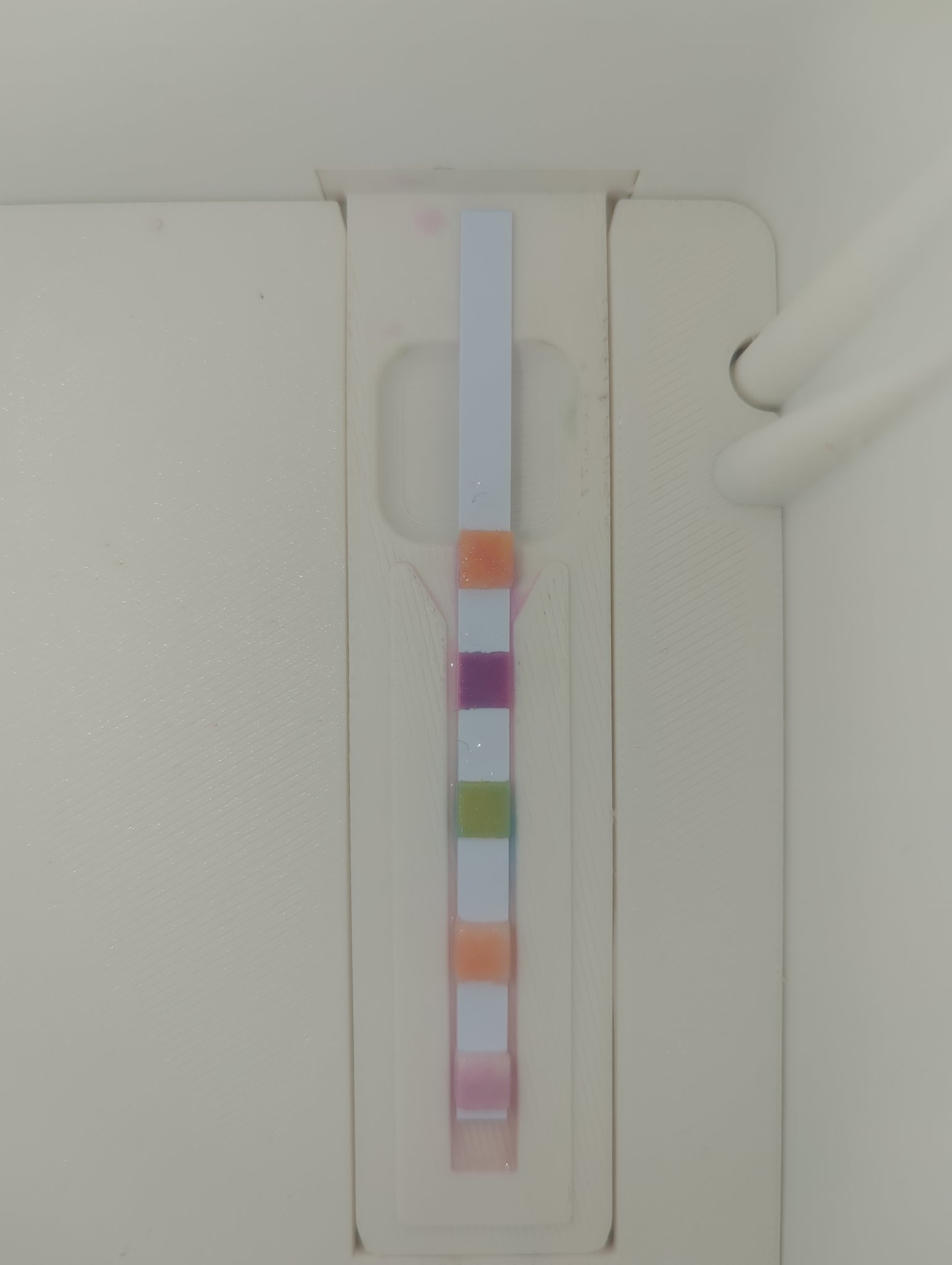

Original frame with sampling overlays for 20260812T234349_cya04.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T234349_cya04.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #feab85 16 ppm
Total Hardness #b87da9 326 ppm
Total Alkalinity #bac179 0 ppm
pH #ffbe98 7.1
Free Available Chlorine #fbc5d1 6 ppm


HTH 5-Way Download original

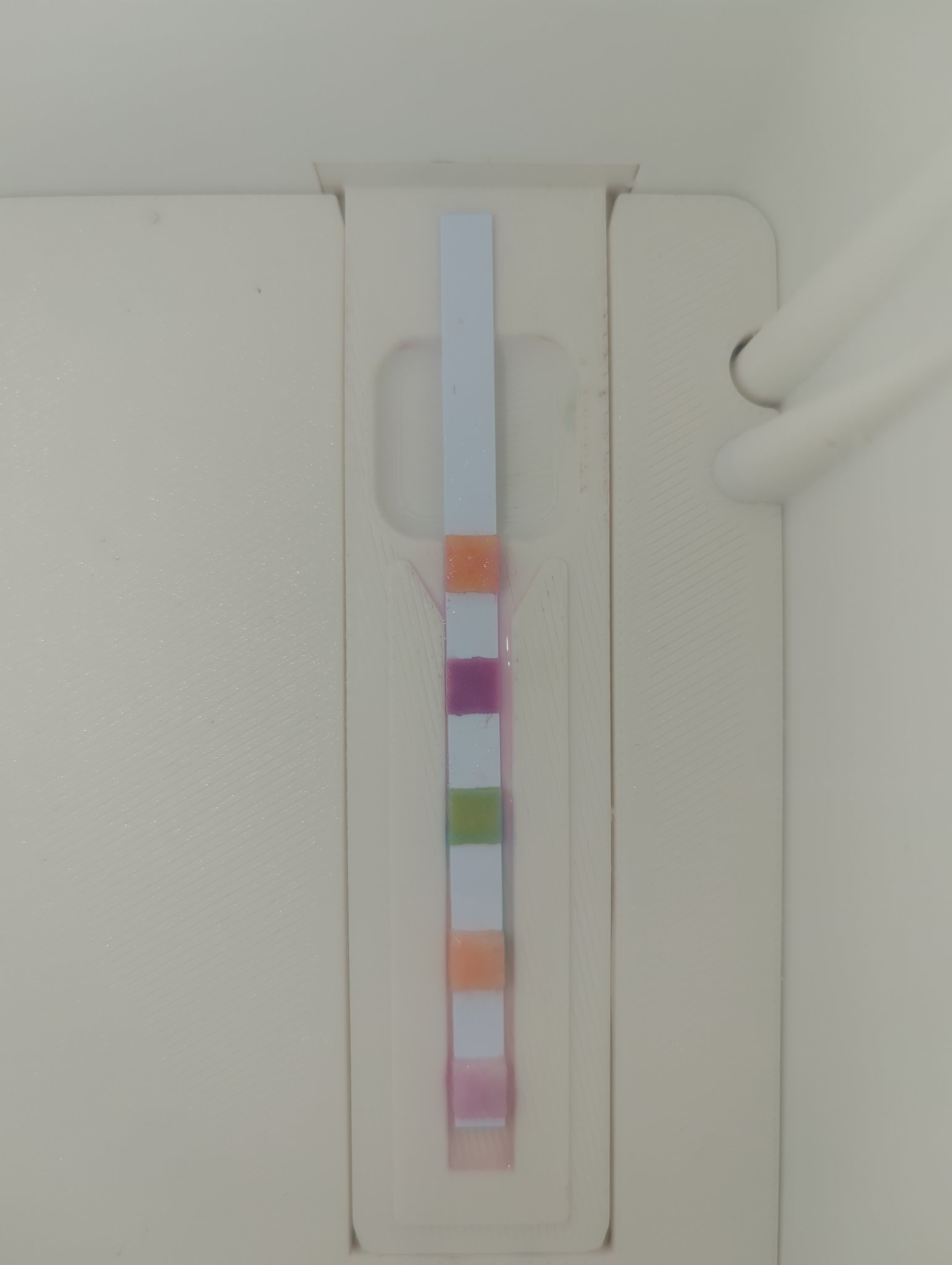

Original frame with sampling overlays for 20260812T234348_cya04.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T234348_cya04.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fcb49a 17 ppm
Total Hardness #d184b5 354 ppm
Total Alkalinity #b7c392 48 ppm
pH #fcc8aa 7.1
Free Available Chlorine #feccde 4 ppm


HTH 5-Way Download original

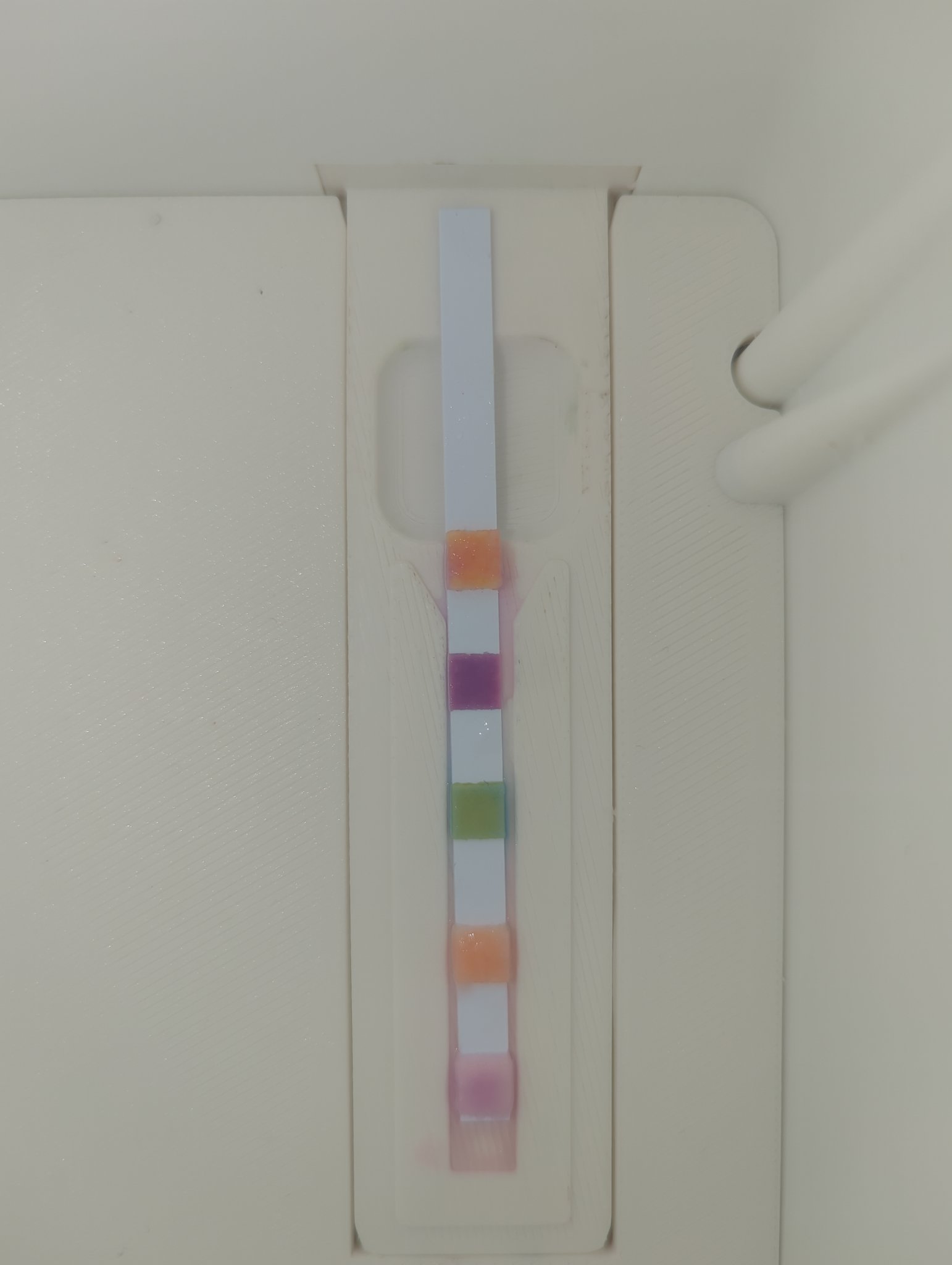

Original frame with sampling overlays for 20260812T234347_cya04.jpg
Original frame + sampling zones
Rectified strip preview for 20260812T234347_cya04.jpg
Rectified strip (analysis plane)
Pad Server swatch AquaScan SpinTouch (truth)
Cyanuric Acid #fdb591 14 ppm
Total Hardness #c48bb9 358 ppm
Total Alkalinity #aac28e 97 ppm
pH #ffc69e 7.0
Free Available Chlorine #fcc5db 5 ppm
