Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Use the results to tune the thresholds or export the raw RGB/HSV values for calibration.

Test images Recent uploads
Configure zones

676 images available


Download original

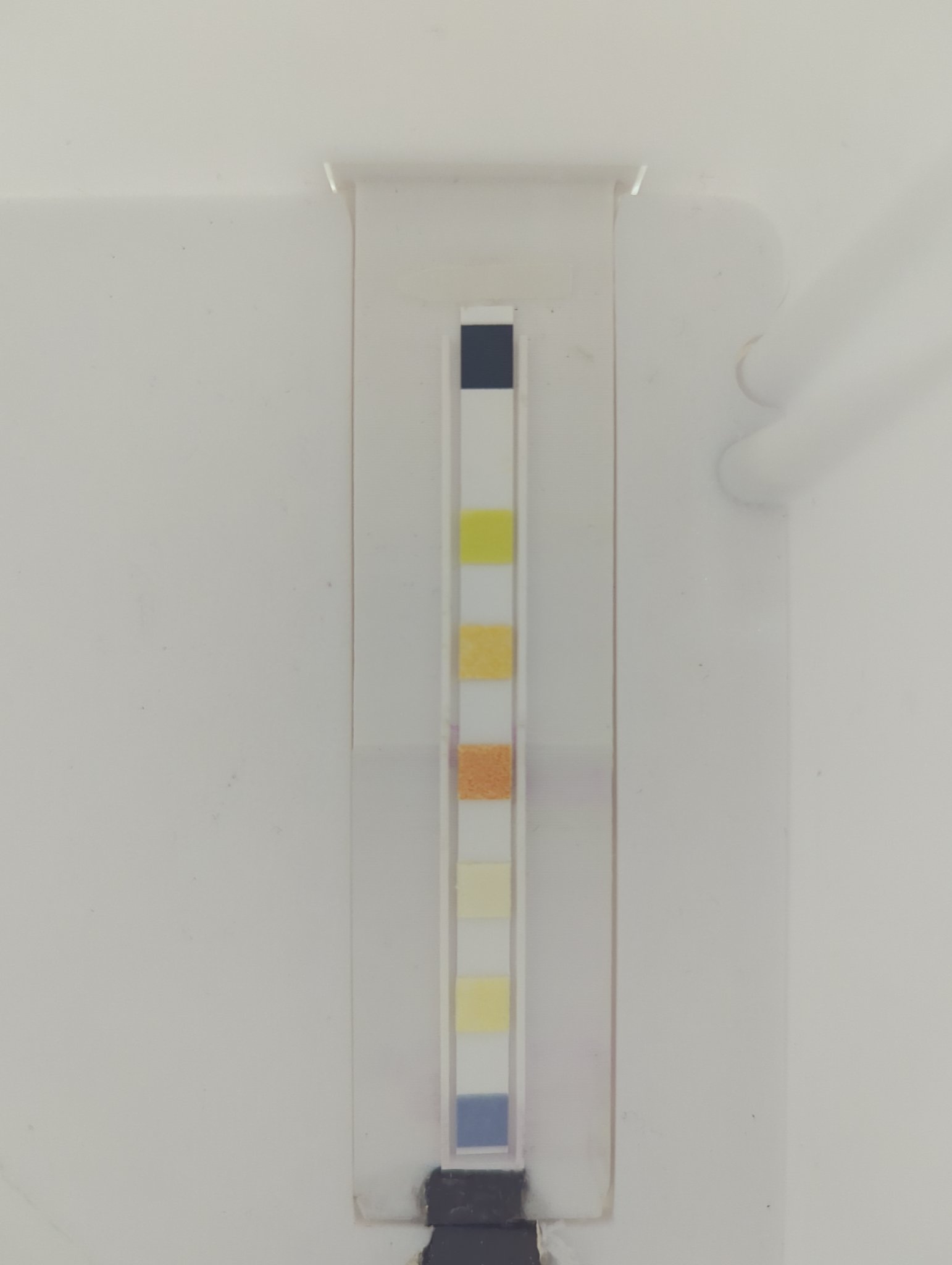

Original frame with sampling overlays for 20260615T141947_test-2.jpg
Original frame + sampling zones
Rectified strip preview for 20260615T141947_test-2.jpg
Rectified strip (analysis plane)
Pad Server swatch Server RGB Results
Stabilizer #eae635 (234, 231, 54) 0 ppm
Total Alkalinity #fcda58 (252, 219, 89) 0 ppm
pH #f1a24b (242, 162, 75) 6.4
Free Chlorine #fdfbd8 (254, 251, 217) 0 ppm
Total Chlorine #fefeb3 (255, 254, 179) 0 ppm
Total Hardness #8795be (136, 150, 190) 100 ppm


Download original

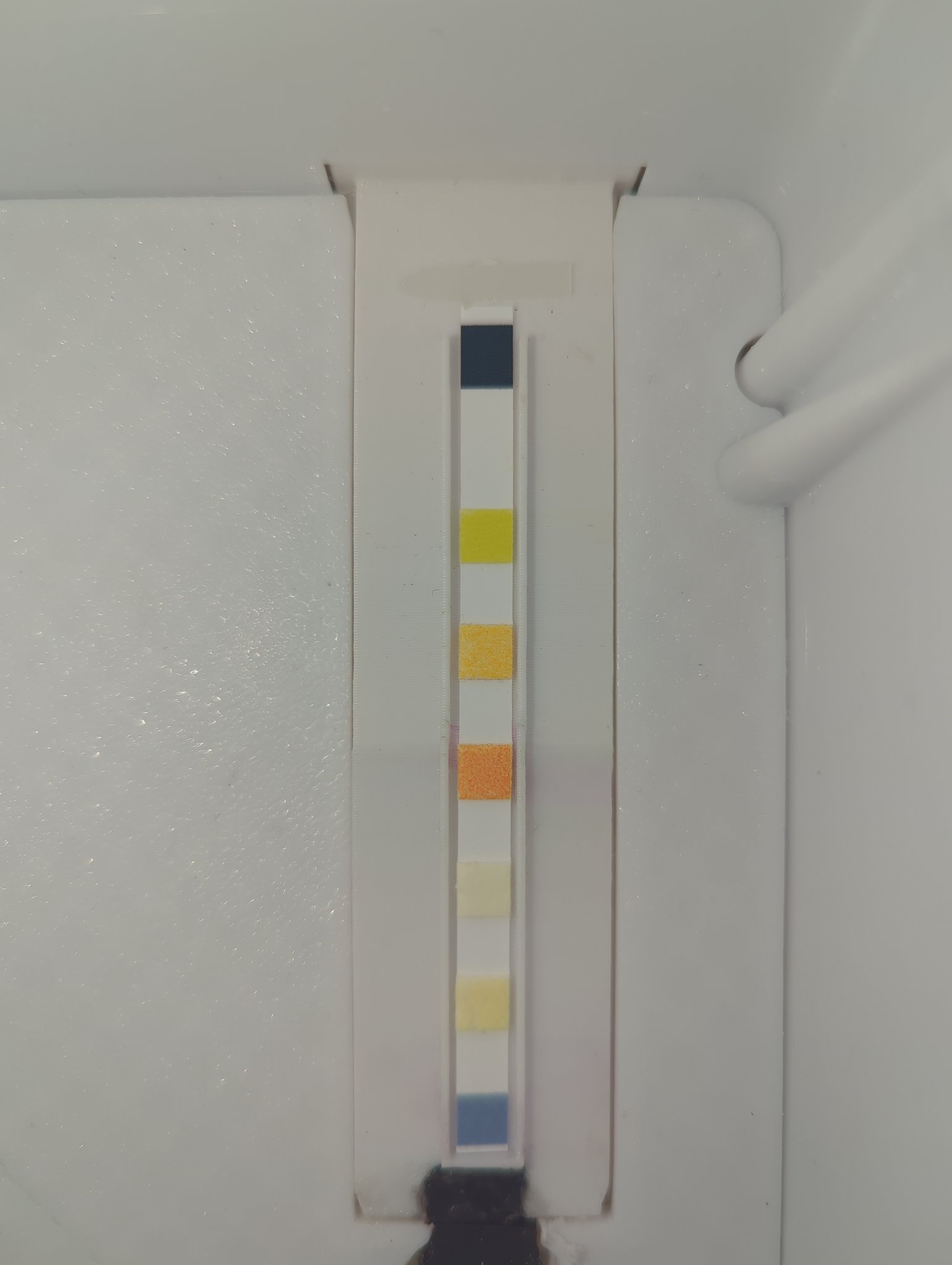

Original frame with sampling overlays for 20260615T141847_test.jpg
Original frame + sampling zones
Rectified strip preview for 20260615T141847_test.jpg
Rectified strip (analysis plane)
Pad Server swatch Server RGB Results
Stabilizer #f1e409 (242, 228, 9) 0 ppm
Total Alkalinity #fed738 (255, 215, 56) 0 ppm
pH #fea63e (254, 167, 62) 6.4
Free Chlorine #fef7ce (255, 248, 207) 0 ppm
Total Chlorine #fef5a5 (255, 245, 166) 0 ppm
Total Hardness #7d8dae (125, 142, 174) 77 ppm


Download original
Original frame with sampling overlays for 20260612T145304_testing_app.jpg
Original frame + sampling zones
Rectified strip preview for 20260612T145304_testing_app.jpg
Rectified strip (analysis plane)
Pad Server swatch Server RGB Results
Stabilizer #d6bc60 (214, 189, 96) 0 ppm
Total Alkalinity #a3b973 (164, 186, 116) 66 ppm
pH #d14187 (209, 65, 136) 8.4
Free Chlorine #f1f0c8 (241, 240, 201) 0 ppm
Total Chlorine #f7efbf (248, 240, 191) 0 ppm
Total Hardness #7d88ad (125, 137, 174) 100 ppm


Download original
Original frame with sampling overlays for 20260612T135838_53wintqt.jpg
Original frame + sampling zones
Rectified strip preview for 20260612T135838_53wintqt.jpg
Rectified strip (analysis plane)
Pad Server swatch Server RGB Results
Free Chlorine #434343 (67, 67, 67) 10 ppm
Total Chlorine #454545 (69, 69, 69) 10 ppm
pH #484848 (72, 72, 72) 8.4
Total Alkalinity #464646 (71, 71, 71) 240 ppm
Cyanuric Acid #464646 (70, 70, 70) 300 ppm
Total Hardness #425442 (66, 84, 66) 0 ppm


Download original
Original frame with sampling overlays for 20260612T093543_tale.jpg
Original frame + sampling zones
Rectified strip preview for 20260612T093543_tale.jpg
Rectified strip (analysis plane)
Pad Server swatch Server RGB Results
Stabilizer #d4b76b (212, 184, 107) 0 ppm
Total Alkalinity #a5b979 (166, 186, 122) 67 ppm
pH #d23e8d (210, 62, 142) 8.4
Free Chlorine #f8f4c6 (249, 244, 199) 0 ppm
Total Chlorine #fbf3c0 (252, 244, 193) 0 ppm
Total Hardness #808bb1 (128, 139, 177) 100 ppm


Download original
Original frame with sampling overlays for 20260612T091136_test.jpg
Original frame + sampling zones
Rectified strip preview for 20260612T091136_test.jpg
Rectified strip (analysis plane)
Pad Server swatch Server RGB Results
Stabilizer #e8b764 (232, 183, 100) 0 ppm
Total Alkalinity #acb768 (173, 184, 105) 30 ppm
pH #f95893 (250, 89, 147) 8.4
Free Chlorine #fef8c4 (255, 249, 197) 0 ppm
Total Chlorine #fef1b7 (255, 242, 183) 0 ppm
Total Hardness #7b88ac (124, 137, 173) 100 ppm


Download original
Original frame with sampling overlays for 20260611T112711_test.jpg
Original frame + sampling zones
Rectified strip preview for 20260611T112711_test.jpg
Rectified strip (analysis plane)
Pad Server swatch Server RGB Results
Stabilizer #e88140 (233, 129, 64) 37 ppm
Total Alkalinity #588353 (89, 131, 84) 148 ppm
pH #fe6969 (254, 105, 106) 8.0
Free Chlorine #f7f0d6 (248, 240, 215) 0 ppm
Total Chlorine #fde8a5 (254, 233, 165) 0 ppm
Total Hardness #686496 (105, 100, 151) 175 ppm


Download original
Original frame with sampling overlays for 20260611T112556_test.jpg
Original frame + sampling zones
Rectified strip preview for 20260611T112556_test.jpg
Rectified strip (analysis plane)
Pad Server swatch Server RGB Results
Stabilizer #ea8c35 (235, 140, 54) 31 ppm
Total Alkalinity #5b854e (92, 134, 78) 240 ppm
pH #fe6757 (255, 103, 87) 7.6
Free Chlorine #f7efd7 (248, 240, 215) 0 ppm
Total Chlorine #fce8a5 (253, 232, 165) 0 ppm
Total Hardness #676396 (103, 99, 151) 171 ppm
