Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Use the results to tune the thresholds or export the raw RGB/HSV values for calibration.

← Back to capture screen

Test images Recent uploads
Configure zones

383 images available


Download original

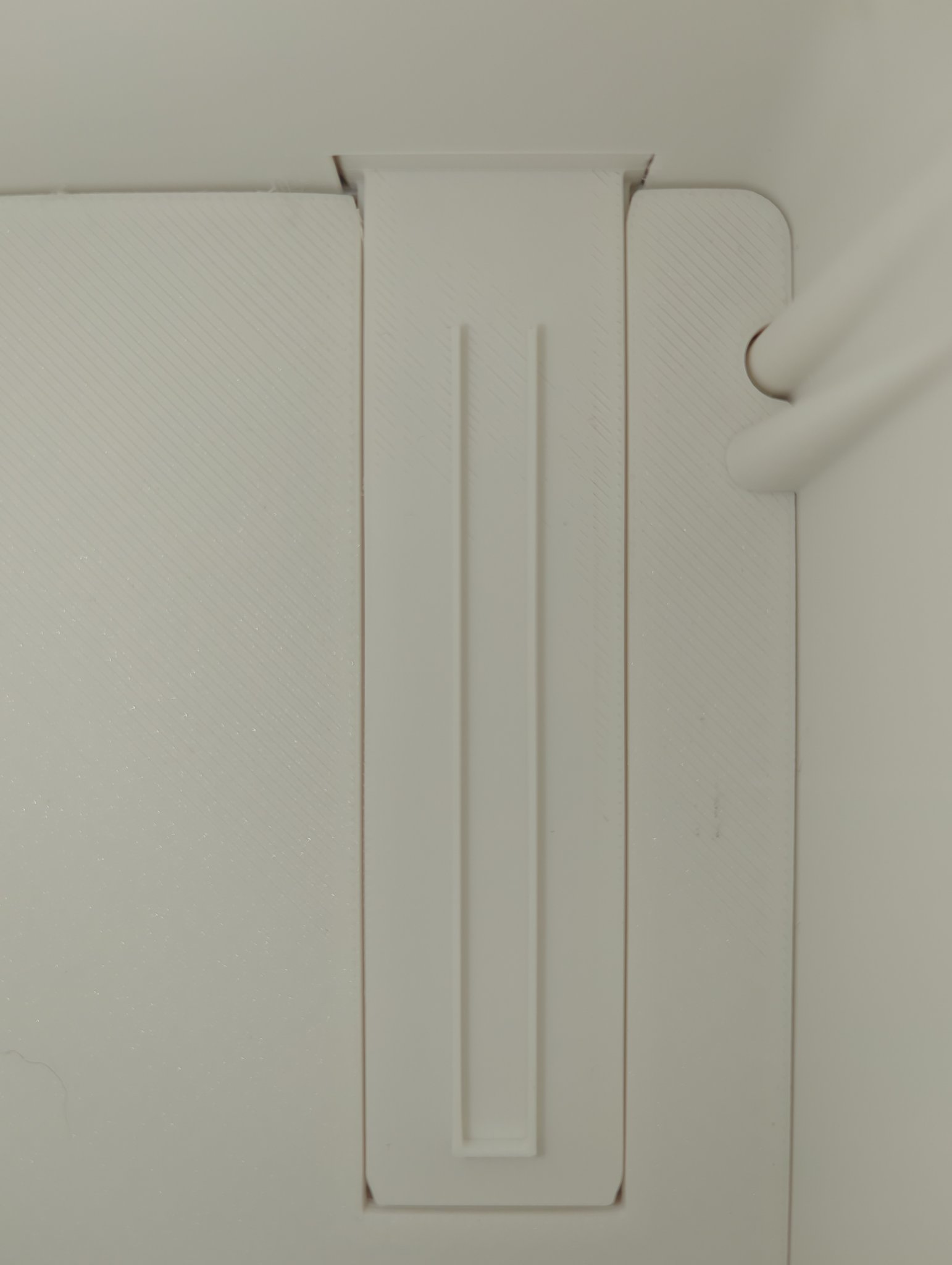

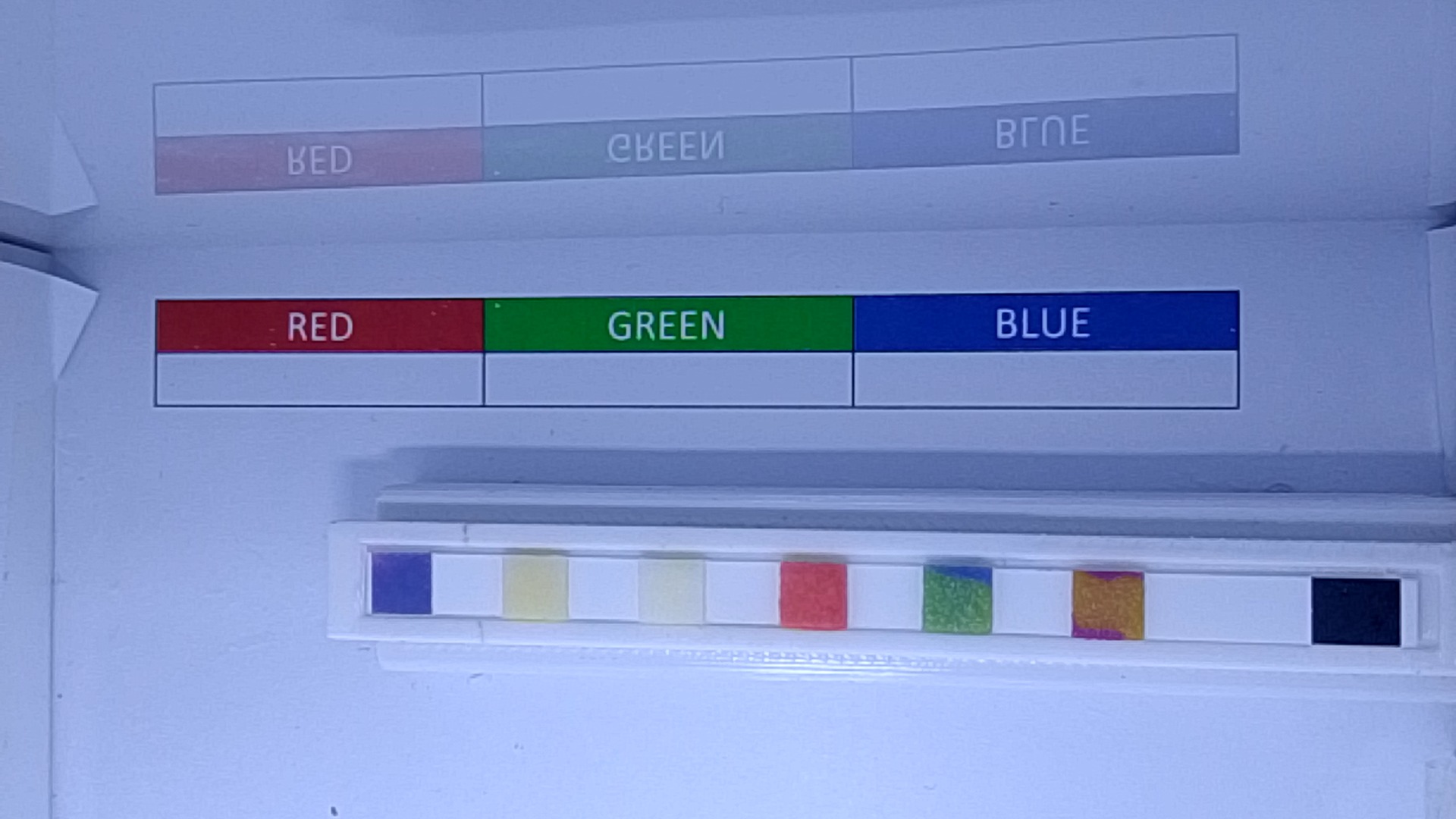

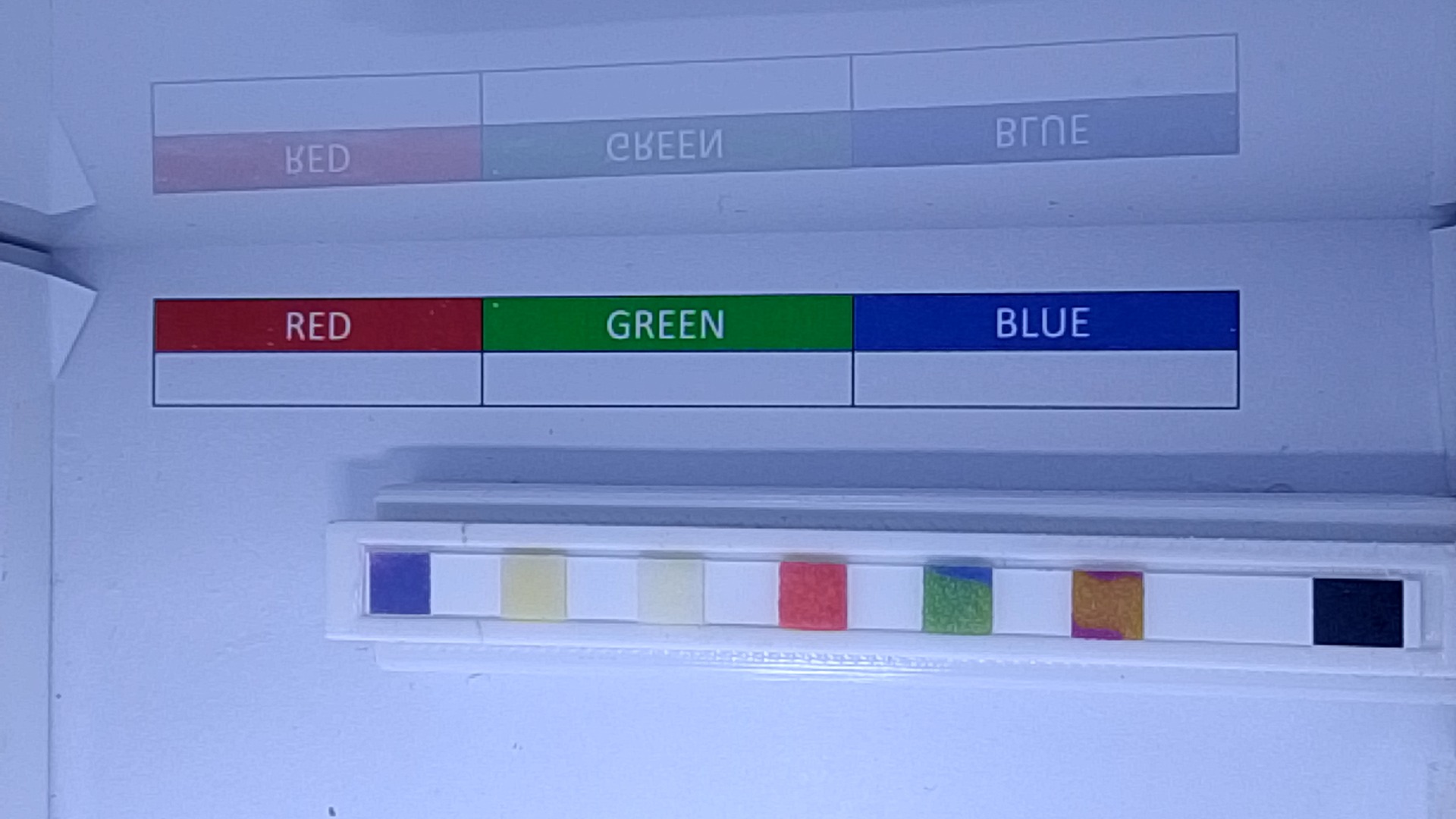

Original frame with sampling overlays for 20251226T094226_094ccb13dfce42fd8aa3df9bdb6b95f2.jpg
Original frame + sampling zones
Rectified strip preview for 20251226T094226_094ccb13dfce42fd8aa3df9bdb6b95f2.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #b0c1f2 (177, 193, 242) (113, 68, 242) 3 ppm (42% confidence) (969, 766) → (979, 772)
Total Chlorine #aec2f5 (174, 194, 245) (112, 74, 245) 10 ppm (13% confidence) (787, 766) → (796, 772)
pH #abbced (172, 189, 237) (113, 71, 237) 6.2 (3% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #a5b7eb (165, 184, 235) (112, 76, 235) 120 ppm (9% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #a2b2e4 (162, 178, 228) (113, 74, 228) 0 ppm (4% confidence) (1555, 766) → (1564, 772)
Total Hardness #a9bdef (170, 190, 240) (111, 74, 240) 100 ppm (5% confidence) (595, 766) → (604, 772)


Download original

Original frame with sampling overlays for 20251226T094220_9f4038277ec04e8a924d38ba07e4ba80.jpg
Original frame + sampling zones
Rectified strip preview for 20251226T094220_9f4038277ec04e8a924d38ba07e4ba80.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #adc0f1 (174, 192, 242) (112, 72, 242) 3 ppm (42% confidence) (969, 766) → (979, 772)
Total Chlorine #adc2f6 (173, 194, 247) (112, 76, 247) 10 ppm (13% confidence) (787, 766) → (796, 772)
pH #a9bdf0 (169, 189, 240) (112, 75, 240) 6.2 (3% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #a4b8ea (164, 184, 235) (112, 77, 235) 120 ppm (9% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #a0b4e7 (160, 180, 231) (112, 78, 231) 0 ppm (4% confidence) (1555, 766) → (1564, 772)
Total Hardness #aabef1 (171, 191, 242) (112, 75, 242) 100 ppm (5% confidence) (595, 766) → (604, 772)


Download original

Original frame with sampling overlays for 20251226T094215_1cf79a67663144fc86ae9fb935e6aaea.jpg
Original frame + sampling zones
Rectified strip preview for 20251226T094215_1cf79a67663144fc86ae9fb935e6aaea.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #aec0f0 (174, 193, 240) (112, 70, 240) 3 ppm (42% confidence) (969, 766) → (979, 772)
Total Chlorine #acc2f4 (173, 194, 244) (111, 75, 244) 10 ppm (14% confidence) (787, 766) → (796, 772)
pH #a9bdf0 (170, 190, 241) (112, 75, 241) 6.2 (3% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #a3b7e9 (164, 184, 234) (111, 76, 234) 120 ppm (10% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #9fb3e6 (160, 180, 231) (112, 78, 231) 0 ppm (4% confidence) (1555, 766) → (1564, 772)
Total Hardness #abbff4 (171, 191, 244) (112, 76, 244) 100 ppm (5% confidence) (595, 766) → (604, 772)


Download original

Original frame with sampling overlays for 20251226T094209_e14965e53de5496d8dd57465f32ca097.jpg
Original frame + sampling zones
Rectified strip preview for 20251226T094209_e14965e53de5496d8dd57465f32ca097.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #afc0f0 (176, 192, 241) (113, 69, 241) 3 ppm (43% confidence) (969, 766) → (979, 772)
Total Chlorine #aec2f5 (174, 194, 245) (112, 74, 245) 10 ppm (13% confidence) (787, 766) → (796, 772)
pH #acbeef (172, 190, 239) (112, 71, 239) 6.2 (3% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #a2b6e9 (163, 183, 234) (112, 78, 234) 120 ppm (10% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #a1b2e2 (162, 178, 227) (113, 73, 227) 0 ppm (4% confidence) (1555, 766) → (1564, 772)
Total Hardness #abbff2 (172, 192, 243) (112, 75, 243) 100 ppm (5% confidence) (595, 766) → (604, 772)


Download original

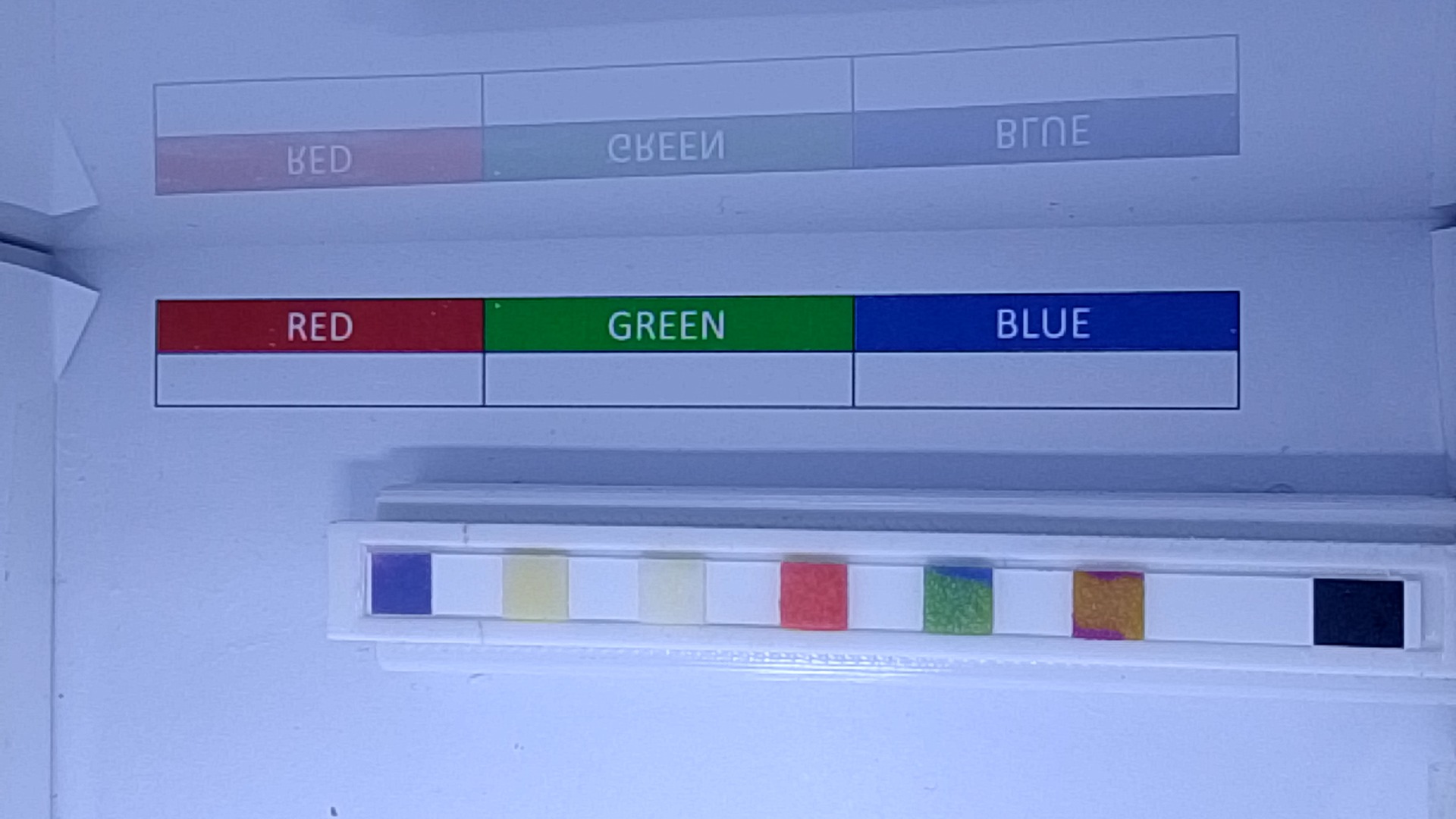

Original frame with sampling overlays for 20251226T094203_0c493309e0524c30aeab9bdbe5ba2ede.jpg
Original frame + sampling zones
Rectified strip preview for 20251226T094203_0c493309e0524c30aeab9bdbe5ba2ede.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #adc1f3 (173, 193, 244) (112, 74, 244) 3 ppm (41% confidence) (969, 766) → (979, 772)
Total Chlorine #adc2f6 (173, 194, 247) (112, 76, 247) 10 ppm (13% confidence) (787, 766) → (796, 772)
pH #a8bcef (168, 188, 239) (112, 76, 239) 6.2 (3% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #a4b8ea (164, 184, 234) (111, 76, 234) 120 ppm (10% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #a0b4e7 (161, 180, 231) (112, 78, 231) 0 ppm (4% confidence) (1555, 766) → (1564, 772)
Total Hardness #abbff2 (171, 191, 242) (112, 75, 242) 100 ppm (5% confidence) (595, 766) → (604, 772)


Download original

Original frame with sampling overlays for 20251226T094157_096a58d15d134c7ab381e3c1c372d5c5.jpg
Original frame + sampling zones
Rectified strip preview for 20251226T094157_096a58d15d134c7ab381e3c1c372d5c5.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #b0c0f1 (177, 193, 242) (113, 69, 242) 3 ppm (43% confidence) (969, 766) → (979, 772)
Total Chlorine #adc1f4 (173, 193, 244) (112, 74, 244) 10 ppm (13% confidence) (787, 766) → (796, 772)
pH #acbeee (172, 190, 238) (112, 71, 238) 6.2 (3% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #a3b7e9 (164, 184, 234) (111, 76, 234) 120 ppm (10% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #a2b3e3 (162, 180, 228) (112, 73, 228) 0 ppm (4% confidence) (1555, 766) → (1564, 772)
Total Hardness #abbff2 (171, 191, 242) (112, 75, 242) 100 ppm (5% confidence) (595, 766) → (604, 772)


Download original

Original frame with sampling overlays for 20251226T094151_79031d4ebea24117a1ca5caf007d91f5.jpg
Original frame + sampling zones
Rectified strip preview for 20251226T094151_79031d4ebea24117a1ca5caf007d91f5.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #adc1f1 (174, 194, 241) (111, 72, 241) 3 ppm (41% confidence) (969, 766) → (979, 772)
Total Chlorine #abc0f2 (171, 193, 243) (111, 75, 243) 10 ppm (13% confidence) (787, 766) → (796, 772)
pH #abbded (172, 189, 238) (112, 71, 238) 6.2 (3% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #a4b8ea (164, 184, 235) (112, 77, 235) 120 ppm (10% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #9fb3e6 (160, 179, 230) (112, 78, 230) 0 ppm (4% confidence) (1555, 766) → (1564, 772)
Total Hardness #a8bcef (168, 188, 240) (112, 76, 240) 100 ppm (6% confidence) (595, 766) → (604, 772)


Download original

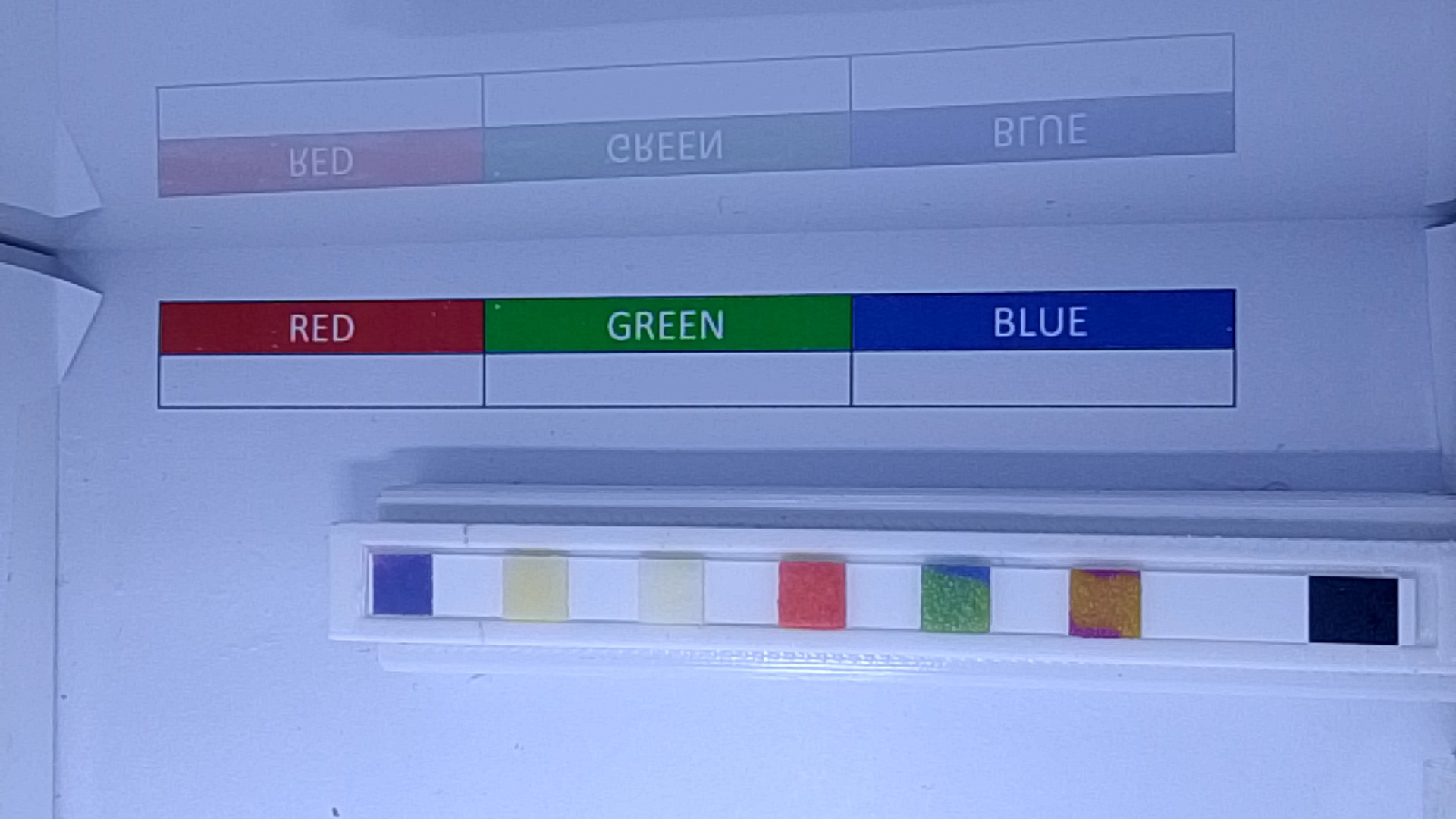

Original frame with sampling overlays for 20251226T094144_f41ba41020bb4ea6906c78bf6105a269.jpg
