Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Use the results to tune the thresholds or export the raw RGB/HSV values for calibration.

← Back to capture screen

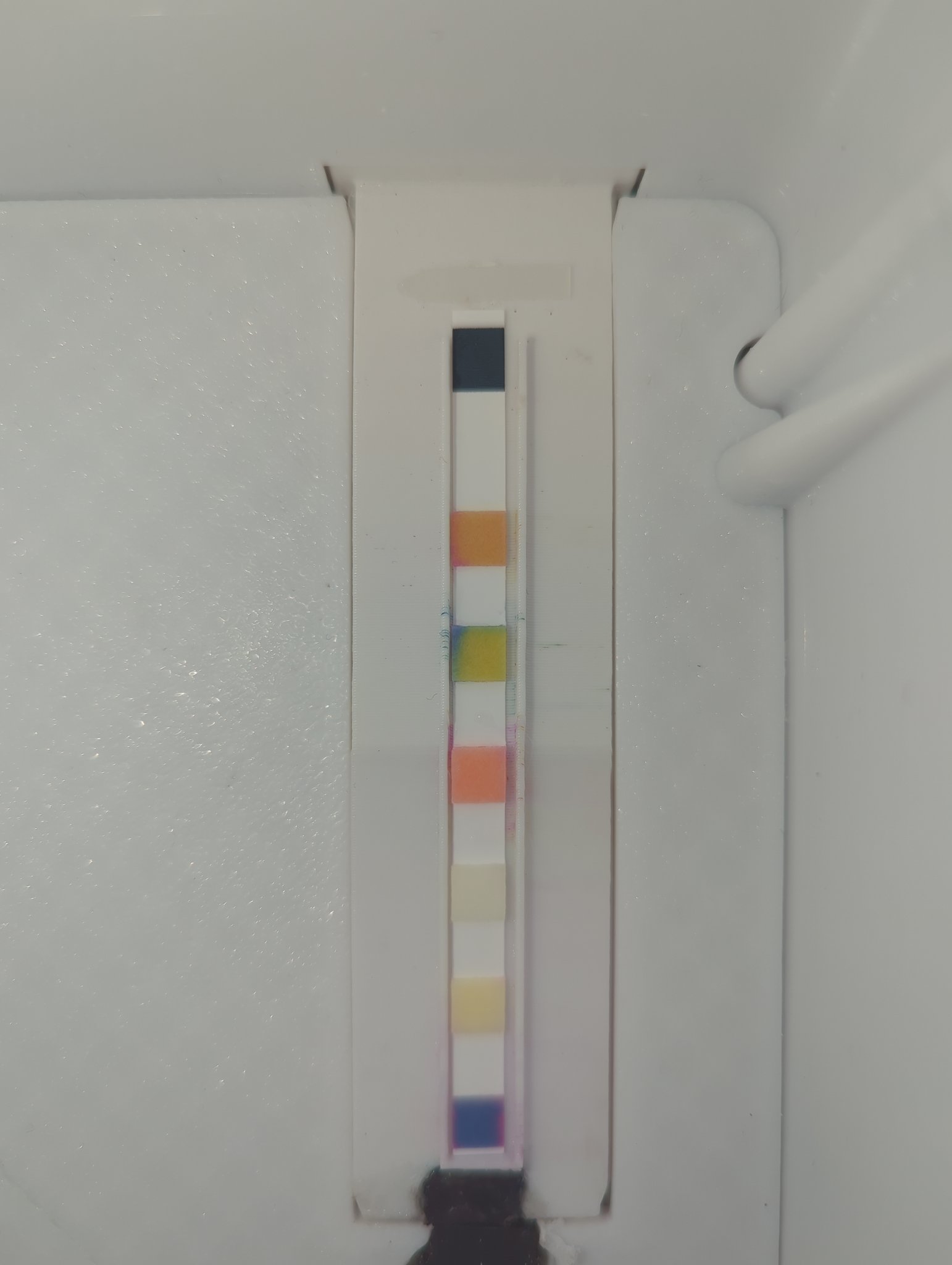

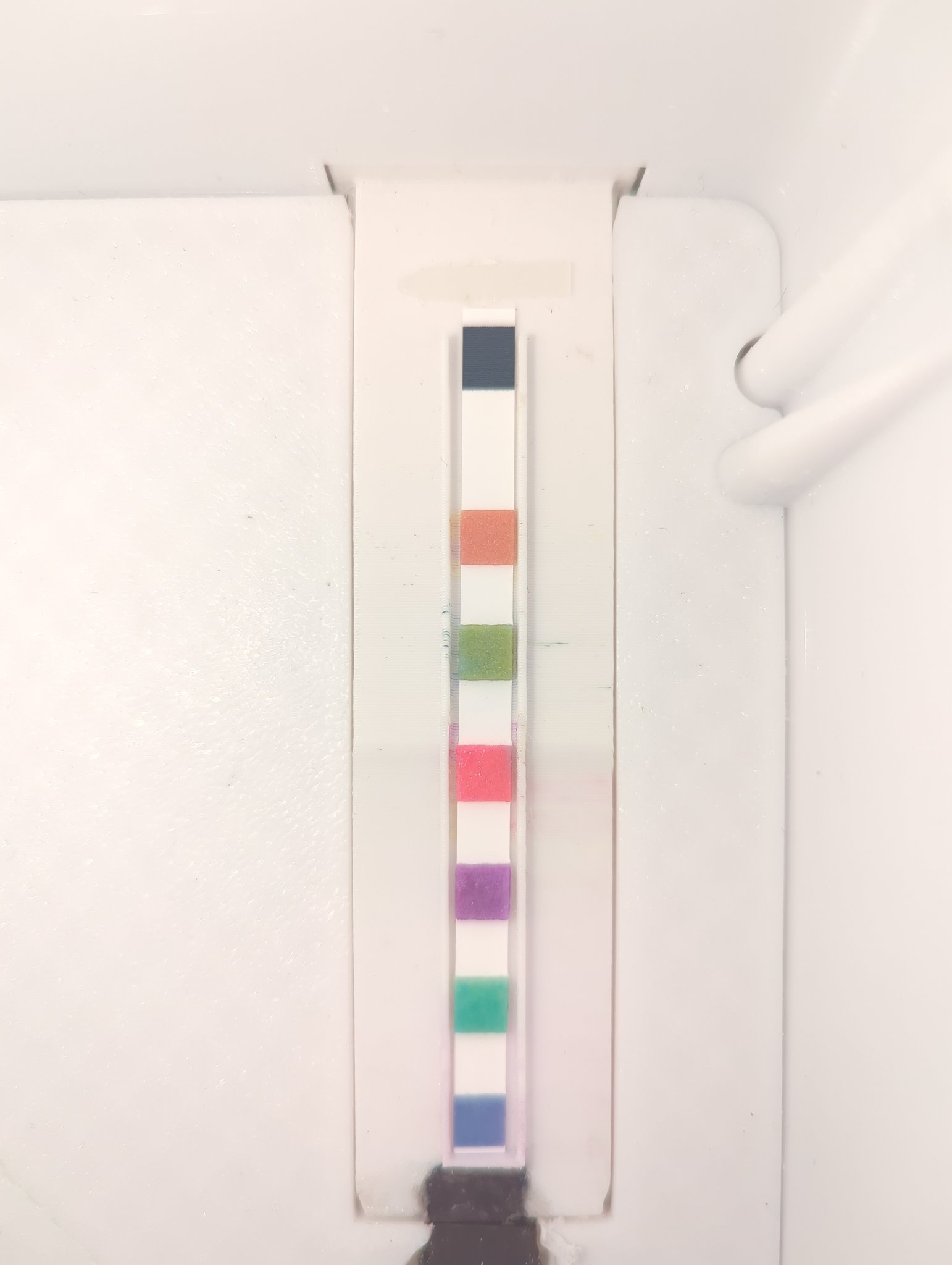

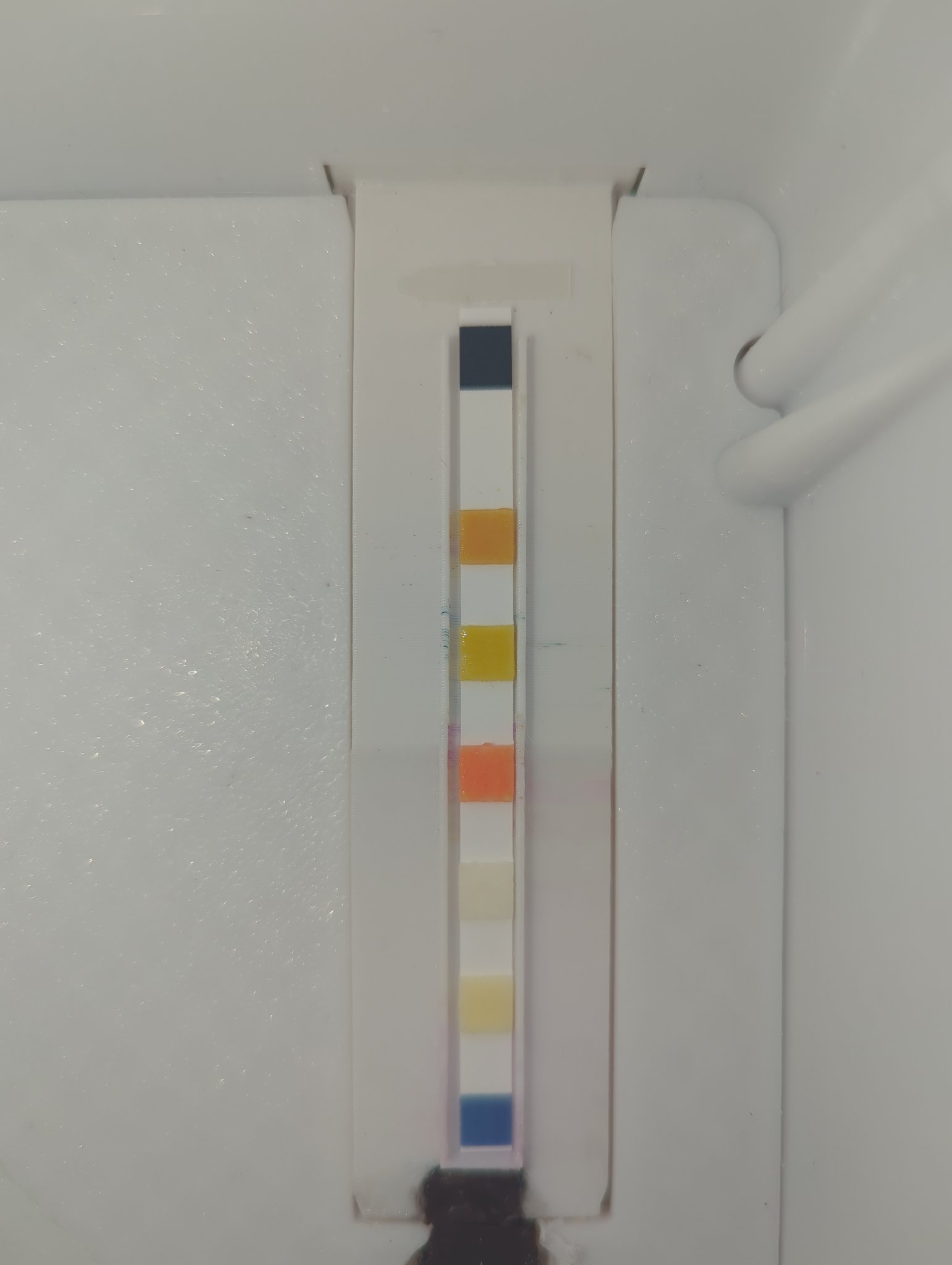

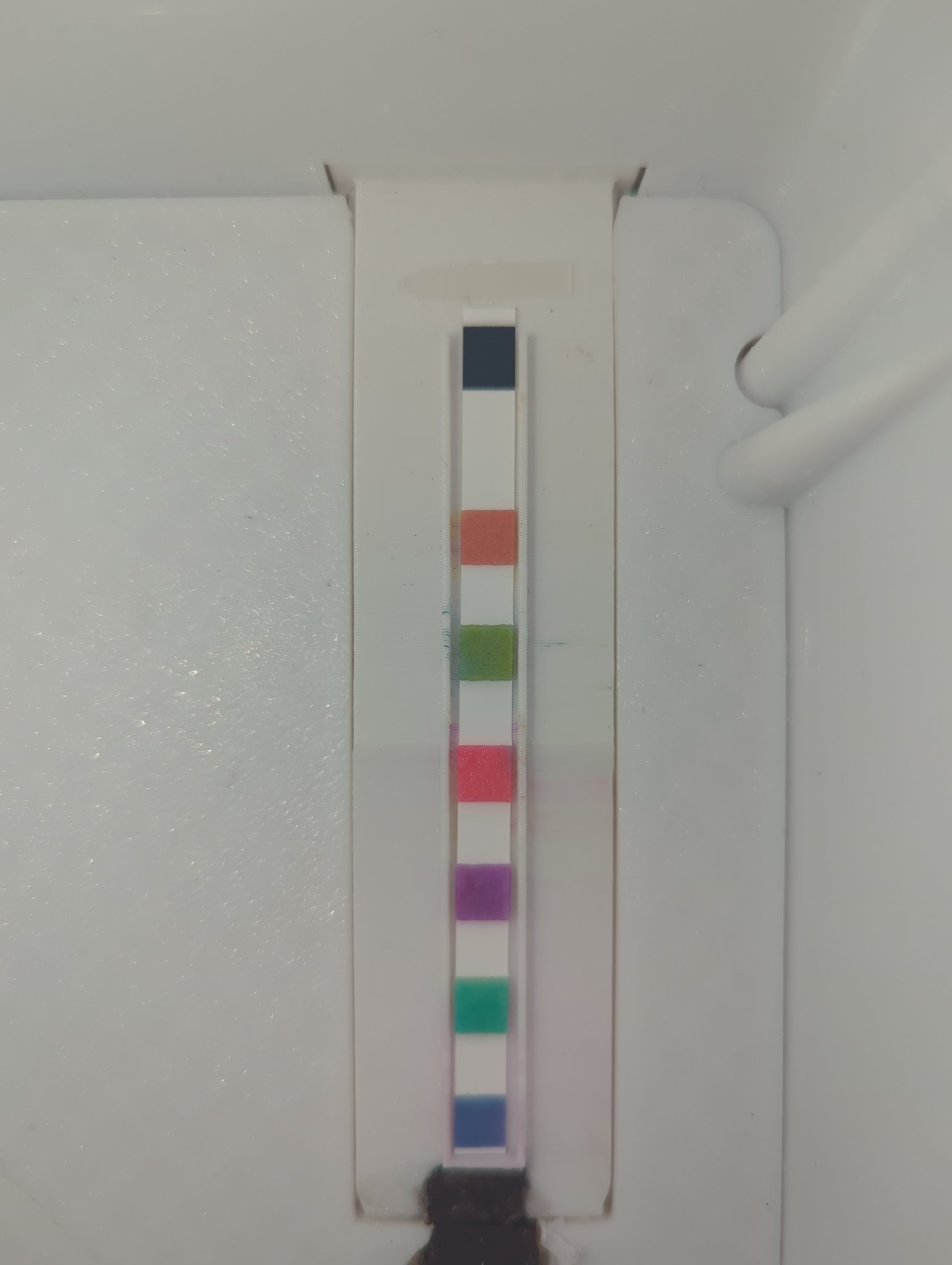

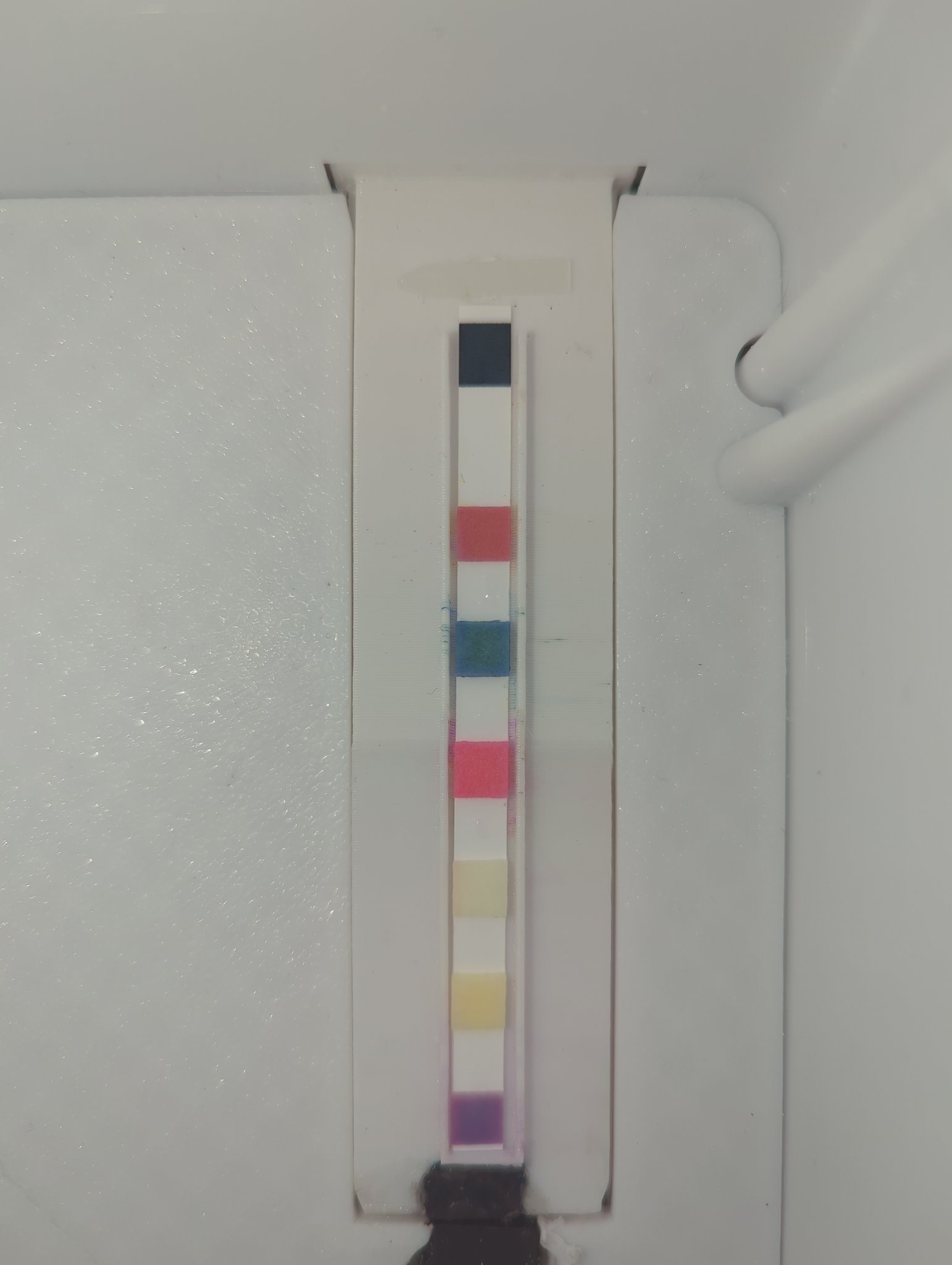

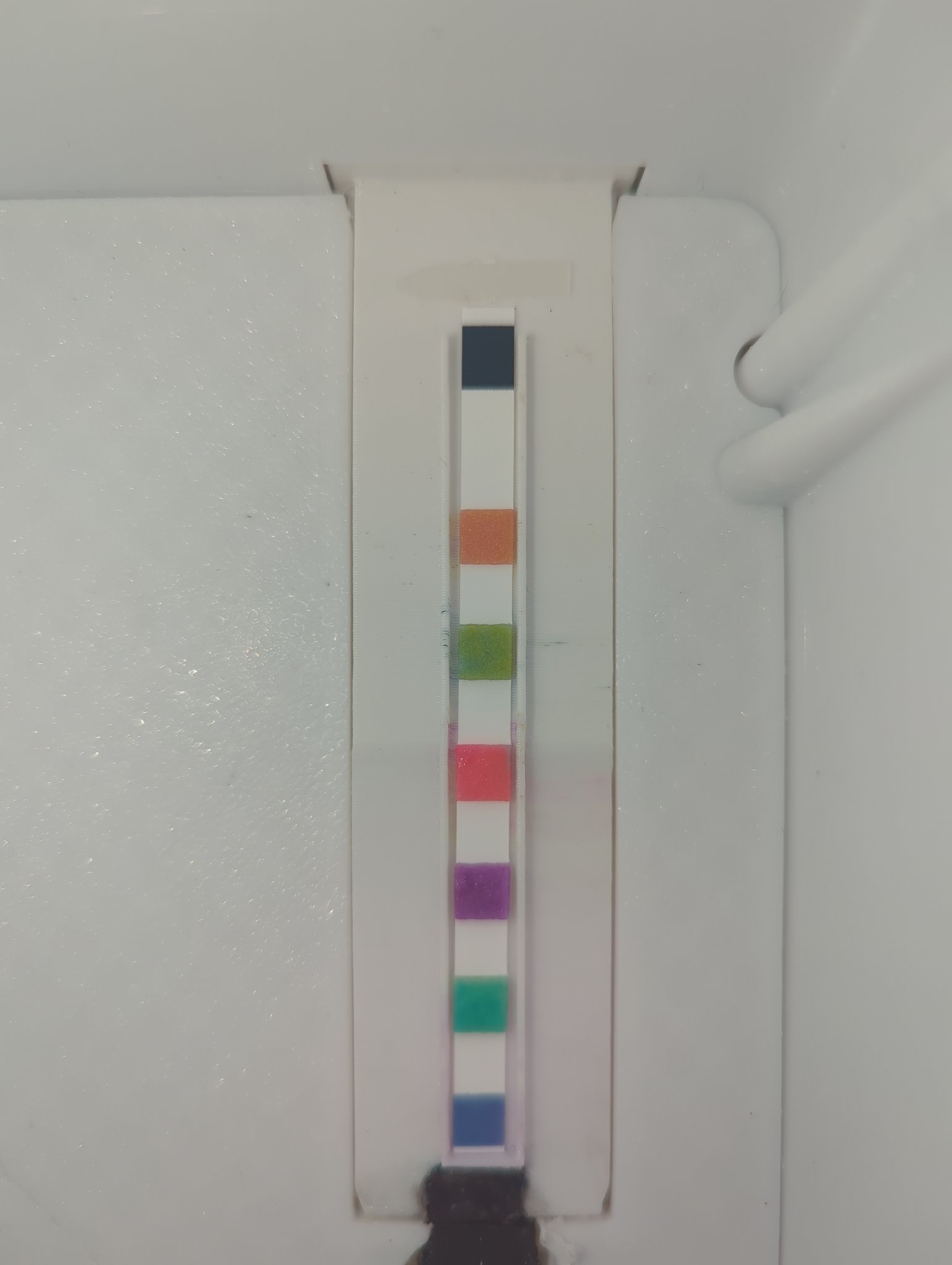

Test images Recent uploads
Configure zones

383 images available


Download original

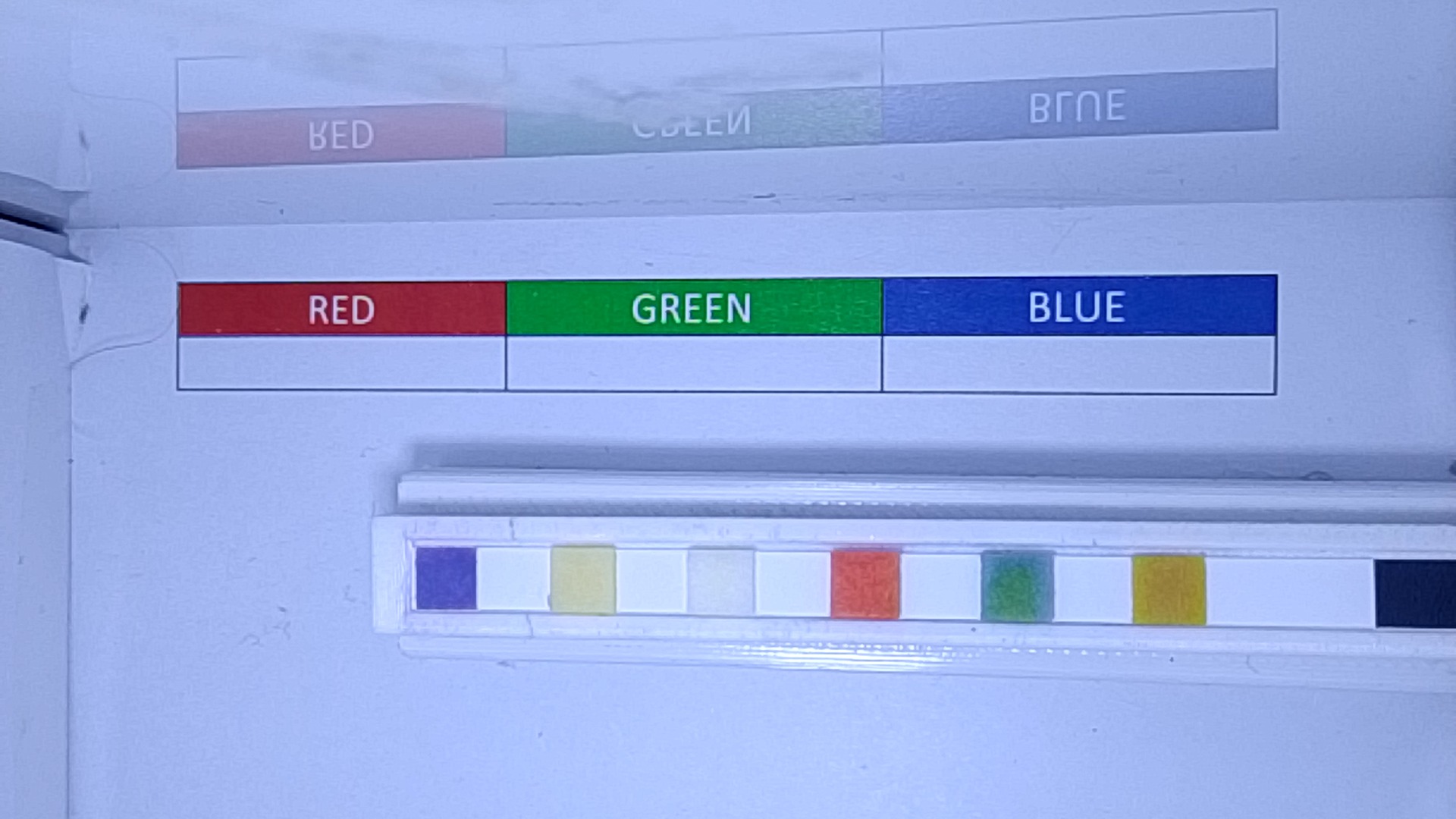

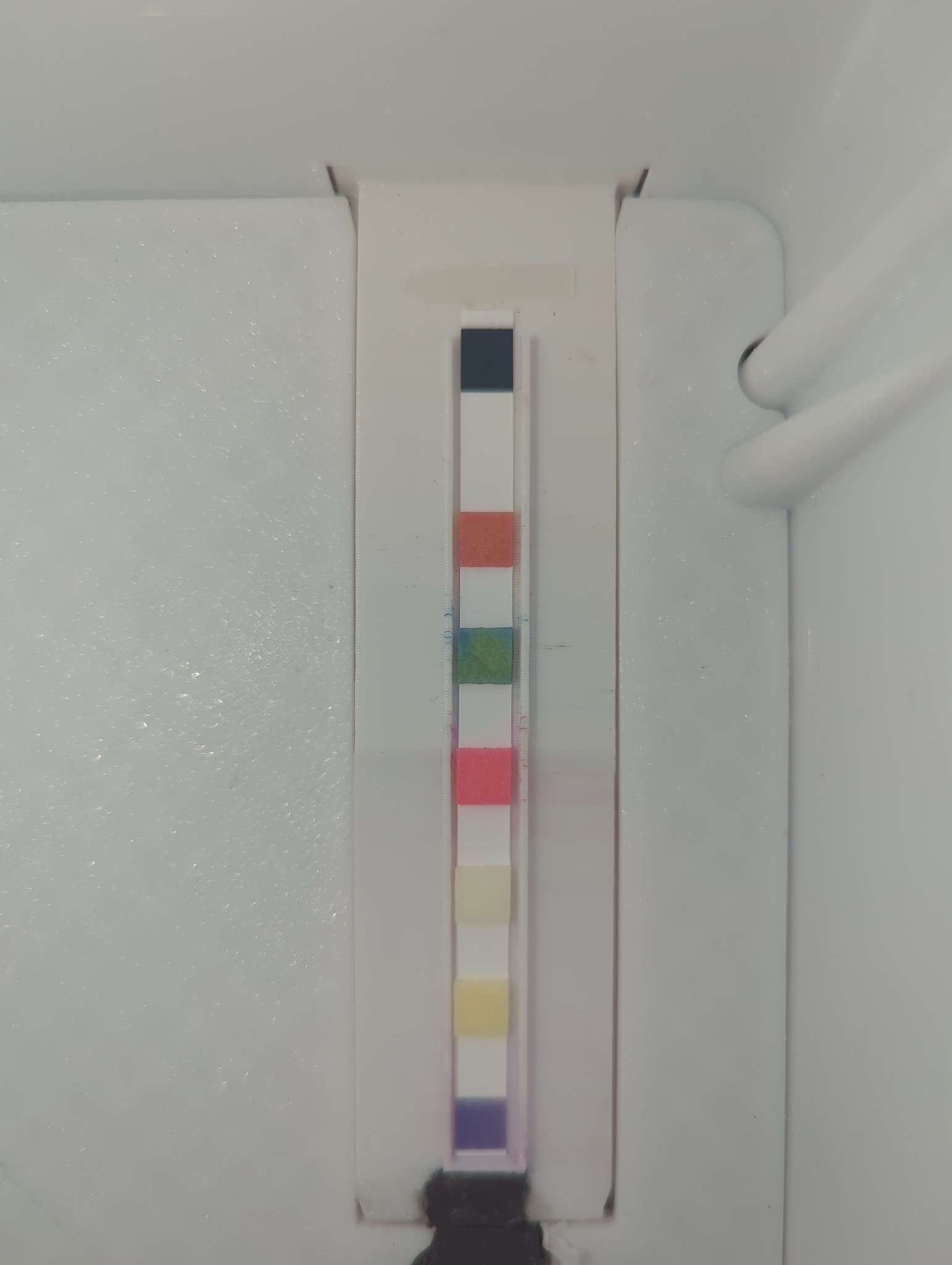

Original frame with sampling overlays for 20260121T095223_59521174138641ccbe4467e1adac52c2.jpg
Original frame + sampling zones
Rectified strip preview for 20260121T095223_59521174138641ccbe4467e1adac52c2.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #c1d4fd (194, 212, 253) (111, 60, 253) 3 ppm (26% confidence) (969, 766) → (979, 772)
Total Chlorine #c1c7b7 (193, 200, 184) (42, 21, 200) 10 ppm (47% confidence) (787, 766) → (796, 772)
pH #b95359 (185, 84, 90) (178, 140, 185) 8.4 (49% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #428096 (66, 128, 151) (98, 143, 151) 240 ppm (82% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #96823d (150, 130, 61) (23, 151, 150) 50 ppm (24% confidence) (1555, 766) → (1564, 772)
Total Hardness #5159c7 (82, 90, 200) (118, 150, 200) 250 ppm (21% confidence) (595, 766) → (604, 772)
