Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Use the results to tune the thresholds or export the raw RGB/HSV values for calibration.

← Back to capture screen

Test images Recent uploads
Configure zones

383 images available


Download original

Original frame with sampling overlays for 20251203T135930_84334d1436034670bee7f30ef178cdea.jpg
Original frame + sampling zones
Rectified strip preview for 20251203T135930_84334d1436034670bee7f30ef178cdea.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #9a9e9e (155, 158, 159) (94, 7, 159) 3 ppm (22% confidence) (969, 766) → (979, 772)
Total Chlorine #9a9388 (155, 148, 137) (18, 29, 155) 10 ppm (7% confidence) (787, 766) → (796, 772)
pH #984e1e (153, 78, 30) (12, 204, 153) 8.4 (14% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #946739 (149, 104, 58) (15, 157, 149) 120 ppm (10% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #896e1c (138, 111, 28) (23, 203, 138) 50 ppm (16% confidence) (1555, 766) → (1564, 772)
Total Hardness #48515f (73, 81, 95) (109, 60, 95) 0 ppm (15% confidence) (595, 766) → (604, 772)


Download original

Original frame with sampling overlays for 20251203T135838_1445e1f654824ab6bb6792e18597a818.jpg
Original frame + sampling zones
Rectified strip preview for 20251203T135838_1445e1f654824ab6bb6792e18597a818.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #96999a (150, 154, 155) (100, 7, 155) 3 ppm (19% confidence) (969, 766) → (979, 772)
Total Chlorine #999387 (153, 147, 135) (20, 30, 153) 10 ppm (7% confidence) (787, 766) → (796, 772)
pH #9a4e1f (154, 78, 31) (11, 203, 154) 8.4 (15% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #94673a (148, 103, 58) (15, 155, 148) 120 ppm (10% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #8e6e1b (142, 110, 27) (22, 206, 142) 50 ppm (17% confidence) (1555, 766) → (1564, 772)
Total Hardness #586371 (89, 99, 113) (107, 59, 113) 0 ppm (28% confidence) (595, 766) → (604, 772)


Download original

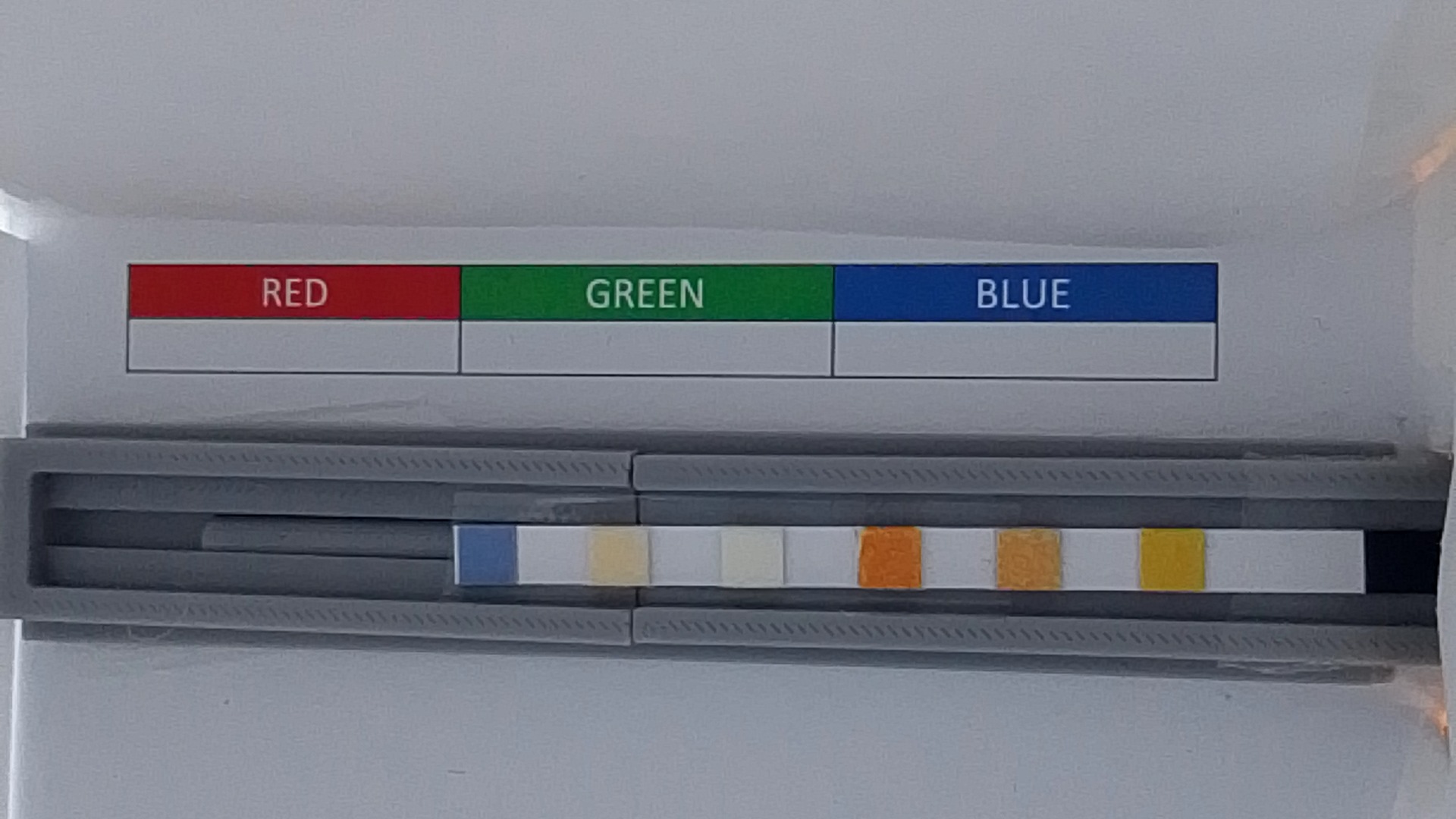

Original frame with sampling overlays for 20251203T135825_3d87baaea8c84580b9d3ab4a6801bb85.jpg
Original frame + sampling zones
Rectified strip preview for 20251203T135825_3d87baaea8c84580b9d3ab4a6801bb85.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #929699 (146, 151, 153) (100, 11, 153) 5 ppm (17% confidence) (969, 766) → (979, 772)
Total Chlorine #969184 (151, 145, 133) (21, 30, 151) 10 ppm (6% confidence) (787, 766) → (796, 772)
pH #984d1d (152, 78, 29) (12, 206, 152) 8.4 (14% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #926639 (146, 102, 58) (15, 155, 146) 120 ppm (10% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #8d6d1d (141, 109, 30) (22, 202, 141) 50 ppm (17% confidence) (1555, 766) → (1564, 772)
Total Hardness #5c6474 (93, 101, 116) (110, 55, 116) 0 ppm (30% confidence) (595, 766) → (604, 772)


Download original

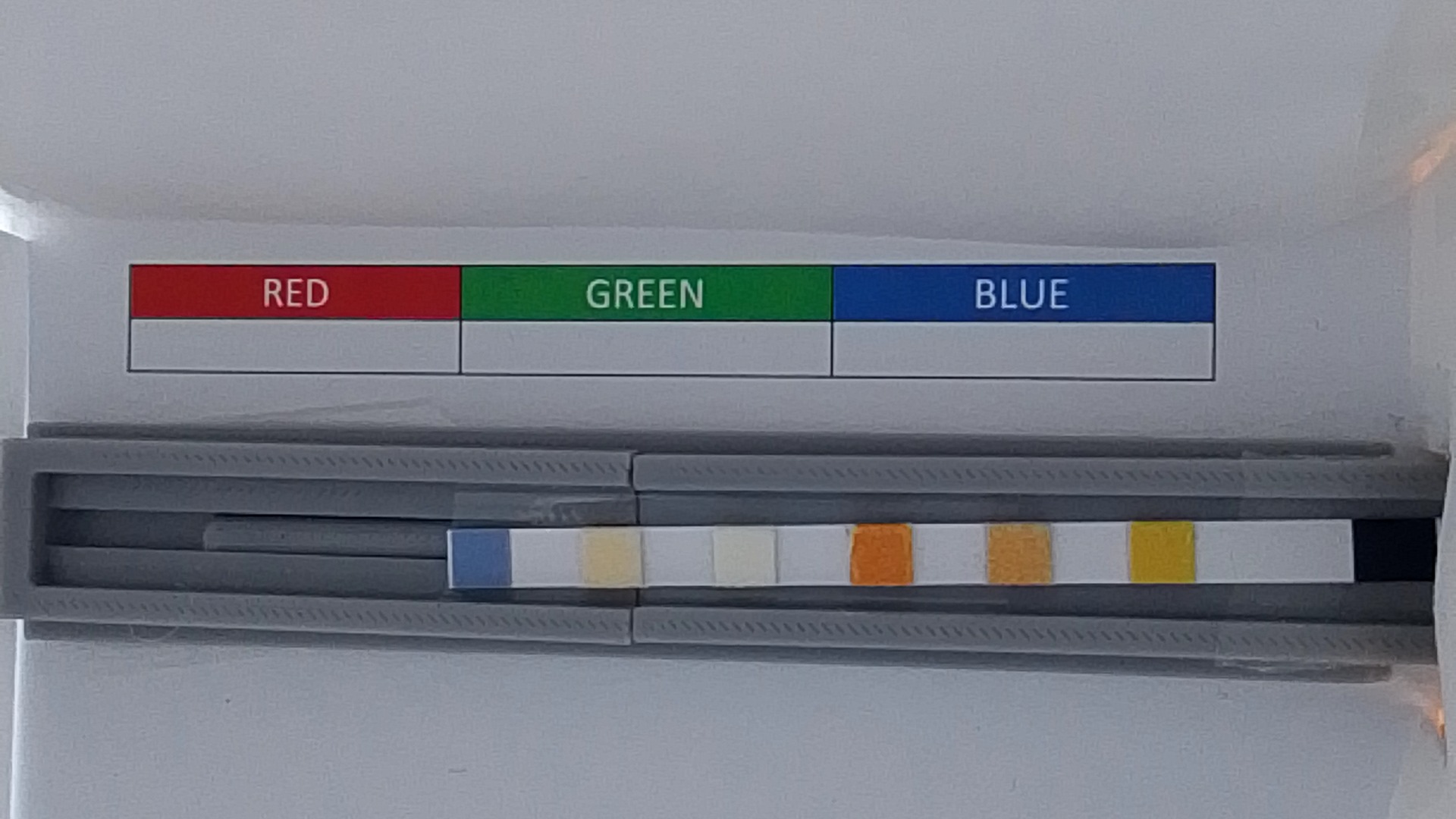

Original frame with sampling overlays for 20251203T135804_1fb0ea39595c4bfe9afe9fc7d1a69626.jpg
Original frame + sampling zones
Rectified strip preview for 20251203T135804_1fb0ea39595c4bfe9afe9fc7d1a69626.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #9b9ea1 (155, 159, 161) (102, 10, 161) 3 ppm (23% confidence) (969, 766) → (979, 772)
Total Chlorine #968f7b (150, 143, 124) (22, 44, 150) 10 ppm (6% confidence) (787, 766) → (796, 772)
pH #995427 (154, 84, 40) (12, 190, 154) 8.4 (17% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #8b705f (140, 112, 96) (53, 79, 140) 240 ppm (21% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #726444 (114, 100, 68) (60, 95, 114) 100 ppm (11% confidence) (1555, 766) → (1564, 772)
Total Hardness #48556e (73, 86, 111) (110, 88, 111) 0 ppm (22% confidence) (595, 766) → (604, 772)


Download original

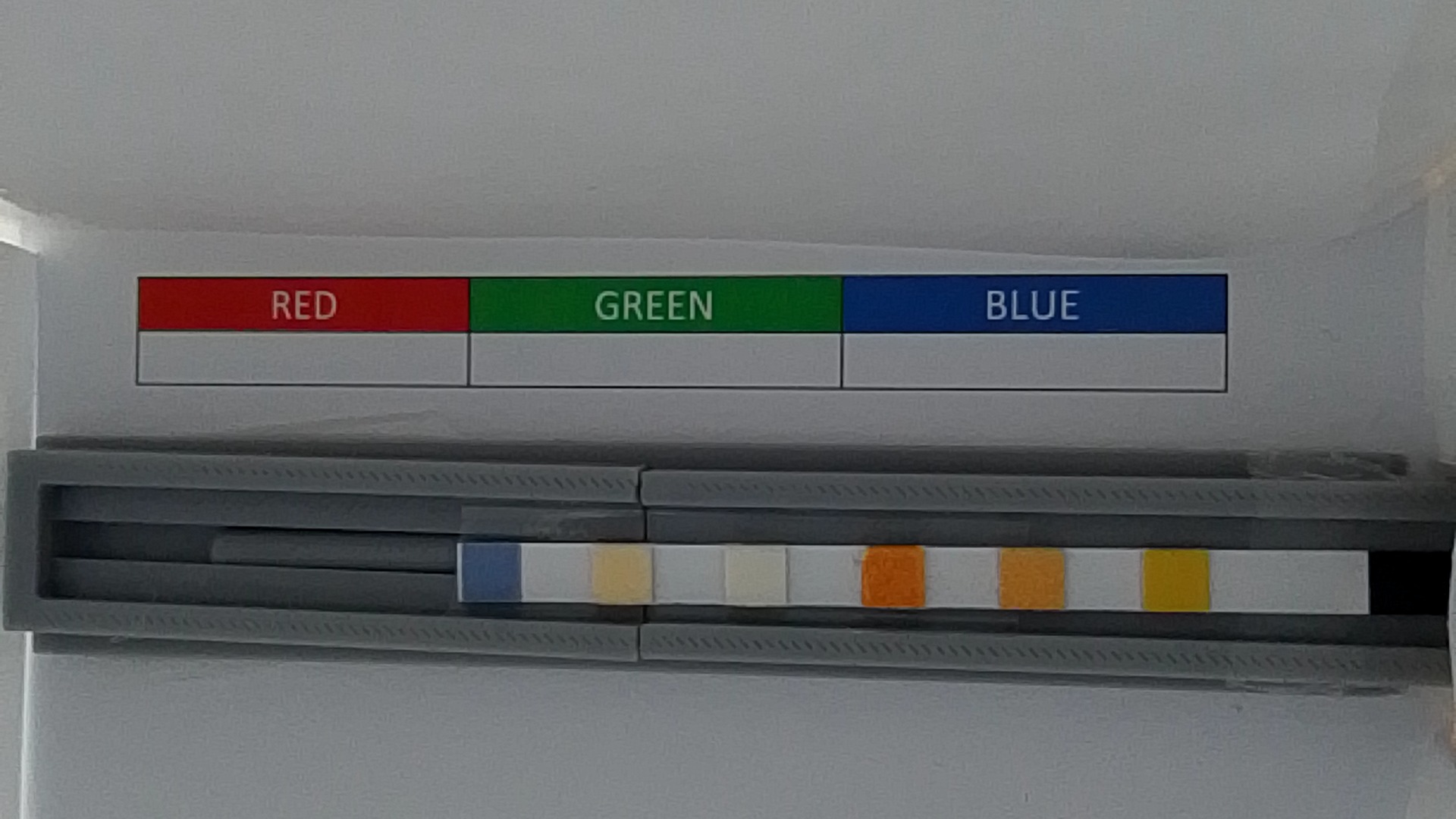

Original frame with sampling overlays for 20251203T134932_9a8d3bfd18af459987efb8efa3a9a3b1.jpg
Original frame + sampling zones
Rectified strip preview for 20251203T134932_9a8d3bfd18af459987efb8efa3a9a3b1.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #8a897d (138, 138, 126) (29, 23, 138) 5 ppm (14% confidence) (969, 766) → (979, 772)
Total Chlorine #90805e (145, 129, 94) (20, 89, 145) 10 ppm (3% confidence) (787, 766) → (796, 772)
pH #8e4109 (142, 65, 9) (13, 238, 142) 8.4 (9% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #8a571b (139, 88, 28) (16, 204, 139) 180 ppm (5% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #7c5c07 (125, 93, 8) (22, 239, 125) 50 ppm (9% confidence) (1555, 766) → (1564, 772)
Total Hardness #31363c (49, 55, 61) (105, 49, 61) 500 ppm (4% confidence) (595, 766) → (604, 772)


Download original

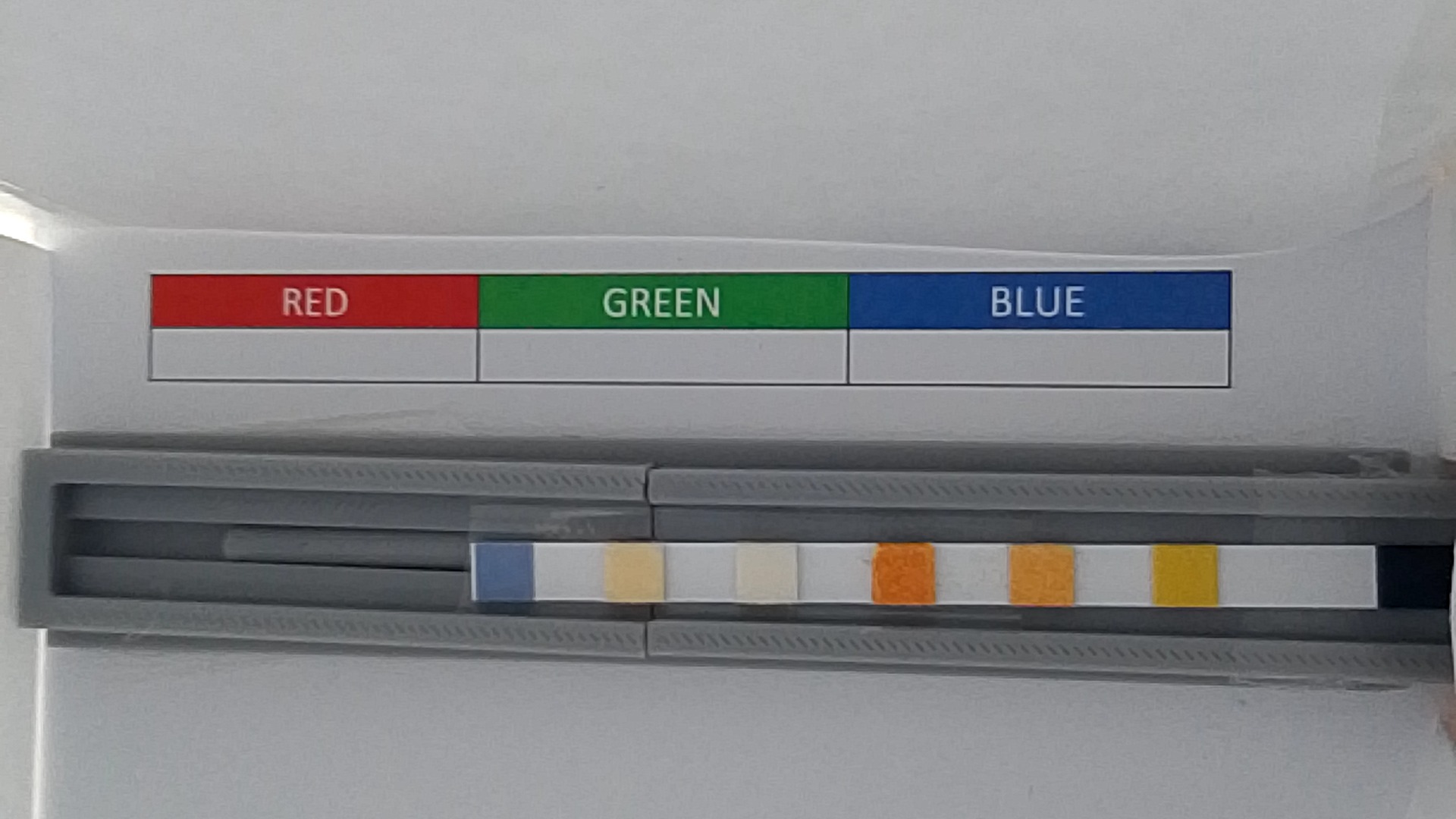

Original frame with sampling overlays for 20251203T102916_bb86d7ccc7cb44ab9b19ed2b5ddce0f8.jpg
Original frame + sampling zones
Rectified strip preview for 20251203T102916_bb86d7ccc7cb44ab9b19ed2b5ddce0f8.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #aeaaa2 (175, 170, 163) (19, 18, 175) 3 ppm (29% confidence) (969, 766) → (979, 772)
Total Chlorine #a29f9c (162, 159, 157) (15, 9, 162) 10 ppm (11% confidence) (787, 766) → (796, 772)
pH #b1662c (178, 103, 44) (13, 193, 178) 7.2 (30% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #ae732e (175, 116, 46) (16, 187, 175) 120 ppm (9% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #9b7716 (156, 120, 23) (22, 218, 156) 50 ppm (25% confidence) (1555, 766) → (1564, 772)
Total Hardness #505359 (81, 84, 89) (109, 24, 89) 0 ppm (15% confidence) (595, 766) → (604, 772)


Download original

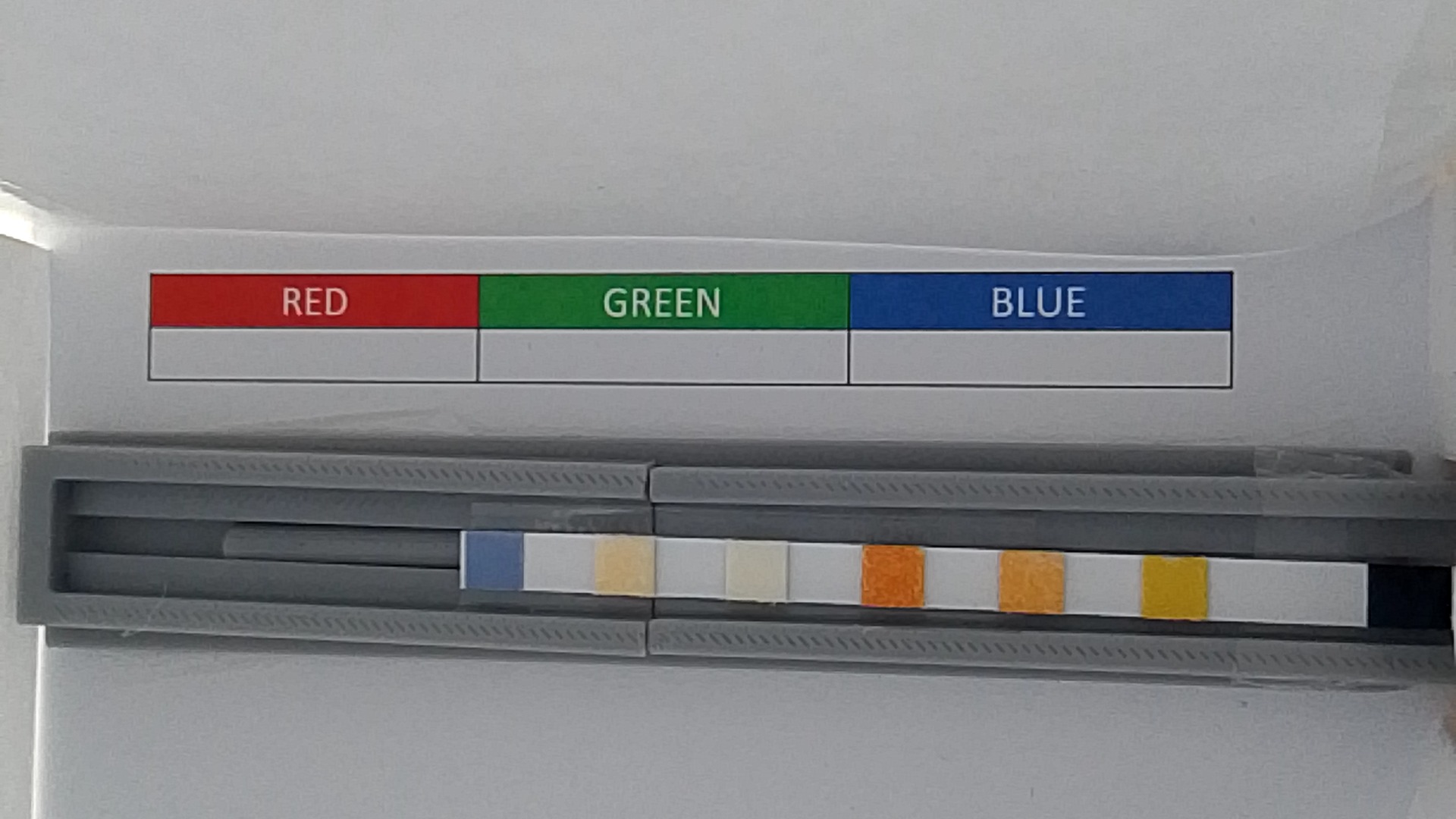

Original frame with sampling overlays for 20251203T095358_9be557c0d44e4cacb14c9cc1061ae1bb.jpg
Original frame + sampling zones
Rectified strip preview for 20251203T095358_9be557c0d44e4cacb14c9cc1061ae1bb.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #a7a397 (168, 164, 152) (23, 24, 168) 3 ppm (22% confidence) (969, 766) → (979, 772)
Total Chlorine #a8966f (169, 150, 112) (20, 87, 169) 10 ppm (8% confidence) (787, 766) → (796, 772)
pH #ab571c (172, 88, 28) (12, 213, 172) 7.2 (23% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #ae7531 (174, 117, 49) (16, 183, 174) 120 ppm (9% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #9a7615 (154, 118, 21) (22, 220, 154) 50 ppm (24% confidence) (1555, 766) → (1564, 772)
Total Hardness #4b4f53 (75, 79, 84) (106, 26, 84) 0 ppm (12% confidence) (595, 766) → (604, 772)


Download original

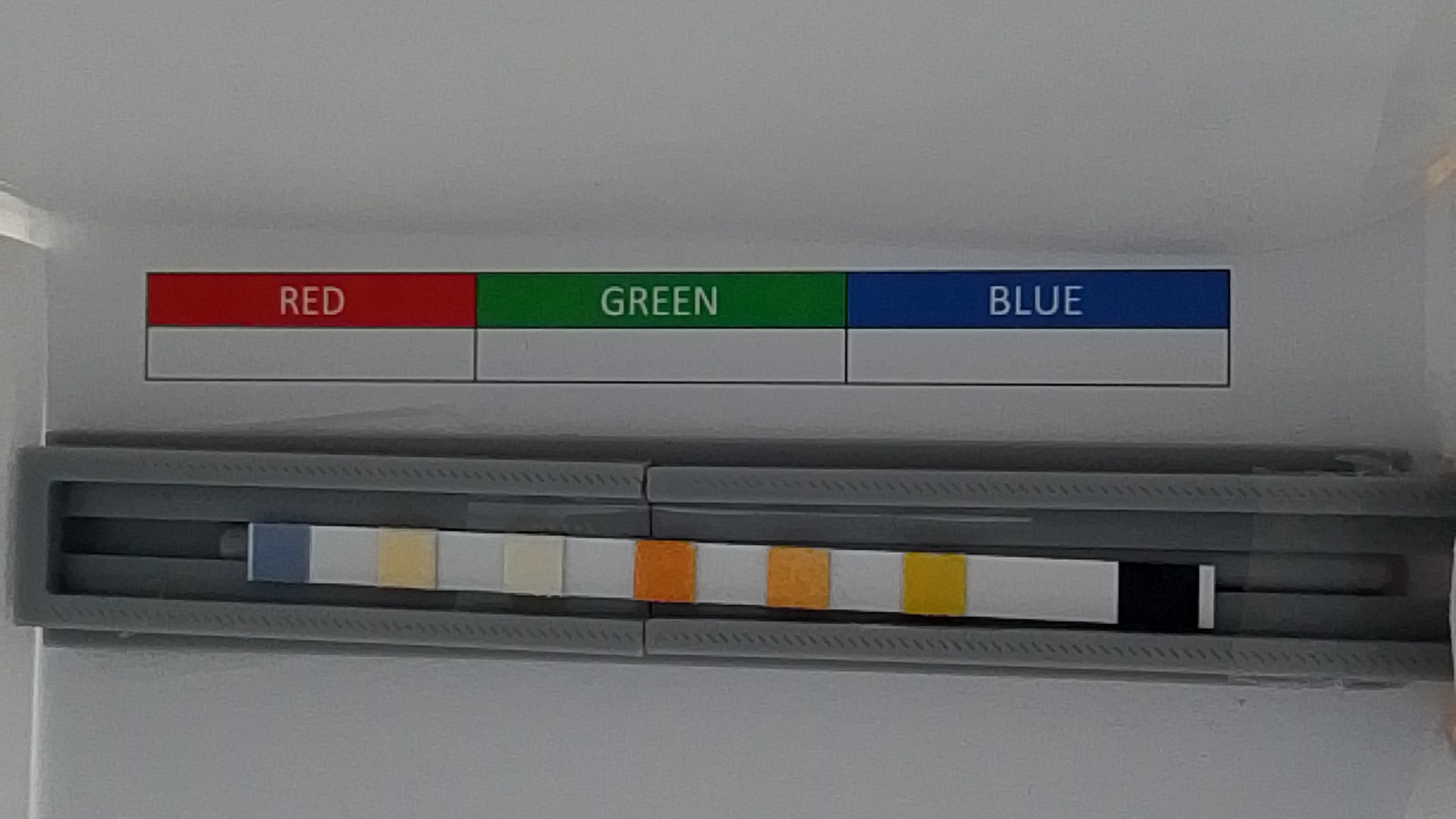

Original frame with sampling overlays for 20251203T092307_d83718de7615444196db8fb749bfca4a.jpg
Original frame + sampling zones
Rectified strip preview for 20251203T092307_d83718de7615444196db8fb749bfca4a.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #878787 (136, 136, 136) (0, 0, 136) 5 ppm (18% confidence) (969, 766) → (979, 772)
Total Chlorine #868789 (135, 136, 138) (110, 6, 138) 10 ppm (4% confidence) (787, 766) → (796, 772)
pH #888888 (137, 137, 137) (0, 0, 137) 8.4 (14% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #838584 (131, 133, 132) (75, 4, 133) 120 ppm (42% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #040509 (4, 5, 9) (114, 136, 9) 150 ppm (1% confidence) (1555, 766) → (1564, 772)
Total Hardness #7b7f7f (124, 128, 128) (90, 9, 128) 100 ppm (25% confidence) (595, 766) → (604, 772)
