Strip Analysis

Inline camera captures land under instance/uploads. This dashboard runs the computer-vision pipeline on each photo, samples every reagent pad, and estimates the nearest color on our reference chart. Use the results to tune the thresholds or export the raw RGB/HSV values for calibration.

← Back to capture screen

Test images Recent uploads
Configure zones

383 images available


Download original

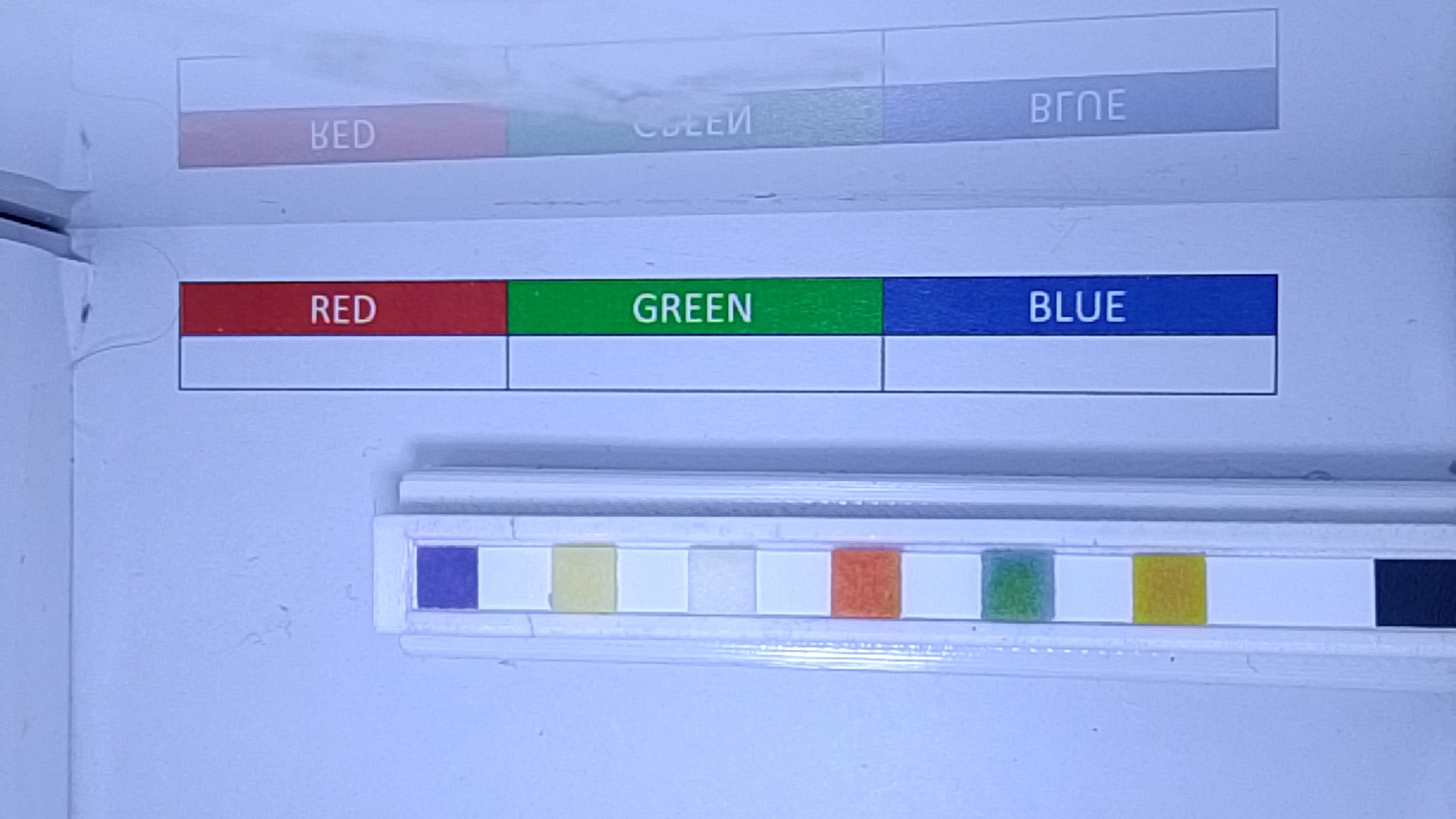

Original frame with sampling overlays for 20260121T095142_2e009c0432284b82a600fbc0013ae6e3.jpg
Original frame + sampling zones
Rectified strip preview for 20260121T095142_2e009c0432284b82a600fbc0013ae6e3.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #c1d4fe (194, 213, 254) (111, 60, 254) 3 ppm (26% confidence) (969, 766) → (979, 772)
Total Chlorine #c0c9b8 (193, 201, 185) (46, 21, 201) 10 ppm (49% confidence) (787, 766) → (796, 772)
pH #b45d56 (181, 94, 87) (2, 133, 181) 8.4 (53% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #3e7c8f (63, 125, 143) (97, 144, 143) 240 ppm (83% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #9a893d (154, 138, 62) (25, 153, 154) 50 ppm (24% confidence) (1555, 766) → (1564, 772)
Total Hardness #4e56c5 (79, 86, 198) (118, 153, 198) 250 ppm (19% confidence) (595, 766) → (604, 772)


Download original

Original frame with sampling overlays for 20260121T095137_14e4079d77214492988dac283ef0b577.jpg
Original frame + sampling zones
Rectified strip preview for 20260121T095137_14e4079d77214492988dac283ef0b577.jpg
Rectified strip (analysis plane)
Pad Swatch RGB HSV Nearest value Strip ROI (px)
Free Chlorine #c1d6fe (193, 214, 255) (110, 61, 255) 3 ppm (24% confidence) (969, 766) → (979, 772)
Total Chlorine #c0c8ba (193, 200, 186) (46, 18, 200) 10 ppm (47% confidence) (787, 766) → (796, 772)
pH #b8615a (184, 98, 90) (2, 130, 184) 8.4 (60% confidence) (1152, 766) → (1161, 772)
Total Alkalinity #3f8190 (63, 129, 145) (96, 143, 145) 240 ppm (82% confidence) (1363, 766) → (1372, 772)
Cyanuric Acid #9a8a3c (154, 138, 60) (25, 156, 154) 50 ppm (24% confidence) (1555, 766) → (1564, 772)
Total Hardness #5158ca (82, 89, 203) (118, 152, 203) 250 ppm (19% confidence) (595, 766) → (604, 772)


Download original

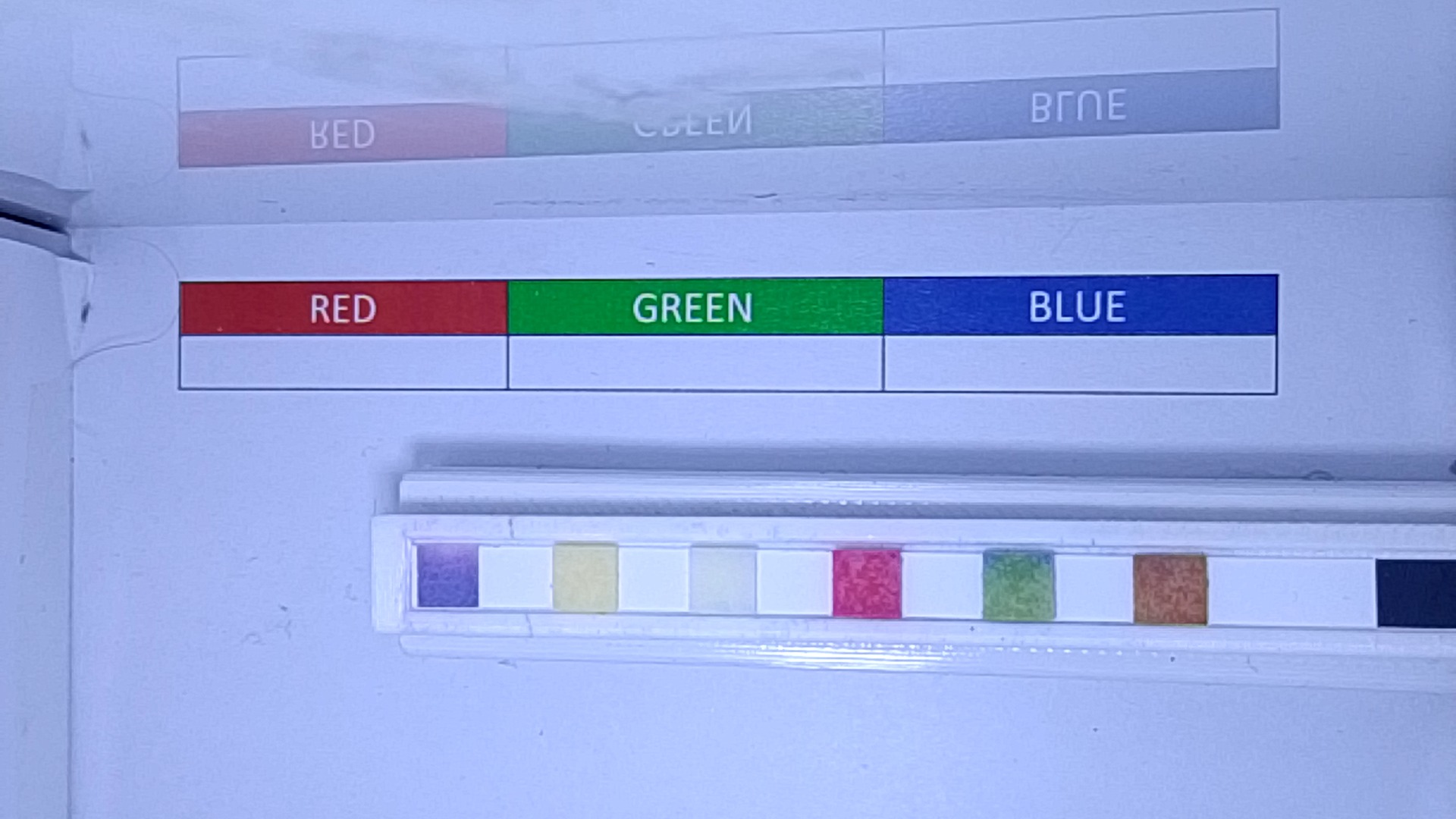

Original frame with sampling overlays for 20260121T094927_ce1dd8b0a7d04af4a748ef1d739bdf6c.jpg
